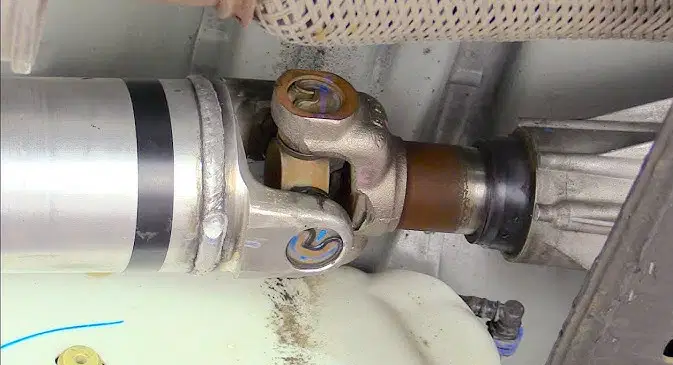

WorksheetsUniversal Joint
Total questions: 8
Worksheet time: 4mins
Name
Class
Date
1.
What is the angular range between the input shaft and the output shaft in which this mechanism will work?
a)
Only on angles that are greater than 270 degrees
b)
Only on angles that are less than 90 degrees
c)
Any angle that is less than 91 degrees, but more than 269 degree
d)
Any angle that is more than 91 degrees, but less than 269degree
2.
If the input is coming from the left side of this universal joint, what is the effect on speed?
a)
Increased
b)
Decreased
c)
Constant
3.
If the input comes from the right side of the mechanism. What is the effect on the speed of the left side?
a)
Increased
b)
Decreased
c)
Constant
4.
What the ratio of the input shaft to the output shaft?
a)
3:5
b)
5:1
c)
1:1
d)
1:5
e)
5:3
5.
Is the flow of power reversible? (Can you make the input shaft turn by turning the output shaft?)
a)
Yes
b)
No
6.
Do the input and output shaft turn the same direction?
a)
Yes
b)
No
7.
What type of motion is the Input?
a)
Rotary
b)
Linear
c)
Reciprocating
d)
Oscillating
8.
What type of motion is the Output?
a)
Rotary
b)
Linear
c)
Reciprocating
d)
Oscillating
