BT 1 2025 Quiz No. 1

Total questions: 25

Worksheet time: 13mins

Name
Class
Date
1.

TRUE OR FALSE: Since the beginning of human history, construction materials and methods have been a key factor in the development of human dwellings.

a)

True

b)

False

2.

A physical property of wood, defined as the increase in diameter by the formation, between the existing wood and the inner bark, of new woody layers which envelop the entire stem, living branches, and roots.

a)

Heartwood

b)

Sapwood

c)

Growth Rings

d)

Knots

3.

With the first settlements appearing in the middle east, the first construction materials were likely to have

been _________.

a)

facial clay bricks

b)

sunbaked clay bricks

c)

kiln dried clay bricks

d)

ovenbaked clay bricks

4.

______ are still one of the world’s most common construction materials.

a)

Stone

b)

Concrete

c)

Bricks

d)

Wood

5.

This material covered the original pyramids of Giza in Egypt.

a)

Limestone White Tiles

b)

Limestone White Granite

c)

Limestone White Marble

d)

Limestone White Cladding

6.

TRUE OR FALSE: Eden Project and the Beijing National Aquatics Center are examples of the use of ETFE in Architecture.

a)

True

b)

False

7.

Hardiflex Boards are also called as?

a)

MDF

b)

CLT

c)

Gypsum

d)

Fiber Cement

8.

Standard size of Plywood in the PH.

a)

4'x8'

b)

4 mts. x 8 mts.

c)

4"x8"

d)

4 cm x 8 cm

9.

This Architect exhibited the use of Reinforced Concrete in his design through the Kagawa Prefectural Gymnasium.

a)

Oscar Niemeyer

b)

Le Corbusier

c)

Louis Kahn

d)

Kenzo Tange

10.

TRUE OR FALSE: The use of asbestos as a material has dwindled, since it was shown to cause a range of health problems; it is now outlawed in many countries.

a)

True

b)

False

11.

Glass made their first appearance in?

a)

Greece

b)

Mesopotamia

c)

Egypt

d)

Catal Huyuk

12.

CLT is short for?

a)

Cheese, Lettuce, Tomatoes

b)

Cement-laminated timber

c)

Cross-laminated timber

d)

Chalk-laminated timber

13.

1 board foot of wood is equal to thickness x width x length divided by?

a)

6

b)

9

c)

3

d)

12

14.

Lumber can be cut in:

a)

Rift Sawn

b)

Quarter Sawn

c)

Plain sawn

d)

All of the above

15.

This famous structure was constructed in concrete and remains the worlds largest unreinforced concrete dome.

a)

Parthenon

b)

Pantheon

c)

Pantelic

d)

Pantaleon

16.

During the Chinese Period, the chinese used ______ to restore the great wall of china.

a)

Limestone Mortar

b)

Concrete Mortar

c)

Granite Mortar

17.

The image shown is a?

a)

Mortise and Tenon

b)

Dovetail Joint

c)

Miter with Wood Spline

d)

Tongue and Groove

18.

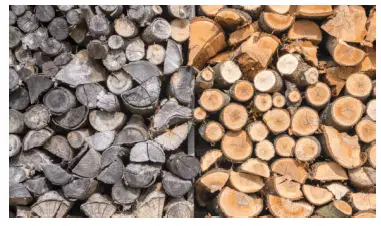

In the image shown, which one is green lumber?

a)

Right

b)

Left

19.

The ____ century saw a huge boom in the discovery and production of various plastics.

a)

19th

b)

20th

c)

18th

d)

21st

20.

What does ETFE mean?

a)

ETHYLENE TRYAFLUOROETHYLENE

b)

ETHYLENE TETRAFLUOROETHYLENE

c)

ETHYL TETRAFLUOETHYLENE

d)

ETHYL TRYAFLUOROETHYLENE

21.

In the Philippines, the Mactan-Cebu International Airport uses __________ as its main structuralcomponent.

a)

Ordinary Timber

b)

Veneered Timber

c)

Glue Laminated Timber

d)

Film Timber

22.

They are due to accumulations of resin in openings between adjacent layers of growth.

a)

Shakes

b)

Pitch Pockets

c)

Checks

d)

Wood Decay

23.

A warp that happens along the edge of a board.

a)

Bow

b)

Cup

c)

Twist

d)

Crook

24.

TRUE OR FALSE: Float glass is made by floating molten glass on a bath of molten tin.

a)

False

b)

True

25.

This architectural style exhibits the display of concrete materials in its design, one of which is concrete.

a)

Brutalist Architecture

b)

Post-Modern Architecture

c)

International Style

d)

High Tech Architecture
