WorksheetsMaterial Identification
Total questions: 10
Worksheet time: 5mins
What material is this rule made from?
High Speed Steel
Aluminium
Stainless Steel
Iron
What is the correct name for this tool?
Dividers
Odd Leg Callipers
Vernier Callipers
Outside Callipers
A Centre Punch
What is the correct name for this tool?
A Try Square
An Engineers Square
A Set Square
A Centre Square
What is the correct name for this tool?
Vernier Callipers
A Scriber
Spring Dividers
Outside Callipers
An Engineers Square
Which tool should be used to draw a line parallel to an edge?
A Rule
An Engineers Square
Spring Dividers
Odd Leg Callipers
A Centre Punch is made from?
Brass
High Carbon Steel
Lead
Steel
Cast Iron
Which tool should be used to draw a line at right angles to an edge?
A Rule
An Engineers Square
Spring Dividers
Odd Leg Callipers

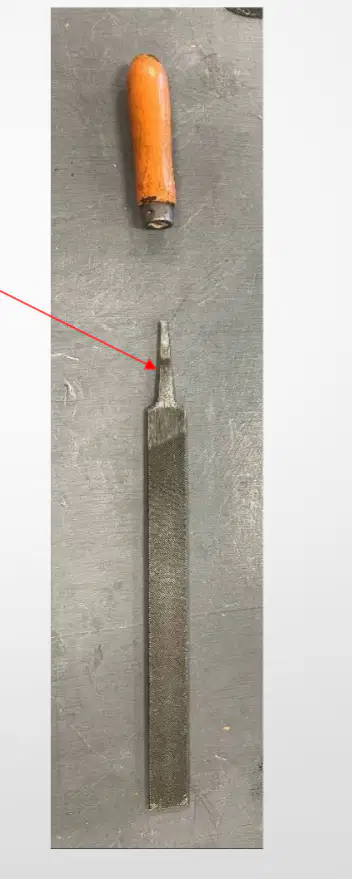

This part of a file is called?
Spike
Handle
Ferrule
Tang
What is the correct name for this tool?
Cross Pein Hammer
Planishing Hammer
Sledge Hammer
Repousse Hammer
Ball Pein Hammer

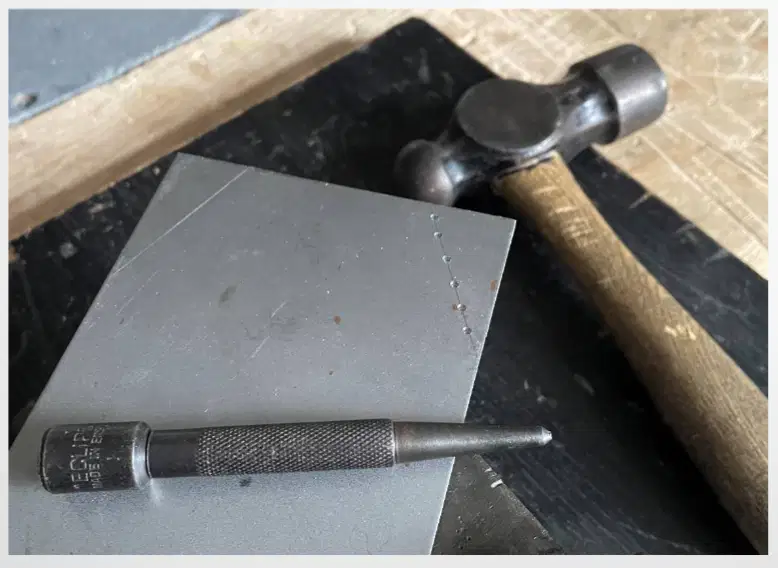

What is the correct name for the process being demonstrated here?
Applying witness marks to a scribed line
Applying punch marks to a scribed line
Applying dots to a scribed line
Applying sight marks to a scribed line
