WorksheetsVex Parts
Total questions: 25
Worksheet time: 13mins
What is this?
Hole steel plate
C-Channel
Angle Plate
Bar Rail
What is this?
Hole steel plate
C-Channel
Angle Plate
Bar Rail
What is this?
Hole steel plate
C-Channel
Angle Plate
Bar Rail
What is this?
Hole steel plate
C-Channel
Angle Plate
Bar Rail
What do the numbers represent?
The length of the screws
The width of the screws
The type of screw head
The numbers don't make sense...???
What is this?
KEPS nut
Nylock nut
Regular nut
Low Profile nut
What is this?
KEPS nut
Nylock nut
Regular nut
Low Profile nut
What is this?
KEPS nut
Nylock nut
Low profile nut
Locking nut
This nut is special because it has a ring of teeth on one side of them to grip the piece they are installed onto.
KEPS nut
Nylock nut
Regular nut
Low Profile nut
This nut is special because it has a plastic insert that prevents it from unscrewing.
KEPS nut
Nylock nut
Regular nut
Locking nut
This nut has no locking feature. You use a wrench to install and it can loosen over time.
KEPS nut
Nylock nut
Low Profile nut
Locking nut
What is this tool?
Star Drive Key(Hex Wrench)
Wrench
Torsion Wrench
What is this tool?
Hex Key
Open-end Wrench
Hex driver
Prying wrench
What is this tool?
Hex Key
Wrench
Hex driver
Screw driver
What is this?
Bearing flat
15 x 5 steel plate
Drive shaft
Shaft collar
What is this?
Bearing flat
Hex Nut Retainer
Plastic Connector
Rubber Stopper
What is this?
Bearing flat
Roll bar
Drive shaft
Shaft collar
What is this?
Bearing flat
Washer
Drive shaft
Shaft collar
What is this?
Bearing flat
15 x 5 steel plate
Drive shaft
Shaft collar
What is this?
Standoff
8-32 screws
Hex keys and wrench
Gears

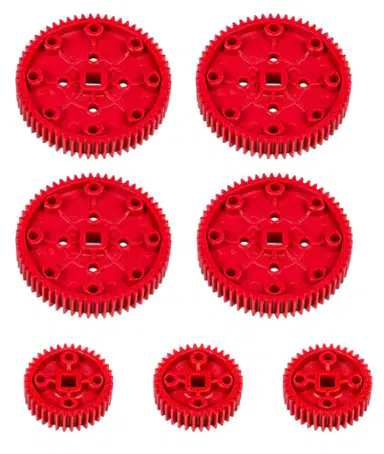

What is this?
Motor Pulleys
Normal Gears
High Strength Gears
Cranks
What is this?
Motor Pulleys
Normal Gears
High Strength Gears
Cranks
What is this?
Balloon Wheel
Omni-Directional Wheel
Traction Wheel
Roller Wheel
What is this?
Balloon Wheel
Omni-Directional Wheel
Traction Wheel
Roller Wheel
What is this?
Balloon Wheel
Omni-Directional Wheel
Traction Wheel
Roller Wheel
