What are rivets ideal for?
Joining wood structures
Joining aluminum sheets and structures
Joining plastic materials
Joining steel beams

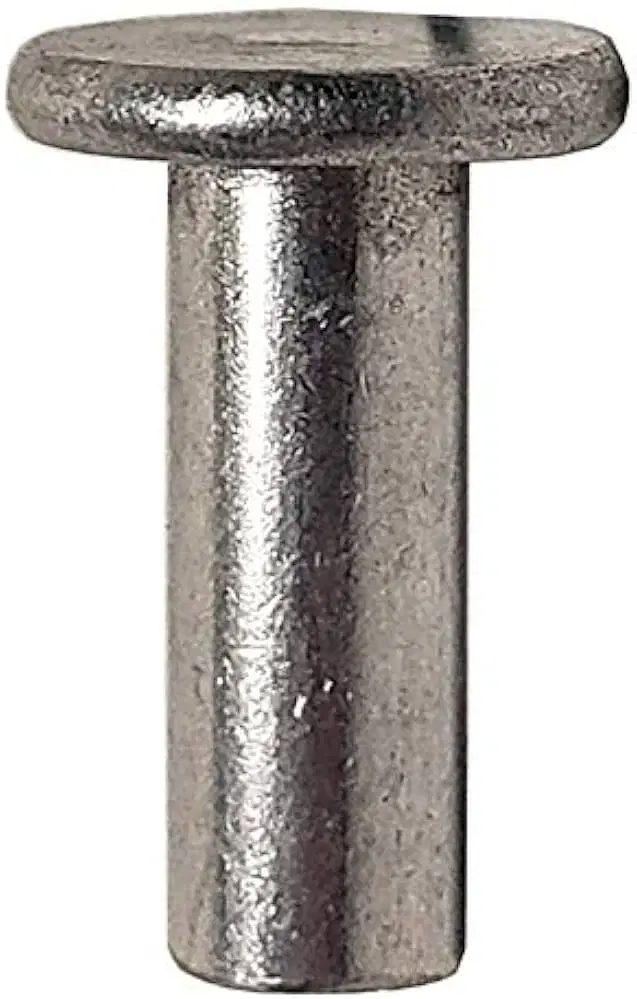

A solid shank rivet is a metal pin with a ______ on one side.
formed head
flat end
pointed tip
grooved surface
Solid shank rivets create a union at least as strong as the material being ______.
joined
welded
glued
epoxy bonded
What is the oldest mechanical fastener used to fasten metal together? (TQ)
Bolts
Screws
Rivets
Nails
Why are rivets a perfect choice for aircraft structure?
They are expensive
They swell to fill a hole and create a tight joint
They are lightweight
They are easy to remove
Fill in the blank: AN470 or MS20470 are types of ________ head rivets.
Universal
Flat
Round
Countersunk
Fill in the blank: AN426 or MS20426 are types of ________ rivets.
Countersunk
Blind
Pop
Solid
Rivets are designed for shear loads and have ________ bearing strength.
low
high
moderate
excellent
What is the name of the rivet with a countersunk head?
A) AN426
B) AN470
C) AN360
D) AN480
The AN470 rivet is known as the _______ Head.
Universal
Flat
Round
Countersunk
What are the angles shown in the diagram for the rivet head?
A) 90° and 120°
B) 100° and 130°
C) 110° and 140°
D) 120° and 150°
What is the role of rivets in the diagram related to bearing stress?
To pull the sheets apart
To press the top sheet against the bottom bearing
To create a gap between the sheets
To reduce the bearing stress

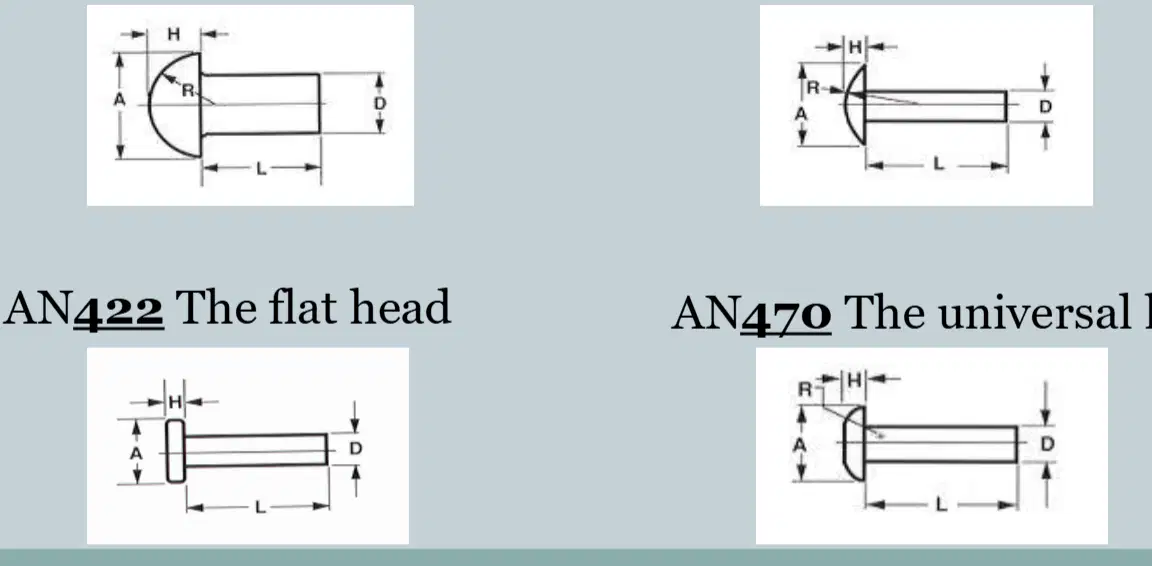

What is the design of the AN430 rivet head?
The round head
The brazier head
The flat head
The universal head
What is the design of the AN455 rivet head?
The round head
The brazier head
The flat head
The universal head
What is the design of the AN422 rivet head?
The round head
The brazier head
The flat head
The universal head
Fill in the blank: The NAS1097 rivet is known as the ______ head in common rivet head designs.
shear
flat
round
countersunk
What is the most common type of rivet head used?
Plain Head
Dimple Head
Raised Cross Head
Raised Dot Head

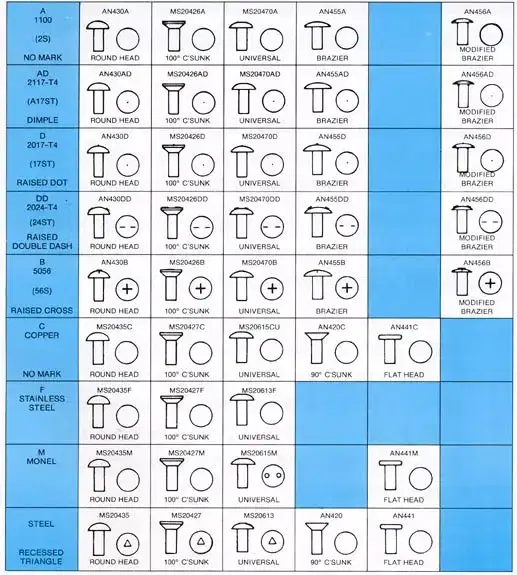

Fill in the blank: The head marking on a rivet made of 1100 alloy is _______.
Plain or no mark
Striped
Dotted
Crossed
What is the head marking on a rivet with code letter D?
Raised Cross
Plain
Raised Teat
Indented Dimple
Fill in the blank: The material or alloy with code letters DD has a head marking of _______.
Raised Double Dash
Single Dash
Triple Dot
Circle
What is the material or alloy for a rivet with an indented dimple head marking?
5056-H32
1100
2024-T4
2117-T4

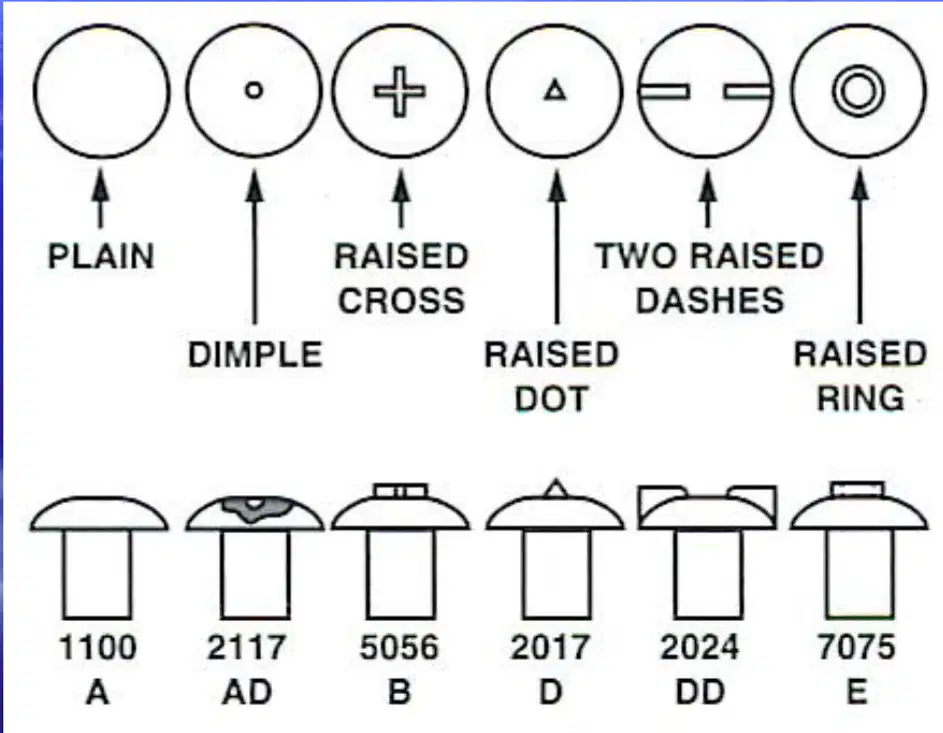

What does the symbol with a plain circle represent?
Dimple
Raised Cross
Plain
Raised Dot
What does the symbol with a dimple represent?
A) Cherymax
B) A178T
C) Copper
D) Monel
What does the symbol with a raised cross represent?
Composite
Plain
B 5056
steel
What does the symbol with a raised dot represent?
Raised Dot
Raised Ring
Dimple
Plain
What does the symbol with two raised dashes represent?
A) Raised Cross
B) 2024-T4
C) Raised Ring
D) 7075T-7
What is the standard designating letter code for the 1100 Rivet?
B
A
C
D
What type of head does the 1100 Rivet have?
Marked head
Plain head with no markings
Textured head
Colored head
The 1100 Rivet is not an alloy and is made from pure _________.
aluminum
steel
copper
iron
Is the 1100 Rivet ready to install as received?
Yes
No
The 1100 Rivet has the lowest shear strength of aviation rivets and is considered for ________ applications only.
non-structural
structural
high-load
critical
How are the 2117T3 rivet heads marked?
By a dimple
By a line
By a cross
By a circle
The 2117T3 Rivet is heat treated by the manufacturer and no further heat treatment is needed.
True
False
What is the standard designating letter for the 2017T31 Rivet?
A
B
C
D
How are the heads of 2017T31 Rivets marked?
With a raised dot
With a line
With a cross
With a circle
What are the standard designating letters for the 2024T31 Rivet?
AA
BB
CC
DD
What treatment do 2024T31 Rivets require before installing?
Cooling
Painting
Heat treatment
No treatment
What is a characteristic of 'Ice Box' Rivets?
They are very soft.
They are very hard and susceptible to cracking when bucked.
They do not require heat treatment.
They do not age harden.
The main alloying agent in 5056H32 Rivets is _______.
magnesium
aluminum
copper
zinc
Due to dissimilar metal corrosion, 5056H32 Rivets should only be used to attach _______ alloyed sheets or components.
magnesium
aluminum
steel
copper
What are rivets ideal for?
Joining aluminum sheets and structures
Joining plastic sheets and structures
Joining wooden sheets and structures
Joining glass sheets and structures
What is an example of a situation where protruding head rivets might be used?
On scab patches
On aerodynamic surfaces
On components with interference
On flush surfaces
What do the marks on the rivet head indicate?
Size and length
Alloy and temper
Manufacturer and date
Weight and density
What is the marking for the rivet number 2117?
A
AD
B
DD
What does PPE stand for in the context of workplace safety?
Personal Protection Equipment
Public Protection Equipment
Personal Protective Equipment
Public Protective Equipment
What is the primary purpose of using countersunk rivets?
To reduce aerodynamic drag
To increase the strength of the joint
To make the joint more flexible
To simplify the installation process
What is the main advantage of using blind rivets?
They are cheaper
They can be installed from one side
They are stronger
They are more durable
This part of an aircraft is called the ______.
wings
flaps
Tail wheel
A ruler is used for measuring short distances.
True
False
A measuring tape is used to measure long distances.
True
False
Choose the correct option
Hammer
Bench vice
Pencil
Metal ruler
What tool is being used to cut sheet metal?
Pliers
Clamp
Jigsaw
Tinsnips
Choose the correct option
Steel tipped compass
Drill
Punch
Bar clamp
All of the following tools are used to make holes except...
Drill
Hole saw
Clamp
Punch
(8118) - Clad aluminum alloys are used in aircraft because they
are naturally corrosion resistant, so they do not require corrosion resistant materials for
protection.
have surface layers of pure aluminum or aluminum alloy bonded to the core material to
inhibit corrosion.
are highly corrosion resistant because an oxide film forms on their surfaces upon contact with
air.
(8121)-A factor which determines the minimum space between rivets is the
length of the rivets being used.
diameter of the rivets being used.
thickness of the material being riveted.
(8123)-Parts fabricated from Alclad 2024-T3 aluminum sheet stock must have all
bends made with a small radius to develop maximum strength.
bends 90° to the grain.
scratches, kinks, tool marks, nicks, etc., must be held to a minimum.
The dimensions of an MS20430AD-4-8 rivet are
1/8 inch in diameter and 1/4 inch long.
1/8 inch in diameter and 1/2 inch long.
4/16 inch in diameter and 8/32 inch long.
(8141)-Most rivets used in aircraft construction have
dimples
smooth heads without markings
a raised dot
(8149) - When riveting dissimilar metals together, what precautions must be taken to prevent
an electrolytic action?
Treat the surfaces to be riveted together with a process called anodic treatment.
Place a protective separator between areas of potential electrical difference.
Avoid the use of dissimilar metals by redesigning the unit according to the recommendations
outlined in AC 43.13-1A.
(8127) Rivet pitch is the distance between the
centers of rivets in adjacent rows
centers of adjacent rivets in the same row
heads of rivets in the same row
(8151) - What is generally the best procedure to use when removing a solid shank rivet?
Drill through the manufactured head and shank with a shank size drill and remove the rivet
with a punch.
Drill to the base of the manufactured rivet head with a drill one size smaller than the rivet
shank and remove the rivet with a punch.
Drill through the manufactured head and shank with a drill one size smaller than the rivet and
remove the rivet with a punch.
What size cleco is this ?
1/8
3/32
5/32
3/16
What kind of a patch is this called
Scab or external doubler
Flush patch
What size cleco is this ?
#30
#40
#21
#10
What size cleco is the black one
#21 or 5/32
3/16 or #10
1/8 or # 30
3/32 or #40
What size cleco is the silver one
#10
#30
#21
#40
