WorksheetsRigging week 3 Quiz
Total questions: 18
Worksheet time: 9mins
The basket position is about twice as strong as the ___________________ position
Vertical
Choke
Half Hitched
Eye to Eye

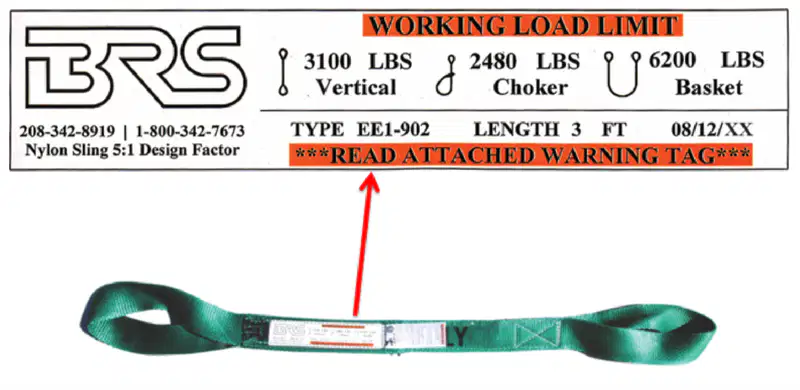

What does the EE in EE1-902 on a sling tag stand for?
Eye and End
Eye and Edge
Eye and Eye
End to End
Which of these would have the least amount of sling tension?
Figure B
Figure C
All of the above
Figure A

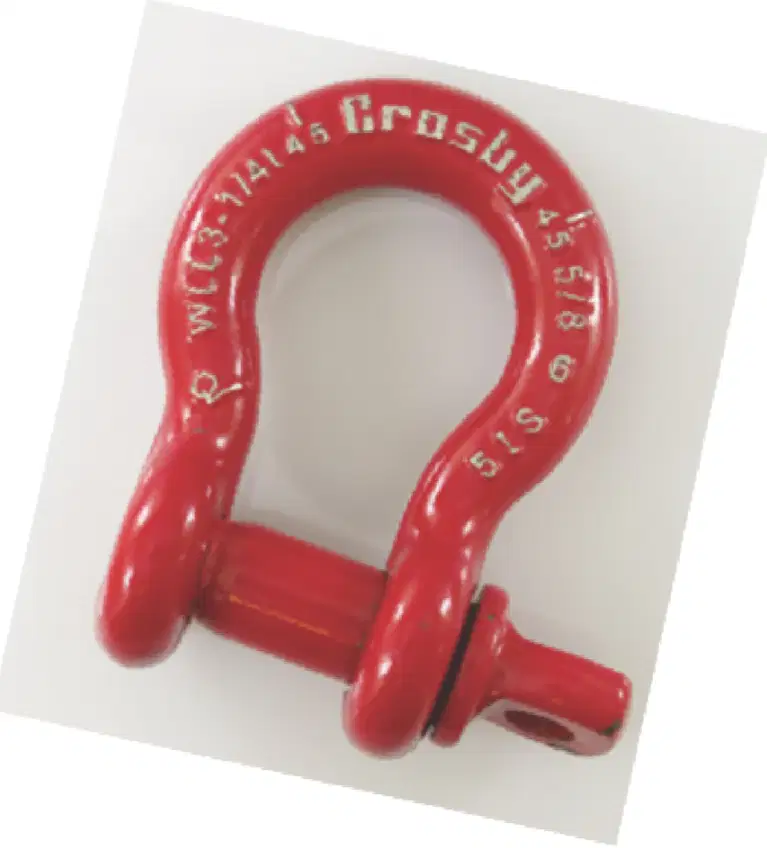

What end should the sling eye be against when rigging a choker with a shackle?
This is the wrong type of shackle
The Body
The Pin
The Sides
What sling configuration is used to set poles?
Basket
Choke
Vertical
None of the above
What might we use to get a truck level on uneven ground?
Nothing, send it
Cribbing
Another Truck
A water can
What is the purpose of a pre-trip inspection?
To check fluid levels & Cracked welds, missing steps and railings
To look for burned out bulbs such as: clearance, warning and brake lights
Brake and tire wear
Loose fittings such as: bolts & lug nut, cut winch lines, and bent or broken body parts
All of the above

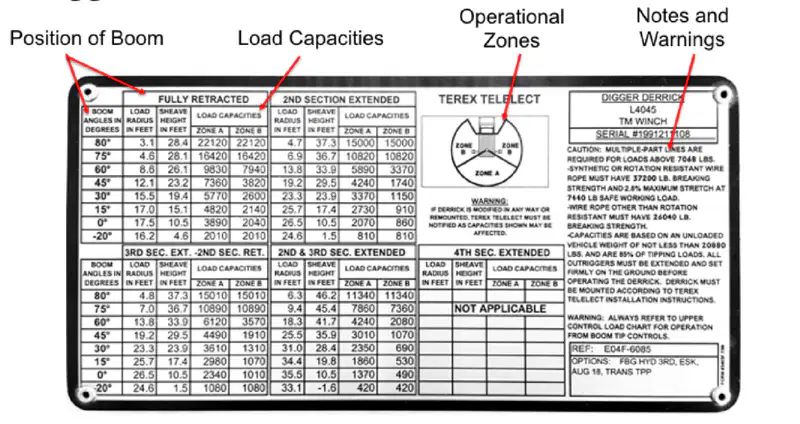

Always refer to the ________________ before lifting any load?
Manufacturers Specs
OSHA Manual
Load angle chart
Your Spotter
As sling angles decrease, the sling tension _______________________.
Decrease
Increase
Have no effect
All of the above
Sling length = 10 inches and sling height = 10 inches.
What is the sling tension?
525
225
500
250
Sling length = 10 inches and sling height = 8 inches
315 lbs
200 lbs
237.75 lbs
312.50 lbs
Sling length = 9 inches and sling height = 6 inches
1125 lbs
1175 lbs
500 lbs
2250 lbs
What is the sling tension?
8736 lbs
4368 lbs
364 lbs
758.33 lbs
. Sling length = 3 foot and sling height = 10 inches
5400 lbs
450 lbs
225 lbs
2700 lbs
Which sling configuration has the highest rating?
Vertical
Choker
Basket

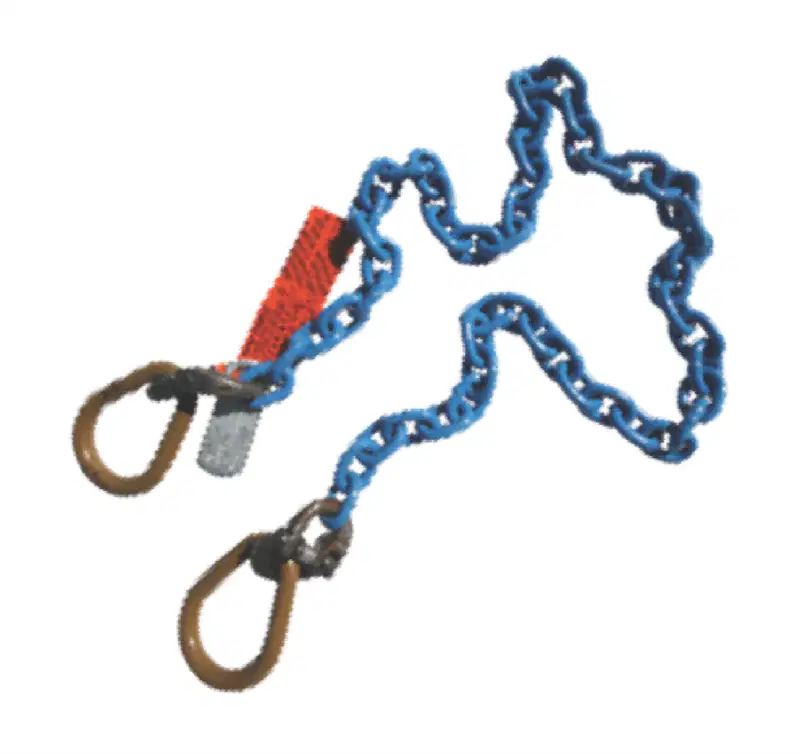

What type of sling is representing this image?
EN-(Endless)
EE-(Flat Eye an Eye)
RE-(Reverse Eye)
TC-(Triangle Choker)
Which type of sling is a better choice when working in energized conditions
Manilla Rope Sling
Synthetic
Chain
Wire
Which of the following is a true statement about chain slings care and use?
Remove mud and other material from the chain
before storing.
Inspect link-by-link for corrosion, cracks, link
stretch, deformation, and elongation
All of the above
Apply a light coating of oil to prevent rusting of
stored chains
