WorksheetsClutch assembly understanding
Total questions: 19
Worksheet time: 10mins
What component is this:
Fork
Spoon
Butter Knife
Plate
What component is this:
Pilot/release Bearing
Input Shaft
Output Shaft
Wheel Bearing

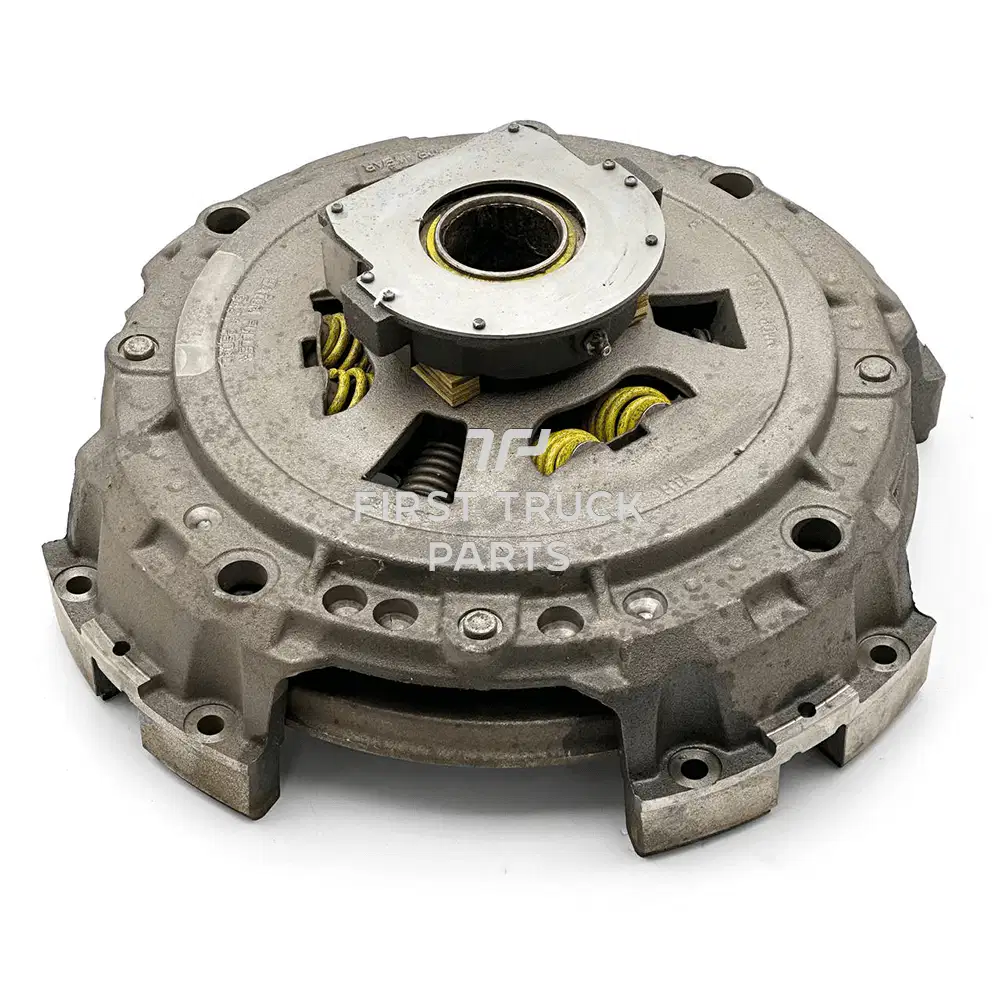

What component is this:
Clutch Cover
Clutch Disc
Flywheel
Intermediate Plate
What component is this:
Clutch Brake
Clutch Disc
Throw-out Bearing
Clutch Cover
Clutch __________ is the intermittent grabbing and slipping of the clutch while it is being engaged.
Grabbing
Engagement
Chatter
Slipping
Which of the following carries considerable inertia as they rotate:
Clutch brakes
Flywheels
Friction discs
Spring clutches
Tech A says that if the clutch brake is within 0.75" from the throwout bearing on a pull-type clutch it is at the correct adjustment. Tech B says he is certain that 0.5" is correct. Who is correct:
Tech A
Tech B
Both Techs
Neither Tech
After correcting the release-bearing free travel dimension to be ____". Check that the clearance between the release fork fingers and the contact pads on the release-bearing is ____"
0.5", 1/8"
1/8"-0.5"
0.5", 1"
0.75", 0.55
What is the name of this component:
friction disc
clutch housing
flywheel
clutch fork
can a clutch be rebuilt:
true
false
What is the function of a clutch in a vehicle?
To change gears
To start the engine
To connect and disconnect the engine from the drivetrain
To provide power to the wheels
What tool do you use to measure free play of a clutch pedal:
pen
voltmeter
pressure regulator
tape measure
What is the role of the flywheel in a vehicle's clutch system?
To provide friction to the clutch
To connect the engine to the wheels
To store rotational energy
To control the speed of the vehicle
Regular lubrication of the clutch components can extend the life of the clutch.
true
false
The primary cause of clutch failure is excess ______
Engine Firing Impulses
Heat
Trailer Weight
Pedal Travel
Drivers that suck at Driving
–One of the most common causes of ______, however, is an oil-soaked clutch disc caused by leaking fluids.
Loss of Torque
Slippage
Heat
Chatter
Fuel Consumption
In a pull-type clutch, as the disc(s) wear, the pressure plate moves _______ the flywheel to compensate, just as it did in a push-type clutch.
Away From
Parallel to
Toward
Simultaneously to
Interdimensionally
________ is also needed whenever any hydraulic component is replaced
Adjusting
Test Driving
Purging
Pumping
Bleeding
What style clutch is in the Mack in the shop
pull clutch
push clutch
floating clutch
power clutch
