WorksheetsEngg.Dwg 9
Total questions: 66
Worksheet time: 36mins
A cylinder is been cut by a plane parallel to axis the section will be _______
parabola
circle
rectangle
ellipse
What type of sketch shows the front in true shape
Isometric
Perspective
Oblique
axonometric
In logarithmic Spiral, the radius vectors are in
Geometrical progression
arithmetical progression
Both A and B
None of these
When the line is parallel to VP and perpendicular to HP, we can get its true length in
Top view
Front view
Side view
Front view & Side view
Which of the following position is not possible for a plane?
Perpendicular to HP and parallel to VP
Perpendicular to VP and parallel to HP
Parallel to both HP and VP
Perpendicular to both HP and VP
The RF is 2, drawing length is 100 mm. Find the actual length.
20 cm
50 cm
20 mm
50 mm
A lengthening bar used to draw circles of radius more than
150 m
15 m
0.15 m
0.25 m
What is the name of space enclosed by the margin from the edges of the trimmed size of sheet?
Border
Lay out
Boundary
Folding mark
What is the minimum width of border on left side of A2, A3, A4, & A5 drawing sheet?
8 mm
12 mm
10 mm

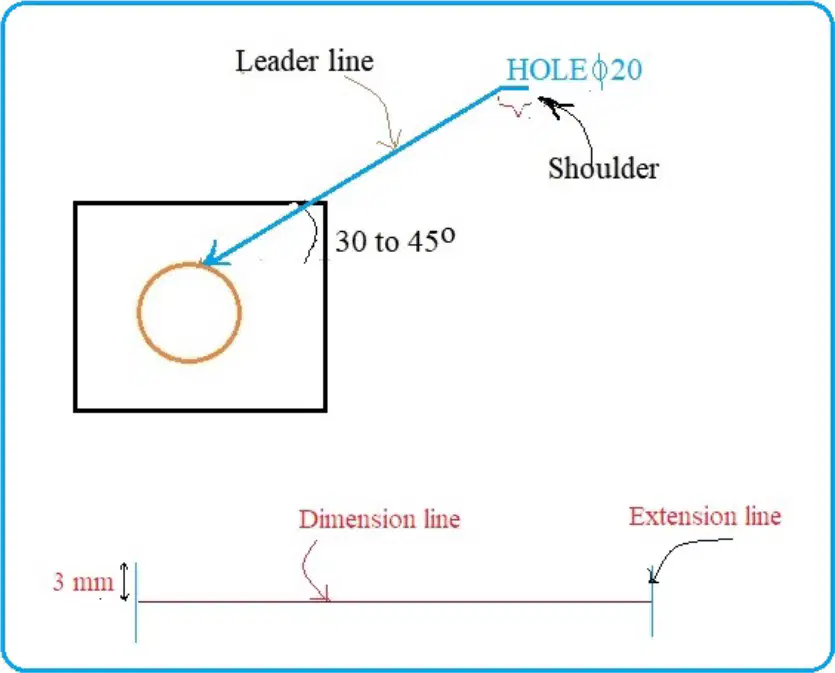

What is the name of thin continuous line terminated at ends by arrow heads, dots or oblique line touching the extension line?
Leader line
Extension line
Dimension line
Termination line
What is the name for part of circle, between any two points on the circumference or periphery?
Arc
Chord
Sector
Segment
What is the Indian standard code for drawing boards designated?
IS : 1360 - 1989
IS : 1444 - 1989
IS : 10811 - 1983
IS : 10711 - 1983
When 10cm line on a map represent 10mm long line. The scale used is?
Enlarging scale
Reducing scale
Full size scale
Plain scale
The method of dimensioning where a number of dimension of the same direction have a common datum feature is
Super imposed running dimension
Chain dimensioning
Parallel dimensioning
None of the above
9 km represent by 1.8 cm, what is the scale?
1:500000
1:5
1:2000
1:200000
In first angle projection object is situated (a) of the observers eye and the plane of projection.
Infront
In between
None of these
Both A and B

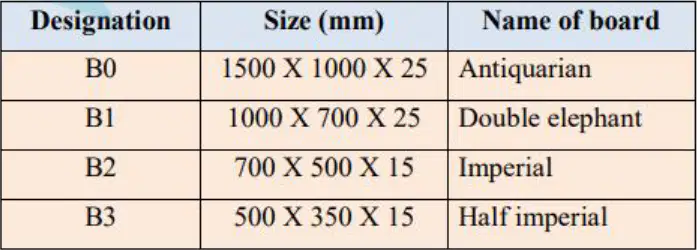

The standard size of D3 drawing board is
700 x 500 x 25 mm
700 x 500 x 15 mm
500 x 350 x 25 mm
500 x 350 x 15 mm
The view drawn by taking actual dimensions without preparing isometric scale is
Isometric view
Isometric projection
Oblique projection
Perspective projection
....... lines are used to indicate the termination of a dimension line
Out lines
Extension lines
Leader lines
All the above
A tetrahedron is lying on one of its faces when it is cut by a plane parallel to HP the true shape of the section is ...
Rectangle
Equilateral triangle
Trapezium
None of the above

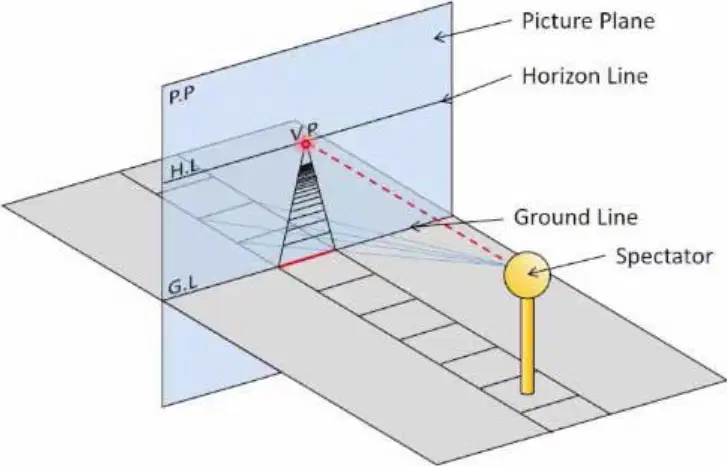

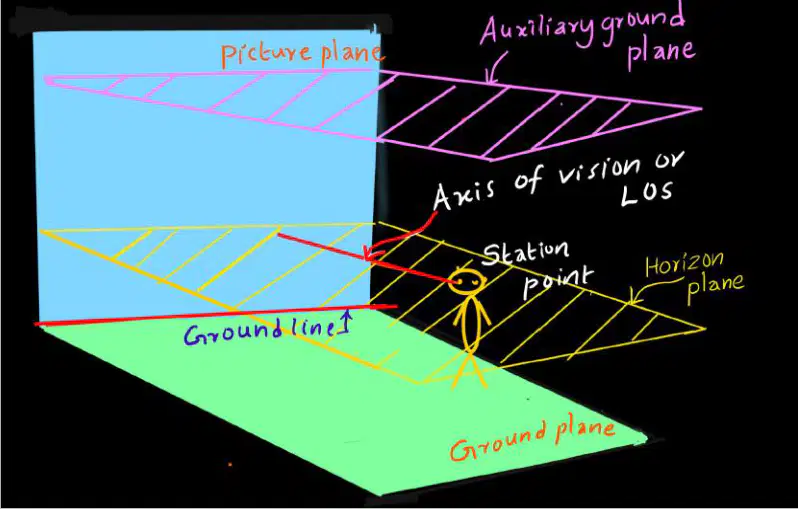

In perspective view, the line of intersection of the ground plane with the picture plane is known as:
Vanishing line
Ground line
Picture line
Station line
The spiral curve traced by a point on a tight string, unwinding from around a circle is called
Helix
Involute
Parabola
Hyperbola
Which grade of pencil is used for drawing arrow heads?
2B
2H
5H
H
If a plane is perpendicular to vertical and inclined to horizontal plane with 30 degrees then the vertical trace makes ___________ of xy reference.
30 degrees
60 degrees
150 degrees
90 degrees
An instrument used to transfer dimensions proportionally from one place in a sheet to another place is
Divider
Proportional divider
Small bow divider
None of these
In which triangle all the three angles are less than 90° and unequal:
Equilateral triangle
Acute angled triangle
Right angled triangle
Scalene triangle
A triangle formed by all angles measuring less than 90 degrees is also known as what type of triangle?
acute triangle
obtuse triangle
right triangle
scalene triangle
If one angle of a triangle is equal to 90 degrees, what type of triangle is it?
It is a right triangle.
It is an acute triangle.
It is an obtuse triangle.
It is an equilateral triangle.
If one angle of a triangle is greater than 90 degrees, what type of triangle is it?
It is an obtuse triangle.
It is an acute triangle.
It is a right triangle.
It is an equilateral triangle.
Which one of the following statements is not correct in the case of aligned system?
Dimension value placed perpendicular to the dimension line
Dimension can be read only from the bottom edge of the drawing sheet
Dimension can be read from the bottom edge or right hand edge of the drawing sheet
Dimension should be placed near the middle and above but clear of the dimension line
When a cone is cut inclined to the axis or base is called?
Ellipse
Parabola
Hyperbola
Circle
When a cone is cut off by a plane inclined to its base, but not passing through base, and the portion obtained after removing the part containing the apex is called:
Frustum of cone
Frustum of pyramid
Truncated cone
Truncated pyramid

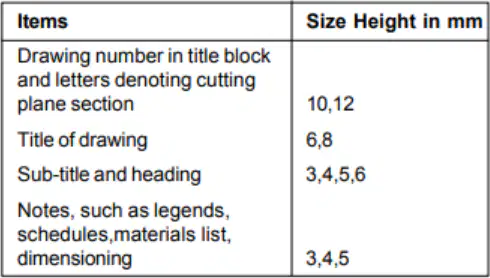

Height of lettering is used in sub titles:
3 to 6 mm
6 to 8mm
10 to 12 mm
5 to 8 mm
Which is the measure of each internal angle of a regular pentagon?
540°
108°
120°
Projection of point in third quadrant will be:
Front view in VP
Front view in HP
Front view in XY
None of the above
Which line is used to limit partial or interrupted views and section?
Continuous thin free hand line
Continuous thin straight line with zig zag at ends
Chain line thick at ends and changes of direction
Both a and b
............types of curves are generated by a fixed point on the circumference of a circle, which rolls without slipping along a fixed straight line or a circle.
Involute
Evolute
Roulettes
All of these
When a line is parallel to a plane, its projection on that plane is equal to its true length; while its projection on the other plane is
Perpendicular to the refrence plane
parallel to the reference line.
True length
None of these
How the dimensions can be read in aligned system of dimension technique
Left hand edge of drawing sheet
Right hand edge of drawing sheet
Top to bottom
Bottom to top
The name of the space enclosed by the margin from the edges of the trimmed size of a sheet is:
Bleed
Gutter
Trim
Live Area
What is the name of space enclosed by the margin from the edges of the trimmed size of sheet?
Border
Lay out
Boundary
Folding mark
What is the name of angle more than 180 degree?
reflex angle
straight angle
adjacent angle
complementary angle
What is the name of scales that compares two similar units in different system?
Plain scale
Vernier scale
Scale of chords
Comparative scales
What is the Indian standard code for drawing boards designated?
IS : 1360 - 1989
IS : 1444 - 1989
IS : 10811 - 1983
IS : 10711 - 1983
What is the name of space enclosed by the margin from the edges of the trimmed size of sheet?
(a)
What is the name of ∠POQ and ∠QOR, if sum of ∠POQ + ∠QOT = 90° and laying either side of a line OQ?
Obtuse angles
Adjacent angles
Supplementary angles
Complementary angles
The ratio of length of actual object to length of drawing is given as 5. Find the scale and R.F.
1:5, 1/5
5:1, 1/5
1:5, 5
5:1, 5
Which grade of pencil is used for drawing arrow heads?
2B
2H
5H
H
Number of diagonals that a hexagon can have:
4
6
9
10
A free hand sketch is considered to be good when its features are shown in correct:
Proportions
Paper
Position
None of the above
Which line is used to indicate the axis of cylindrical and spherical object?
Center line
Border line
Hidden line
Chain thick line
If a line intersects a circle at two points and does segment inside the circle is referred as:
Chord
Quadrant
Segment
Radial line
What is the description of a line type 'A'?
Continuous thick
Dashed thin
Dotted
Chain thin
What is the general application of a 'Continuous thick' line?
Visible outlines, Visible edges
Hidden outlines, Hidden edges
Center lines, Symmetry lines
Dimension lines, Extension lines
Which line type is used for 'Hidden outlines'?
E
F
G
H
What is the description of line type 'C'?
What is the general application of a 'Chain thin' line?
Centre lines, Lines of symmetry, Trajectories
Boundary lines, Hidden edges, Section lines
Dimension lines, Extension lines, Leader lines
Cutting plane lines, Break lines, Phantom lines
The types of letters used in drawing are:
Gothic
Roman
Italic
All of the above
In dimension, dimensional values shall be placed parallel to their dimension line and preferably near the middle. This method of dimensioning is known as:
Unidirectional system of dimensioning
Aligned system of dimensioning
Dimensioning by co-ordinates
Dimensioning by taper parts
The drawing instrument which helps to draw smooth curve passing through any given points is
French curve
Engineering curve
Flexible curve
Template
In a map, if 20 miles is represented as 5 cm. Find the length of kilometre scale if maximum length to be measured is 5 km.
4 cm
64.36 cm
6.436 cm
0.7768 cm
What is the height in mm for title of drawing?
3, 4
10, 12
6, 8
The outer line of an object are drawn using pencil.
3H
HB
H
Name the arrow pointed in spacing of drawing sheet.
Trimming edge
Border
Orientation mark
Frame
What is the format of lettering on a drawing sheet?
All alphabets in capital letters
All alphabets in small letters
In a sentence only first alphabet
In a sentence only abbreviation
The preferred line width for letter group of 7 mm is
1 mm
0.7 mm
