Buck-Boost Converter

Total questions: 3

Worksheet time: 2mins

Name

Class

Date

1.

Determine if the converter operates in Continuous Conduction Mode (CCM) or Discontinuous Conduction Mode (DCM).

a)

CCM

b)

DCM

c)

Both are corrected

d)

SCM

2.

Find the duty ratio (D) of the switch.

a)

0.3

b)

0.33

c)

0.36

d)

0.39

e)

0.41

3.

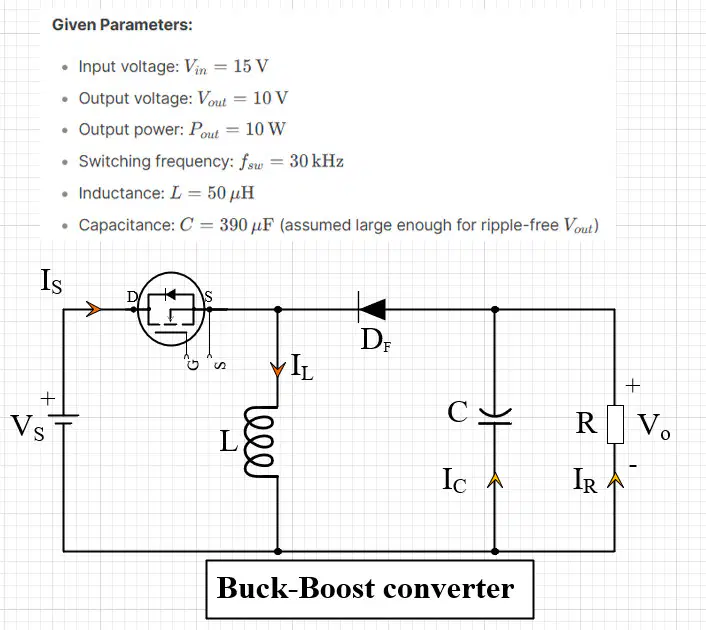

Determine Peak-to-peak inductor current ripple (ΔI_L):

a)

3.6 A

b)

3.9 A

c)

4.6 A

d)

5 A
