WorksheetsHeat Transfer Quiz
Total questions: 8
Worksheet time: 16mins
How much heat is needed to melt 50g of ice? Hf =2.10J/g
To the left is a time lapse video showing a glass of ice water while the ice is melting. If the temperature of the ice and water starts at 0 oC, what is the temperature of the ice and water at the end of the video?
Higher than 0 oC
Equal to 0 oC
Lower than 0 oC
Depends on how much ice was added at the start
How much heat is needed to raise the temperature of a solid block of 150g of lead from 50 oC to 75 oC? The specific heat (c) for lead is 0.13 J/goC.
The graph to the right shows the heating curve of water. Identify the points where a phase change occurs.
The graph to the right shows the heating curve of water. Identify the point where the water is a gas.
The table to the left shows the heat of fusion and heat of vaporization for some common substances. Use the table to answer the following question:
How much heat is lost when 250g of ethanol freezes?

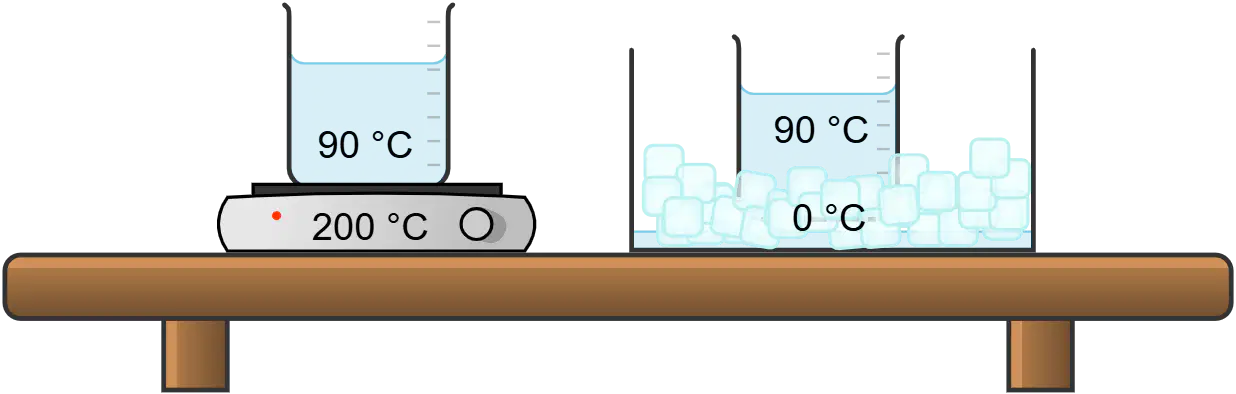

The image to the left shows two beakers of water that both start at 90 oC. Which beaker will have heat flow out of the water?
The beaker on the hotplate.
The beaker in the ice.
Heat will flow out of both beakers.
It depends on the mass of water in each beaker.
The table to the left shows the specific heat (c) for some common substances. Use the table to answer the following question
How much heat is required to increase the temperature of 125g of water from 5 oC to 25 oC?
