WorksheetsManufacturing Catapult Parts
Total questions: 10
Worksheet time: 12mins
Identify which cut is which on the piece of wood shown.

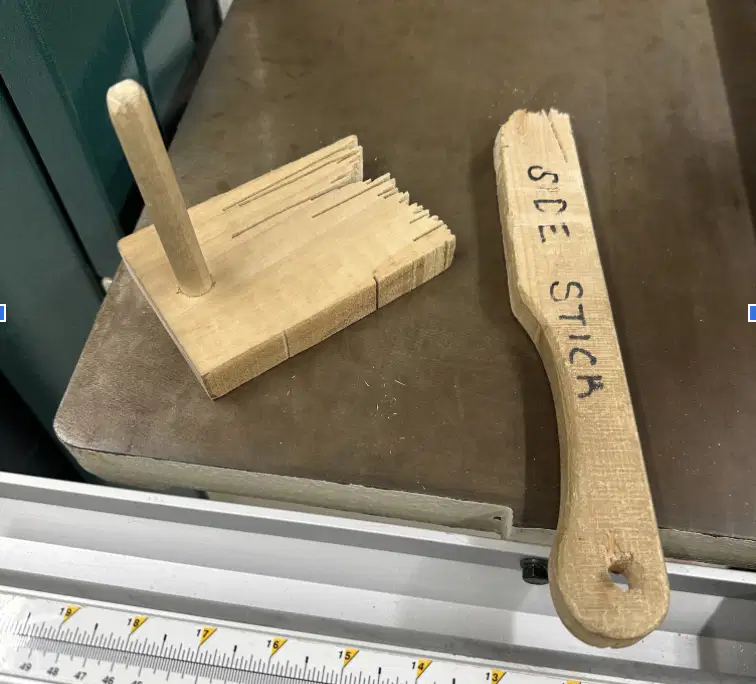

What are these two devices in the picture called:
Scrap Wood Pieces
Push Sticks
Safety Sticks
Stopping Blocks
Place the following in the correct order, when using the Band Saw!
Adjust the fence, so it's the proper distance from the blade. This should be set to how wide you want your piece to be cut.
Stand in front of the Band Saw and have a partner standing on the other side, ready to catch the piece(s) you cut.
Turn the band saw on!
Keep the wood against the fence and slowly push it into the blade to make the cut.
Use a push stick to push the wood piece the rest of the way through safely.
What is the purpose of a "Push Stick"?
To keep your hands/fingers far away from a moving blade, but still allow you to push wood into the machine and cut.
To slow the blade down.
To sharpen the blade, so it cuts through the wood easily!
To align the blade for precision cuts.
Before using the Scroll Saw, you need to check the blade by (a) and you must adjust the hold down so it's (b) the top of the wood piece.
Match each machine/tool with their appropriate way of using it to make your catapult!
Band Saw
Making rip cuts on your board
Scroll Saw
Making angled & cross cuts on your board
Disc Sander
Sanding your pieces
Square
Checking to see if your piece is 90°
Ruler
Measuring & making straight lines
Click on the safe area where we should always sand on the disc sander.
Draw a Square (the tool we use in class, not the shape)
How confident do you feel using the tools and machines in class?
I feel like an expert and think that I could even teach someone else how to use them!
I feel completely comfortable and confident!
I feel like I can use them with some help.
Those machines scare the beans out of me!
What is the correct order in which you would use the machines/tools to make your catapult pieces?
Use the Band Saw to make all of your rip cuts.
Use the Scroll Saw to make all of your cross cuts.
Check all of the ends of your pieces with a square.
Use the disc sander to sand/adjust your pieces so the ends are 90°.
Use sandpaper to clean up any rough edges.
