WorksheetsMilling Machine Components and Functions Quiz
Total questions: 10
Worksheet time: 5mins

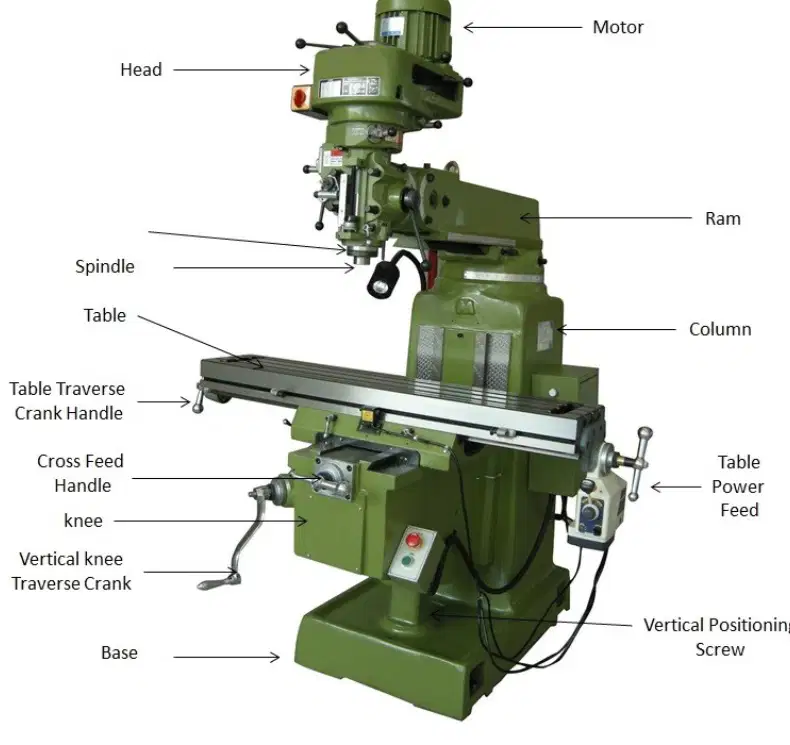

What is the primary function of the spindle in a milling machine?
To support the table
To rotate the cutting tool
To move the knee
To power the motor
Which part of the milling machine is responsible for vertical movement?
Table Traverse Crank Handle
Cross Feed Handle
Vertical Knee Traverse Crank
Ram
What is the role of the table power feed in a milling machine?
To manually move the table
To automatically move the table
To adjust the spindle speed
To support the column

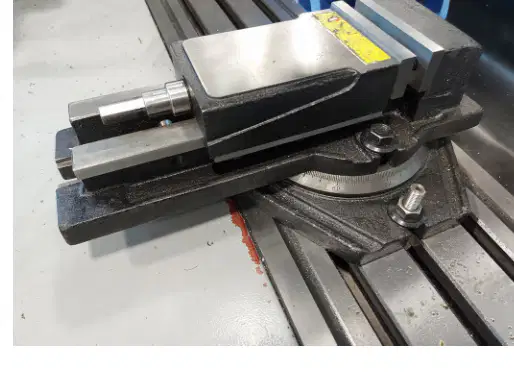

How does a "Swivel vice" assist in milling workpieces?
It holds workpieces in a fixed position.
It mills workpieces at a set angle using angular markings.
It rotates workpieces automatically.
It cuts workpieces into smaller pieces.

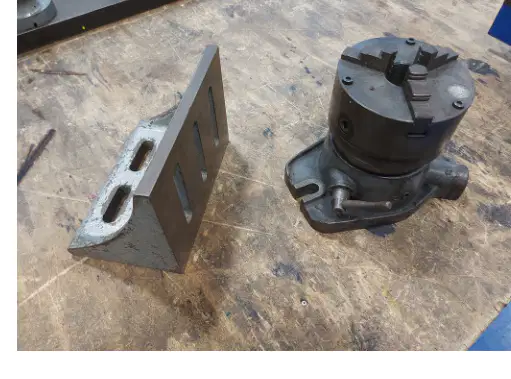

What function does a "Rotary Chuck" serve in milling?
It holds workpieces in a fixed position.
It mills workpieces at a set angle.
It holds spindles in an upright position.
It cuts workpieces into smaller pieces.

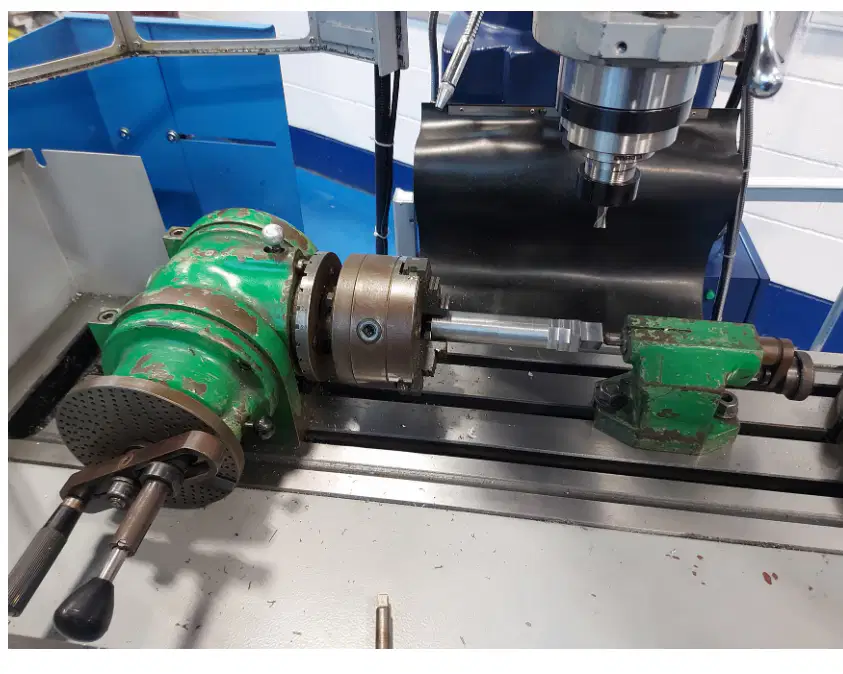

What is the primary function of a dividing head in machining?
To hold the workpiece steady
To divide a circle into equal parts
To increase the speed of the spindle
To cool the workpiece during machining

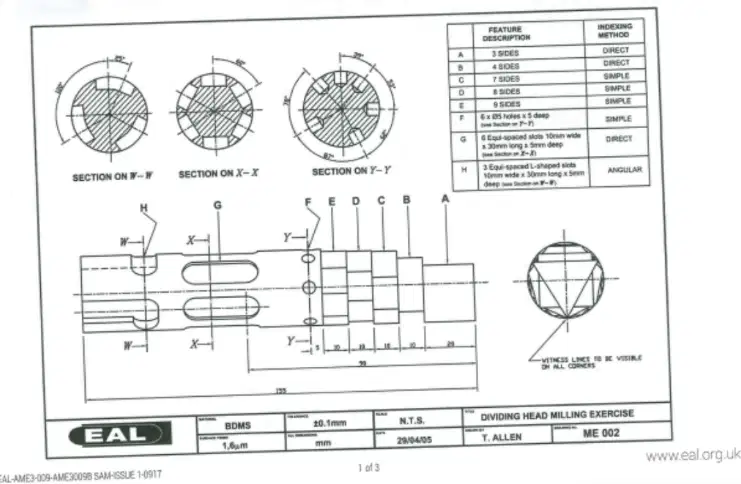

Which of the following is a common use of a dividing head?
Drilling holes in a straight line
Cutting gears
Polishing surfaces
Welding metal parts

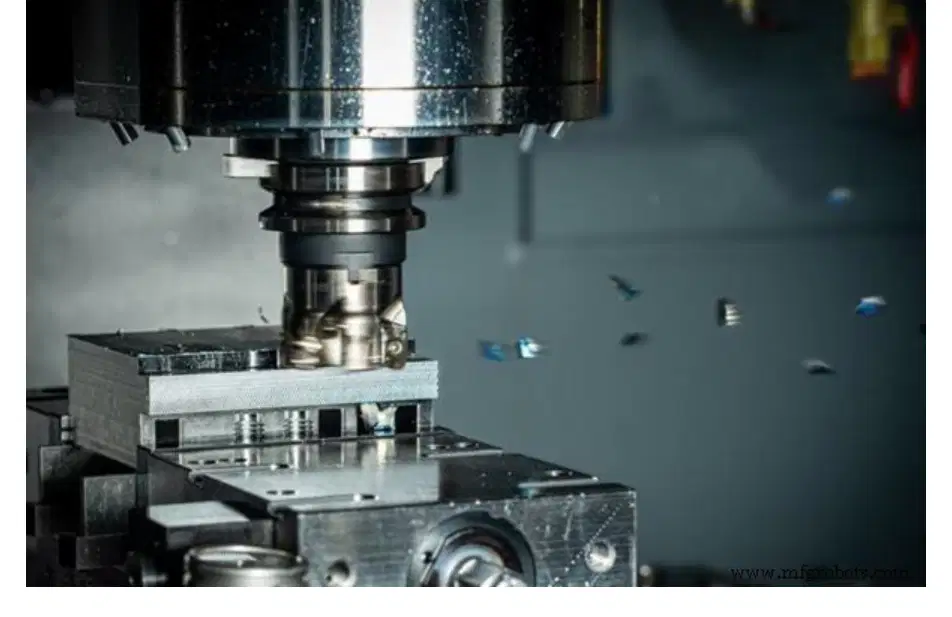

What is a suitable tool for milling a flat and parallel surface, and why is it effective?
A face mill with multiple teeth, because it is strong and can remove a large amount of material easily.
A drill bit, because it can create precise holes.
A lathe, because it can rotate the workpiece.
A hand saw, because it is easy to use manually.
What does HSS stand for in the context of an HSS twist drill?
High Speed Steel
High Strength Steel
Hardened Steel Surface
Heat Sensitive Steel

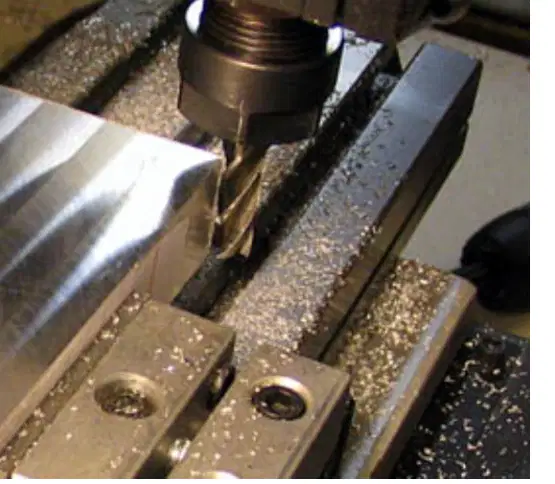

Why can an end mill not drill holes despite having 4 or more cutting edges?
It uses the side of the cutter
It is not sharp enough
It spins too slowly
It is too large
