Worksheets

Fixings and materials used in construction

Total questions: 14

Worksheet time: 21mins

Name
Class
Date
1.

​ Cement is a binding agent, a ​ (a)   powder that can be used to make a bonding ​ (b)   or added to ​ (c)   improving its ability to be ​ (d)   . Commonly used to shape bathroom floors and lay bricks

Choose from the below words
fine
paste
sand
shaped
2.

Concrete uses ​ (a)   as a bonding agent. ​ (b)   and sand act as the main structural components, providing strength, stability, and bulk. ​ (c)   fills voids between larger aggregates and contributes to the concrete's surface ​ (d)

Choose from the below words
cement
Aggregate
Sand
finish
3.

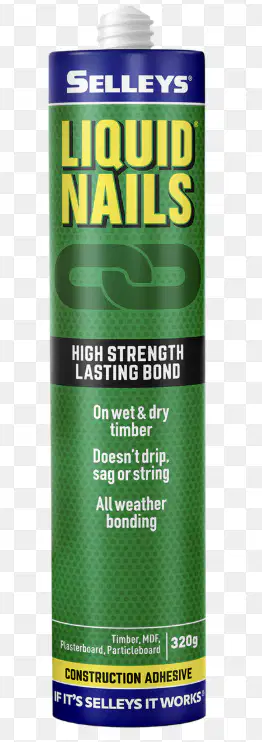

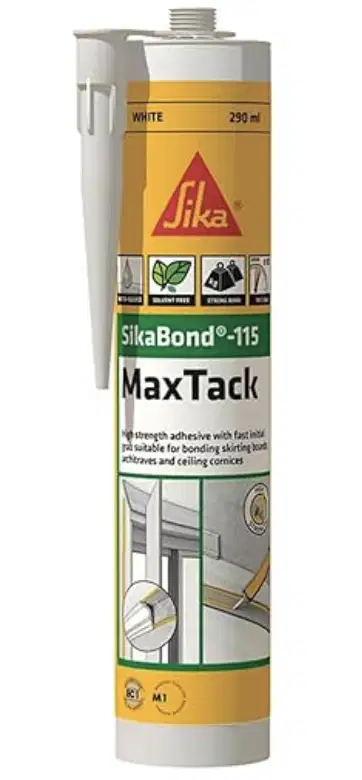

Construction Adhesive - Ideal for ​ (a)   materials like ​ (b)   , plasterboard, and ​ (c)   ; provides strong, durable bonds ​ (d)   the need for screws or nails.

Choose from the below words
bonding
timber
concrete
without
4.

Epoxy adhesive - combines ​ (a)   chemicals to provide a strong, durable bond for ​ (b)   bolts and rods in concrete. It is ​ (c)   to chemicals and weather, cures quickly, and is suitable for ​ (d)   applications.

Choose from the below words
two
anchoring
resistant
structural
5.

Silicone adhesive - ​ (a)   in flexibility, ​ (b)   resistance, and moisture resistance, making it suitable for ​ (c)   and ​ (d)   -moisture environments.

Choose from the below words
excels
temperature
indoor
high
6.

Acrylic adhesive - bonds ​ (a)   and strongly to many surfaces like metal, plastic, and glass. It is ​ (b)   , weather-resistant, and can ​ (c)   vibration and temperature changes, making it ideal for ​ (d)   and outdoor use.

Choose from the below words
quickly
durable
handle
indoor
7.

Polyurethane adhesive - offers ​ (a)   strength, ​ (b)   , and abrasion resistance, making it ideal for ​ (c)   and ​ (d)   applications.

Choose from the below words
superior
durability
outdoor
structural
8.

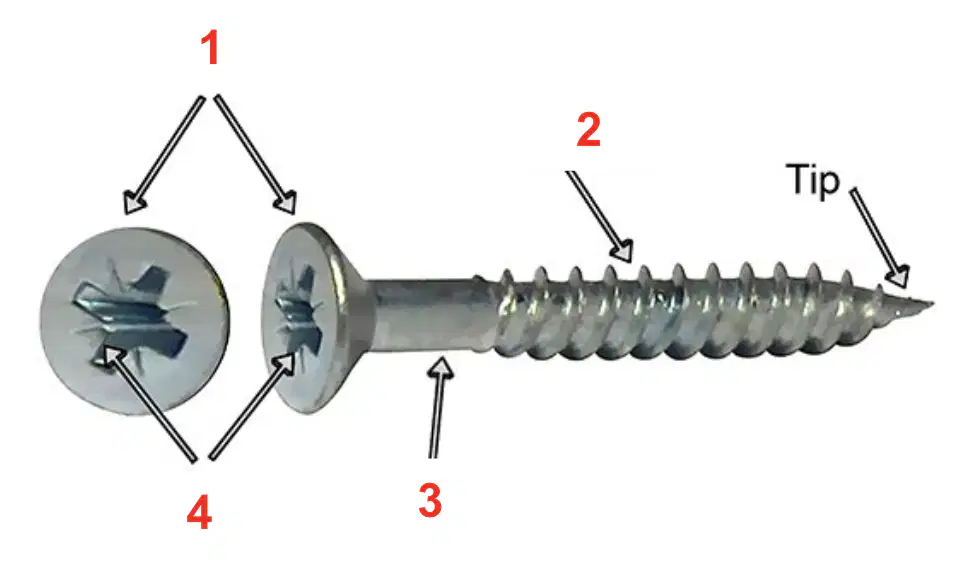

Question Image

Match the following

a)

1

1.

Head

b)

2

2.

Thread

c)

3

3.

Shank

d)

4

4.

Drive

9.

match the screw to its application

a)

1.

used to fasten metal sheets

b)

2.

used to fasten plastic roof sheets

c)

3.

heavy duty fixing for all applications

d)

4.

used to fasten timbers together

e)

5.

used to fasten decking boards

10.

Identify each of the following screw heads

a)

1.

Hex head

b)

2.

Phillips

c)

3.

torx drive

d)

4.

Slotted head

e)

5.

Hex drive

11.

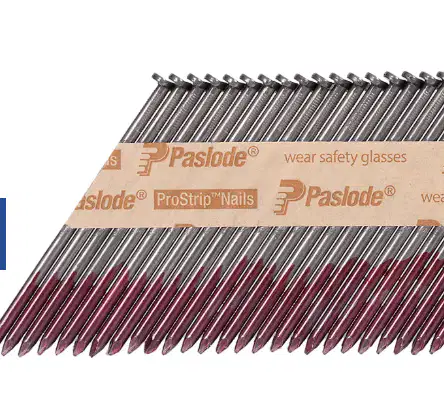

identify each of the nails below

a)

1.

Framing gun nail

b)

2.

Fixout gun nail

c)

3.

Roofing nail

d)

4.

Common nail

e)

5.

Finsihing nail

12.

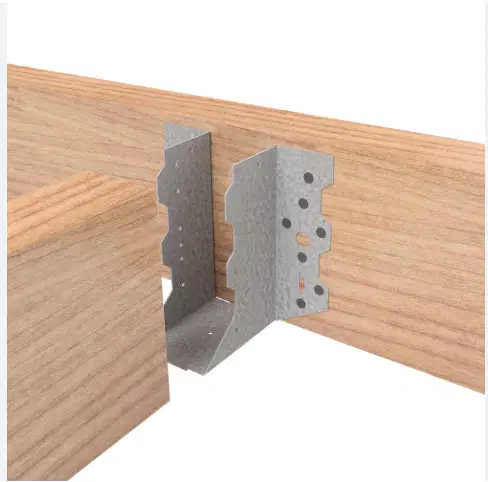

Joist hangers are ​ (a)   brackets used to support and hold ​ (b)   . They are ​ (c)   preventing erosion and they prevent joist from ​ (d)   or falling.

Choose from the below words
metal
joists
galvanized
twisiting
13.

A ​ (a)   head and bolt is used to securely join timber or timber to metal, especially in ​ (b)   structures. Its smooth head gives a ​ (c)   finish and the square section under the head stops it from ​ (d)   when tightened, making it strong and easy to install.

Choose from the below words
cup
outdoor
neat
turning
14.

​ (a)   bar is placed inside concrete to make it stronger and stop it from ​ (b)   or ​ (c)   under pressure. It helps concrete hold its ​ (d)   in buildings, driveways, footings, and slabs.

Choose from the below words
Reo
cracking
shape
breaking
