Worksheets210 Carry out Carpentry Maintenance
Total questions: 20
Worksheet time: 10mins
Which one of the following best describes dry rot?
Darker in colour, soft and pulpy.
Timber loses strength, dry and powdery.
Darker in colour, dry and powdery.
Timber loses strength, soft and pulpy.
Which one of the following best describes wet rot?
Darker in colour, soft and pulpy.
Timber loses strength, dry and powdery.
Darker in colour, dry and powdery.
Timber loses strength, soft and pulpy.
What is the minimum dimension timber must be removed beyond the last signs of a dry rot fungal attack?
500mm.
750mm.
1,000mm.
1,250mm.
Which is the best method of applying preservative?
Brush.
Dipping.
Pressure.
Spraying.
What is the name of the component marked X?
Cornice.
Architrave.
Plinth block.
Picture rail.
What is the name of the moulding profile shown below?
Ovolo.
Splayed.
Ogee.
Torus.
Which joint should be used on an internal corner for skirting?
Butt
Mitre
Scribe
Heading
Which joint should be used on an external corner for skirting?
Heading.
Scribe.
Mitre.
Butt.
A mortice and tenon joint is required from finished section of timber 94mm x 45mm. What size mortice should be set out?
10mm
15mm
30mm
31mm
A door frame requires a spliced piece of timber to repair the damage area. What angle should the splice be cut?
30° cut, sloping down outwards.
45° cut, sloping down outwards.
30° cut, sloping down inwards.
45° cut, sloping down inwards.
What is the name of the component that fits to the bottom of a downpipe?
Hopper.
Socket.
Gully.
Shoe.
What joint would be used ideal to lengthen a piece of timber?
Scarf.
Housing.
Dovetail.
Mortice and tenon.
What section of the building regulations covers gutters and waste disposal?
B.
D.
G.
H.
What is the name of the bead that separates the two sliding frames of a box sash window?
Staff.
Pulley.
Parting.
Weight.
Which regulation reduces exposure to hazardous substances?
PPE.
COSHH.
PUWER.
RIDDOR.
How much guttering is required for a roof measuring 5.0m by 3.0m on plan?
8m.
15m.
16m.
20m.
What is the name of the component marked with an X in the view of timber mouldings shown below?
Corbel.
Cornice.
Dado rail.
Picture rail.
What is the name of the moulding profile shown below?
Ovolo.
Splayed.
Torus.
Ogee.
What is the dry rot safety line percentage?
15.
20.
25.
30.

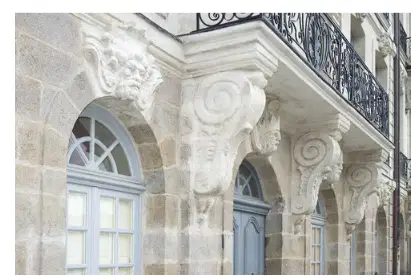

With is the name of the component shown in the photograph below?
Corbel.
Cornice.
Picture rail.
Plinth block.
