WorksheetsAnalog Electronics Trivia #1
Total questions: 11
Worksheet time: 6mins
Analog VS Digital? All are true except...
analog involved continuous signal
digital signals are more susceptible to noise
digital signals are stepping and discrete
current cellular phone mostly using digital signals
Most Diodes are made from either these materials except...
Selenium
Silicone
Germanium
Vibranium
BJT stands for...
Bipolar Junk Transistor
Bipolar Junction Transite
Bipolar Junction Transistor
Buat Jantung Terhenti
What is quiescent point or Q-point?
Operating point of device
The point at which device have maximum functionality
The point at which current equal to voltage
The point of V-I graph where slope is 0.5
BJT has THREE terminals as listed except...
Base
Drain
Collector
Emitter
Below are common used of op-amps except...
Comparator circuit
Audio amplifier
Filtering circuits
Grenade

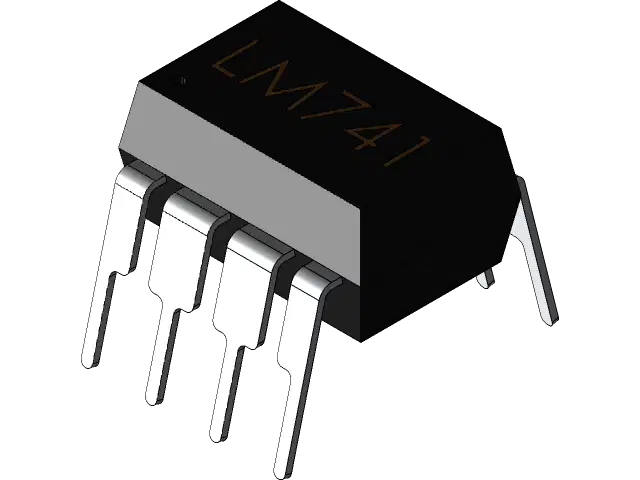

What is the IC package in the picture?
LS741
LC741
LM741
RM26B
Basic Op-amp has how many terminals?
3
6
4
8
LM741 pinout no.7 represents...
No Connection (NC)
Offset
Power Supply (V+)
Power Supply (V-)
Input terminals of an op-amp are...
inverting, non-inverting, output
inverting, non-inverting, GND
V+, V-, non-inverting, inverting
inverting & non-inverting
Ideal op-amp has....
no noise contribution, infinite gain & bandwidth
noise contribution ,few kHz of bandwidths and unity gain
high gain, zero input impedance, infinite output impedance
zero gain, infinite input impedance, small output impedance
