WorksheetsExterior and Interior Test
Total questions: 33
Worksheet time: 11mins
Name
Class
Date
1.
Technician A says that the lower the metric pitch, the coarser the thread. Technician B says that separate gauges are required to measure SAE and metric pitches. Who is correct?
a)
a. Tech A
b)
b. Tech B
c)
c. Both
d)
d. Neither
e)
Pluto
2.
SAE thread pitch is:
a)
a. the number of thread per inch
b)
b. the distance between two adjacent threads
c)
c. measured in millimeters
d)
d. the number of threads plus two
3.
The higher the thread pitch number on a metric fastener the:
a)
a. finer the thread
b)
b. coarser the thread
c)
c. smaller the fastener
d)
d. larger the fastener
4.
A flat washer is used to:
a)
a. hold the bolt and nut in place
b)
b. limit corrosion to the bolt
c)
c. reduce stress
d)
d. be a sacrificial component
5.
Generally, torque wrenches should be calibrated at least once:
a)
a. every five years
b)
b. quarterly
c)
c. a year
d)
d. every three years
6.
Technician A says that hardware should be divided and put into labeled parts location bins. Technician B says that hardware should be stored in labeled sealable bags and attached to the removed or replacement part. Who is correct?
a)
a. Tech A
b)
b. Tech B
c)
c. Both
d)
d. Neither
7.
Which of these adhered emblem removal methods uses a see-saw cutting motion?
a)
a. air chisel attachment
b)
b. small razor blade tool
c)
c. heat application
d)
d. fishing line
8.
Which of these can be used to remove an OEM emblem attached with two sided tape?
a)
a. Penetrant oil
b)
b. hacksaw blade
c)
c. eraser disc
d)
d. fishing line
9.
Which of these adhered emblem removal methods uses a circular motion?
a)
a. air chisel attachment
b)
b. small razor blade tool
c)
c. heat application
d)
d. fishing line
10.
Technician A says that when removing a belt molding the door trim panel may need to be removed. Technician B says that when removing a belt molding the window may need to be removed. Who is correct?
a)
a. Tech A
b)
b. Tech B
c)
c. Both
d)
d. Neither
11.
Which of these is used to prevent noise, vibration, and leaks?
a)
a. weatherstripping
b)
b. cladding
c)
c. belt-line moldings
d)
d. body side molding
12.
The protective film on pinstripping and decals:
a)
a. protects them from water damage after application
b)
b. protects them from UV damage after application
c)
c. adheres to the adhesive side of the pinstripe
d)
d. keeps the pieces in alignment during application
13.
How can a bubble be removed from a decal that has been applied dry?
a)
a. pop the bubble with a pin
b)
b. pop the bubble with a razor blade
c)
c. smooth out the bubble with a roller
d)
d. remove and reapply the decal
14.
When applying decals:
a)
a. only apply wet
b)
b. squeegee from the outside to the inside
c)
c. squeegee from the inside to the outside
d)
d. do not apply heat
15.
A dust and moisture shield is used:
a)
a. to prevent against harshness
b)
b. as a decorative trim piece
c)
c. to protect the carpet from excessive amounts of heat
d)
d. as a barrier behind the trim panel
16.
After removing a molded headliner, it should be rolled up like a piece of carpet and stored in a plastic tube.
a)
True
b)
False
17.
Technician A says that an exterior panel may have adjustments for flushness. Technician B says that panel gaps can be checked with a gap gauge. Who is right?
a)
a. Tech A
b)
b. Tech B
c)
c. Both
d)
d. Neither
18.
An incorrect panel gap can cause all of these EXCEPT:
a)
a. Wind noise
b)
b. Water leaks
c)
c. Damage to the finish
d)
d. Poor fuel economy
19.
When aligning a series of bolted panels, start with:
a)
a. the forward-most panel.
b)
b. the panel closest to the damaged area.
c)
c. the first panel damaged in the collision.
d)
d. the panel closest to the nearest undamaged welded panel.
20.
All of these can be used to protect adjacent panels and glass from damage when removing a panel EXCEPT:
a)
a. duct tape.
b)
b. blankets.
c)
c. spark deflection paper.
d)
d. liquid masking.
21.
A bumper reinforcement may be constructed with all of these materials EXCEPT:
a)
a. Aluminum
b)
b. Steel
c)
c. Wood
d)
d. Reinforced Composite
22.
A negative flushness condition between a front fender and a door would mean the fenderis:
a)
a. sticking out from the door.
b)
b. lower than the door.
c)
c. higher than the door.
d)
d. in from the door.
23.
The safety stops on a hood are used to
a)
a. make adjustment easier.
b)
b. keep the hood from hitting the fenders.
c)
c. raise the hood for correct panel flushness.
d)
d. prevent the hood from entering the passenger compartment.
24.
Door adjustments on a pillar-mounted hinge include all of these EXCEPT:
a)
a. forward or rearward.
b)
b. upward or downward.
c)
c. for consistent gaps.
d)
d. inward or outward.
25.
Door adjustments on a door mounted hinge include all of these EXCEPT:
a)
a. upward or downward.
b)
b. forward or rearward.
c)
c. for consistent flushness.
d)
d. inward or outward.
26.
The purpose of a plunger pin is to:
a)
a. align the panels.
b)
b. retain the lock cylinder.
c)
c. retain the door handle.
d)
d. carry electricity to the sliding door.
27.
The sliding door on a van is attached to the body with:
a)
a. welds.
b)
b. rollers.
c)
c. adhesive.
d)
d. rivets.
28.
Moving a door striker can be used to:
a)
a. raise the door.
b)
b. lower the door.
c)
c. move the door forward.
d)
d. adjust the flushness.
29.
Straps or cables are used on a tailgate to:
a)
a. keep the gate closed.
b)
b. keep the tailgate from opening too far.
c)
c. make it easier to open or close.
d)
d. ensure that the tailgate stays open.

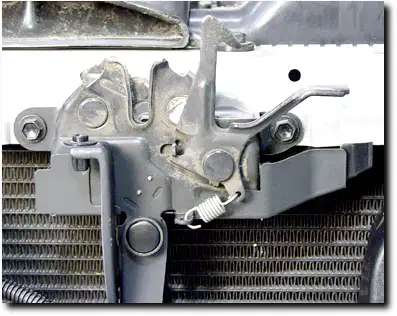

30.
The part shown in the picture above is a:
a)
a. check strap.
b)
b. latch mechanism.
c)
c. striker.
d)
d. child lockout mechanism.
31.
The part shown in the picture above is a:
a)
a. Check strap
b)
b. Latch mechanism
c)
c. Striker
d)
d. Child lockout mechanism

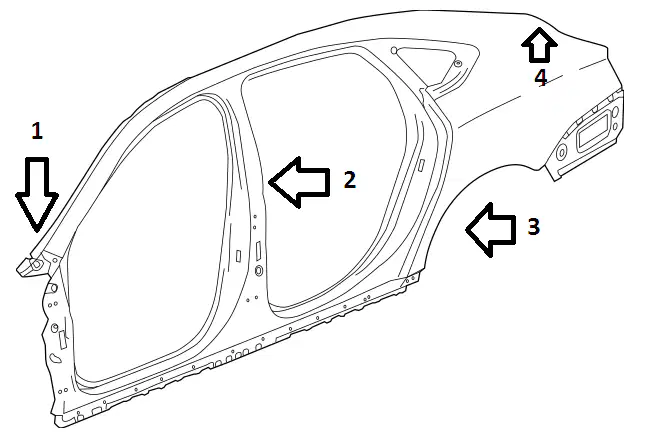

32.
Which of the following numbers is referring to the B pillar?
a)
a. 1
b)
b. 2
c)
c. 3
d)
d. 4
33.
Which of the following numbers is referring to the A pillar?
a)
a. 1
b)
b. 2
c)
c. 3
d)
d. 4
