WorksheetsIdentify different bench work tools and their uses.
Total questions: 12
Worksheet time: 6mins

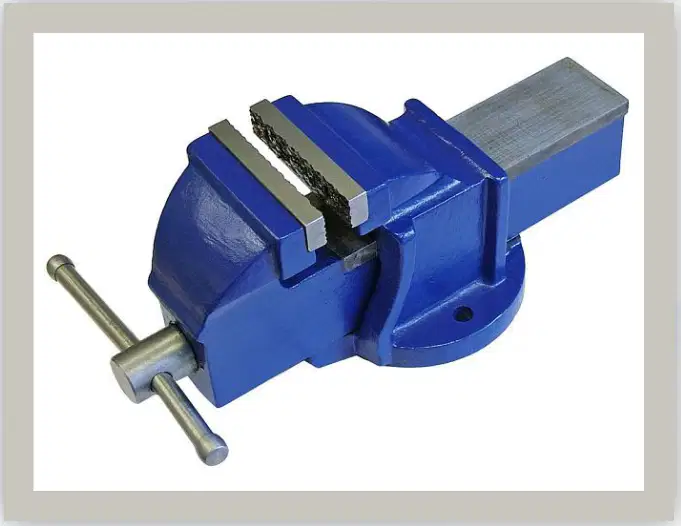

What is the name of the tool shown in the image?
Hammer
Filter's vices
Screwdriver
Pliers

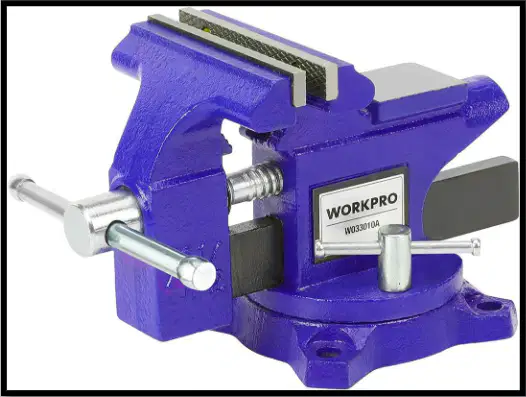

Which type of vice is shown in the image?
Parallel jaw vice
Hand vice
Machine vice
Pipe vice
What material are the body and jaws made of?
Cast steel
Aluminum
Plastic
Brass
What is the primary use of a 'V' block?
It serves as a decorative item
It is used as a very useful support to the work in marking
It is used for cutting materials
It is used for painting surfaces
The marker of a simple scribing block is fitted into an adjustable device carrying a ______ at one end.
knurled nut
spring
washer
handle
What is the specific use of this tool?
Cutting metal sheets
Locating centers of round rods held in V-block
Measuring temperature
Welding two surfaces together
What does the universal surface gauge consist of?
A) A plastic base with no guide pins
B) A cast base, perfectly planed at the top, bottom and all sides, with two guide pins at the rear end
C) A wooden base with a single guide pin
D) A metal rod only
The universal surface gauge has two guide pins that can be pressed down to project below the base.
True
False
What is the tool shown in the image better known as?
Carpenter's square
Engineer's try square
Measuring tape
Protractor
What type of tools are shown in the image?
Scrapers
Screwdrivers
Chisels
Pliers
Which of the following are commonly used forms of chisels for chipping work by a fitter?
Flat
Cross-cut
Round nose
Diamond point
All of the above
Fill in the blank: All the chisels are forged from bar stock of ________ steel.
carbon
stainless
alloy
tool
