WorksheetsRoof Fundamentals Quiz
Total questions: 25
Worksheet time: 13mins
Based on the definition provided, why is it important for a roof to include all necessary materials and constructions to support it on the walls or uprights?
To ensure the roof can withstand environmental factors and remain stable
To make the building look more attractive
To reduce the cost of construction
To allow more sunlight into the building
If a homeowner wants a roof design that allows for an attic space and is commonly seen in barns, which roof type should they consider?
Gambrel
Butterfly
Shed
Curved Panel
Compare the "Hip" and "Gable" roof types. Which statement is true regarding their structure?
Both have only two sloping sides.
Hip roofs have slopes on all four sides, while Gable roofs have two sloping sides.
Gable roofs have slopes on all four sides, while Hip roofs have two sloping sides.
Both are flat roof types.
What is the main architectural feature highlighted on this page?
Winged gable roofs
Dormer windows
Skylights
Green roofs
What is a key characteristic of a hip roof compared to a gable roof?
All sides slope downwards to the walls
Only two sides slope downwards
The roof is completely flat
The roof has a central ridge with vertical sides
Which feature is typically steeper in a Dutch hip roof?
Gables
Hips
Eaves
Ridges
Explain why flat roofs are designed with a slight slope rather than being completely flat.
To make the roof look more attractive
To allow for the run-off of rainwater and prevent water accumulation
To increase the cost of construction
To make the roof stronger against wind
If you were designing a modern house and wanted a roof style that allows for easy installation of solar panels, which roof type would be most suitable?
Flat roofs
Gable roofs
Curved roofs
Dome roofs
If you were designing an addition to an existing building and wanted a roof style that could easily connect to other roof styles, which would be most appropriate?
Shed roof
Mansard roof
Gambrel roof
Dome roof

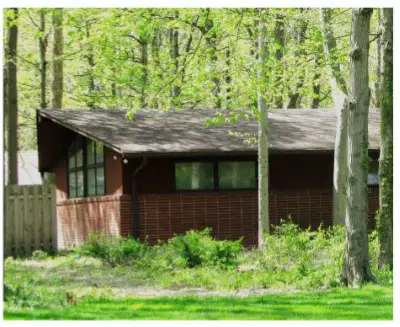

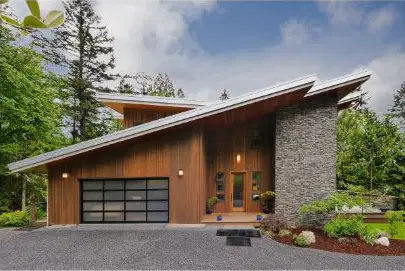

What type of roof is shown in the images on the page?
Shed/Lean-to roof
Gable roof
Hip roof
Mansard roof
Which of the following is a benefit of the gambrel roof design?
Provides ample headroom and storage
Reduces wind resistance
Maximizes solar panel efficiency
Minimizes construction costs
Which architectural feature is commonly associated with gambrel roofs?
Double-sloped sides
Single flat surface
Pyramid shape
Curved arch
Which of the following is NOT a variation of a Mansard roof?
Straight
Convex
Concave
Gable
Which statement best explains how the A-frame roof provides structural support?
It forms a triangular shape that integrates the roof and walls from foundation to peak.
It uses horizontal beams to support a flat roof.
It relies on external columns to hold up the roof.
It uses a series of arches to distribute weight.
Explain why butterfly, folded plate, and curved panel roofs might be less suitable for residential construction compared to commercial construction.
They are more expensive to build in residential areas.
They require specialized materials not available for homes.
They can cause drainage problems and are not commonly used in residential construction.
They are only allowed by commercial building codes.

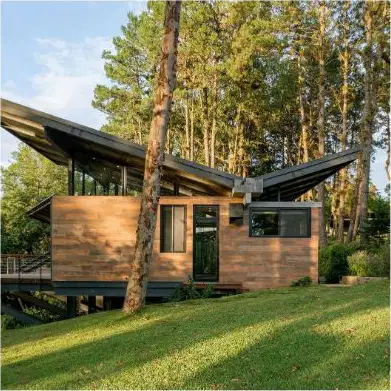

Which roof type is characterized by two roof surfaces sloping downwards towards the center, creating a valley in the middle?
Butterfly Roof
Mansard Roof
Shed Roof
Gambrel Roof
A homeowner wants a roof design that allows for higher exterior walls and large windows on the sides. Which roof style would best suit this requirement?
Butterfly Roof
Dome Roof
Pyramid Roof
Saltbox Roof

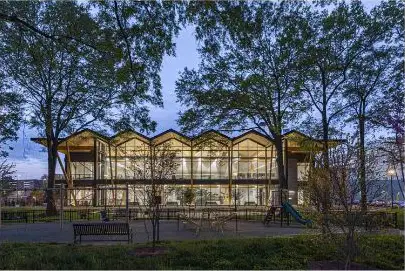

What type of roof is shown in the images above?
Folded plate roof
Flat roof
Dome roof
Gable roof

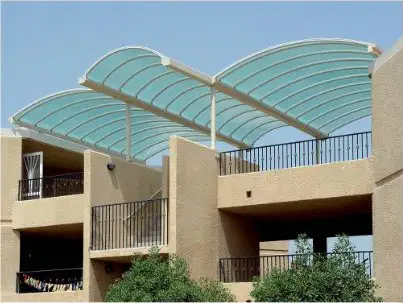

What type of roof is shown in the images?
Curved panel roof
Flat roof
Gable roof
Mansard roof
Why are warped roofs considered expensive to build?
Due to complex shapes and materials used
Because they use recycled materials
Because they are small in size
Because they are easy to construct
What does the slope diagram of a roof show?
The color of the roof
The ratio between rise and run of the roof
The material of the rafters
The number of rafters
How is roof pitch calculated according to the provided material?
Rise/Run
Run/Rise
Clear Span/Run
Which roof type is best suited for areas with heavy snowfall due to its steep slope?
A-frame roof
Flat roof
Butterfly roof
Dome roof
What is the primary function of roof overhangs?
To reduce the number of rafters needed
To provide additional attic space
To protect walls from rainwater runoff
To increase the roof's pitch
Which roof style is characterized by having four sloping sides that meet at a single point or ridge?
Butterfly roof
Gable roof
Shed roof
Hip roof
