WorksheetsElectricity Review
Total questions: 11
Worksheet time: 7mins
Why isn’t the circuit working?
Both the batteries have the negative end facing each other.
A switch needs to be added.
The bulb is dead.
The wires need to be straightened out.
The battery plays the role of what in the circuit?
Copper Wire
Sound Maker.
The source of energy.
Light Bulb
When the switch is open, which lights would turn on? CHOOSE TWO
A
B
C
D
Suzy wants to build a SIMPLE light circuit. What materials does she need? Select ALL that apply
Battery
Bulb
Switch
Copper Wire

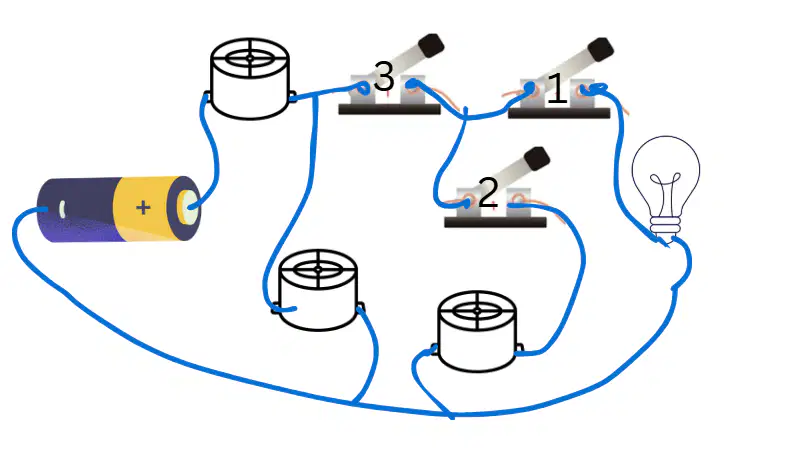

Which switches can turn off the light bulb? Choose TWO
1
2
3

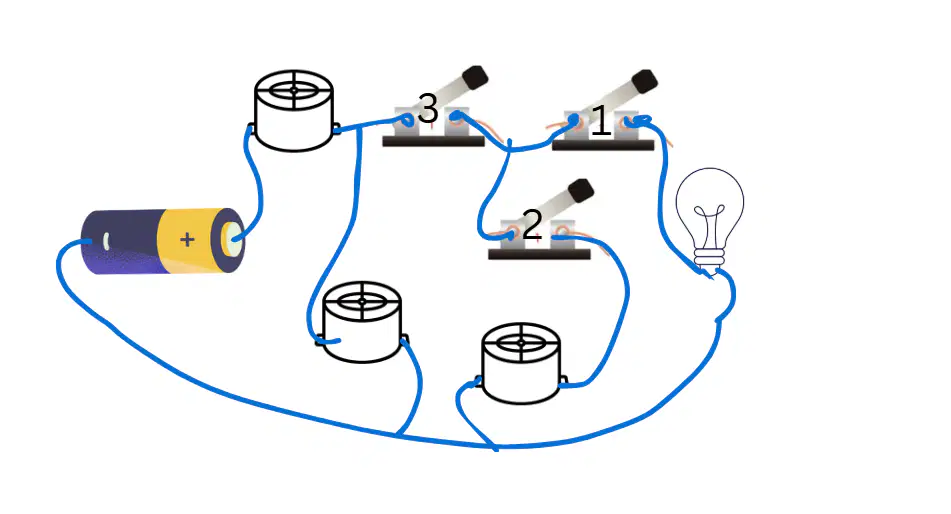

If only switch three is opened, how many buzzers (speakers) will still work?
0
1
2
3
Which circuit does not work? CHOOSE ALL THAT APPLY
Which circuit allows for all three lightbulbs to light?
Look at the circuit. Choose Two Bells that WILL NOT ring
Bell 1
Bell 2
Bell 3
Bell 4

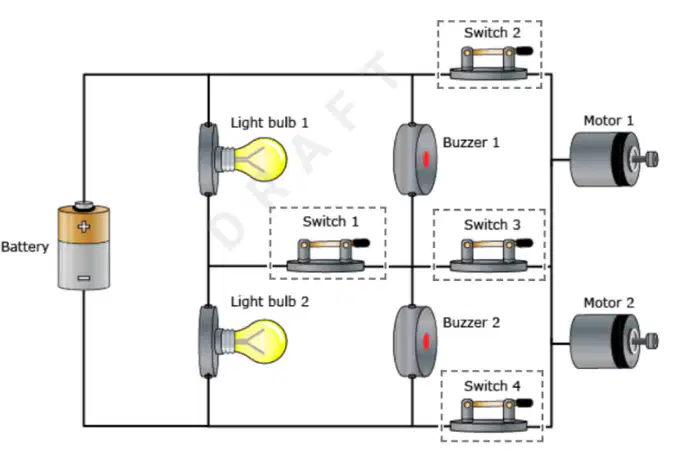

Which TWO switches need to be open to stop some of the parts of the circuits from working?
Switch 1
Switch 2
Switch 3
Switch 4
What would make a good insulator? Choose TWO correct answers
Plastic Spoon
Iron Nail
Paper Clip
Rubber Band
