Worksheets5.1 + 5.2 Review
Total questions: 10
Worksheet time: 13mins
To draw the line shown here, which axis or axes does the 6-Axis Arm move along?
x-axis
y-axis
z-axis
Both x and y-axes simultaneously
To draw the line shown here, which axis or axes does the 6-Axis Arm move along?
x-axis
y-axis
z-axis
Both x and y-axes simultaneously
To draw the line shown here, which axis or axes does the 6-Axis Arm move along?
x-axis
y-axis
z-axis
Both x and y-axes simultaneously
What is the purpose of using Comment blocks in a project?
To explain what each part of the project is intended to do
To move the 6-Axis Arm to a specific coordinate location
To keep track of how your group is taking turns while completing the activity
To make the Signal Tower function as a Controlled Stop while the project is running
The (a) block is used to ensure that the 6-Axis Arm is set to the correct end effector.

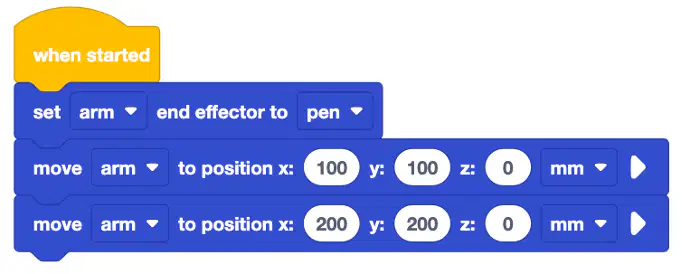

Describe how the 6-Axis Arm will move based on this code snippet.
Describe how the 6-Axis Arm will move based on this code snippet.
Describe how the 6-Axis Arm will move based on this code snippet.
Alice coded the 6-Axis Arm to draw two triangles, however there is a line connecting them. Which axis should she move the 6-Axis Arm along to lift the Pen off the Whiteboard to prevent this from happening?
x-axis
y-axis
z-axis
Janine wants to code the 6-Axis Arm to draw a triangle. Her project produced the result shown here. Which of the following would complete the project?
Moving the Pen on the z-axis to lift it off the Whiteboard.
Adding a block to move the 6-Axis Arm back to the starting coordinate to draw the third side of the triangle.
Changing the parameter of the Set end effector block to ‘Magnet’.
It cannot be fixed because the 6-Axis Arm cannot draw a diagonal line.
