WorksheetsY7 Blockbot
Total questions: 20
Worksheet time: 11mins

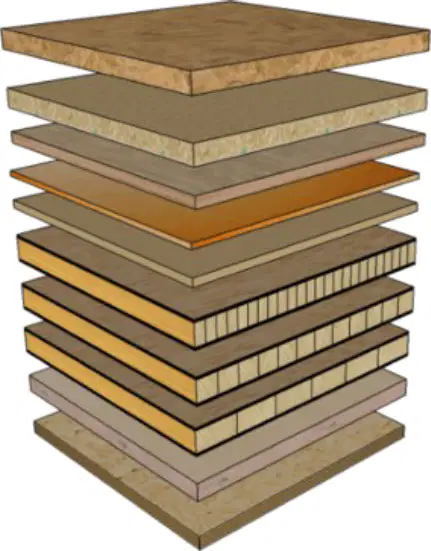

Which of these is NOT a manufactured board?
Plywood board
Block board core panel
Chipboard particle board
Oak natural hardwood
Why are manufactured boards useful for large-scale production?
They are stable and uniform
They grow faster naturally
They have decorative bark
They require no adhesives
Which phrase best describes pine?
A yellowish colour natural softwood
Dark Red Hardwood
A manufactured Board
A polished stone material
Why is Mindmapping an effective task to do at the start of a project?
It generates many ideas quickly
it produced one perfect idea
You can copy a classmate’s concept
It looks good
What is the main purpose of annotating a Block Bot sketch?
Explain materials, colours, and tools
Decorate margins with patterns
Replace the 3D drawing entirely
Record homework due dates

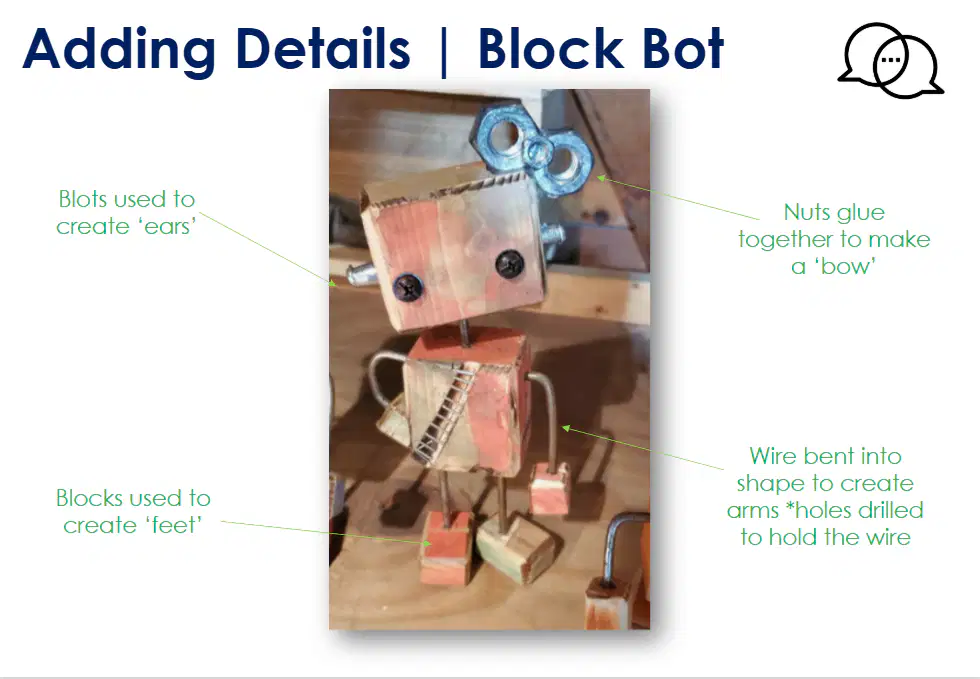

In the photo, which material is used to form the Block Bot’s arms by bending into shape and inserting into drilled holes?
Wire pieces bent into curves
Thin string tied through knots
Plastic tubes glued at ends
Wooden dowels nailed sideways
What is the base width of each cube shown in the dimensioned drawings?
45 mm by 45 mm base
50 mm by 50 mm base
40 mm by 40 mm base
30 mm by 30 mm base
If two 45 mm cubes are stacked with a 5 mm gap for a neck, what is the overall head-and-body height including the gap?
95 mm total height
90 mm total height
85 mm total height
100 mm total height
Ash is a
Hardwood
Softwood
Manmade Board
Pine is a
Hardwood
Softwood
Manmade Board
What’s the name of this tool?
Handsaw
Tenon saw
Keyhole saw
Hacksaw
What is a valid safety rule when working on the Pillar Drill?
Only use softwood
Only use hardwood
Wear Safety Goggles
Wear a hard hat
Name this tool?
Pillar Drill
Marking gauge
Tri-Square
Tenon Saw

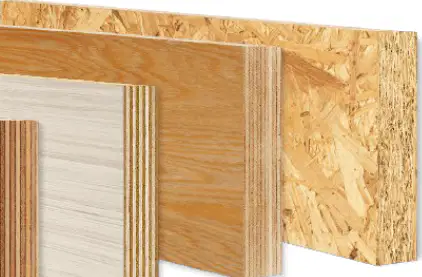

Select the man made board
Oak
MDF
Pine
Teak
pick the softwood
oak
cedar
birch
plywood
pick the man made board
plywood
larch
pine
birch
Pick the hardwood
cedar
pine
ash
mdf
What is an example of a safety hazard?
Wearing protective equipment
Wearing slip resistant shoes on a wet floor
Wet floors
None of the above
