WorksheetsClawbot Build (Part 1)
Total questions: 19
Worksheet time: 10mins
What is the name of the part?
Bering Flat
Flat Washer
3-holed spacer
Divit
What is the name of the part?
shaft collar
bearing flat
set screw
phillips
What is the name of the part?
V5 Robot Brain
V5 Battery
V5 Motor
Cortex Microcontroller
What is the name of this part?
nylock nut
lock washer nut
bolt
hex bolt

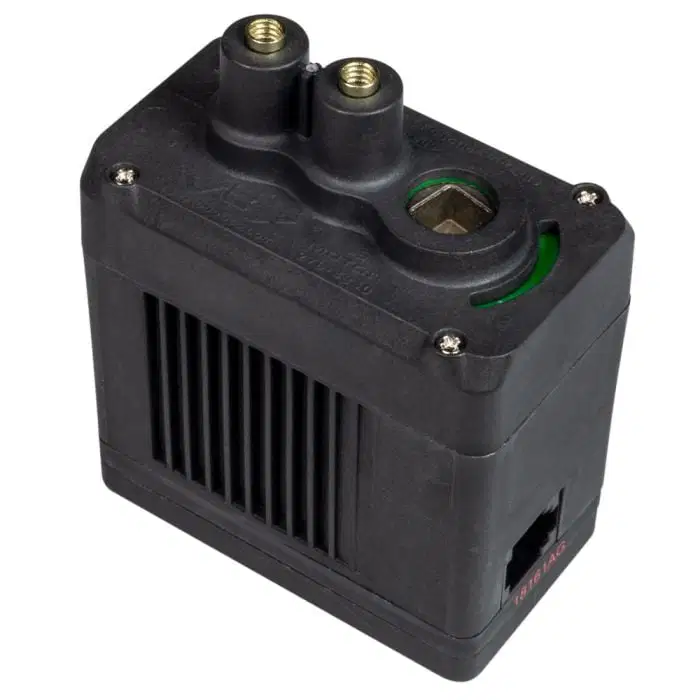

What is the name of this part?
motor
transmitter
switch
controller
Which part is attached directly to the Clawbot's arm?
Which part below is used to provide power to the robot?
Which part(s) below are in the drive train system?
Which part(s) below are part of the structure of the robot?
Which part below is used to pick up objects?
How many motors are used in the build of the Clawbot?
1
2
3
4
How many Smart Ports are on the V5 brain?
5
8
10
20
What is the name of this nut?
KEPS
Nylock
Wing
CAP
Which step below comes before the others when building the Clawbot?
Assemble frame with bearing flats.
Attach the claw
Mount the brain
Attach wheels to frame
Which step below comes before the others when building the Clawbot?
Secure the battery
Attach the claw
Mount the brain
Attach wheels to frame
Which step below comes before the others when building the Clawbot?
Attach motors to frame with gears
Attach the claw
Mount the brain
Attach wheels to frame
Which step below comes after the others when building the Clawbot?
Attach motors to frame with gears
Attach the claw
Mount the brain
Attach wheels to frame
What is the name of this part?
bearing pop-rivit
shaft collar
thin spacer
threaded standoff

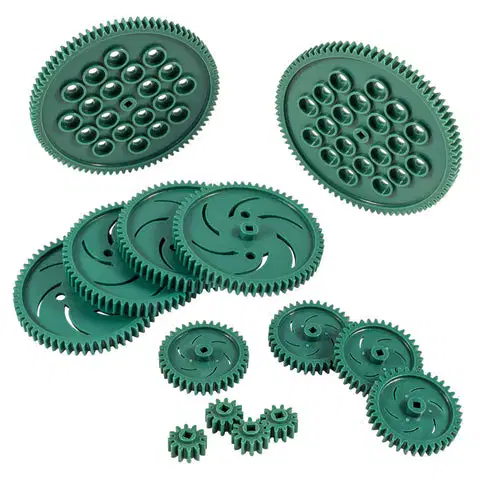

Gears are identified as having _____ on the surface.
36 spokes
Dimension
Teeth
Axles
