WorksheetsDay 10
Total questions: 20
Worksheet time: 10mins
Which component is installed on a motherboard and determines system computing power?
Processor
RAM
Hard drive
Power supply
Which two companies are major manufacturers of processors?
Intel and AMD
Intel and NVIDIA
AMD and Samsung
NVIDIA and Qualcomm
Which of the following is NOT a feature affecting processor performance and compatibility with motherboards?
Screen resolution
Processor speed
Socket and chipset
Multiprocessing abilities
Hybrid processors are also known as:
x64 processors
IA64 processors
x86-64 processors
ARM processors
What is lithography in the context of processor manufacturing?
A process that uses heat to melt metals
A process that uses light to create detailed patterns on surfaces
A process that uses chemicals to clean surfaces
A process that uses magnets to arrange atoms
What is the Intel Evo Platform?
A processor for high-end desktops
A platform that meets specific performance and responsiveness for laptops
A budget-level processor
A type of Atom processor
Which processor listed does NOT include integrated graphics?
i9-14900K
i7-14700K
i5-14600KF
i5-14600K
Which chipset in the Intel 600 Series provides up to 12 PCIe 4.0 lanes?
Z690
H670
Both Z690 and H670
B660
If a user needs PCIe RAID 0,1,5 support, which chipset should they choose?
Z690
H670
B660
H610
Compare the maximum number of USB 2 ports available on the Z690 and B660 chipsets. What is the difference?
Z690 has 2 more USB 2 ports than B660
Z690 has 2 fewer USB 2 ports than B660
Both have the same number of USB 2 ports
Z690 has 4 more USB 2 ports than B660
Which AMD processor series is commonly found in most desktop and laptop computers?
Ryzen Series
ThreadRipper Series
EYPC Series
Athlon Series
What does a higher number in the AMD Ryzen series (e.g., Ryzen 9 vs. Ryzen 3) generally indicate?
Better performance and more features
Lower price
Smaller size
Less power consumption
If a company needs server-grade processors for data centers and enterprise applications, which AMD series should they consider?
EYPC Series
Ryzen Series
ThreadRipper Series
Athlon Series
Strategically, why might a gaming enthusiast choose an AMD processor over an Intel processor?
AMD processors are generally less expensive and offer competitive performance for gaming.
AMD processors have fewer cores than Intel processors.
AMD processors are only suitable for server applications.
AMD processors do not support gaming workloads.
A student is building a system and requires PCIe 5.0 graphics support and 8 SATA ports. Which chipset should they select?
X670E
B650
A620
B650E
Compare the USB 10Gbps port availability between the X670E and B650 chipsets. What is the difference?
X670E has 6 more USB 10Gbps ports than B650
X670E has 2 more USB 10Gbps ports than B650
X670E has 12 more USB 10Gbps ports than B650
X670E has 4 more USB 10Gbps ports than B650
Why are ARM processors commonly used in mobile devices?
They are low cost, low power, and low heat
They have the highest clock speed
They are the largest in size
They require complex instruction sets
Why is it important to balance the performance and power of the CPU with that of the entire system?
To ensure overall system efficiency and compatibility
To make the system look attractive
To reduce the size of the computer
To increase the price of the system

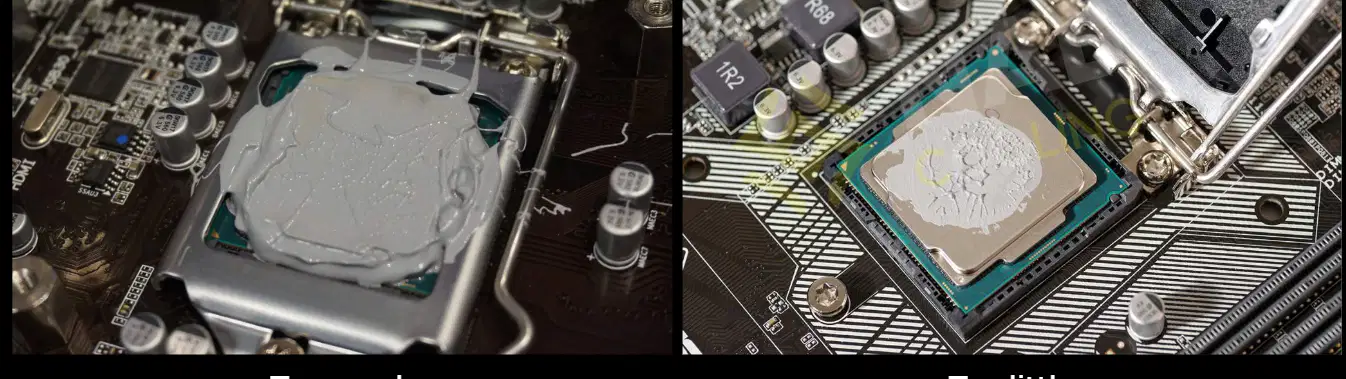

Which of the following best describes a poor thermal compound application on a CPU?
Applying too much or too little thermal compound
Applying thermal compound evenly and in the right amount
Not using any thermal compound at all
Using thermal compound only on the motherboard
Why is it important to avoid using too much thermal compound when installing a CPU?
It can cause overheating due to poor heat transfer
It makes the CPU run faster
It increases the lifespan of the CPU
It improves the appearance of the motherboard
