WorksheetsQuiz 1: IDS 6.1.1, MFG, others
Total questions: 15
Worksheet time: 15mins
IDS will recognize which cast naming for TSP design?
01MAX/MAN_cast
01MAX/MAN_cast_fixed
01MAX/MAN_cast_ori
05MAX/MAN_cast
Can we reimport cast from external in Teeth Block Creation tool?
Yes
No
Can we create more than 1 TSP?
Yes
No
Is it a mandatory to mark the bracket region if the case has brackets?
Yes
No
Is it a blocker in Teeth Block Creation if we did not use Mark Reinforcement Region"?
Yes
No

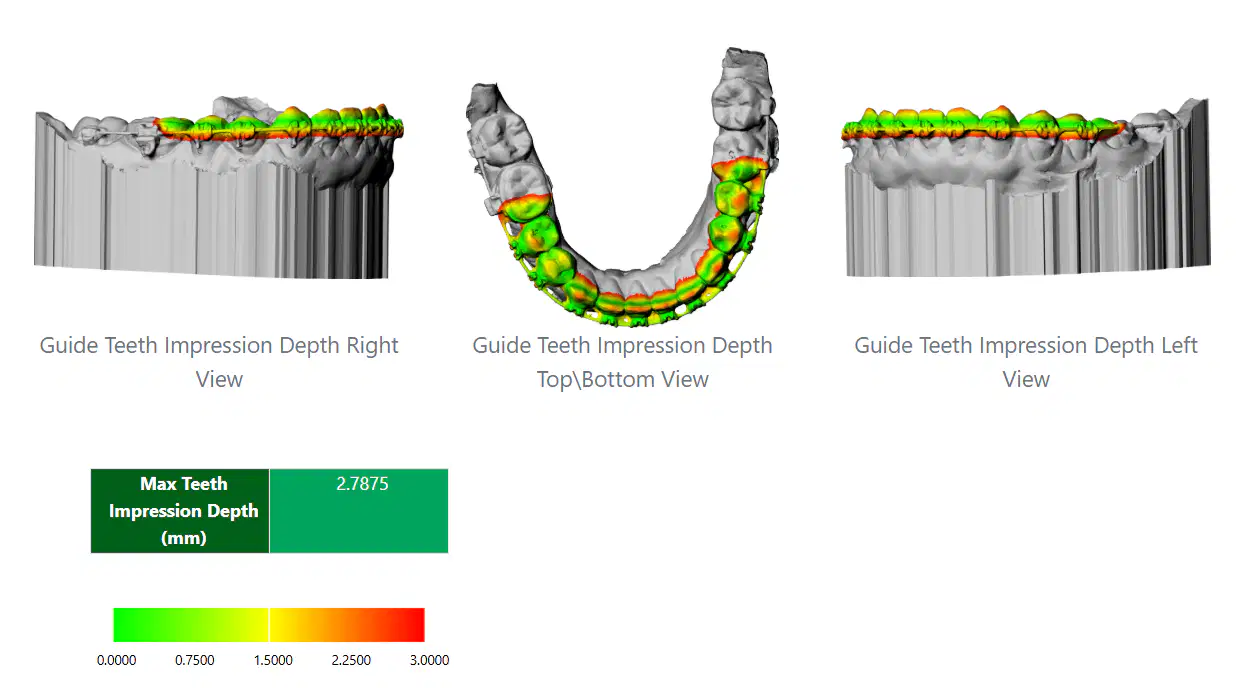

From QC Report, how can we know if teeth impression is more than 3mm?
Look at range scale
Grey regions present at area of TSP
Cuspids area colored in red
Which is/are the wrong statement(s) for screw length determination using latest rhino decoupling?
Towards cortical -> Use existing gauge visual
Towards AO -> Use capsule mesh if screw QC highlight green at the given length
Towards cortical -> Use capsule mesh
What is the new window height for dental implant cylinder?
3.2mm
2.8mm
2.6mm
2.5mm
What should DE do in MD step if teeth prosthesis for TJR is available?
(can have multiple answers)
Add Teeth Prosthesis for SCVD
Inputs can be found in M3S by [CaseID]_Prosthetic_STL.zip
Use "TeethPros"as input name for ART
Use "TeethProsthesis" as input name for ART
Show dental implant if available too
Which is the correct statement for making report of duplicated reconstruction cases?
Redo the fibula measurement page
Copy paste the picture from the linked report
Redo the page and copy new page from linked report for comparison
Which of these statements is incorrect?
Cut slot's standard height is 9mm
Standard position for burr slot is aligned to osteotomy
Standard position for cut slot is centered to osteotomy
Flanges position is aligned with osteotomy
If fibula has more than one segment to be guided, labeling should be made with F--K
Yes
No
Choose a wrong method to measure pre-drilling height?
Center - Barrels
Center - Trocar
Sides (shortest distance) - Trocar
Slide (shortest distance) - Custom barrel (dental implant)
Flanges can only be done for proximal/distal cuts.
Correct
Wrong
Which one is not correct regarding diving board?
Design upon request
Remove small intersection
No need to align the height
