WorksheetsMicroprocessors and Microcontrollers – Mechatronics (Slides 1–2)
Total questions: 10
Worksheet time: 5mins
Within Mechatronics, which topic is the focus of this session as indicated by the heading "PowerPoint 3: Microprocessors and microcontrollers"?
Microprocessors and microcontrollers
Fluid dynamics in hydraulic systems
Structural analysis of load-bearing frames
Thermodynamics of heat engines
According to the session objectives, what should learners be able to do by the end of this session?
Describe key electrical/electronic components of a mechatronics system, including the purpose and function of microprocessors and microcontrollers
Build and program a complete autonomous robot from scratch
Memorize the historical timeline of the development of mechatronics
Perform advanced calculus to model electromagnetic fields

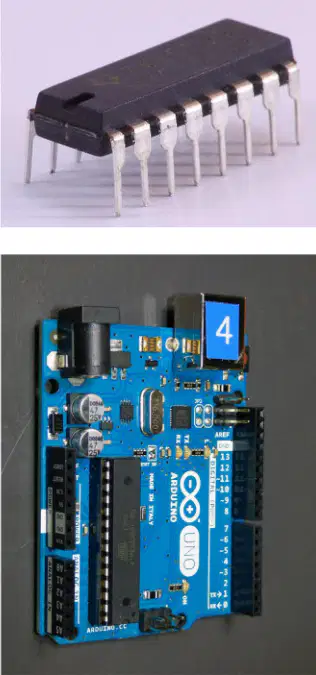

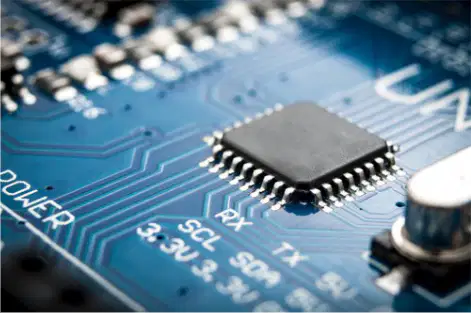

In the image of a circuit board, what component is shown on the board?
Microprocessor
Microcontroller
Resistor
Inductor
Microprocessors and microcontrollers are examples of programmable components that are usually in the form of an integrated circuit (IC), are programmed to perform different functions, and can replace discrete components such as transistors. In a mechatronic engineering context, which applications typically use programmable components?
Robotic arm motion control with sensor feedback and microcontroller-based actuators
CNC milling machine stepper motor control driven by a microprocessor
Manual hand tools for assembly with no electronic control
Automated pick-and-place machine using vision and microcontroller coordination
Hand-cranked drill press operated purely mechanically
Which of the following best describes the primary function of a microcontroller in a mechatronics system?
It converts mechanical energy to electrical energy
It acts as the central processing unit, controlling input and output operations
It supplies power to all components
It provides structural support to the system
What distinguishes a microprocessor from a microcontroller in the context of mechatronics applications?
Microcontrollers cannot be programmed
Microprocessors always have more pins than microcontrollers
Microprocessors are only used in hydraulic systems
Microprocessors are typically used for general computing tasks, while microcontrollers integrate memory and peripherals for control tasks
Which component would you most likely program to control sensors and actuators in a mechatronic device?
Diode
Capacitor
Transformer
Microcontroller
Which of the following tasks is best suited for a microprocessor in a mechatronic system?
Running a complex operating system for image processing
Measuring temperature with a thermistor
Switching a relay on and off
Controlling a washing machine's motor speed
What is a key advantage of using a microcontroller in embedded mechatronic applications?
It requires external memory for basic operations
It is only used for high-speed data processing
It integrates CPU, memory, and peripherals on a single chip
It cannot interface with sensors directly
Which statement correctly describes the role of microcontrollers in automation systems?
They serve as dedicated controllers for specific tasks
They are used exclusively for data storage
They provide wireless communication only
They generate mechanical motion directly
