WorksheetsModeling #3
Total questions: 5
Worksheet time: 6mins
A designer needs to chamfer the edges of a model with a 45 degree angle. What chamfer types allow for creating this type of chamfer? (choose two)
Two distance
Split distance
Distance and angle
Equal distance

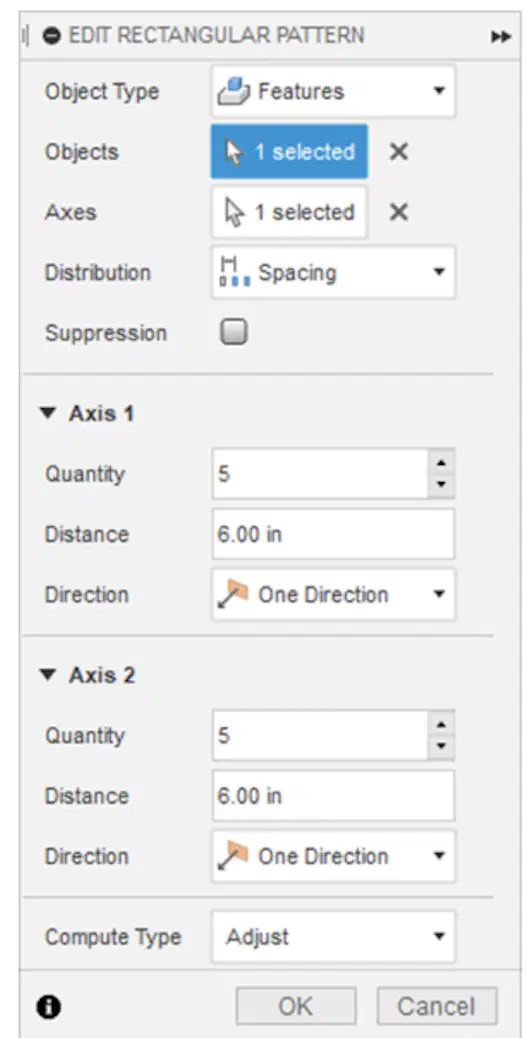

Based on the image, how many total instances of the patterned object will appear after the operation?
Use Drag and Drop to match the hole types with their respective image.
Threaded (tapped)
Counterbore
Countersink
Simple
Based on the 3D model image, select the following sketch tools that were used to create the geometry shown in the model. (choose 3)
Center diameter circle
Center-to-center slot
2-point rectangle
Spline
You need to create a construction plane on the model as shown. Which tools do you choose? (choose two)
Plane at Angle
Plane Through 3 Points
Tangent Plane
Midplane
