CV System Diagnostic & Therapeutic Procedures

Diagnostic and

Therapeutic Procedures

Including Pharmacology and Abbreviations

Learning Intention

We will be learning about diagnostic & therapeutic procedures of the CV system

Success Criteria

• Correctly use word parts that relate to the cardiovascular system

• Describe common diagnostic & therapeutic procedures of the CV system, including stethoscope, sphygmomanometer, cardiac enzymes, electrocardiogram, cardiac catheterization, CPR, AED, PTCA, stent, CABG, antilipidemic, antiplatelet agents, anticoagulants, & thrombolytics AND explain which pathological conditions these procedures would be used to diagnose and treat

• Define these abbreviations- ECG, EKG, CPR, AED, CABG, HTN, CAD, CHF, MI

Study Guide

Diagnostic Procedures

Stethoscope:

● Instrument for listening to body sounds

○ Heart
○ Lungs
○ Intestines

Sphygmomanometer:

● Instrument for measuring blood pressure (BP)
● AKA- blood pressure cuff

Cardiac Enzymes:

● Blood test
● Measures levels of cardiac enzymes

○ Increased level of enzymes = heart damage

Which pathological condition could cause heart
damage

**hint- you learned about this the other day!

○ (ie- myocardial infarction)

Electrocardiogram: (ECG, EKG)

● Records the electrical
activity of the heart
● Shows abnormal heart rhythm

Cardiac Catheterization:

● Thin-tube catheter passed through a blood vessel to the

heart

● Detects blockages

Drag and Drop

A

Placeholder

is an instrument for measuring blood pressure (BP). AKA- blood pressure cuff.

A​

Placeholder

​ is an instrument for listening to body sounds such as the heart, lungs and intestines.

​



​

Placeholder

is a blood test that shows heart damage.

​An ​

Placeholder

records the electrical activity of the heart (shows abnormal heart rhythm).





       A

Placeholder

consists of passing a thin-tube catheter through a blood vessel to the heart. It can detect blockages.

Drag these tiles and drop them in the correct blank above

Sphygmomanometer

stethoscope

Cardiac Enzymes

EKG

Cardiac Catheterization

Therapeutic Procedures

Cardiopulmonary Resuscitation:
(CPR)

● Used during cardiac arrest
● Combination of chest
compressions and
artificial respirations

Defibrillation:

● Procedure that converts serious irregular heartbeats

by giving electric shocks

**Automated External Defibrillator (AED)- portable defibrillator
used by nonmedical personnel

Cardiac arrest video

video

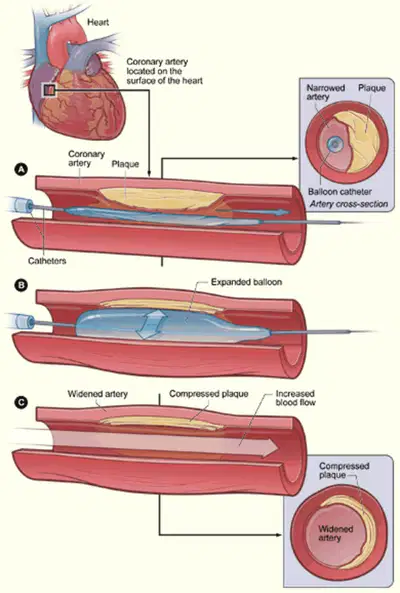

Percutaneous Transluminal Coronary Angioplasty:

Decode each word the best you can!

Percutaneous Transluminal Coronary Angioplasty:

● Treats coronary artery narrowing
(atherosclerosis)

● Balloon catheter inflated inside
narrowed blood vessel

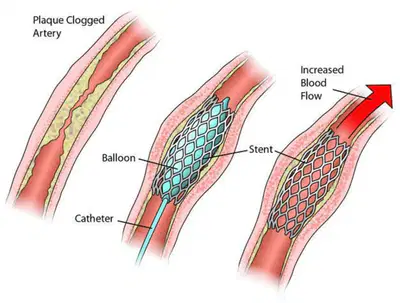

Intracoronary Artery Stent:

● Small metal coil placed
in a vessel to treat
atherosclerosis

Video
video

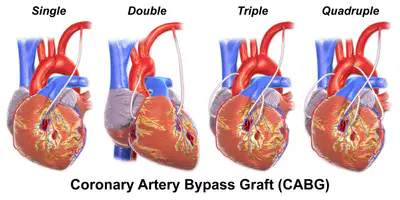

Coronary Artery Bypass: (CABG)

● Open-heart surgery
● Blood vessel from another area in the body is grafted in

order to bypass blood around a blocked coronary artery

Drag and Drop

​

Placeholder

is used during cardiac arrest. Is a combination of chest compressions and artificial respirations.

​ ​

​

Placeholder

is a procedure that converts serious irregular heartbeats by giving electric shocks.

Placeholder

treats coronary artery narrowing  (atherosclerosis). A balloon catheter is inflated inside a narrowed blood vessel.

​ An

Placeholder

involves placing a small metal coil into a vessel to treat atherosclerosis.

​ A

Placeholder

is a type of open-heart surgery where a blood vessel from another area in the body is grafted in order to bypass blood around a blocked coronary artery










Drag these tiles and drop them in the correct blank above

Cardiopulmonary Resuscitation: (CPR)

Defibrillation:

Percutaneous Transluminal Coronary Angioplasty

Intracoronary Artery Stent

Coronary Artery Bypass: (CABG)

Pharmacology:

Antilipidemic:

● Reduces cholesterol and lipids in the blood

Antiplatelet Agents & Anticoagulants :

● Prevent blood clots

Thrombolytic

● Dissolves existing blood clots

Drag and Drop

An​

Placeholder

is a type of medication that reduces cholesterol and lipids in the blood.​

​

Placeholder

prevent blood clots.

A​

Placeholder

dissolves existing blood clots.

Drag these tiles and drop them in the correct blank above

Antilipidemic

Antiplatelet Agents & Anticoagulants

Thrombolytic

Abbreviations

● ECG, EKG
● CPR
● AED
● CABG

● HTN
● CAD
● CHF
● MI

Quizlets

Quizlet #1

Quizlet #2

Quizlet #3

Word Building & Decoding
