L3 YR1 Unit 306 session 4 Regulations and manufacturers ins

​Unit 306
Understand relevant industry standards and regulations
British Standards and approved codes of practice

​British Standards (BS) are the standards produced by the BSI Group which is incorporated under a royal charter and which is formally designated as the national standards body (NSB) for the UK.

 These provide guidance on interpreting and following regulations.

​The British Standards are not enforceable, but they set out a series of recommendations so that the minimum standard to comply with the regulations can be achieved.

 By adhering to the recommendations within the British Standards, the regulations will be seen to be satisfied.

Fill in the Blanks

When was the BSI formed?

​However important the regulations and the British Standards are, they are not our primary source of information when installing equipment and appliances.

 Manufacturers’ guidance overrides both of these.

​Manufacturers’ guidance

​Manufacturers’ installation, servicing/maintenance and user instructions are the most important documents you will have access to when installing, servicing and maintaining equipment and appliances.

​ They tell us in basic installation language what we must do for correct and safe operation of their equipment.

 This guidance must be followed, otherwise:


● the terms of the warranty will be void

● the installation may be dangerous

● we may inadvertently be breaking the regulations.

​ In some instances, it may seem that the instructions contradict the regulations or the British Standards.

This is because regulations are reviewed only periodically, whereas manufacturers are moving forward all the time with new, more efficient products, so their information may be more up to date.


In these cases, follow a simple but effective rule: the manufacturers’ guidance must be followed at all times.

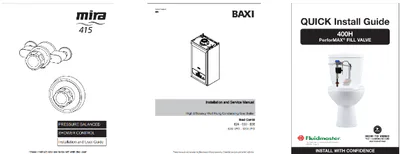

​Use the following link to the Mira showers 415 installation instructions and answer the following questions:

P2742-7-mira-415-installation-and-user-guide.pdf

Multiple Select

The Mira 415 is suitable for installation with the following packages:-

• Fully modulating multi-point gas water heaters.

• Fully modulating combination boilers.

• Unvented mains pressure systems.

• Mains pressurised, instantaneous hot water heated from thermal store, systems

• Pumped systems

Fill in the Blanks

2.5 of the installation instructions state that the installation should be carried out by a plumber or contractor who is registered, or is a member of, an association such as:

_________ __ ________ (___)?

National Association of Plumbing, Heating and Mechanical Services Contractors (NAPH & MSC)

Scottish and Northern Ireland Plumbing Employers’ Federation (SNIPEF),

Fill in the Blanks

Within the ‘Installation Requirements’, part 2. The Mira 415 is NOT suitable for installation as part of what type of system?

Fill in the Blanks

When used with a modulating multi-point or combination boiler above 5 bar, maintained pressure what would be necessary?

​Follow the link to the Fluid master 400H PerforMAX® FILL VALVE installation instructions and answer the questions:
P2742-7-mira-415-installation-and-user-guide.pdf

Multiple Select

To install the fill valve what are the 3 actions taken under step 1:

• TURN OFF WATER

• DRAIN WATER

• USE SPONGE OR TOWEL TO SOAK UP EXCESS WATER IN TANK

• COMPLETLY REMOVE TOILET ANS CISTERN

Fill in the Blanks

How would you adjust the hight of the fill valve?

Fill in the Blanks

What hight above the overflow should the fill valve roughly be set?

? Inches

Fill in the Blanks

Once fitted the water level should be set to roughly what hight below the overflow level?

? inch

Fill in the Blanks

What would you need to do if the water level is too low?

'Turn the tank water level adjustment screw

to raise the float. Flush to reset water level.'

Fill in the Blanks

Within the section ‘Troubleshooting’ list the correct procedure if the fill valve:

• DOES NOT TURN ON

• WON’T TURN OFF

• WON’T REFILL TANK
