10th Unit 4 Section B Lesson 2

Labeling

Label all the surfaces that participate in lift of the aircraft shown.

Drag labels to their correct position on the image

ailerons

powerplant

Propeller

flaps

Fuselage

Wing

Rudder

Elevators

landing gear

horizontal stabilizer

Match

Match Terms and Definitions or images

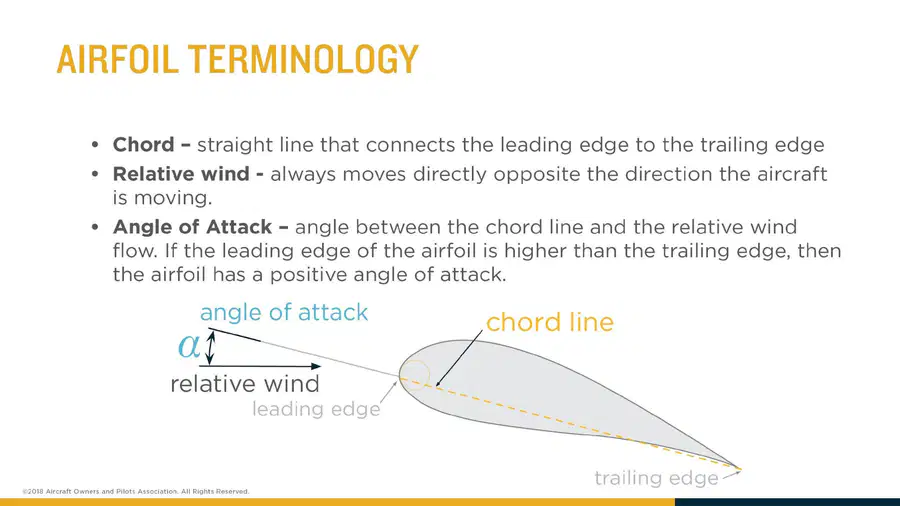

• first place air makes contact with the airfoil

• straight line that connects the leading edge with the trailing edge

• angle between the relative wind and the chord

• The curve of the wing

• last place air makes contact with the airfoil

Leading Edge

Chord line

angle of attack

camber

trailing edge

• Leading Edge

• Chord line

• angle of attack

• camber

• trailing edge
