04. Factors Influencing Choice of Material 1

04. Factors Influencing Choice of Material 1

Assessment

Presentation

Engineering

Vocational training

Practice Problem

Medium

Created by

Kevin Little

Used 4+ times

FREE Resource

88 Slides • 39 Questions

1

media

2

Recap Questions

3

Multiple Choice

DMADV stands for

1

design measure analyse define validate

2

define measure analyse design verify

3

define measure analyse design validate

4

design measure analyse define verify

4

Multiple Choice

we use DMADV if ...

1

it can't be analyse in DMAIC

2

the cpk value below 1.33

3

any special cause

4

the process doesn't exist

5

Multiple Select

DMADV is a .... approach/method

1

reengineering

2

continous improvement

6

Multiple Choice

Verify cause & effect relationship and to determine the root cause(s) of the defect is the definition of ... stage

1

analyse

2

verify

3

control

4

design

7

Multiple Choice

The Six Sigma method DMADV is used to?

1

Improve an existing business process

2

Create new products or process designs

3

Optimise an existing product

4

Define high level project goals

8

Multiple Choice

In the Six Sigma method DMADV, at what stage would you ‘identify factors critical to quality, and identify the capabilities of the product and the production process’ ?

1

Define

2

Measure

3

Analyse

4

Verify

9

Multiple Choice

The Six Sigma Business Improvement Technique aims to?

1

Minimise the process outputs

2

Maximises variability

3

Identify and remove the causes of defects

4

Eliminate any future defects

10

media

11

media

12

media

13

media

14

media

15

media

16

media

17

media

18

media

19

media

20

media

21

Activity

media

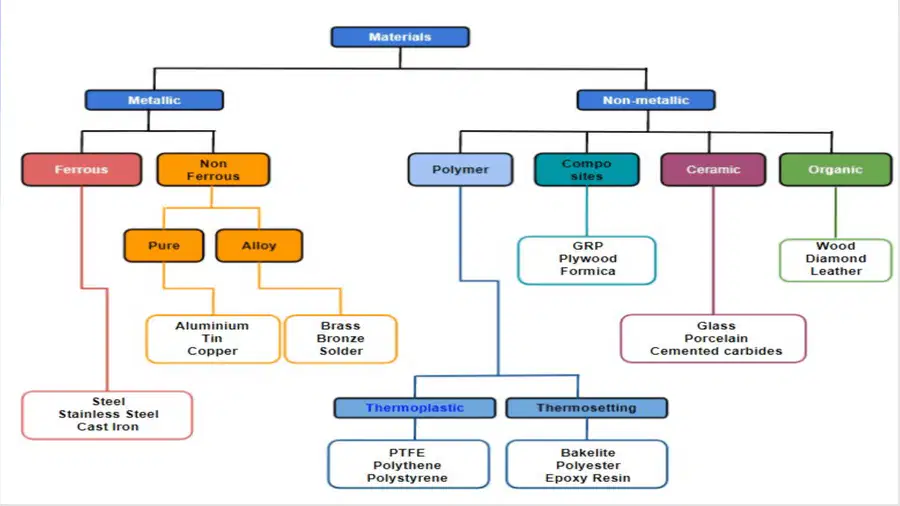

Classification of Material

22

media

23

media

24

Open Ended

Question image

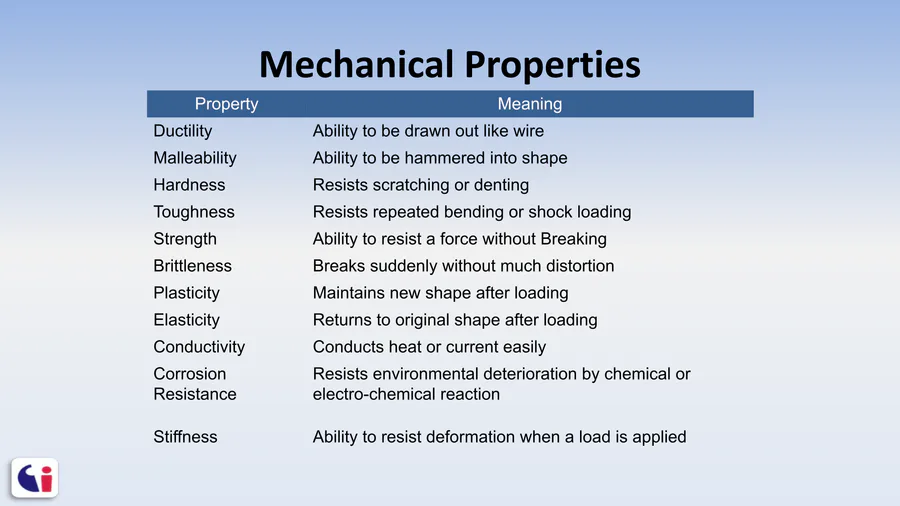

How many mechanical properties can you name?

25

media

26

media

27

media

28

media

29

media

30

media

31

media

32

media

33

media

34

media

35

media

36

media

37

Questions on

Mechanical

properties

38

Multiple Choice

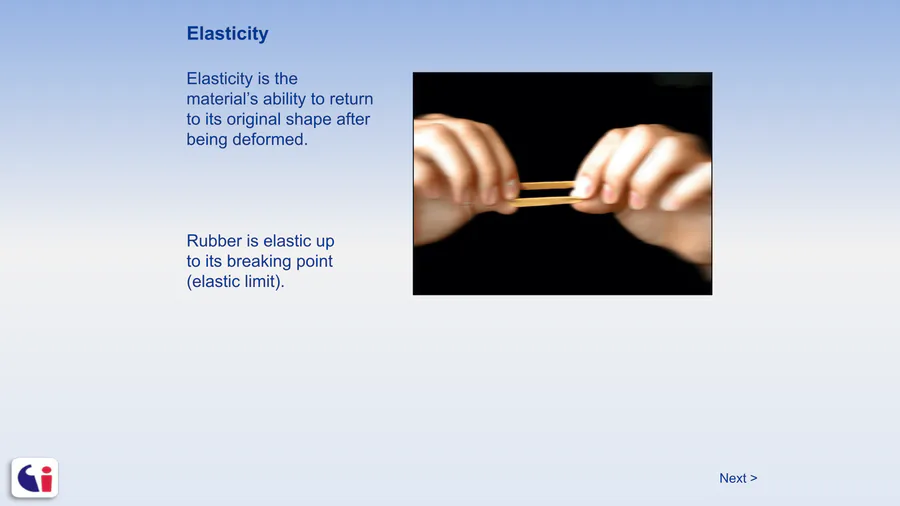

What property does a material have if it returns to its original shape after being deformed?

1

Elasticity

2

Plasticity

3

Strength

4

Ductility

39

Multiple Choice

Which of the following is not a mechanical property of materials?

1

Hardness

2

Resistivity

3

Brittleness

4

Toughness

40

Multiple Choice

Which do you think is the least plastic material

1

Putty

2

Dough

3

Gum

4

Spoung

41

Multiple Choice

Which property is defined from the ability to be drawn out into a wire?

1

Hardness

2

Malleability

3

Ductility

4

Plasticity

42

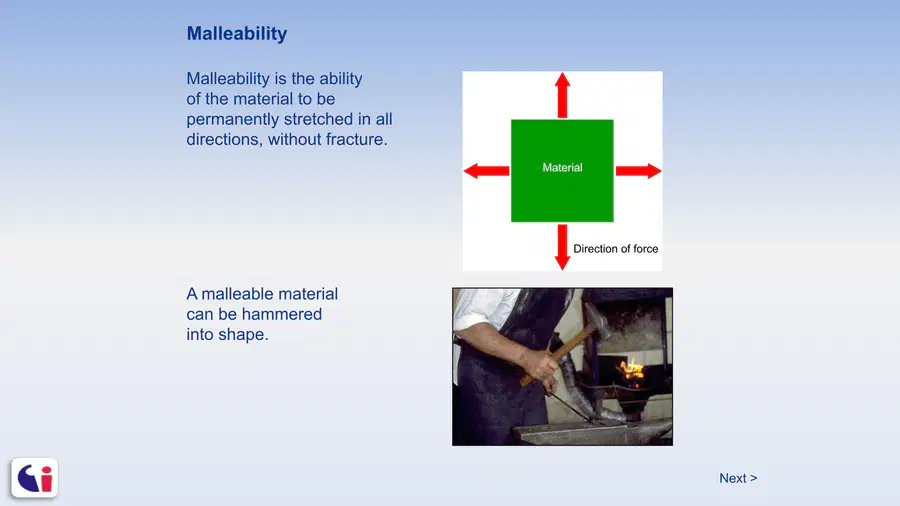

Multiple Choice

Which do you think is the most malleable substance?

1

Copper

2

Ice

3

Glass

4

Rubber

43

Fill in the Blanks

media image

44

Fill in the Blanks

media image

45

Fill in the Blanks

media image

46

Open Ended

Question image

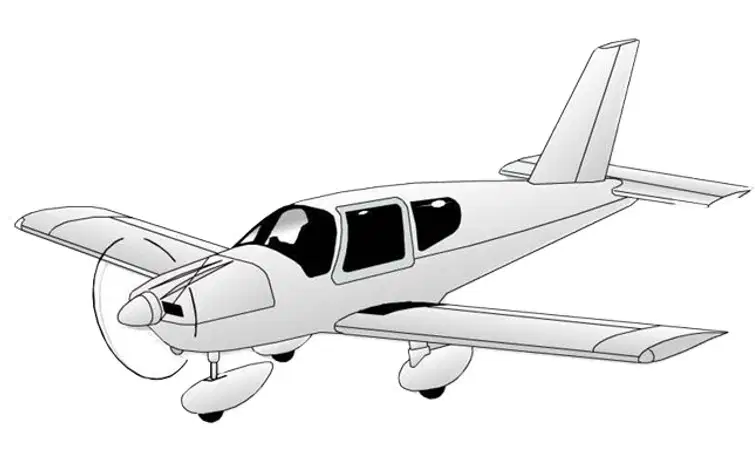

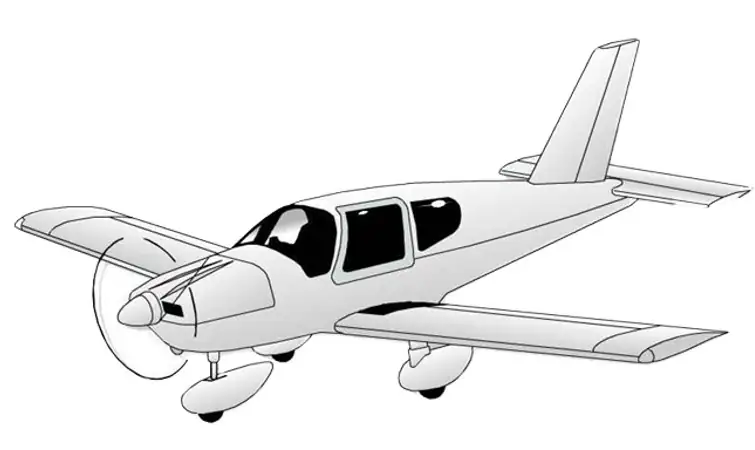

Can you suggest a material for the body, tires and windscreen

47

media

48

media

49

media

50

media

51

media

52

Activity

media

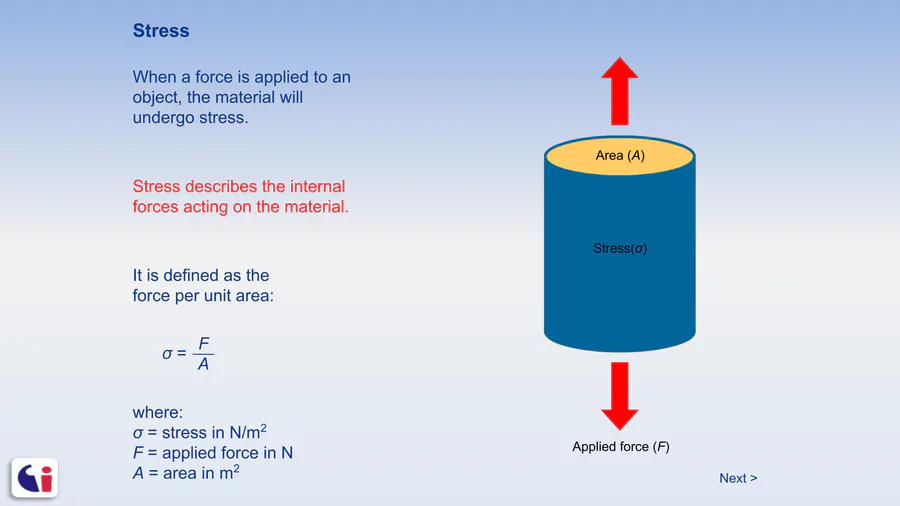

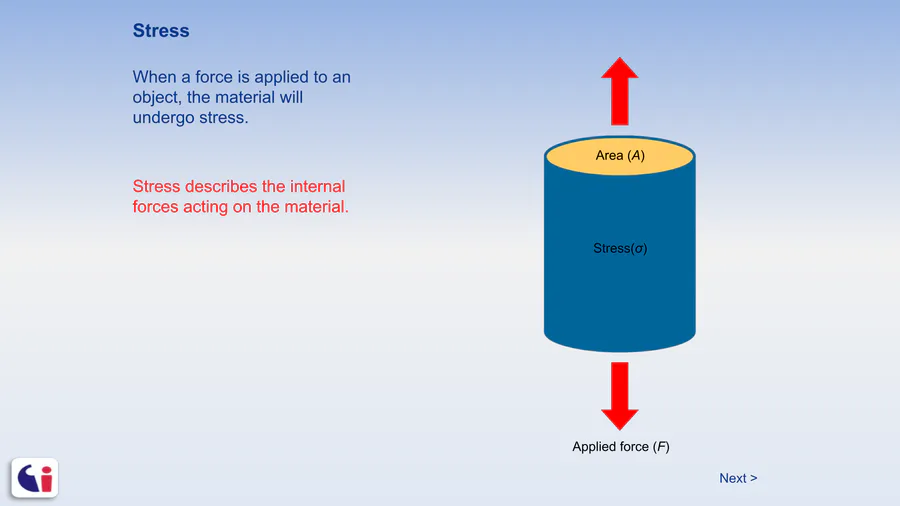

Stress Calculations

53

Open Ended

Question 1: Basic Stress Calculation

A metal rod has a cross-sectional area of 0.002 m² and experiences a tensile force of 2000 N. What is the stress in the rod?

54

Open Ended

Question 2: Finding the Force

A steel cable experiences a stress of 50 MPa. If its cross-sectional area is 0.005 m², what force is acting on it?

55

Open Ended

Question 3: Finding the Cross-Sectional Area

A bolt experiences a tensile force of 15,000 N and the resulting stress is 300 MPa. What is the cross-sectional area of the bolt?

56

Open Ended

Question 4: Stress in a Circular Rod

A circular rod with a diameter of 10 mm carries a tensile force of 5000 N. Calculate the stress in the rod.

57

Open Ended

Question 5: Stress in a Rectangular Plate

A rectangular metal plate with a width of 50 mm and thickness of 10 mm carries a force of 25,000 N. Calculate the stress in the plate.

58

media

59

Activity

media

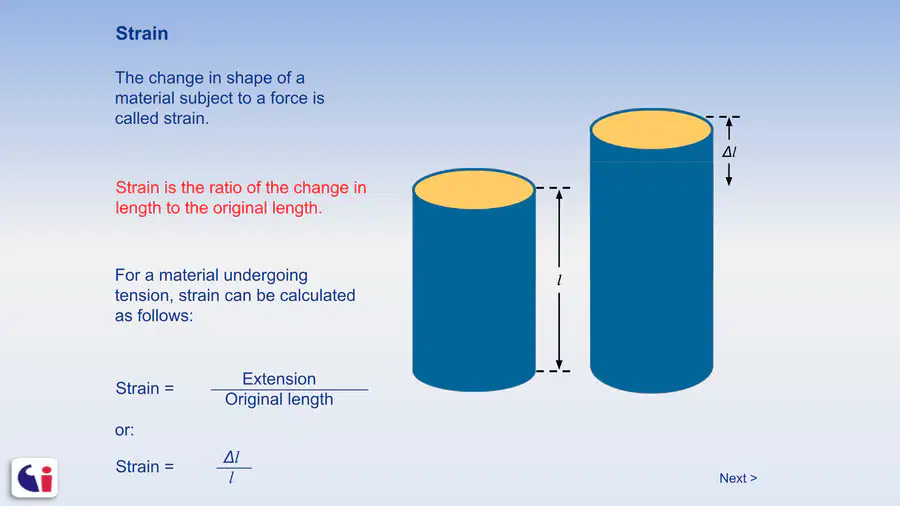

Strain Calculations

60

Open Ended

Question 1: Basic Strain Calculation

A steel rod originally 2 m long is stretched by 0.002 m under tension. What is the strain?

61

Open Ended

Question 2: Finding the Change in Length

A metal wire experiences a strain of 0.005 when stretched. If its original length was 1.5 m, how much has it elongated?

62

Open Ended

Question 3: Finding the Original Length

A plastic strip stretches by 4 mm under tension. If the strain is 0.002, what was its original length?

63

Open Ended

Question 4: Strain in a Compressed Bar

A wooden bar originally 0.8 m long is compressed by 1.6 mm. What is the strain?

64

Open Ended

Question 5: Strain in a Long Wire

A 3.5 m long copper wire is stretched by 5 mm due to a load. Calculate the strain.

65

media

66

media

67

media

68

media

69

media

70

media

71

media

72

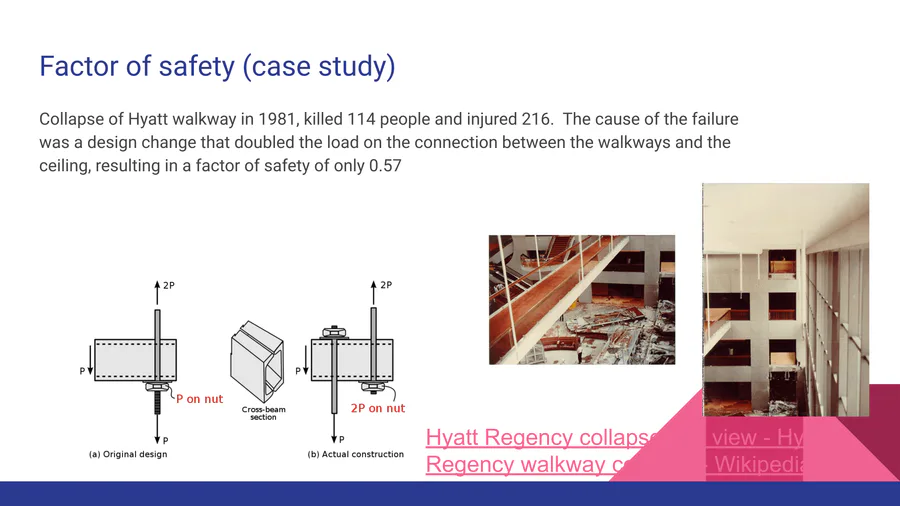

Case Study:- Read the following article, Questions to follow

73

74

75

Multiple Choice

What was the primary cause of the Hyatt Regency walkway collapse?

1

Hurricane

2

Fire

3

Structural overload resulting from design flaws

4

Earthquake

76

Multiple Choice

How many people were injured in the collapse?

1

300

2

216

3

150

4

100

77

Multiple Choice

How many people were killed in the Hyatt Regency walkway collapse?

1

50

2

114

3

200

4

300

78

Multiple Choice

In which city did the Hyatt Regency walkway collapse occur?

1

Chicago

2

Kansas City

3

Los Angeles

4

New York

79

Multiple Choice

What year did the Hyatt Regency walkway collapse happen?

1

1981

2

1980

3

1982

4

1979

80

Multiple Choice

What was the main material used in the construction of the walkways?

1

Brick

2

Plastic

3

Steel

4

Wood

81

Multiple Choice

What was the immediate cause of the walkway collapse?

1

Earthquake

2

Design change in steel hanger rods

3

Flood

4

Fire

82

Multiple Choice

What was the original design flaw in the walkway?

1

Improper lighting

2

Insufficient support for the weight

3

Lack of fire exits

4

Incorrect material used

83

Multiple Choice

What was the response of the engineering community after the disaster?

1

No changes were made

2

Increased construction speed

3

Increased focus on engineering ethics

4

Decreased safety standards

84

Multiple Choice

What was the final outcome for the hotel after the collapse?

1

It was demolished

2

It was never reopened

3

It was renovated and reopened

4

It was converted into a museum

85

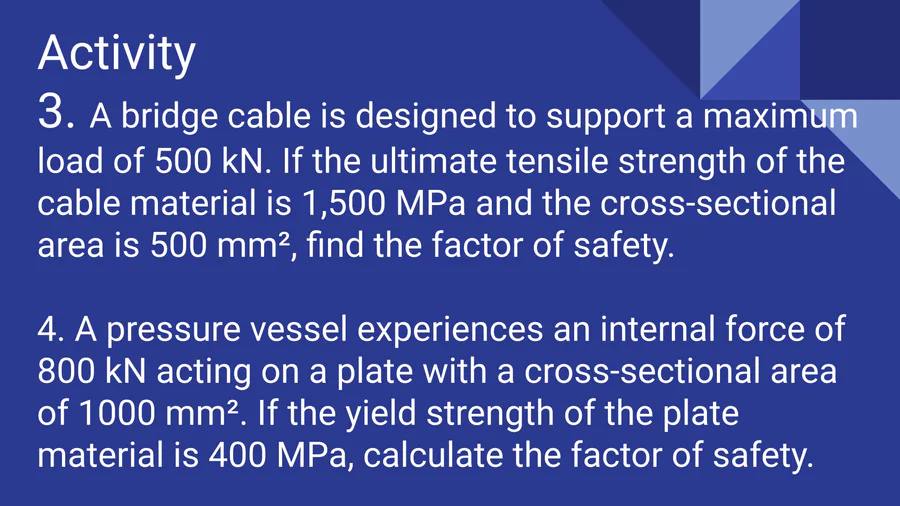

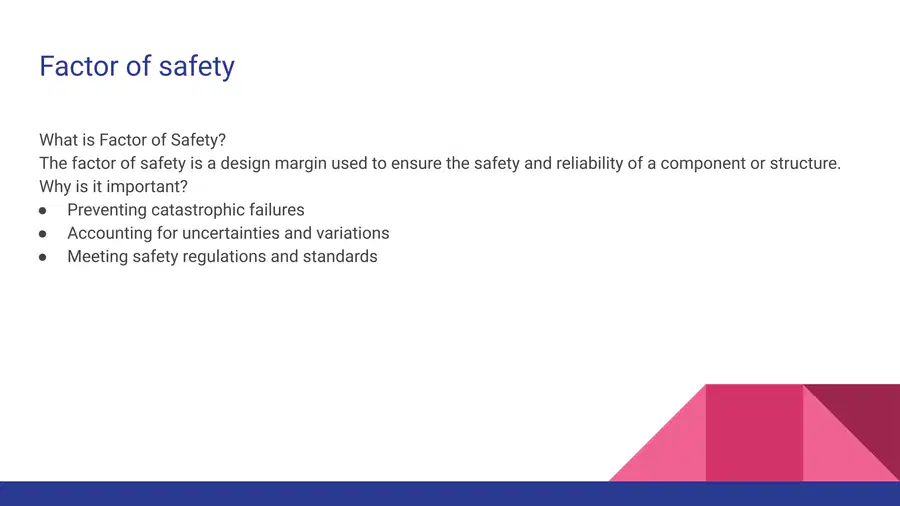

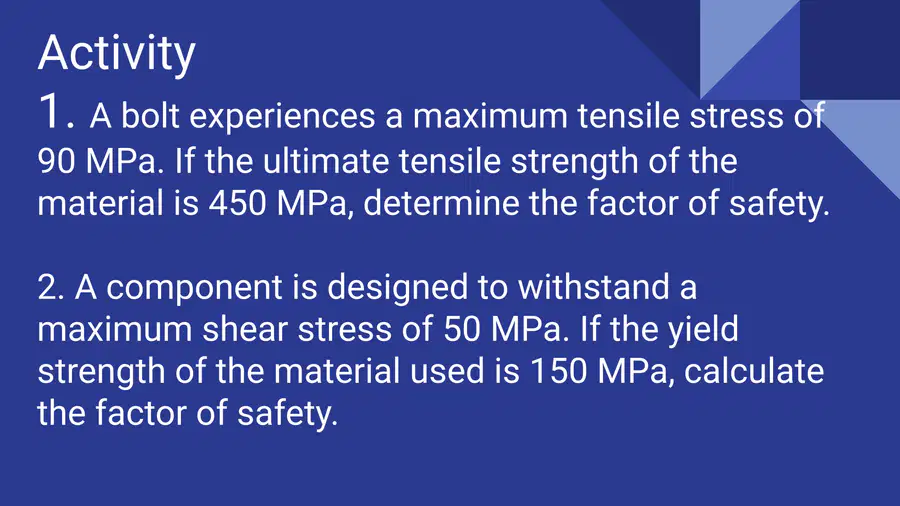

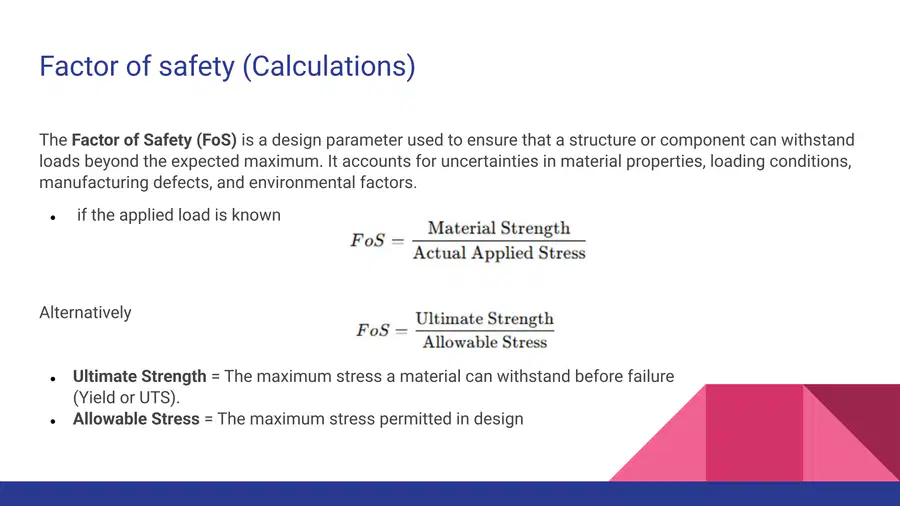

Factor of Safety

86

media

87

media

88

media

89

media

90

media

91

media

92

media

93

media

94

95

media

96

media

97

media

98

99

media

100

media

101

media

102

media

103

media

104

media

105

media

106

media

107

Open Ended

Question image

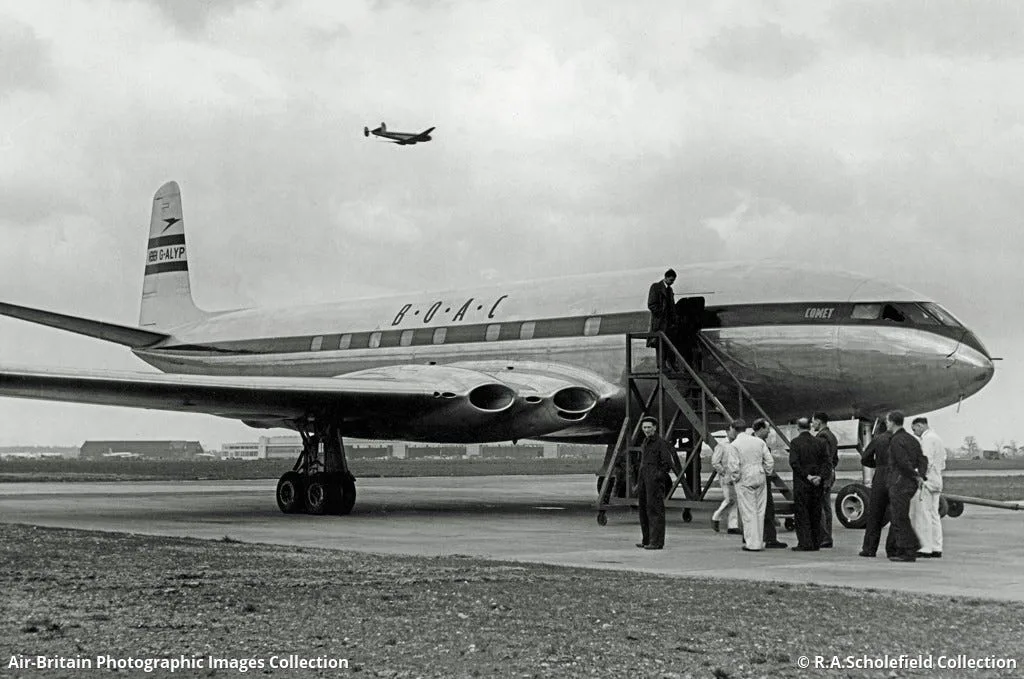

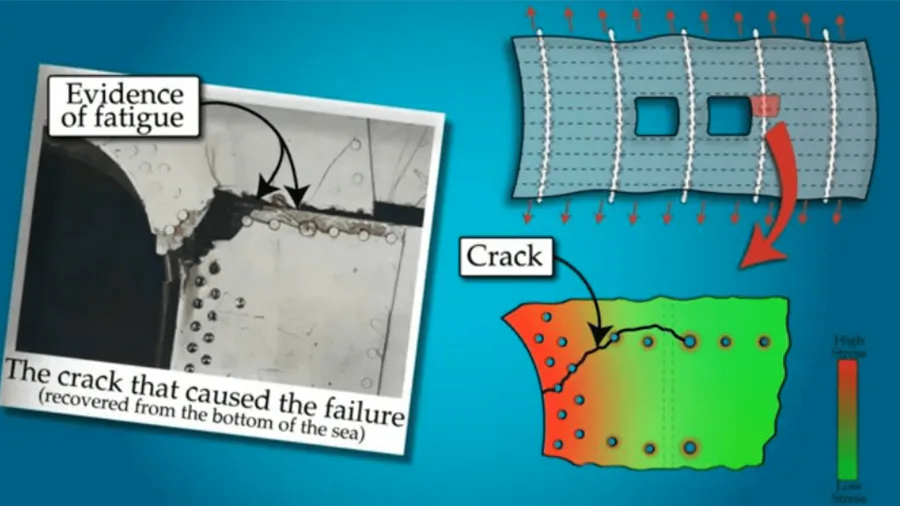

What do you think was the cause of these disasters?

108

109

media

110

media

111

media

112

media

113

media

114

media

115

media

116

media

117

media

118

media

119

media

120

media

121

media

122

media

123

media

124

media

125

media

126

media

127

Open Ended

What have you learnt from this lesson
