25S1 WK5 Cellular Respiration & Photosynthesis
Presentation
•
Biology
•
11th Grade
•
Medium
Aleisha Bliesner
Used 1+ times
FREE Resource
57 Slides • 28 Questions
1
2
3
4
5
6
7
8
9
10
Multiple Choice
The goal of cellular respiration is to:
make water
make ATP
make glucose
make oxygen
11
Multiple Choice
Which of the following is the correct equation for aerobic cellular respiration?
6CO2 + 6H2O ⟶ C6H12O6 + 6O2 + ATP
6O2 + C6H12O6 ⟶ 6H2O + 6CO2 + ATP
C6H12O6 + 6H2O ⟶ 6CO2 + 6O2 + ATP
6O2 + 6H2O ⟶ C6H12O6 + 6CO2 + ATP
12
13
14
15
16
Multiple Choice
Several molecules are produced as a result of glycolysis.
What is the net production of ATP, pyruvate, and NADH when one molecule of glucose undergoes glycolysis?
2 ATP, 2 NADH, and 2 pyruvate
4 ATP, 1 NADH, 2 pyruvate
4 ATP, 2 NADH, and 4 pyruvate
2 ATP, 1 NADH, and 1 pyruvate
17
Multiple Choice
In what part of the cell does glycolysis take place?
Cytoplasm
Mitochondria
Chloroplast
Nucleus
18
Multiple Choice
Which of the following statements is true regarding glycolysis?
Glycolysis can occur without the presence of oxygen
Glycolysis takes place in the mitochondria of a cell
Glycolysis is the final step in aerobic respiration
Glycolysis produces a net of 1 ATP, 1 NADH, and 2 pyruvate
19
20
21
22
23
Multiple Choice
After glycolysis, pyruvate is oxidized to produce carbon dioxide, NADH, and a molecule that contains 2 of the 3 carbons from the pyruvate.
Which product of pyruvate oxidation enters the Krebs cycle?
Carbon dioxide
Acetyl-CoA
NADH
Glucose
24
Multiple Choice

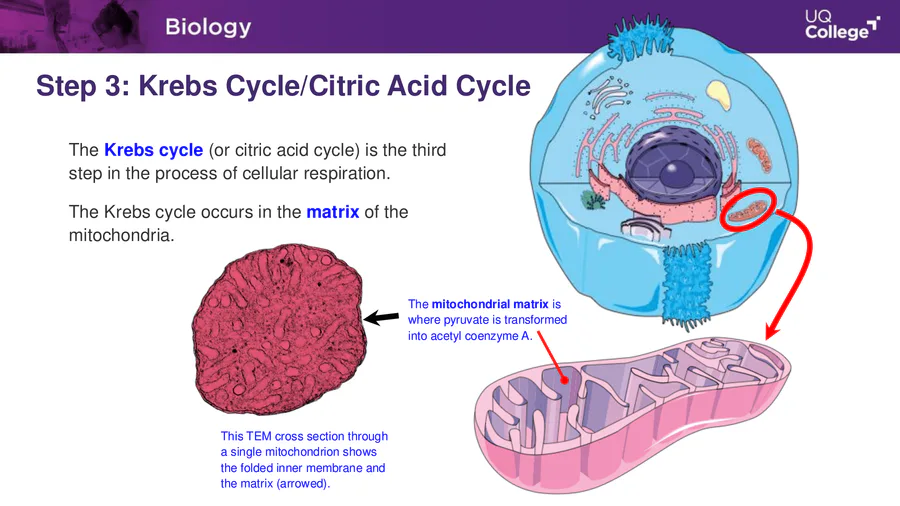

In what part of the cell does the Krebs cycle take place?
Cytosol
Matrix of the mitochondria
Cristae of mitochondria
Outer membrane of mitochondria
25
Multiple Choice
Which of the following molecules are products of the Krebs cycle?
NAD+ and FAD
NADH and FADH2
NAD+ and FADH2
NADH and FAD
26
27
28
29
30
31
32
Multiple Choice
In what part of the cell does the electron transport chain take place?
Cytosol
Matrix of the mitochondria
Cristae of mitochondria
Outer membrane of mitochondria
33
Multiple Choice
Which of the following is true of the electron transport chain (ETC)?
The movement of H+ ions across the inner membrane of the mitochondria drives the transfer of electrons down the ETC.
The movement of electrons down the ETC drives the formation of a H+ gradient.
The movement of H+ ions through ATP synthase drives the transfer of electrons down the ETC.
The movement of electrons down the ETC drives the movement of ADP and phosphate through ATP synthase.
34
Multiple Choice
Which of the following statements regarding ATP synthesis by ATP synthase is correct?
The energy from a proton gradient is used to power ATP synthase
ATP synthase regenerates electron carriers like NADH and FADH2
ATP synthesis creates a proton gradient that causes electron flow through an electron transport chain (ETC).
A temperature gradient drives ATP synthesis.
35
Multiple Choice

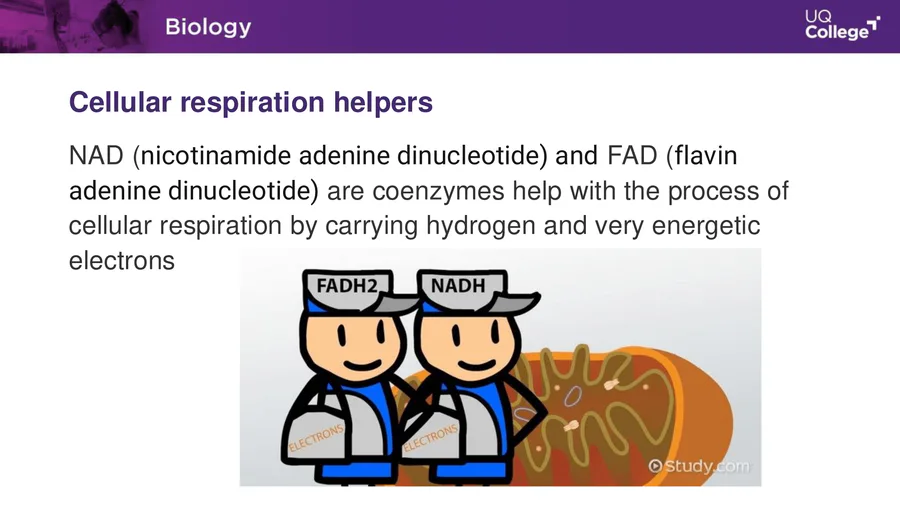

What is true of NAD in cellular respiration?
NAD carries the oxygen needed to break down the glucose molecules into the cell.
NAD is used to directly break apart the glucose molecules.
NAD carries and transfers electrons and H+ ions.
NAD carries excess carbon dioxide out of the cell.
36
37
38
Multiple Choice

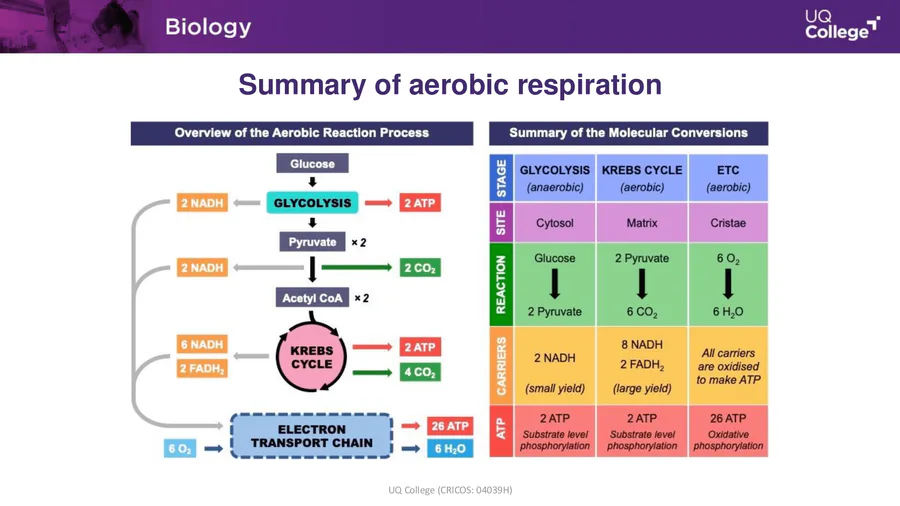

Which diagram most accurately summarizes the process of cellular respiration?
39
Multiple Choice
What stage of cellular respiration produces the most number of ATP?
Glycolysis
Krebs cycle
Electron transfer chain
anaerobic respiration
40
41
42
43
44
45
46
47
Multiple Choice
48
Multiple Choice
Gwen is investigating how exercise affects the rate at which she can squeeze a ball. After several minutes, she begins to experience muscle soreness and fatigue. She knows that this means her muscles are beginning to run out of oxygen.
Which process is likely causing the soreness in her muscle cells?
Lactic acid fermentation
Photosynthesis
Ethanol fermentation
Krebs cycle
49
50
51
52
53
54
55
56
57
58
Multiple Choice
Where does photosynthesis take place?
59
Multiple Choice
The flat disk-like structures inside the chloroplast are called
60
Multiple Choice
Stacks of thylakoids are called
61
Multiple Choice
Which of the following is the correct equation for photosynthesis?
62
63
64
65
66
67
Multiple Choice
Where in the chloroplast does the light dependent phase occur?
Stroma
Thylakoid membrane
Grana
Cytosol
68
Multiple Choice
Photosynthesis can be divided into two steps: the light-dependent reactions and the Calvin cycle.
Which of the following correctly describes the overall process of the light-dependent reactions?
During the light-dependent reactions, carbon fixation occurs
The light-dependent reactions occur in the stroma of choloroplasts
Light energy is converted into chemical energy in the form of ATP and NADPH
ATP and NADPH are used to make carbohydrates
69
70
71
72
Multiple Choice
Rubisco is:
a pigment which captures light energy
a membrane protein used to transport electrons
an enzyme which catalyzes carbon fixation
a simple glucose monomer produced in the calvin cycle
73
Multiple Choice
What is the product of the light independent phase of photosynthesis?
Rubisco enzyme
Glucose
Oxygen
Carbon dioxide
74
Multiple Choice
The Calvin cycle is considered light-independent because it can occur in darkness. However, most often the Calvin cycle takes place in sunlight.
Which of the following likely explains why?
The enzymes involved in the Calvin cycle are unable to bind substrates in the dark.
Sunlight is important in activating carbon fixation in the Calvin cycle.
The Calvin cycle requires ATP and NADPH, which require sunlight to be produced.
RuBP regeneration requires sunlight in order to occur and continue the Calvin cycle.
75
76
77
78
79
80
Multiple Select
Given the shape of the graph above, which variable(s) could be on the x axis?
(Select all that apply)
Light intensity
Temperature
Carbon dioxide concentration
Oxygen concentration
81
Multiple Choice
Which diagram most accurately summarizes the process of photosynthesis?
82
Multiple Choice
Which of the following steps occurs in the light-independent reactions of photosynthesis but not in the light-dependent reactions?
Chemical reactions produce oxygen, ATP, and NADPH
ATP and NADPH are used to fix inorganic carbon
Chlorophylls absorb light energy, which eventually breaks the bonds of water molecules
83
84
85
Show answer
Auto Play
Slide 1 / 85
