Induction_Wolverhampton_8202-30_Final_Induction_Quiz

Multiple Choice

The course has 450 guided learning hours and 720 total qualification time. How many hours of independent study are expected?

• 100 hours

• 270 hours

• 450 hours

• 720 hours

Multiple Choice

The course has 450 guided learning hours and 720 total qualification time. How many hours of independent study are expected per week based on 36 weeks of college?

• 5.5

• 6.5

• 7.5

• 8.5

Open Ended

Check your understanding

3 List three extraneous conductive parts and

three exposed conductive parts.

Multiple Select

What reference materials can you take into your Level three theory exam?

Multiple Select

Select the correct details for the written theory exam (531):

• 150 Minutes

• 75 Marks

• 100 Marks

• 60 marks

• 2 Hours

Multiple Select

Permitted materials for your theory exam are:

Open Ended

Example: ‘State the upper AC voltage limit for SELV’

Open Ended

Question types: Short answer

State three renewable energy sources utilised for

producing electricity. (3 marks)

Open Ended

Question types: Short answer

List the three documents issued to

certify a new circuit.’

1. Electrical Installation Certificate

2. Schedule of Inspections

3. Schedule of Test Results.

​The answer can be listed as:

Open Ended

List three exposed conductive parts likely to be present in an industrial

electrical installation. (3 marks)

Open Ended

Remember, you must not only carry out the calculation. You must also research and reference the relevant BS 7671 Regulations or the On-Site Guide (OSG), and evaluate your result to show whether the circuit is acceptable and explain why.

Fill in the Blanks

Describe:
this is normally linked to a procedure or practice and the answer must contain more detail than for a state or list question. The answer must be in your own words, but if you are quoting an extract from one of the permitted materials, make this clear.

Open Ended

Example: ‘Describe how to carry out a test to

obtain the R1+R2 value for a radial socket-outlet

circuit.’

​The answer could be presented as:

• Ensure the circuit is fully isolated.

• Place a temporary test link between line and CPC at the distribution board.

• Use a low-resistance ohmmeter.

• Ensure all leads are zeroed, including the test link.

• Test between line and CPC at each socket in the circuit.

• The highest result obtained is recorded as R1+R2.

• Ensure the test link is removed.

Open Ended

Short answer questions - Understanding

Explain the reasons for the method that must be

used when verifying the continuity of the main and

supplementary bonding conductors. (3 marks)

Open Ended

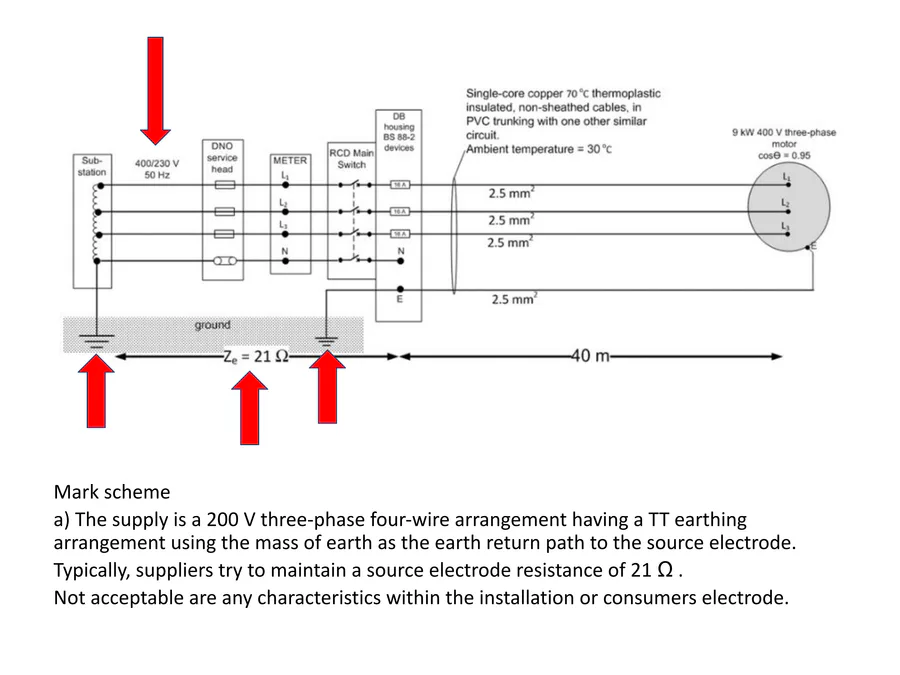

a) Identify three important characteristics of the supply for the installation. (3 marks)

Key words

Written exams will have key words that should guide you in the direction needed to provide an answer. Some questions can have many key words, so you must ensure you read a question thoroughly,

as questions are carefully written so there can only be one answer.

Open Ended

What are the key words here?

‘State the three documents issued following an initial

verification.’

​What are the key words here?

‘State the three documents issued following an initial verification.’

✚ three – three items needed
✚ the – there are only three possible items. If there is no ‘the’, there could be a wider range of answers.
✚ documents – paper, books, journals, etc.
✚ following – after, not before or during
✚ initial verification – a specific process.

​Pull out the information from the question or scenario


Some questions have large stems or scenarios giving key information that is often needed for questions that follow. It is always a good idea to read once, then read again and highlight or underline the key information.

Example: ‘A new electrical installation is to undergo an initial verification. The installation and supply form a 400 V three-phase TN-C-S system. At the origin of the installation, Zs was measured and recorded as 0.3 Ω. The temperature during the testing process is 20°C. The final circuits are wired within PVC conduit.

"Describe how to carry out a prospective fault current

test for this installation."

Open Ended

"Describe how to carry out a prospective fault current

test for this installation."

​Some questions have a ‘stem’. Each sub-question will relate to the scenario in the stem. For example:

"An electrical installation within a large commercial building is to be inspected and tested on completion of the new works."
State:

a) the tests required


b) the instruments needed for each test.’

​If there is no stem, there is no relationship between sub-parts of a question (unless stated). For example:

a) State the maximum residual current rating for an RCD providing additional protection.

b) List three special locations within BS 7671.

c) State, for each answer given in b) above, the section number given in BS 7671.

Item a) has nothing to do with b) or c) – but c) links to b).

​Marks
The number of marks awarded for a question can be a good indicator of the depth of the answers you need to provide.
Example:

‘State the maximum permitted percentage voltage drop for a power circuit. (1 mark)’

​The correct answer is simply 5% for the one mark.



Example: ‘Explain what is meant by voltage drop. (4 marks)’


A good answer should cover four points to get the four marks available: Voltage drop is the loss in voltage (1) from the origin of a circuit to the final point in the circuit (1). The loss is due to the circuit resistance (1) and the circuit load current as expressed using Ohm’s law (1).

​Presenting your answer

When presenting your answer, make sure it is neat and clear. Correct spelling, though desirable, isn’t essential as long as your answer is understandable and any mis-spellings do not cause confusion. Always use correct technical terms and avoid slang terms or trade names. Use bullet points if you are describing a procedure. Sometimes a diagram can speak a thousand words. Always show calculations as marks are awarded for steps in calculations and generally only one mark is given for the answer! You could get a calculation wrong but still get marks for the procedure.

​Which of the following answers would you prefer to mark if you were an examiner?

​Answer A
I would get out of the van and open my test meter box. Selecting a low-resistance ohmmeter, I would fully isolate the circuit. I would then check my meter for function. I would then link line to CPC at the fuse board and then disconnect all equipment, I would also bridge out all sensitive devices. I would then go to all the switches and lighting points on the circuit and test using my meter which does not need to be GS38 but I would null my leads before testing as it does make readings much more accurate. I would then take a reading at every switch and light then I would write down on the schedule of test results the biggest value I got using my low-resistance ohmmeter.

​Answer B
✚ Fully and securely isolate the circuit
✚ Use low-resistance ohmmeter
✚ Null leads and check meter for function
✚ Prepare circuit by removing or bridging sensitive devices
✚ Temporary link L-E at DB
✚ Test at all points on the circuit
✚ Record highest measured value as R1+R2
✚ Remove link and reinstate the circuit

Poll

Which of the following answers would you prefer to

mark if you were an examiner?

• Answer A

• Answer B

​Both answers contain the same information and would gain the same marks, but an examiner marking Answer A might miss a key point in all the unnecessary detail, meaning the candidate would lose marks.

Multiple Choice

Which of the following is NOT a required assessment for this qualification?

• Synoptic Assignment

• Employer involvement portfolio

• External written exam

• Coursework essay

Multiple Choice

The approximate pass rate for the March 2025 8202-531 theory exam was:

• 32%

• 42%

• 52%

• 62%

Multiple Choice

The final grade boundaries for the March 2025 assessment are shown. The passing grade boundary as percentage was approximately:

• 35%

• 36%

• 37%

• 38%

Multiple Choice

The failure rate for the June 2025 assessment (8202-531) was:

• 78%

• 68%

• 58%

• 88%

Multiple Choice

If a student fails the theory exam (8202-531), what happens?

• They can take it again unlimited times during the lifespan of the course

• They have 2 opportunities to retake — if both are failed, the qualification is failed

• They can replace it with extra coursework

• They can potentially achieve an overall passing grade if they achieve a high mark in the synoptic assignment

Multiple Choice

Which of these is the correct symbol for a one gang unswitched socket outlet?

Open Ended

1. What are the first two steps in the design process?
