Site Planning & Services

Multiple Choice

Which of the following best describes a 'site' in the context of site planning?

• A piece of land with boundaries intended for a specific purpose and human usage

• A building under construction

• A completed architectural project

• A public park with no defined boundaries

Open Ended

Why is site planning considered a crucial step in the development of land for human occupancy or usage?

Multiple Choice

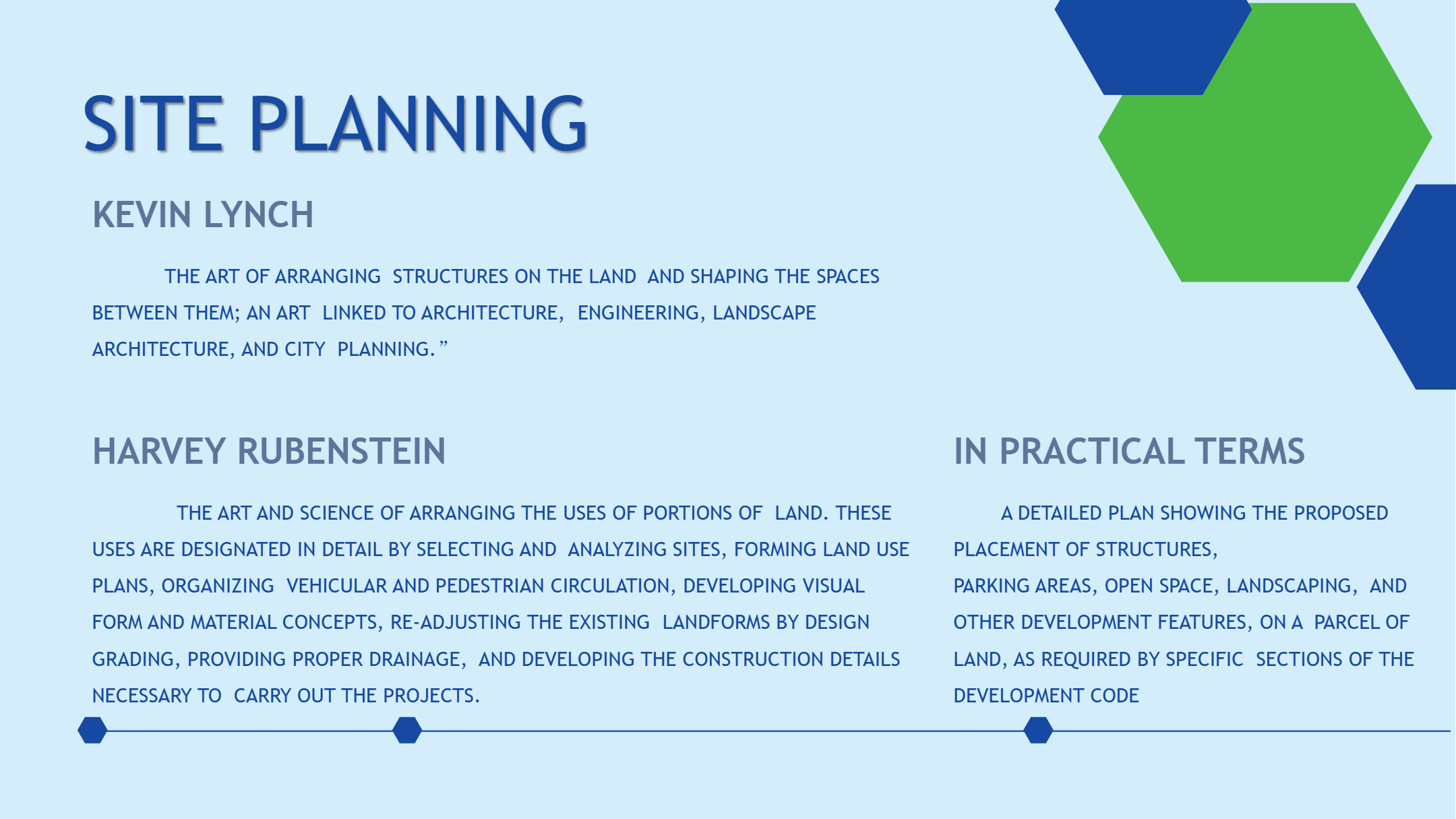

Which of the following best describes the practical purpose of site planning as mentioned in the slides?

• Arranging structures for aesthetic appeal

• Creating a detailed plan for proposed placement of structures and development features

• Designing only open spaces and landscaping

• Focusing solely on vehicular circulation

Fill in the Blanks

The process of collecting

is a key step in understanding the site during site planning.

Open Ended

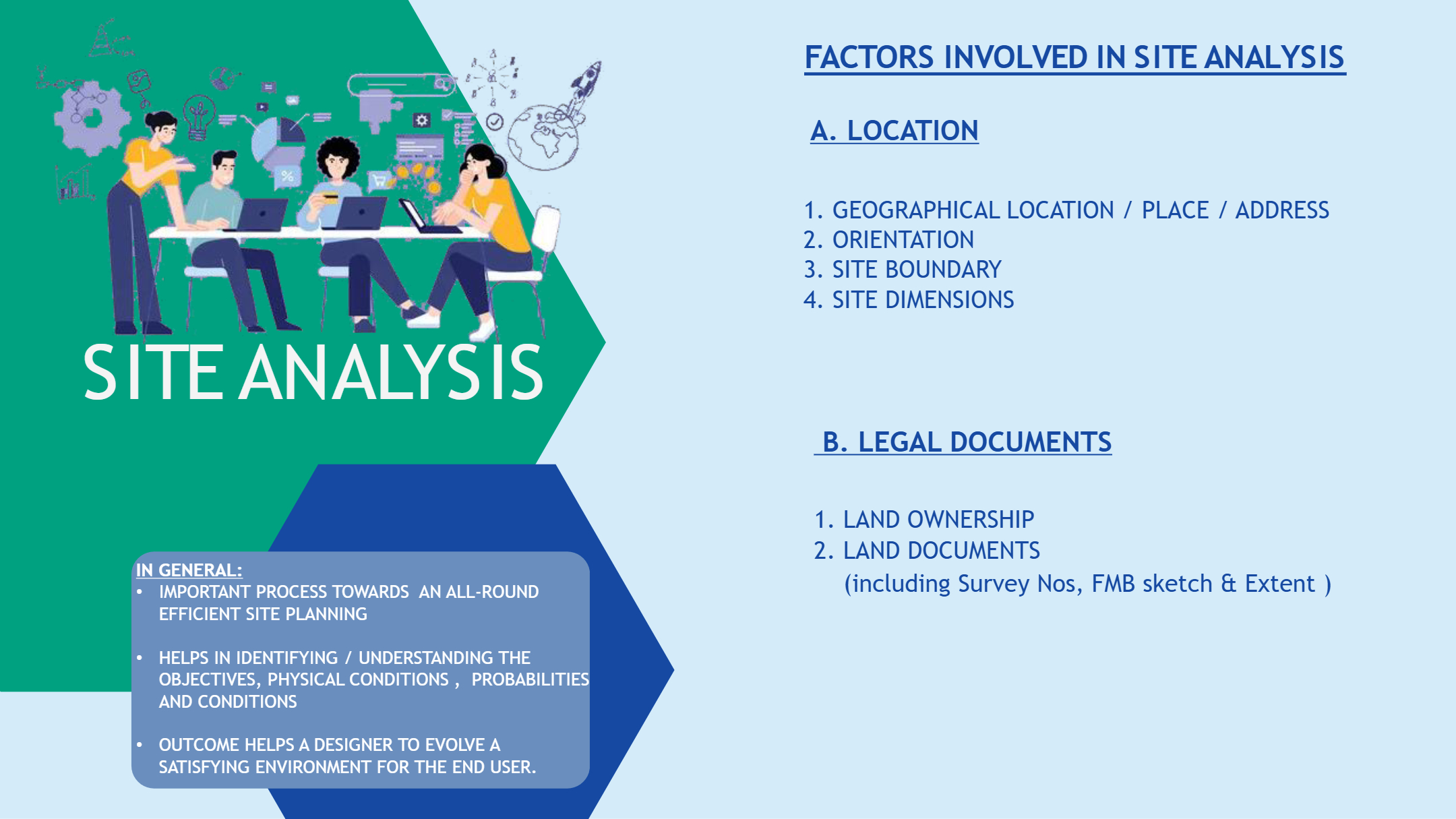

Explain how site analysis contributes to efficient site planning. Provide examples from the factors listed in the slides.

Multiple Select

Which of the following are considered codes and regulations that must be addressed during site analysis?

• National Building Code (NBC)

• Development Control Rules / Local Bye Laws

• Coastal Regulation Zone Notification (CRZ)

• Land Ownership

Multiple Select

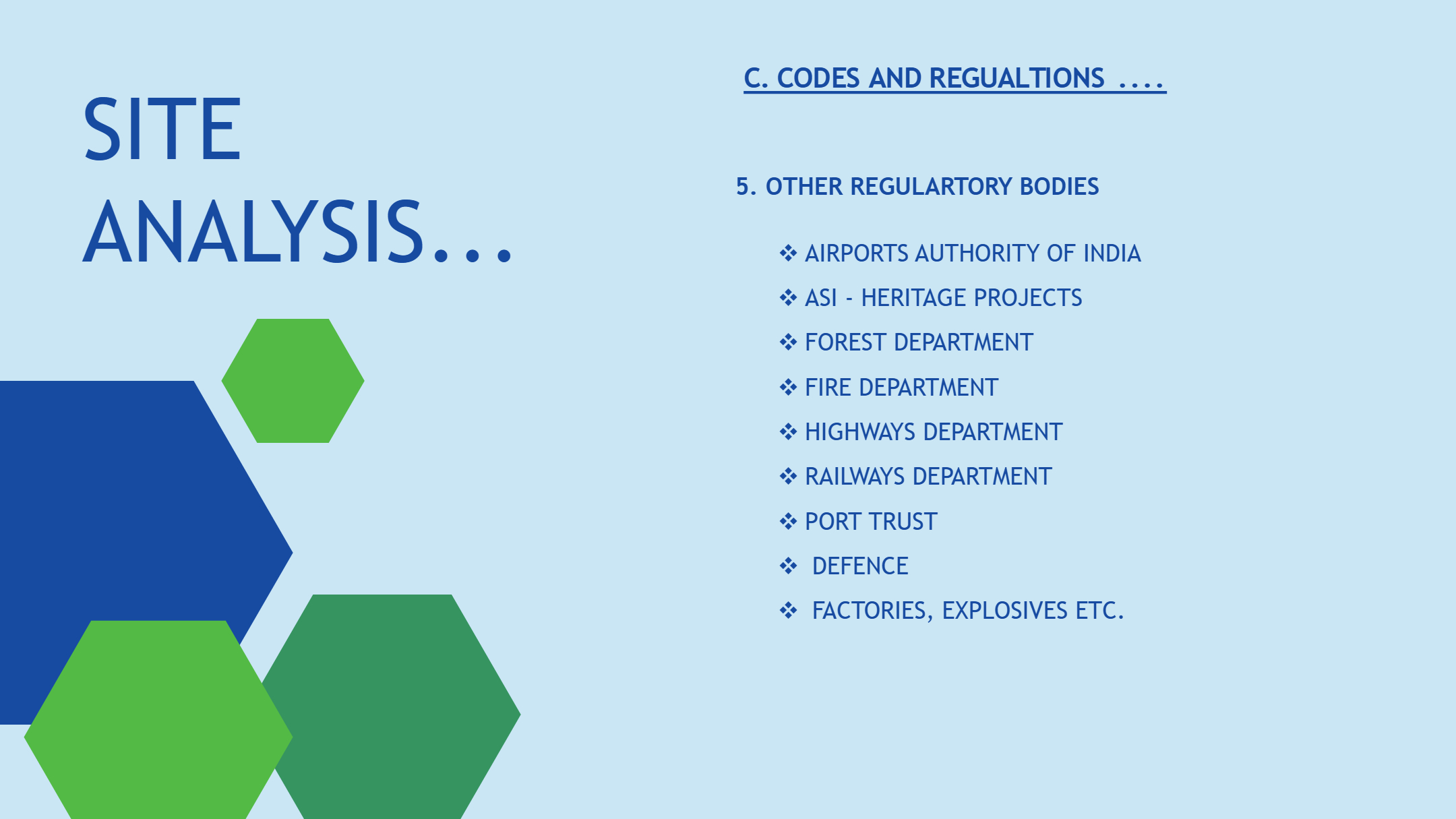

Which regulatory bodies may be involved in site analysis according to the slides?

• Airports Authority of India

• Ministry of Environment and Forest

• Railways Department

• Factories, Explosives etc.

Open Ended

Discuss the importance of analyzing the existing physical characteristics of a site, such as topography, geology, and hydrology, in the site planning process.

Multiple Choice

Which of the following is NOT considered a man-made feature in site analysis?

• Bridges

• Kerbs

• Sun path

• Building structures

Fill in the Blanks

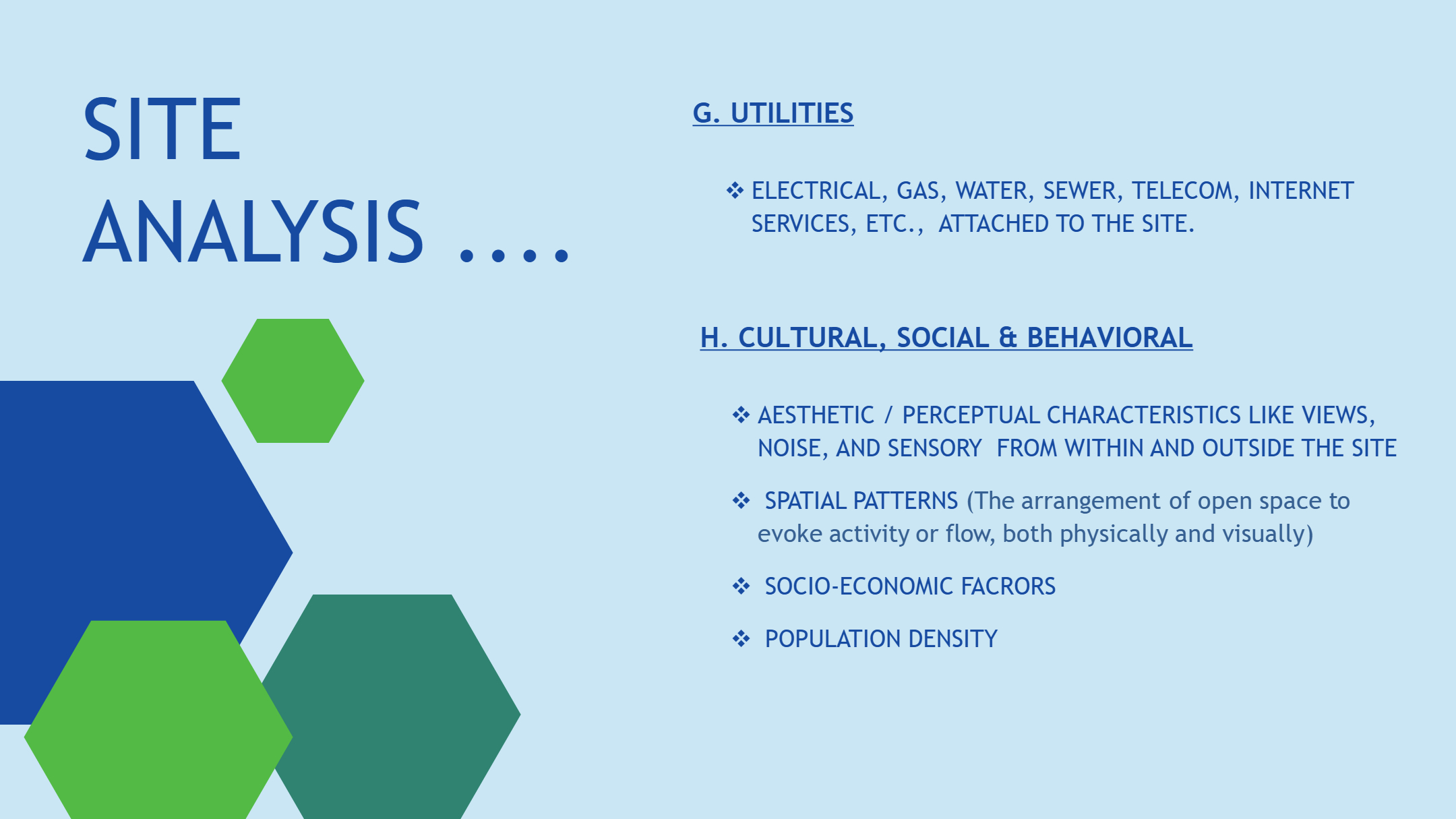

List two cultural, social, or behavioral factors that should be considered during site analysis.

Multiple Choice

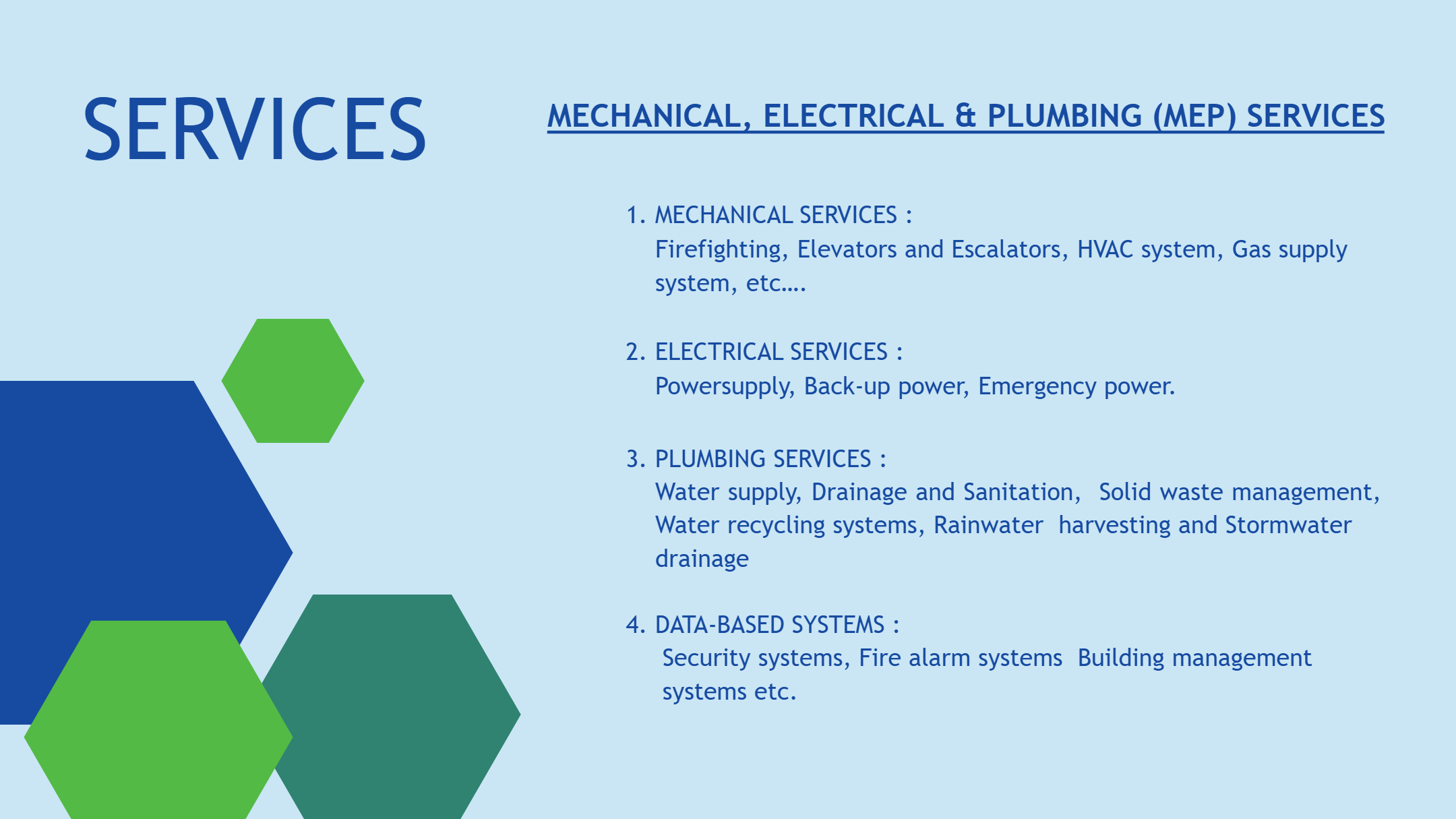

Which of the following services is NOT typically included in Mechanical, Electrical & Plumbing (MEP) services?

• Firefighting

• Back-up power

• Rainwater harvesting

• Landscaping

Multiple Select

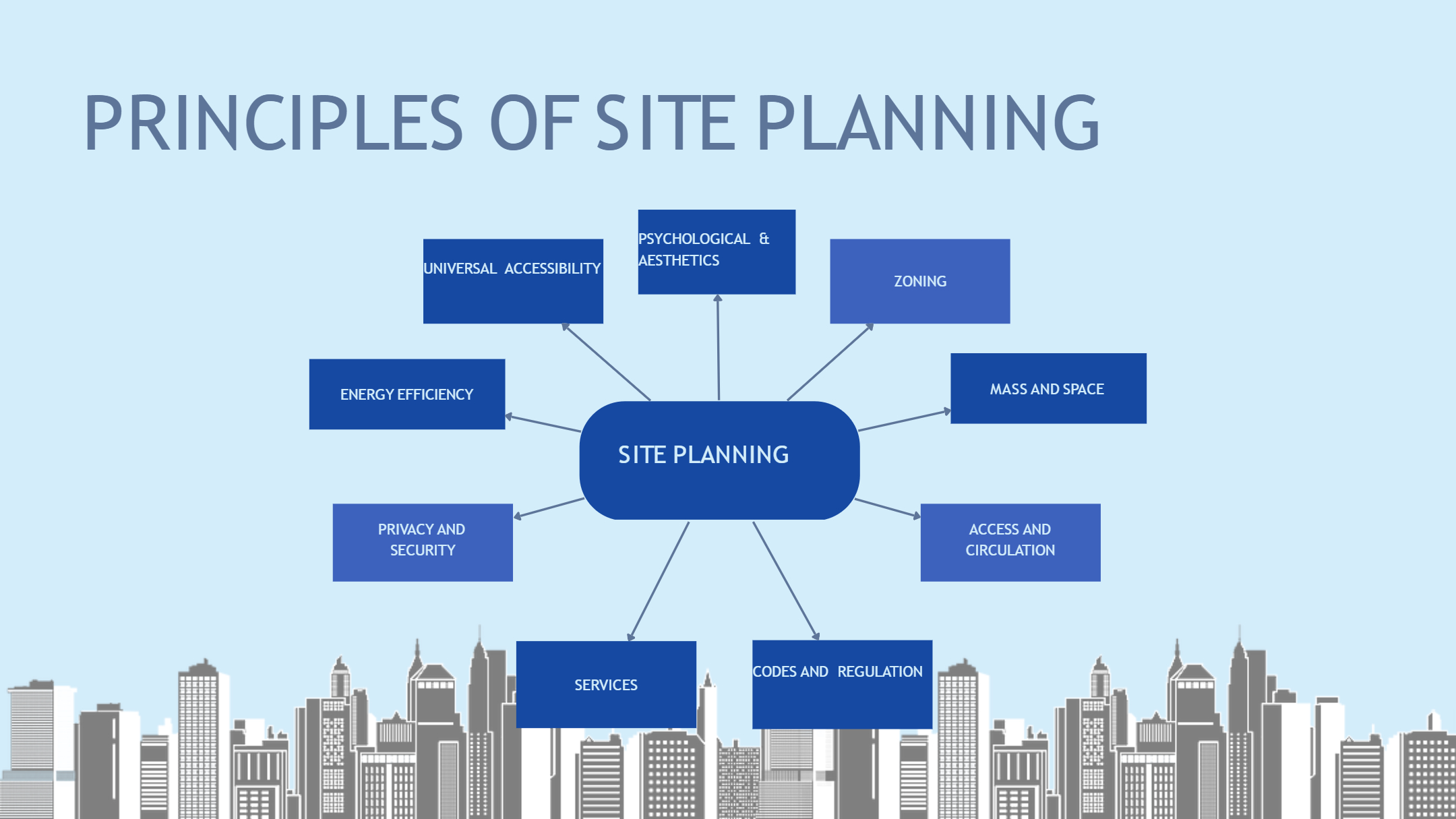

Select all that are principles of site planning from the following:

• Universal accessibility

• Population density

• Codes and regulation

• Mass and space

Open Ended

Explain how the principles of site planning such as zoning and energy efficiency can impact the overall design of a site.

Fill in the Blanks

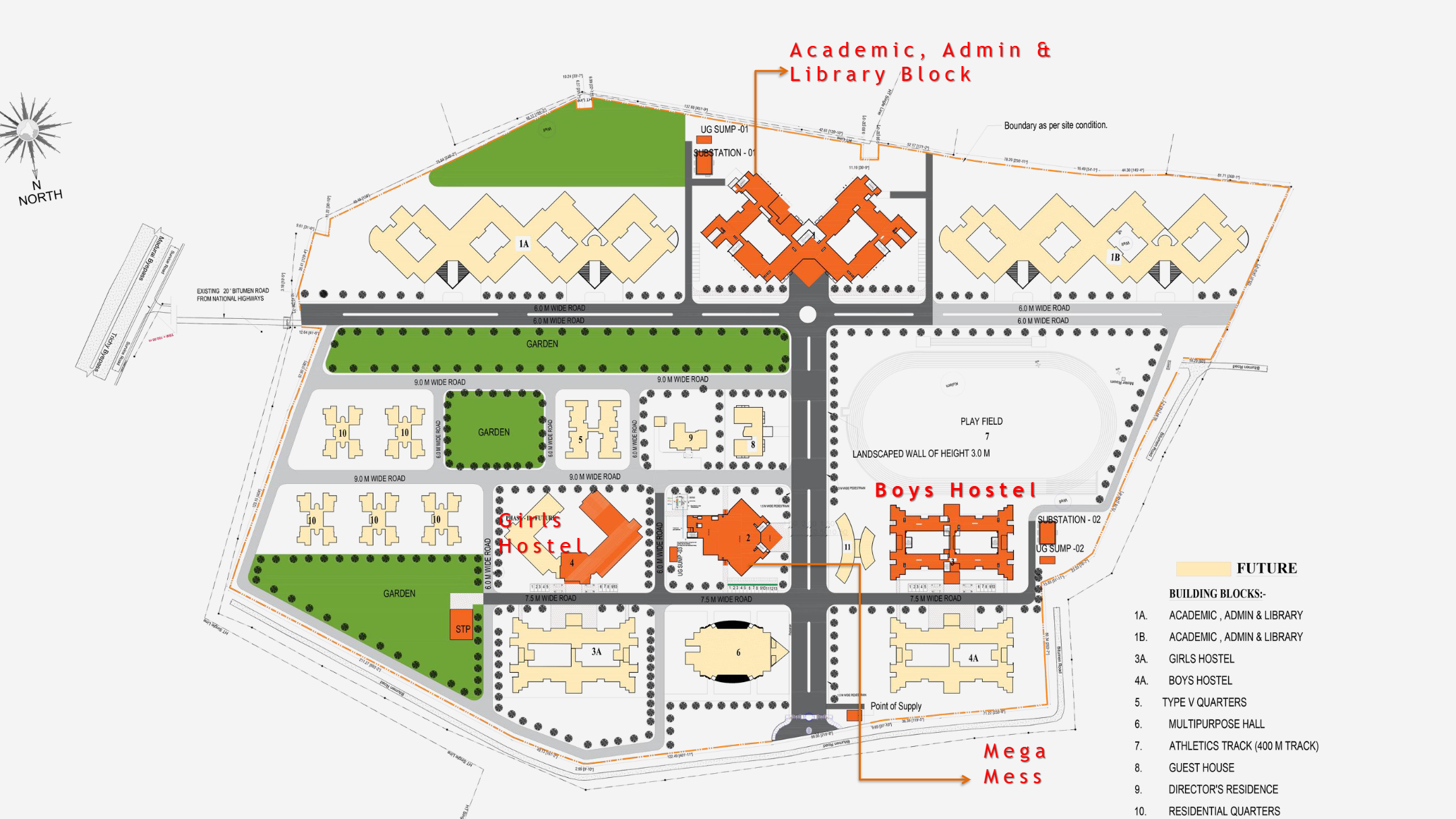

The building labeled as '4A' in the IIIT Trichy campus plan is designated as the

.

Multiple Choice

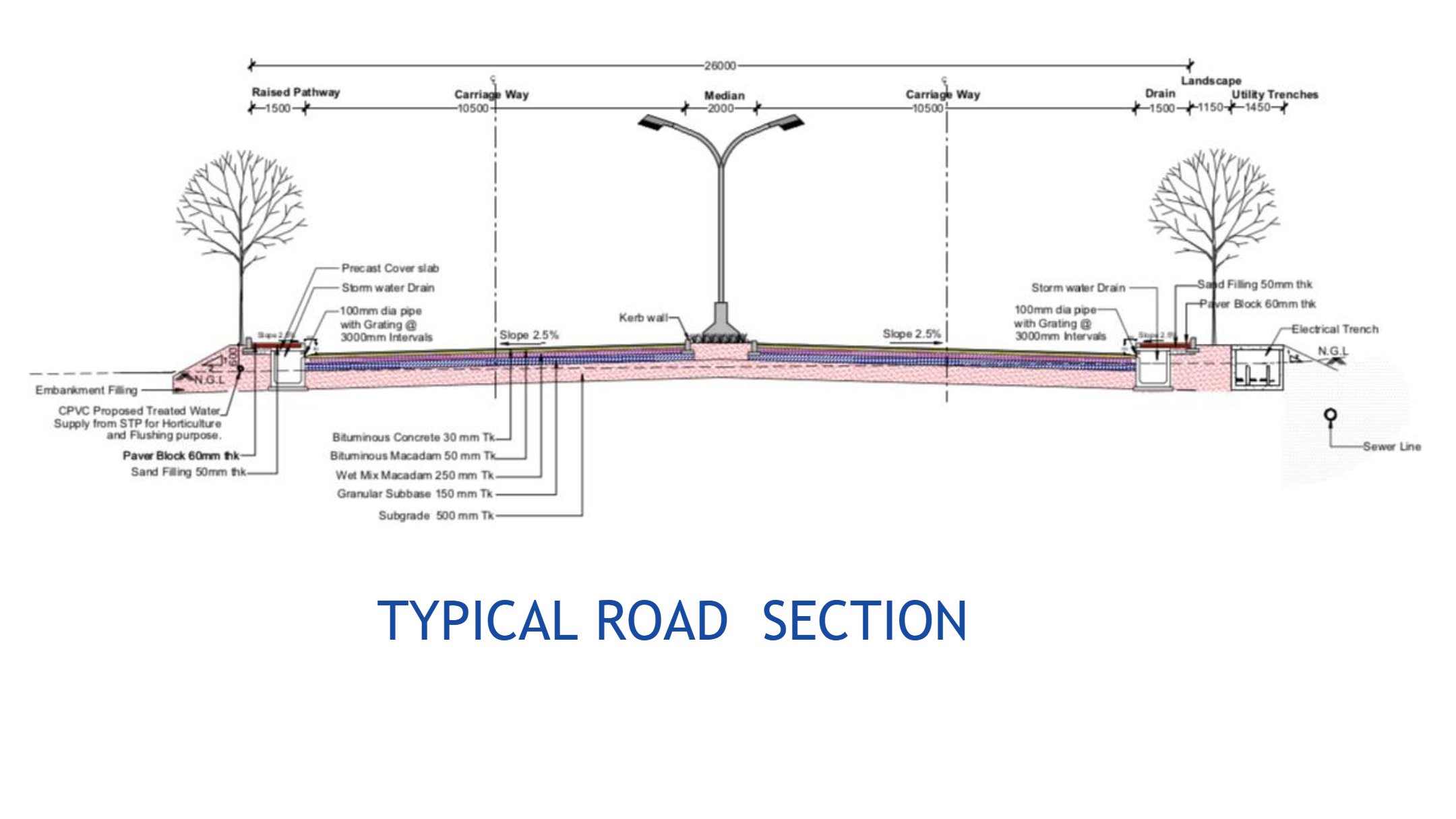

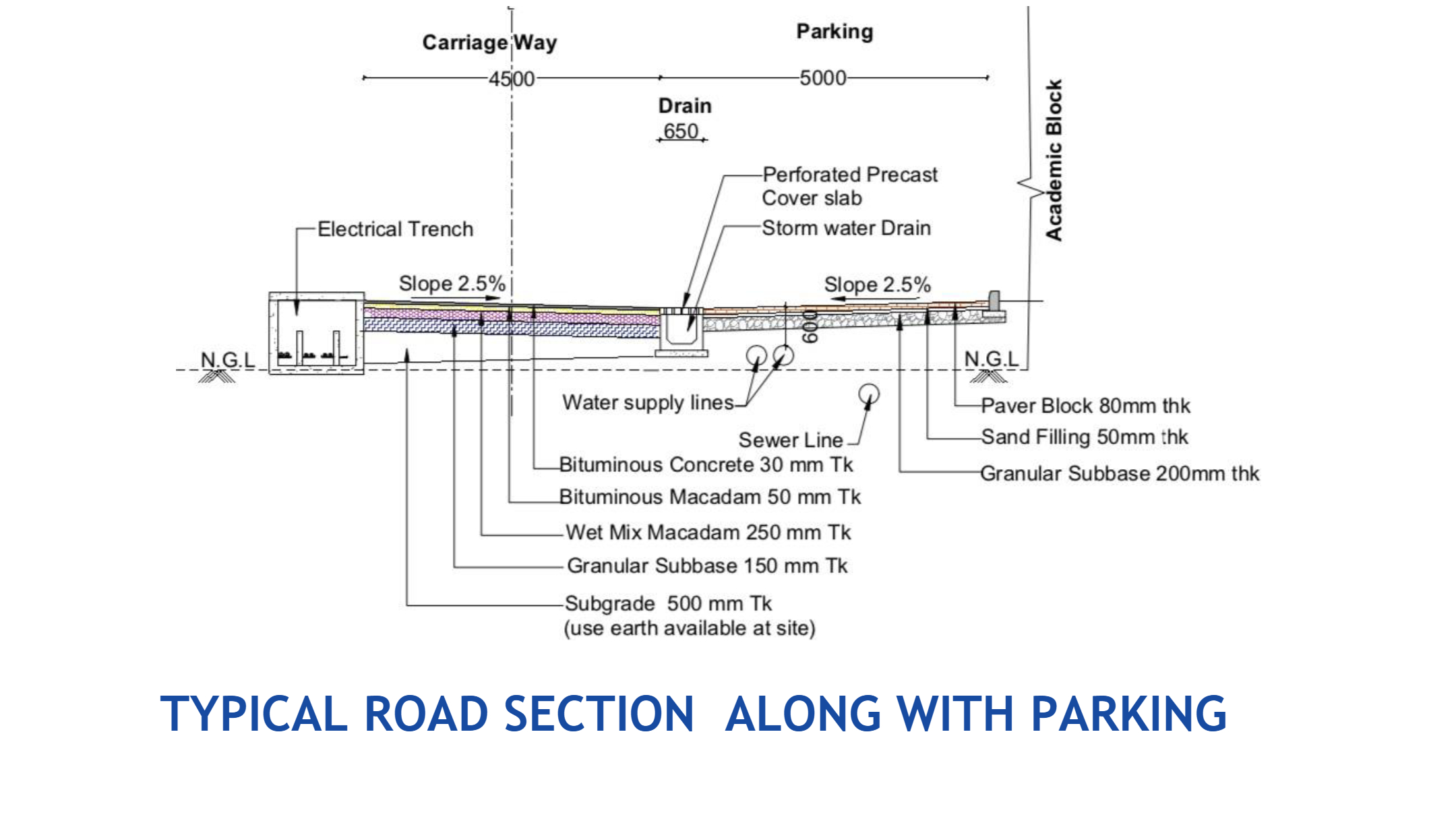

Which of the following layers is NOT part of the typical road section shown in the diagram?

• Bituminous Concrete

• Wet Mix Macadam

• Granular Subbase

• Reinforced Concrete Slab

Multiple Choice

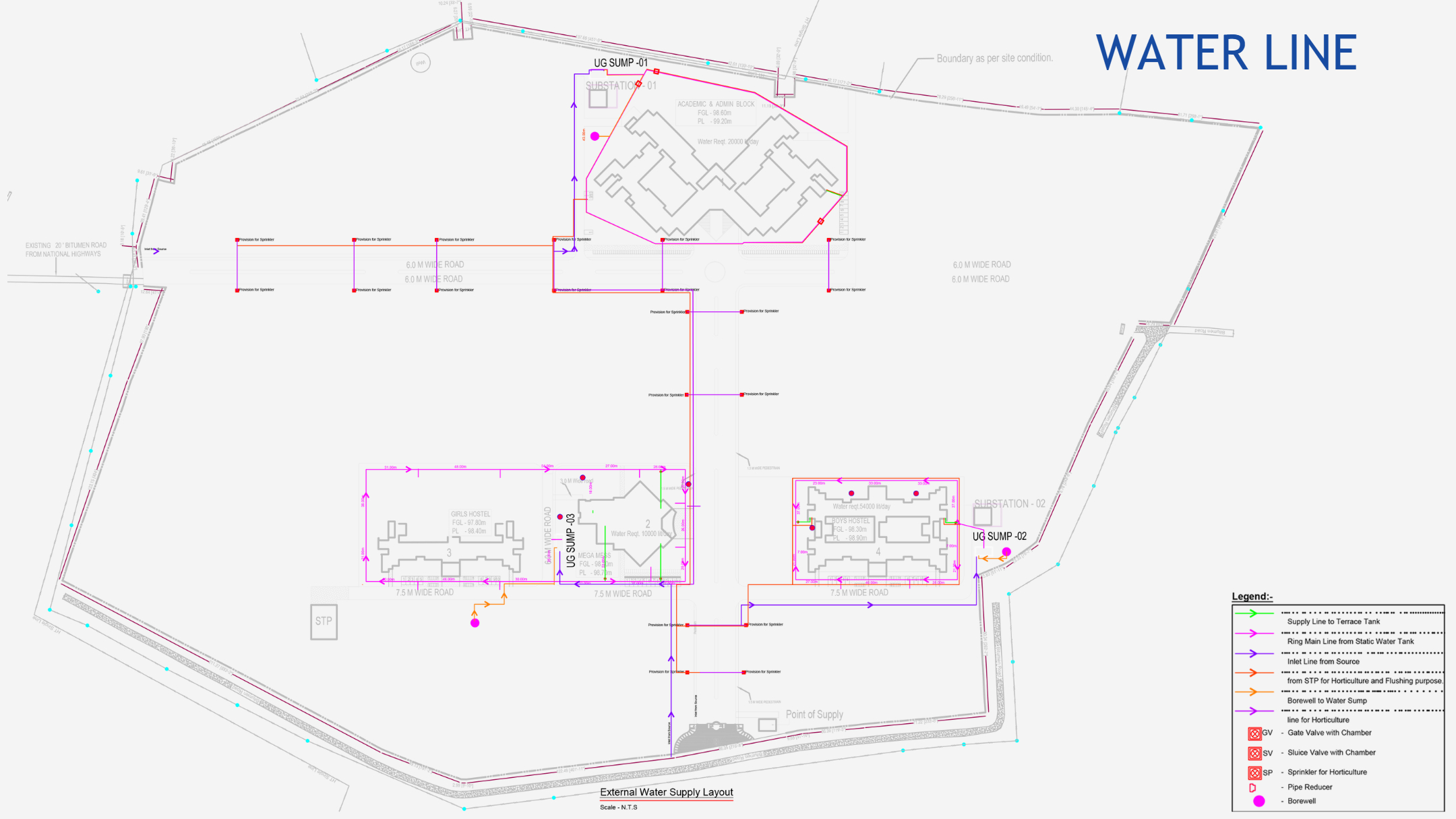

The supply line to the terrace tank is represented by which color in the water line layout?

• Green

• Pink

• Orange

• Blue

Fill in the Blanks

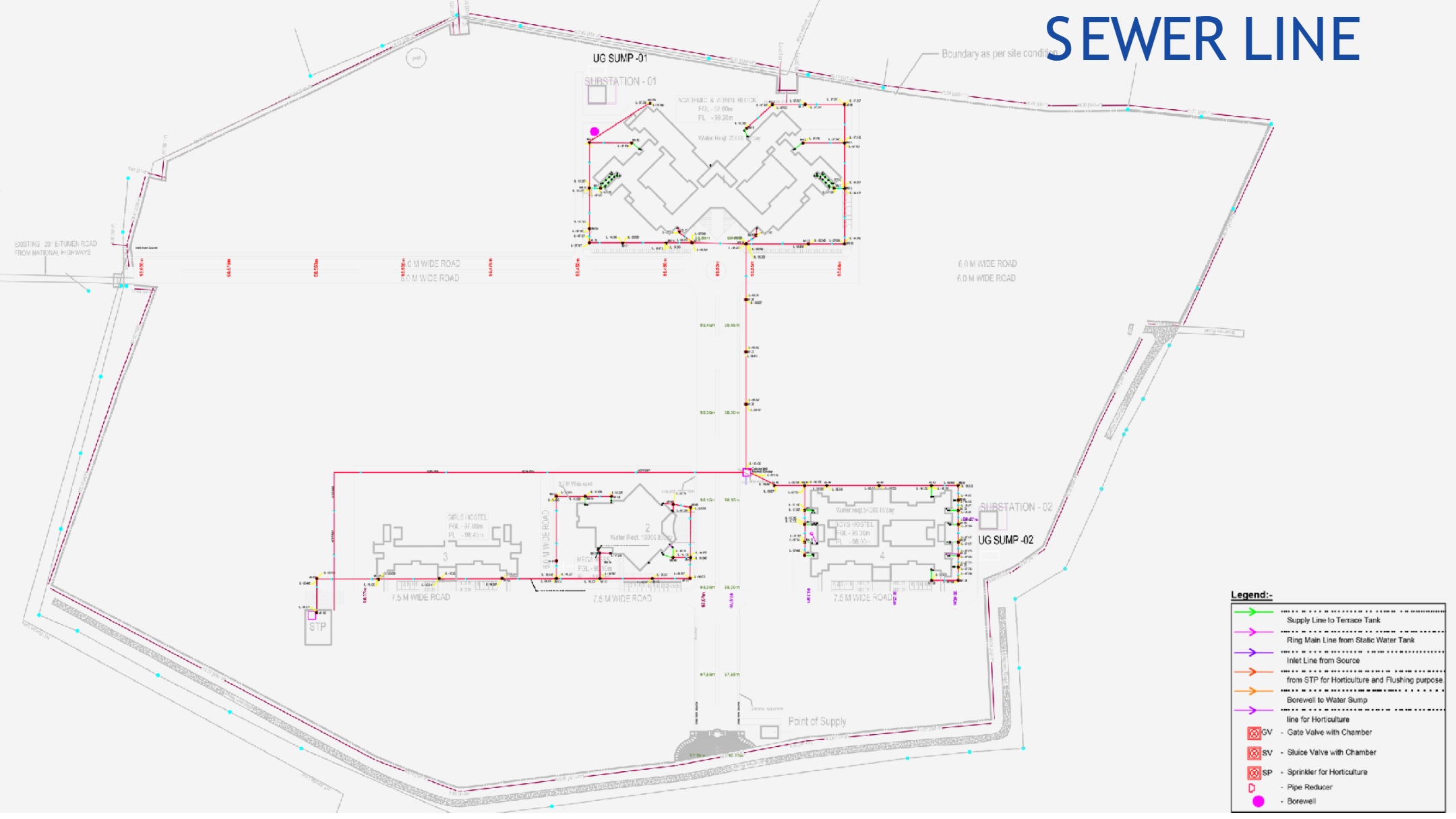

In the sewer line layout, what is the main function of the STP as indicated in the diagram?

Multiple Select

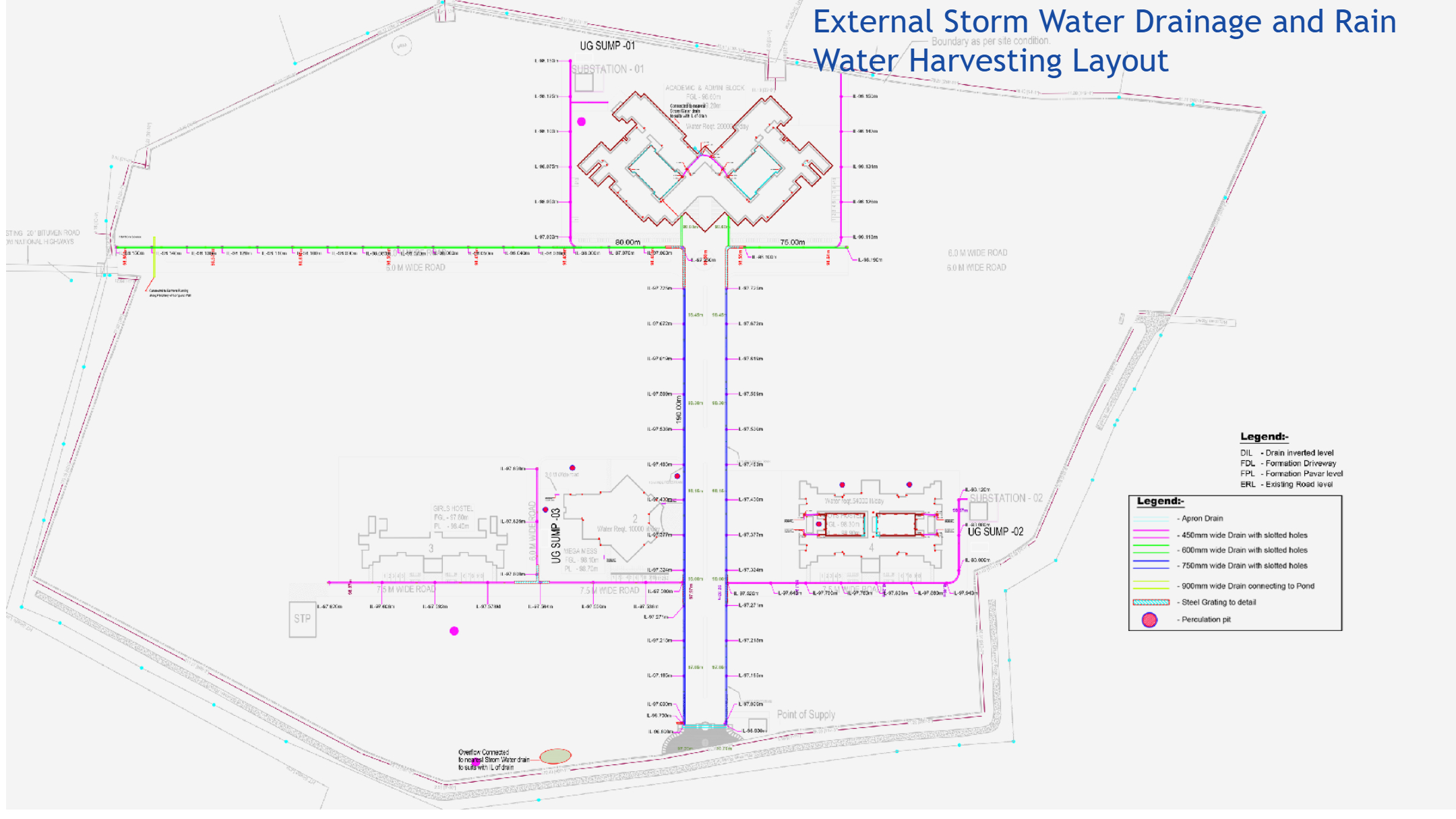

Which of the following are shown as part of the external storm water drainage and rain water harvesting layout?

• Apron Drain

• Percolation pit

• Steel Grating to detail

• All of the above

Open Ended

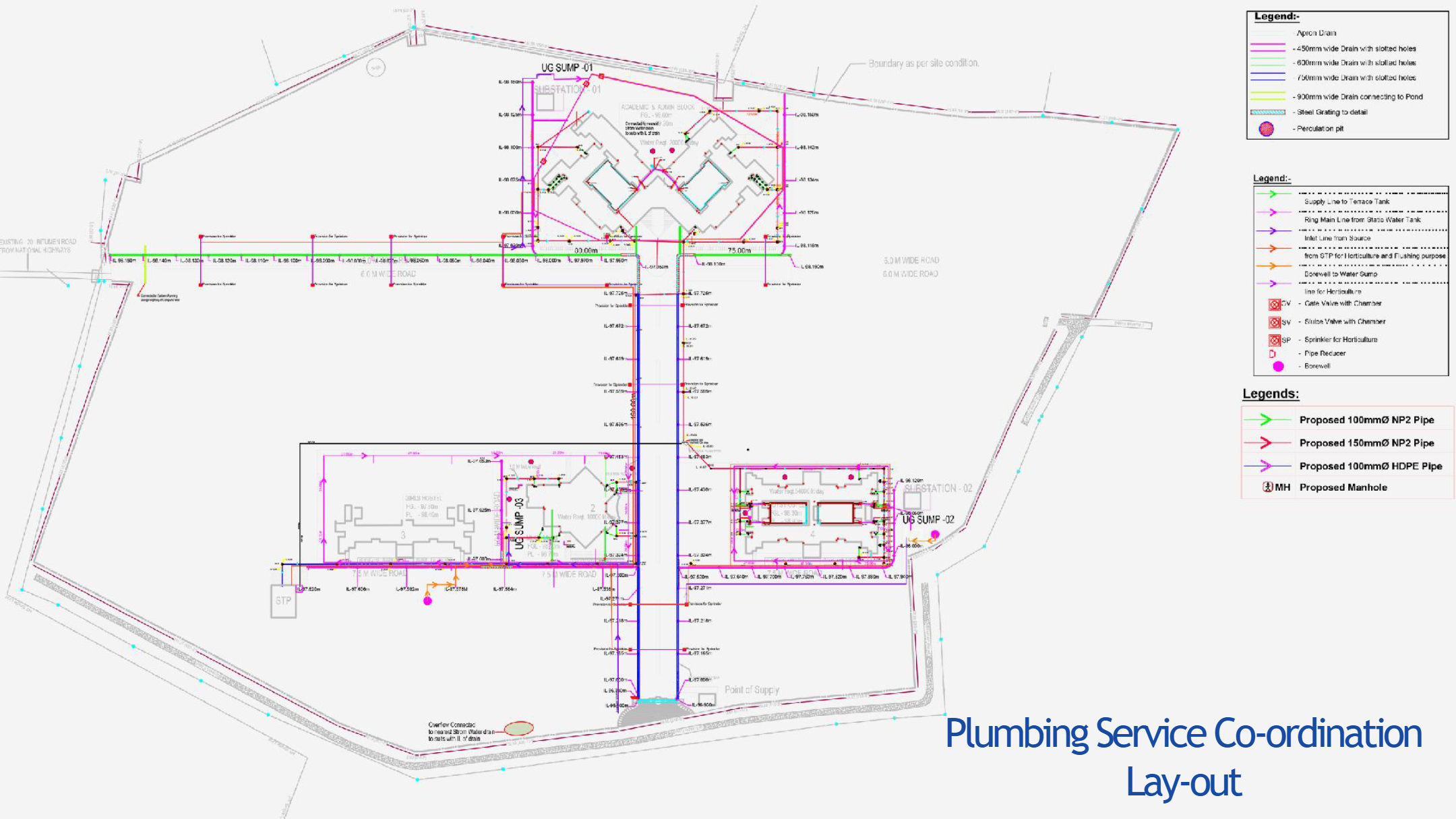

How does the plumbing service co-ordination layout integrate both water supply and drainage systems within the site?

Open Ended

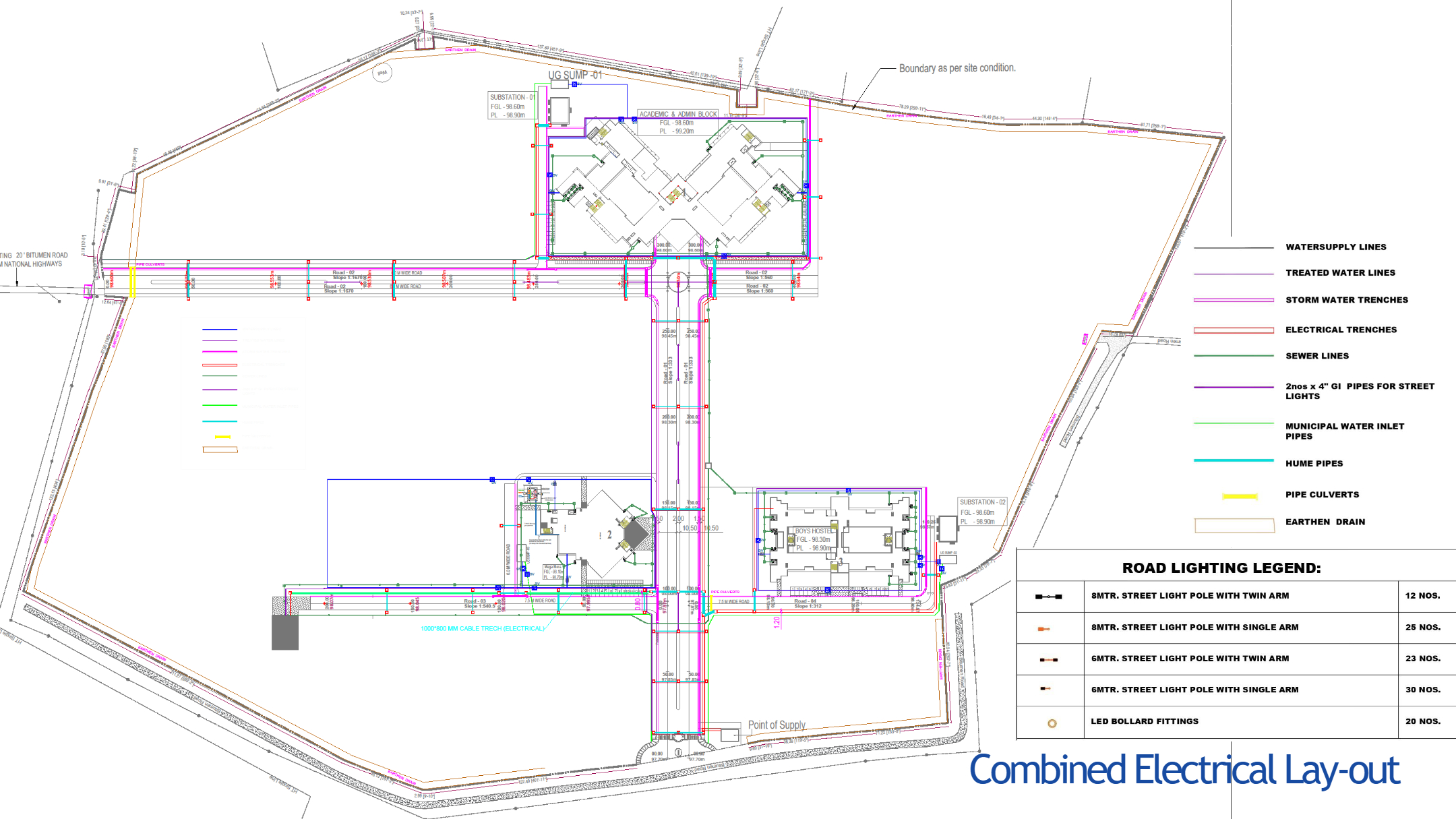

Describe how the arrangement of utilities in the Combined Electrical Layout can impact future maintenance and expansion of the site.

Multiple Select

Select all that apply: According to the Combined Electrical Layout, which of the following are included in the road lighting legend?

• 6MTR. street light pole with twin arm

• LED bollard fittings

• Pipe culverts

• 8MTR. street light pole with twin arm

Fill in the Blanks

Fill in the blank: The yellow line in the Combined Electrical Layout represents

.

Multiple Choice

Referencing the Combined Electrical Layout, what is the total number of 8MTR. street light poles with single arm planned for the site?

• 12

• 25

• 23

• 30

Multiple Choice

What is a site in the context of site planning?

• A piece of land with boundaries intended for a particular purpose and human occupancy or usage

• A building under construction

• A completed architectural project

• A type of construction equipment

Open Ended

How would you summarize the key points you learned about site planning and services in today's session?
