Hot water pipe work and circulation

Multiple Choice

Why is it important for the vent pipe in a hot water system to be sited above the cold feed cistern in the roof space?

• To prevent water contamination

• To act as a safety relief in case of overheating

• To reduce water pressure

• To improve water taste

Open Ended

Describe a situation where the vent pipe in a hot water system might be used and explain its significance for safety.

Multiple Choice

According to British Standards, what is the formula to determine the minimum height of the top of a vent pipe above the top of the overflow pipe in a gravity circulation system?

• V = 0.04H + 0.15

• V = 0.15H + 0.04

• V = 0.04H - 0.15

• V = 0.15H - 0.04

Open Ended

Explain why the hot water draw-off connection is taken from the top of the hot water storage cylinder and why the hot water distribution pipe must be at least 450mm from the top of the cylinder to the vent.

Multiple Select

Which of the following are reasons for controlling the length of pipe used to deliver hot water to the outlet in a secondary circulation system?

• To avoid waste of cold water before hot water is drawn off

• To prevent hot water being left in the pipe which cools down

• To increase the speed of water flow

• To reduce the need for insulation

Fill in the Blank

British Standards state the maximum length of pipe before it becomes a 'dead leg' for a pipe with a diameter of 22–28mm is ___ m.

Multiple Select

Select all statements that correctly describe secondary circulation systems.

• The connection to the cylinder should be made in the top third of the cylinder.

• The return pipe to the cylinder should be larger in diameter than the flow pipe.

• These systems are often on time clocks to save energy.

• Passive dead legs must be kept to a minimum length after appliances have been removed.

Open Ended

What is the difference between an active dead leg and a passive dead leg in secondary circulation systems?

Open Ended

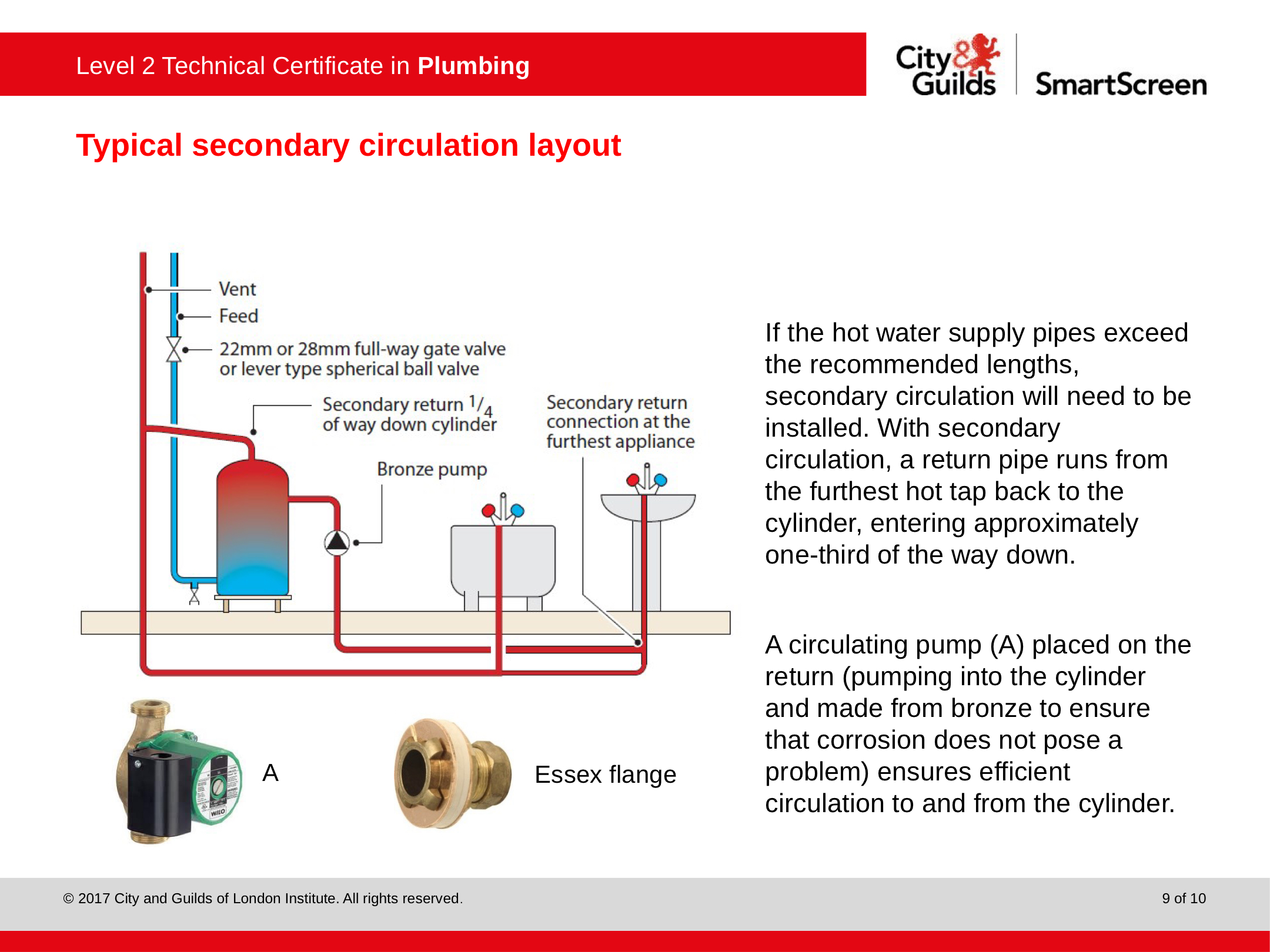

Explain why secondary circulation is necessary in hot water supply systems when the supply pipes exceed recommended lengths. Include the role of the return pipe and the circulating pump in your answer.

Multiple Choice

What is the primary function of the circulating pump (A) in a typical secondary circulation layout for hot water supply systems?

• To heat the water in the cylinder

• To ensure efficient circulation to and from the cylinder

• To filter impurities from the water

• To increase water pressure at the taps

Open Ended

After learning about vent pipes and their role in hot water systems, what questions do you still have or what would you like to know more about regarding pipework and circulation?

Multiple Choice

What is the primary function of the vent pipe in a hot water system?

• To act as a safety relief if the system overheats

• To increase water pressure

• To filter impurities from water

• To reduce noise in the pipes
