Multiple Choice

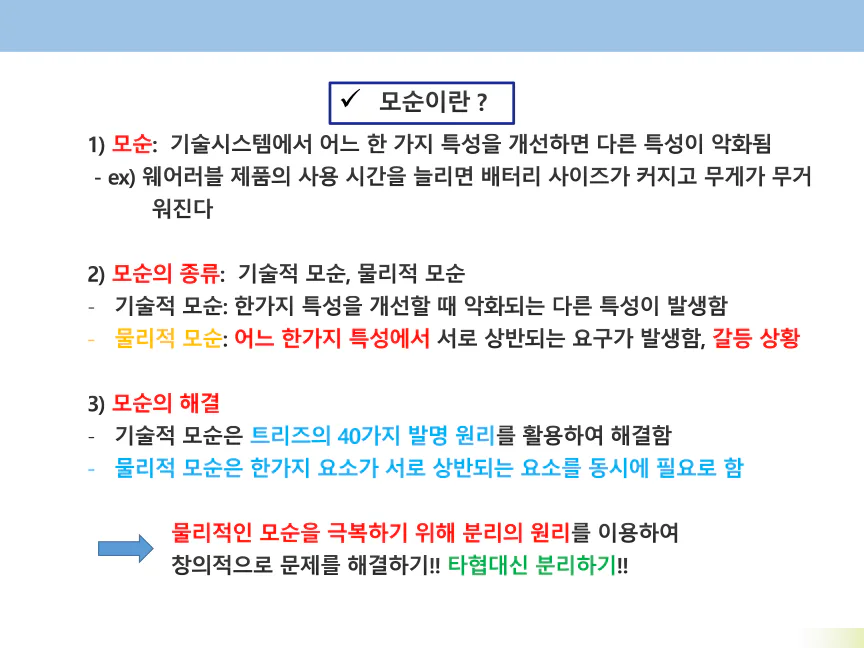

Why is it important to understand the concept of contradiction (모순) in technological systems?

• Because it helps in identifying and solving conflicting requirements in product design

• Because it makes products more expensive

• Because it reduces the need for innovation

• Because it only applies to wearable devices

Open Ended

Describe a situation where you might encounter both a technical contradiction and a physical contradiction in everyday life. How would you approach solving it?

Multiple Choice

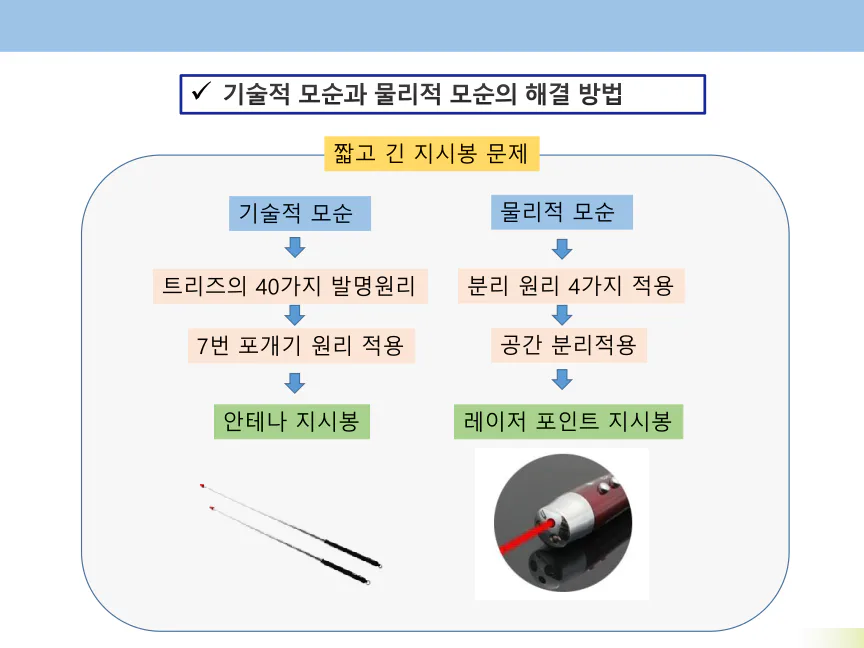

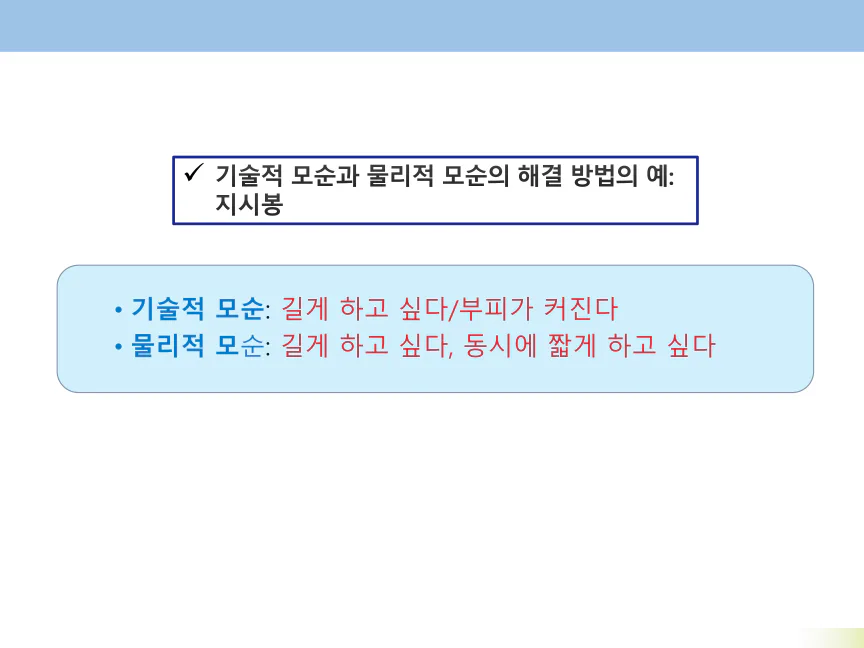

What are the main differences between the technical contradiction and physical contradiction approaches for solving the problem of a short and long pointer?

• Technical contradiction uses TRIZ principles and physical contradiction uses separation principles.

• Technical contradiction focuses on space separation, physical contradiction on time separation.

• Technical contradiction always uses lasers, physical contradiction always uses antennas.

• Technical contradiction is not used in engineering.

Open Ended

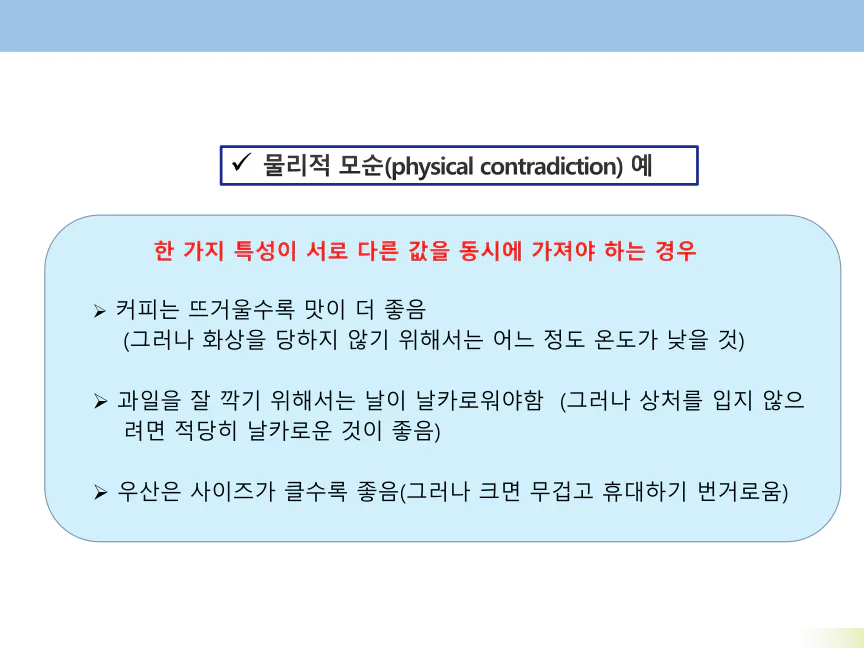

Explain how the concept of physical contradiction is illustrated with the examples of coffee, fruit knives, and umbrellas.

Multiple Select

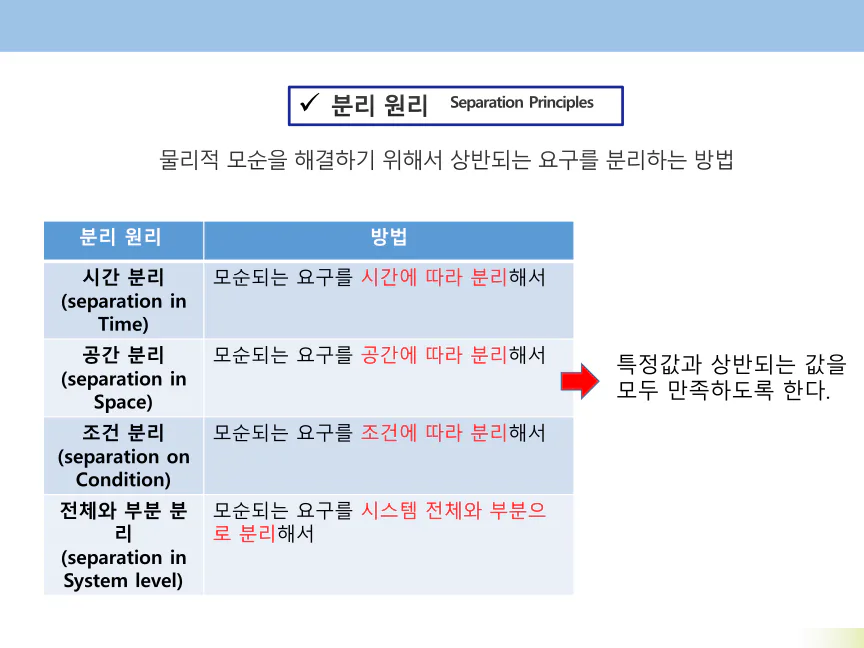

Which of the following are separation principles used to resolve physical contradictions?

• Separation in Time

• Separation in Space

• Separation on Condition

• Separation by Material

Fill in the Blanks

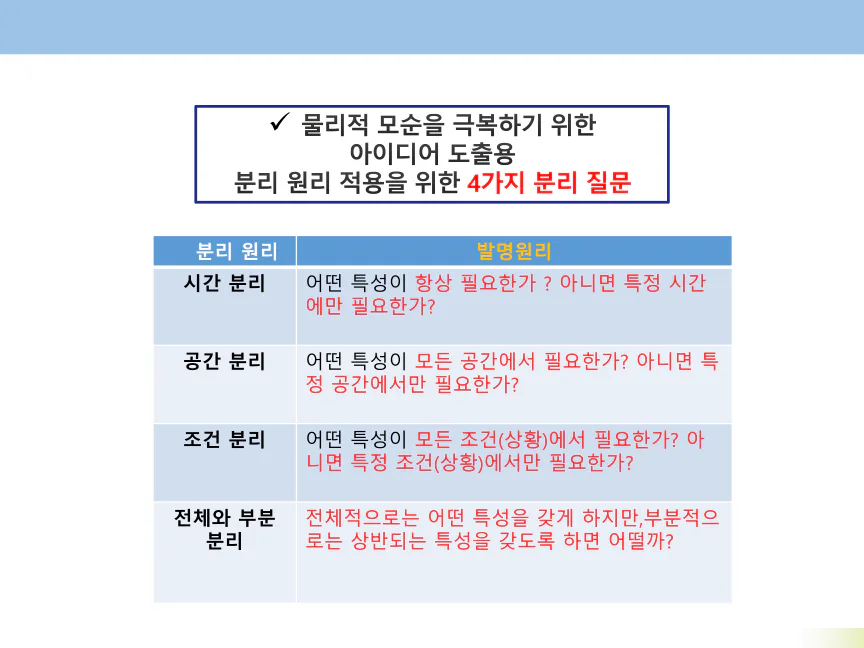

Fill in the blank: The question '어떤 특성이 항상 필요한가? 아니면 특정

에만 필요한가?' is used to determine if a feature is always needed or only at certain times.

Open Ended

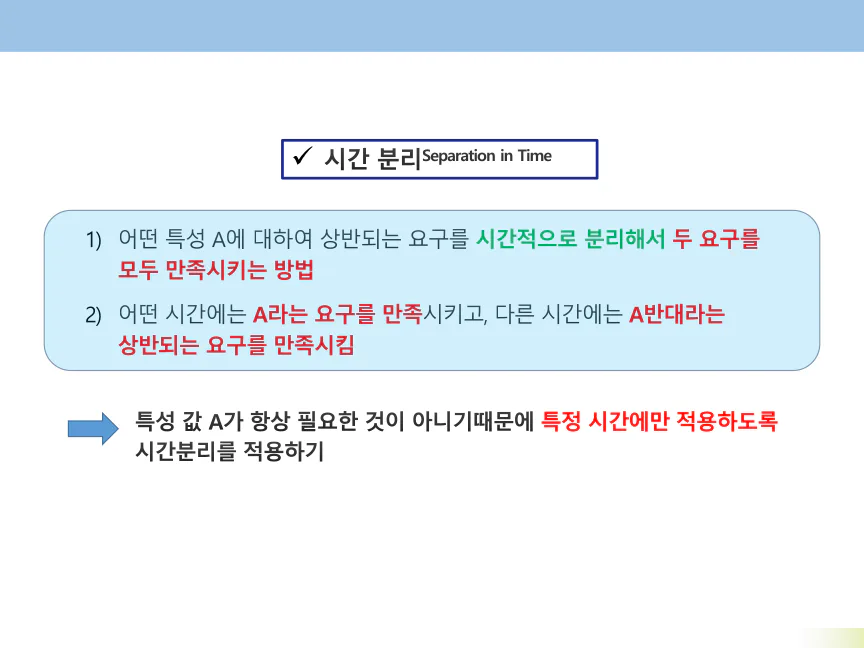

Describe a situation where 'separation in time' would be an effective solution to a physical contradiction. Use the explanation provided in the slide.

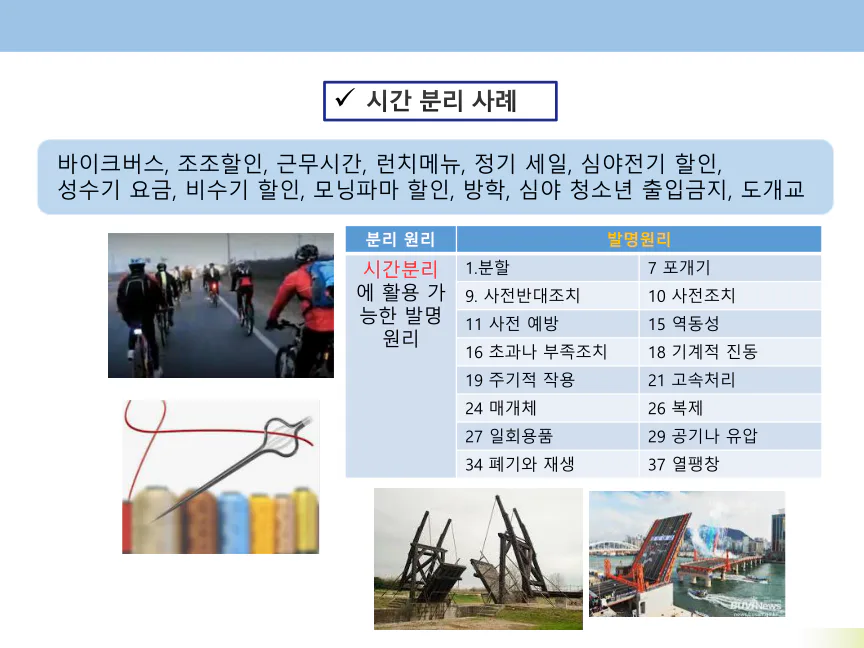

Multiple Choice

Which of the following is NOT an example of a situation where 'separation in time' can be applied, as shown in the slide?

• Lunch menu discounts

• Nighttime youth curfew

• Seasonal sales

• Permanent bridge

Multiple Choice

Which of the following is an example of time-based separation as shown in the images?

• Traffic lights changing colors

• Dividing a road into multiple lanes

• Using different materials in a product

• Assigning seats based on age

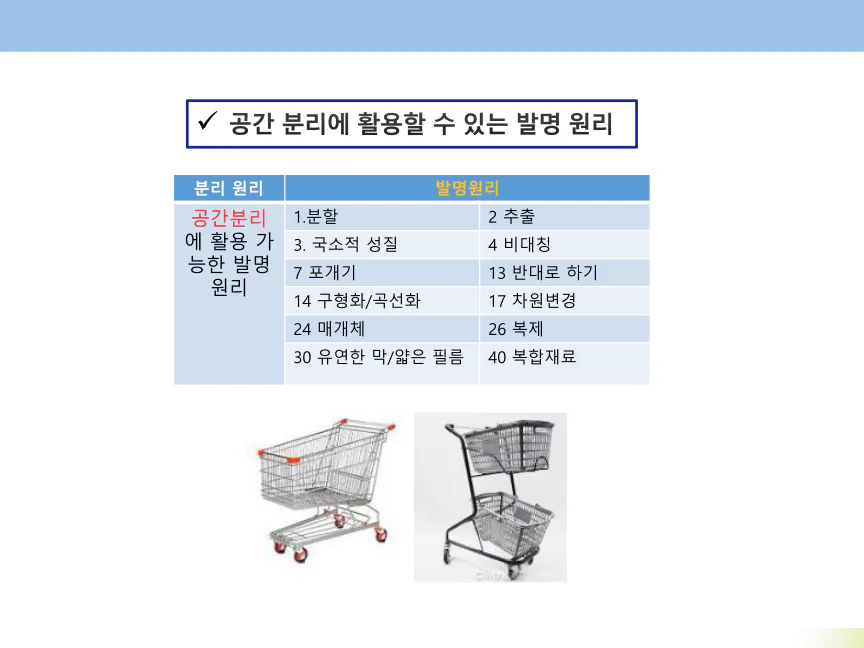

Multiple Select

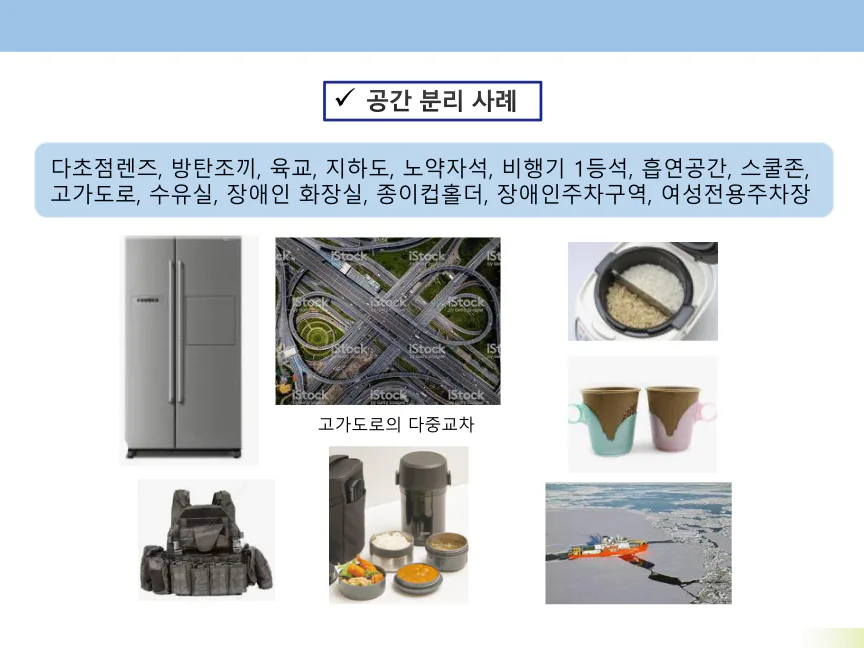

Which of the following are examples of spatial separation?

• Multi-lens glasses

• Highway interchanges

• Lunch menu specials

• Women-only parking spaces

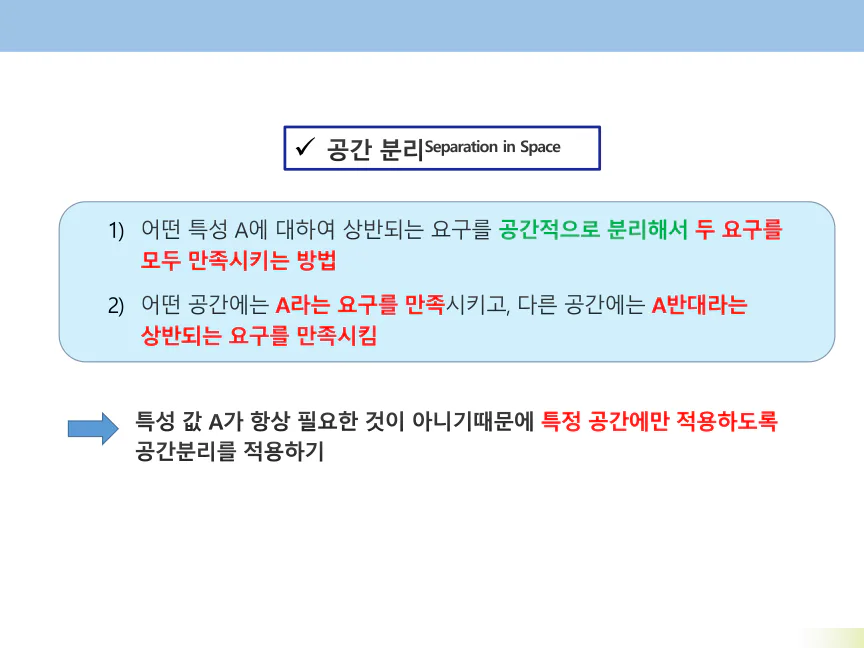

Fill in the Blanks

Fill in the blank: The principle of

can be used to separate requirements in space so that both can be satisfied.

Open Ended

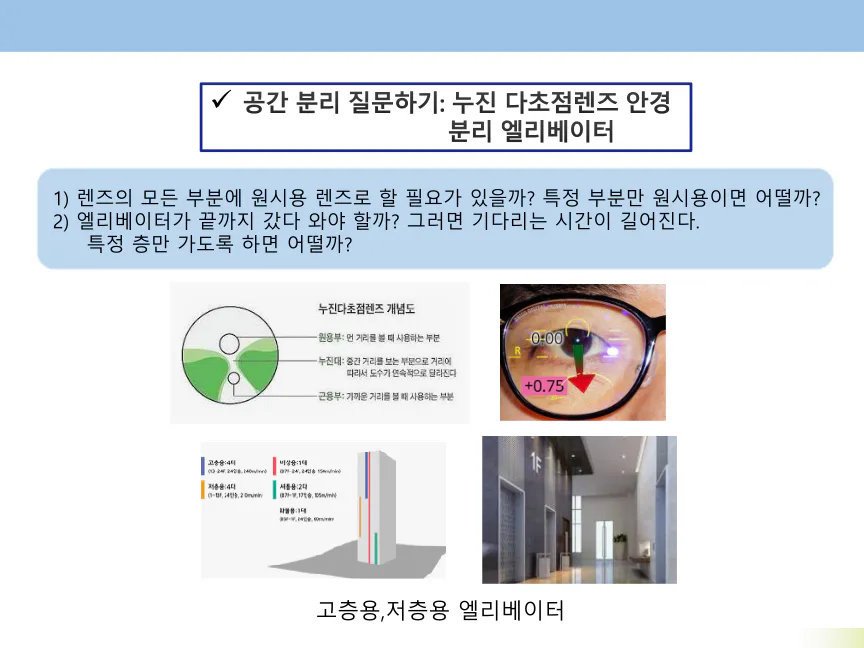

What is the advantage of having elevators that only stop at certain floors, as shown in the image?

Fill in the Blanks

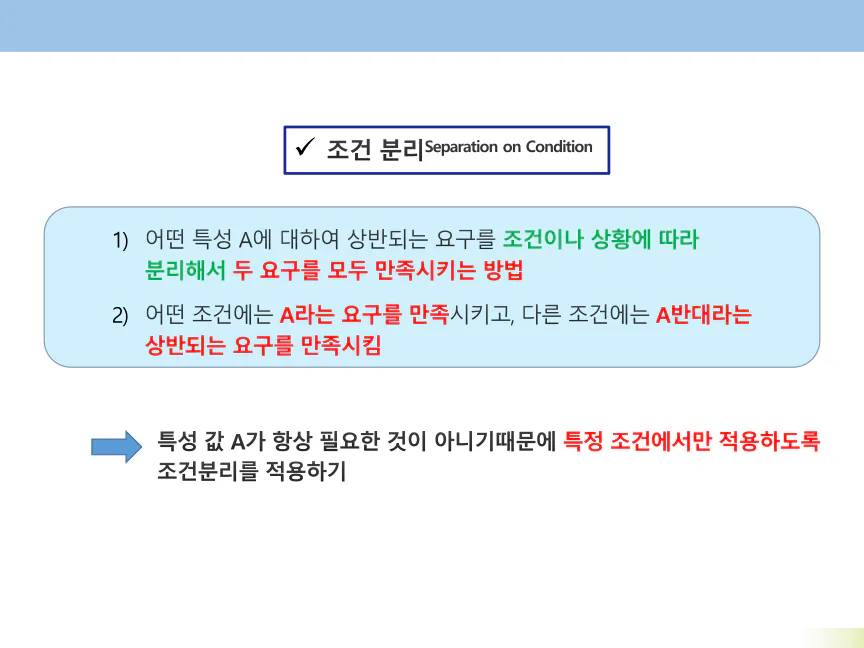

According to the slide, separation on condition means dividing requirements based on

or situations.

Multiple Choice

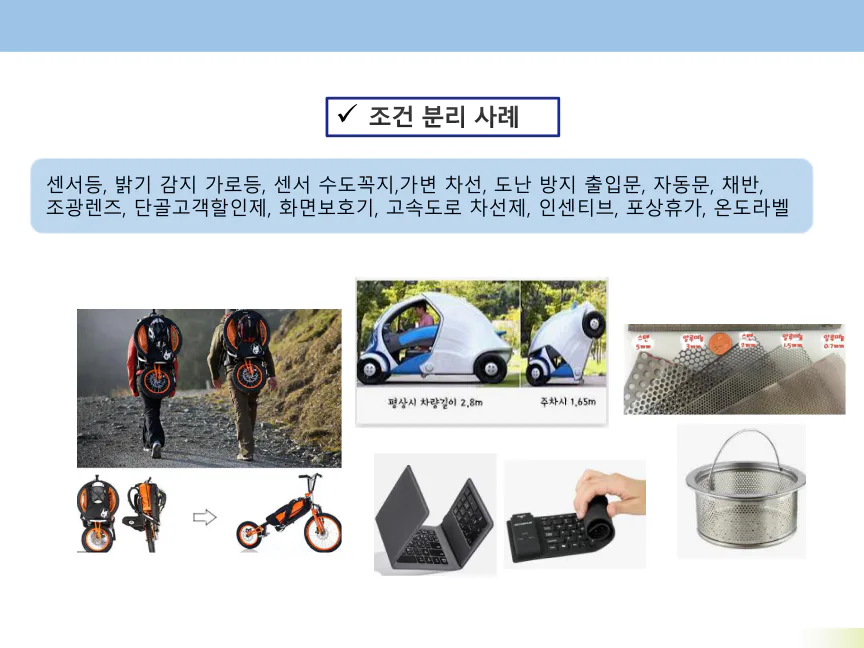

Which of the following is an example of a product or invention that uses conditional separation (조건 분리) principles?

• A foldable bicycle

• A regular car

• A fixed keyboard

• A solid cooking pot

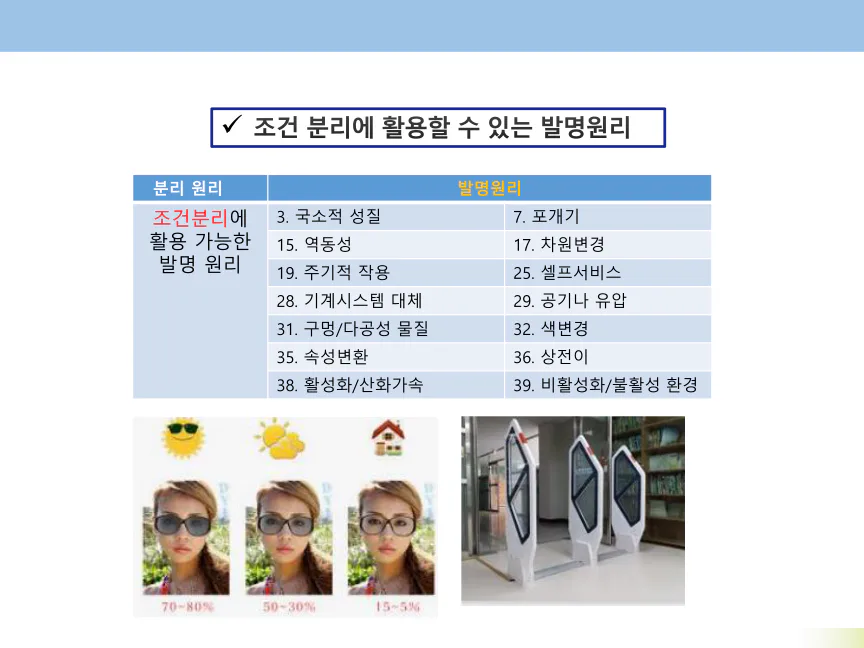

Fill in the Blanks

List two invention principles that can be used for conditional separation (조건 분리) according to the table.

Open Ended

How does a chameleon use conditional separation to survive in its environment?

Open Ended

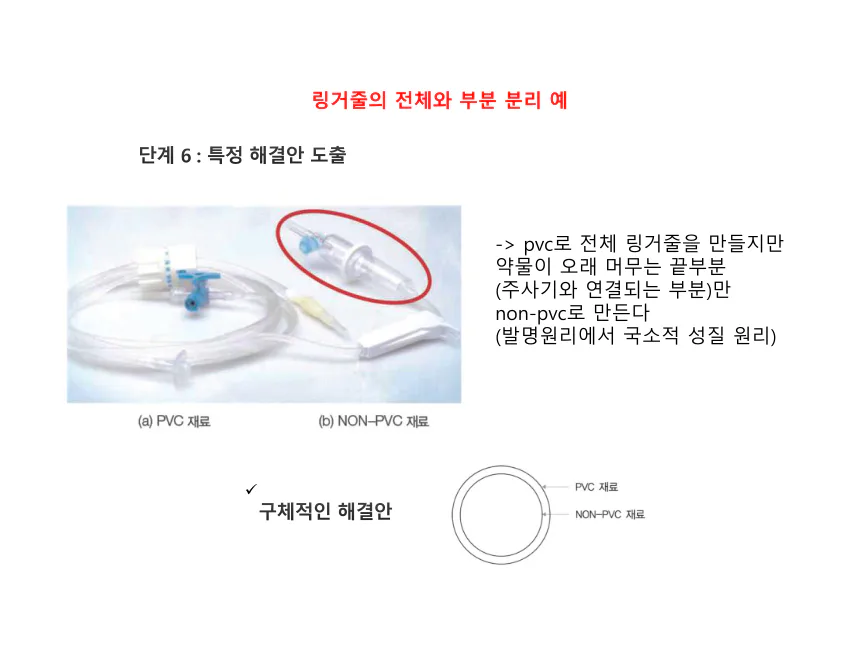

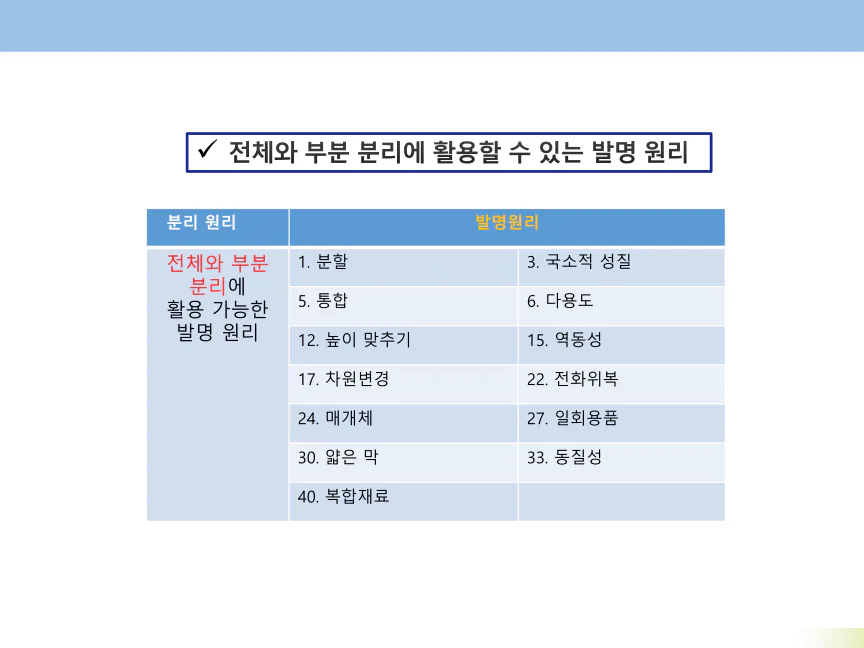

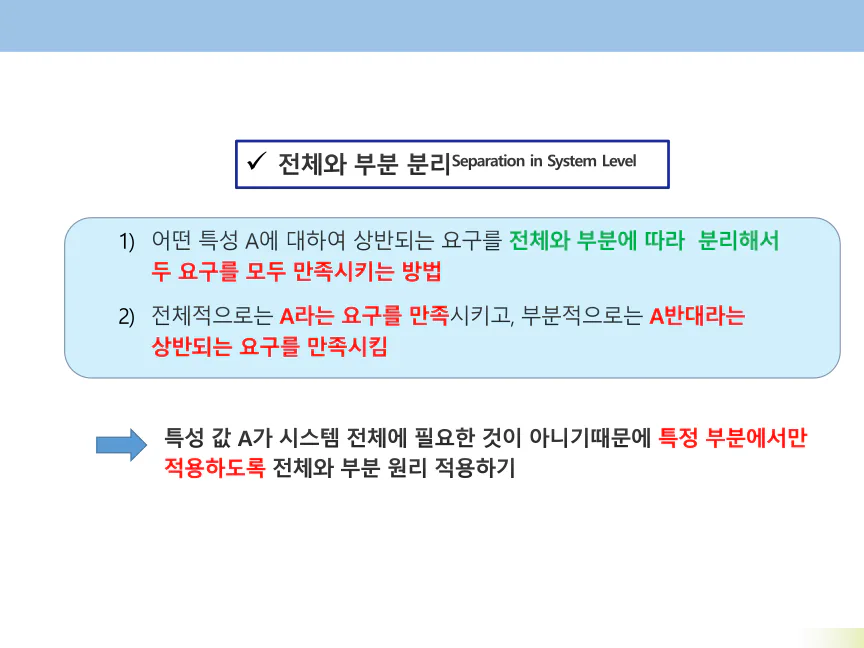

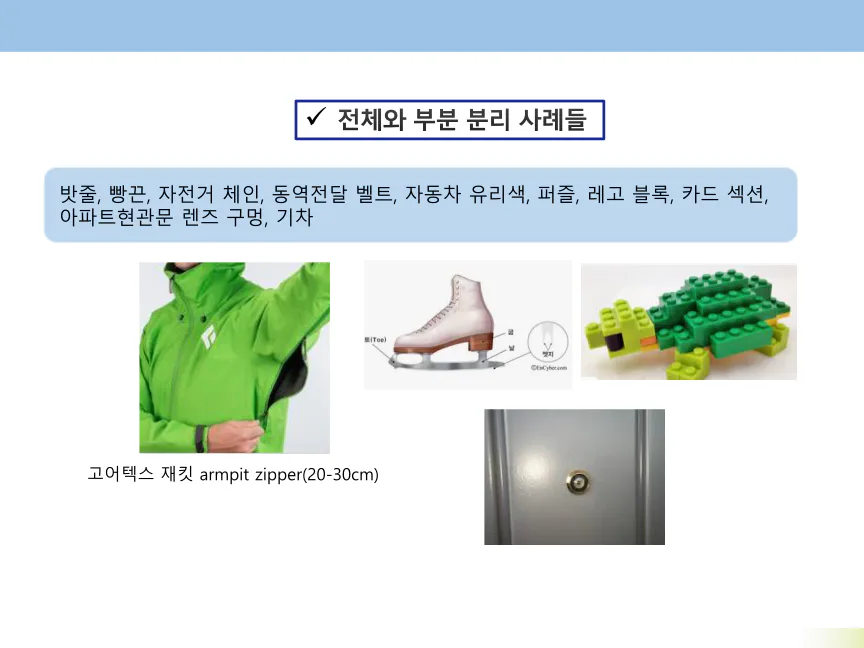

What is the main idea behind 'Separation in System Level' (전체와 부분 분리) and how is it applied?

Multiple Choice

Which of the following is NOT an example of 'Separation in System Level' (전체와 부분 분리)?

• A jacket with an armpit zipper

• A Lego block set

• A bicycle chain

• A solid rubber ball

Open Ended

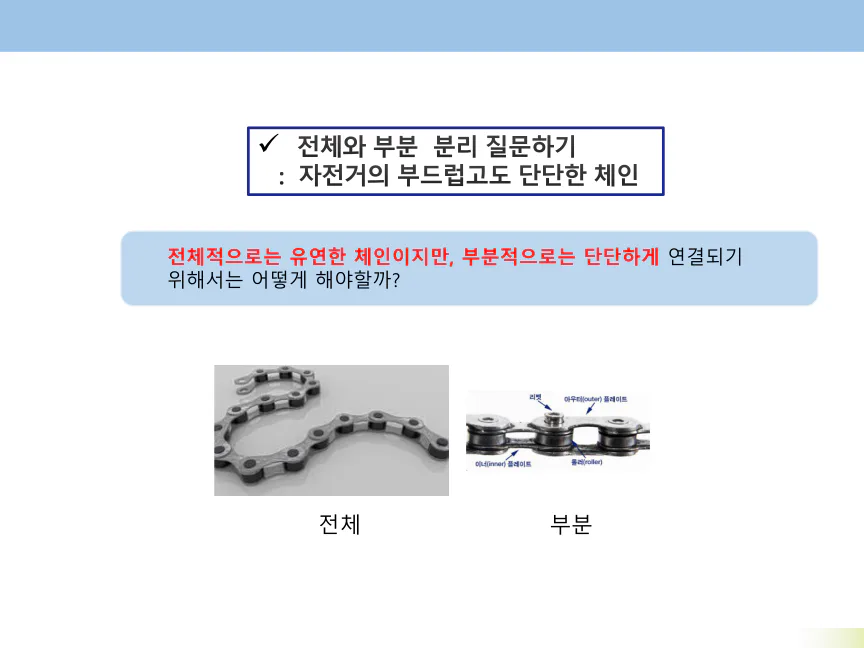

전체적으로는 유연한 체인이지만, 부분적으로는 단단하게 연결되기 위해서는 어떻게 해야할까?

Open Ended

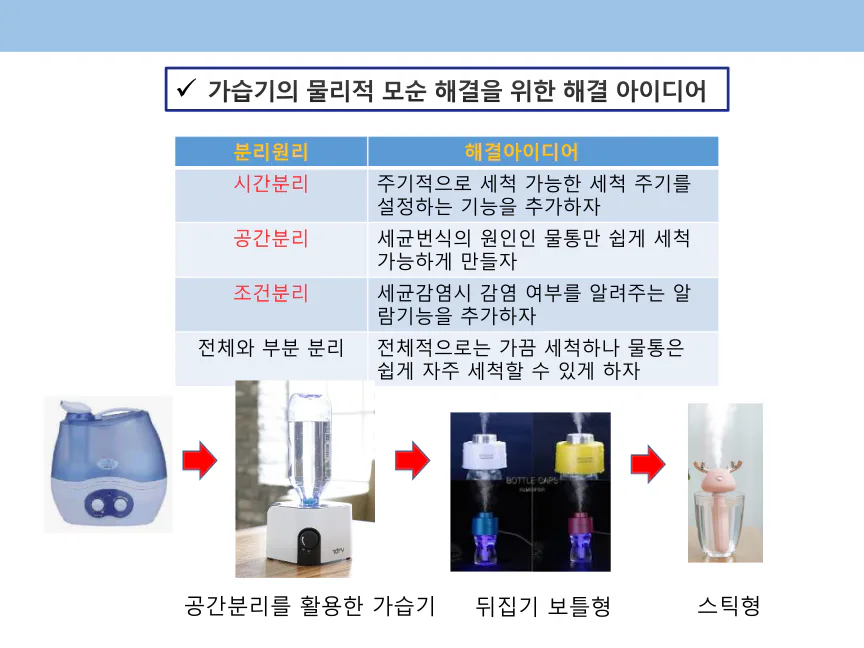

Which separation principles are applied to solve the physical appearance problems of humidifiers, and how do these principles influence the design of different humidifier types?

Open Ended

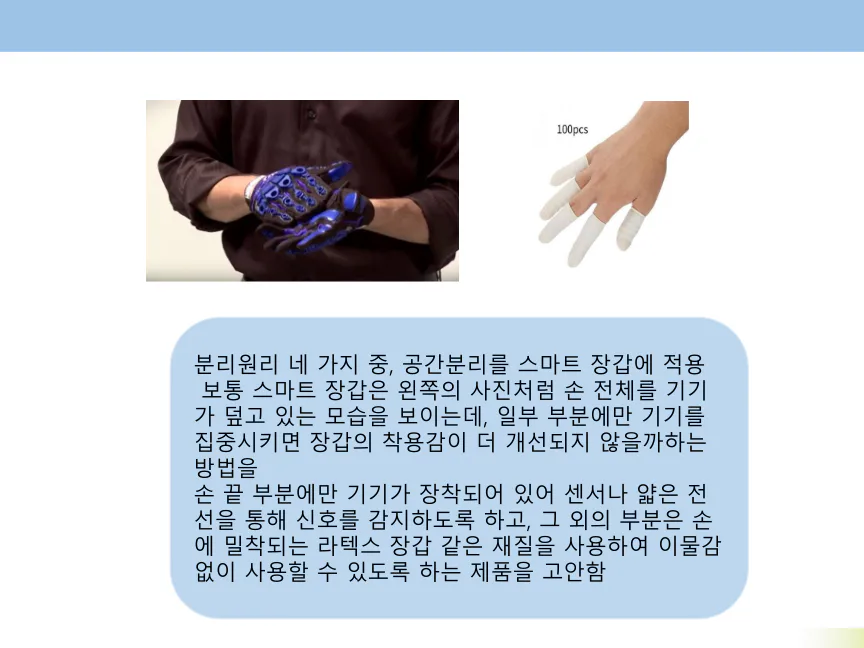

How does applying the space separation principle to smart gloves improve their usability compared to traditional smart gloves?

Fill in the Blanks

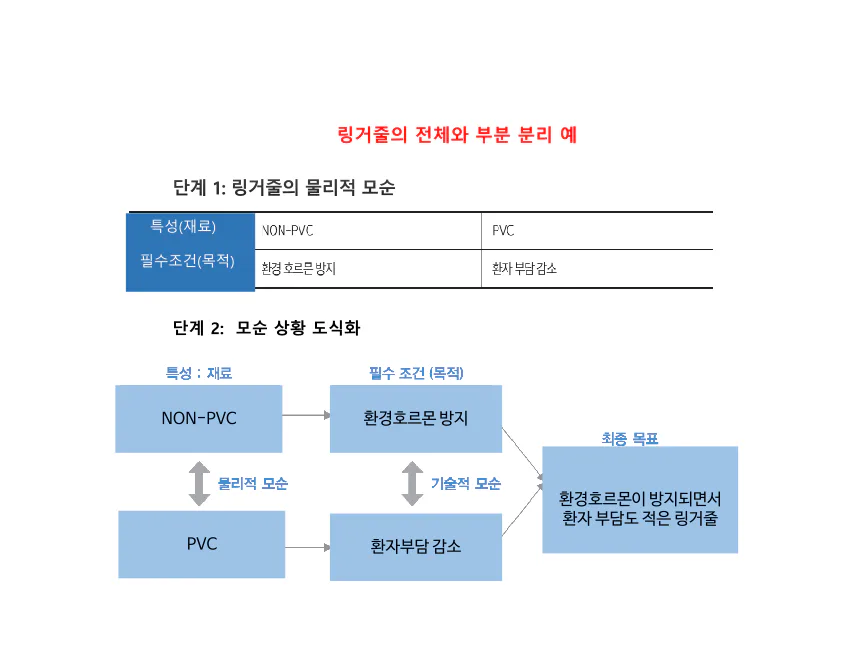

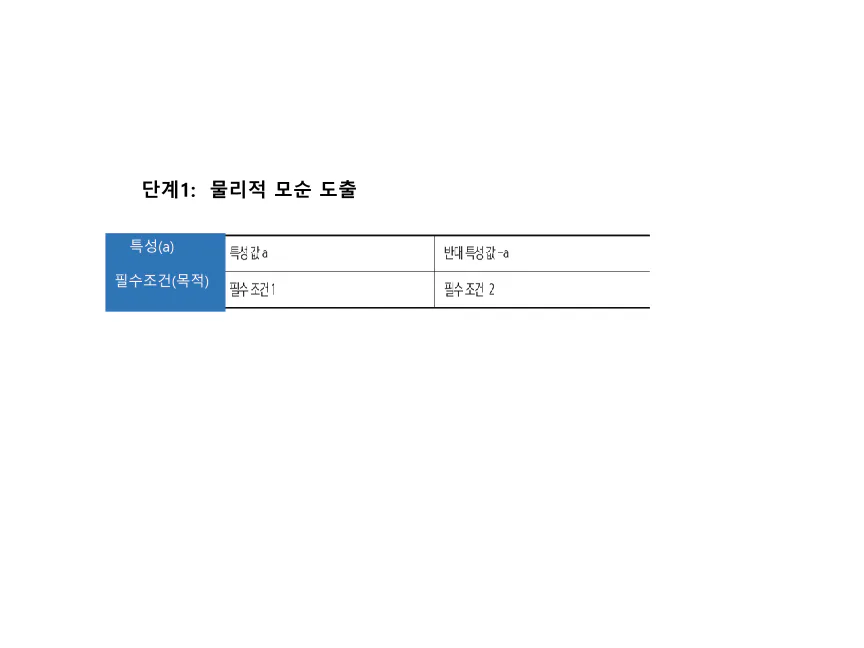

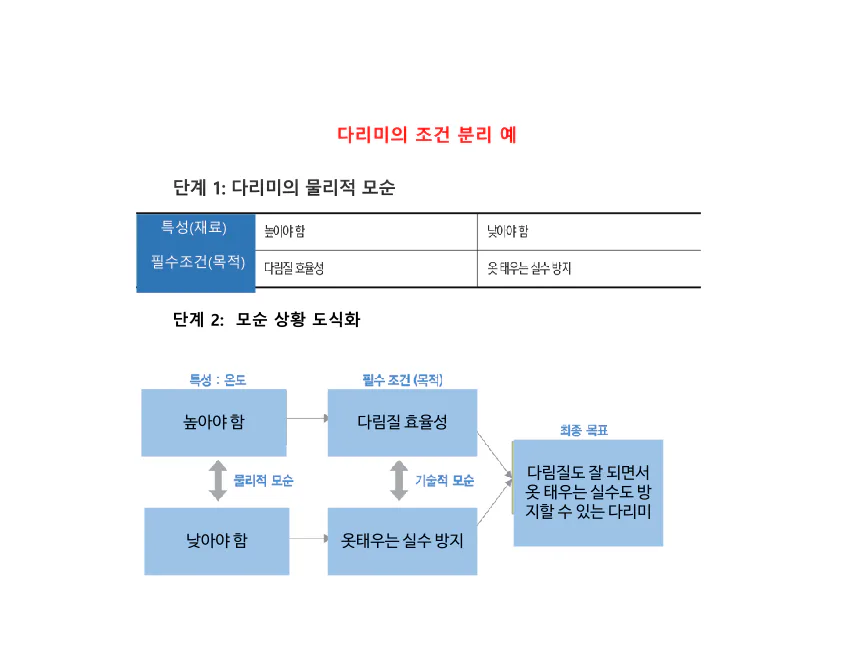

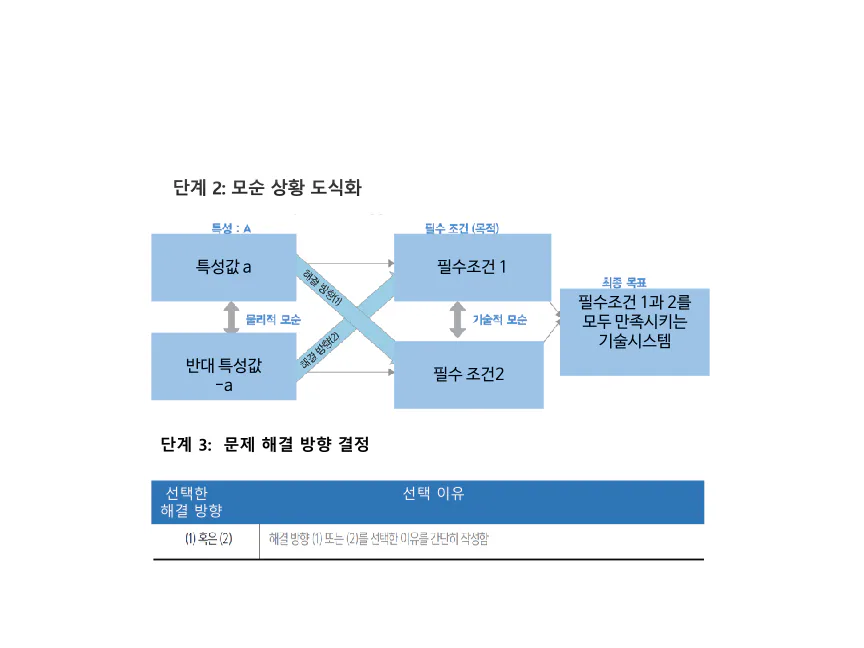

Fill in the blank: In the process of extracting physical contradictions, the two opposing characteristics are

and -a.

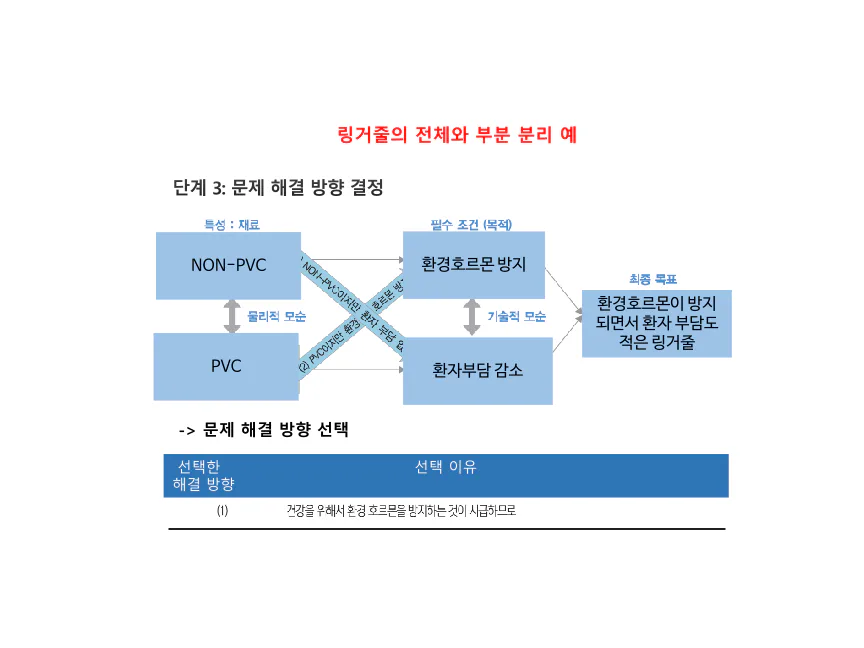

Multiple Choice

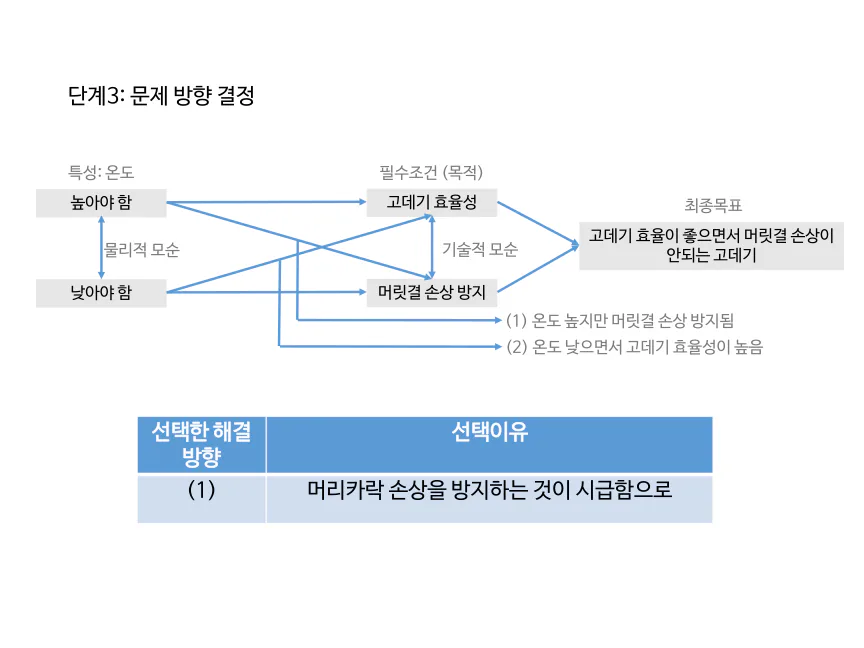

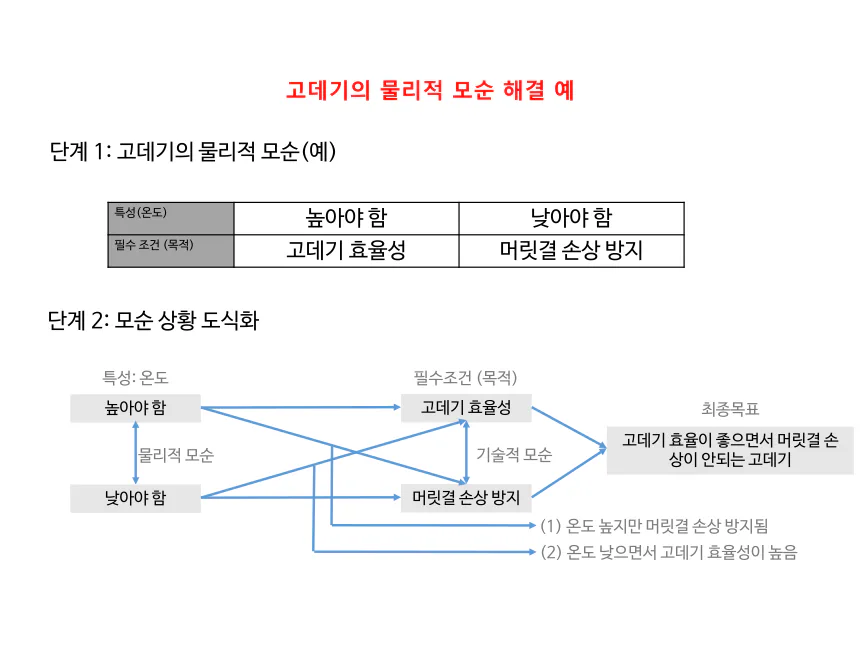

Which of the following best describes the final goal in the contradiction situation diagram process?

• To maximize one characteristic only

• To satisfy both required conditions simultaneously

• To minimize all technical requirements

• To avoid any physical contradiction

Multiple Select

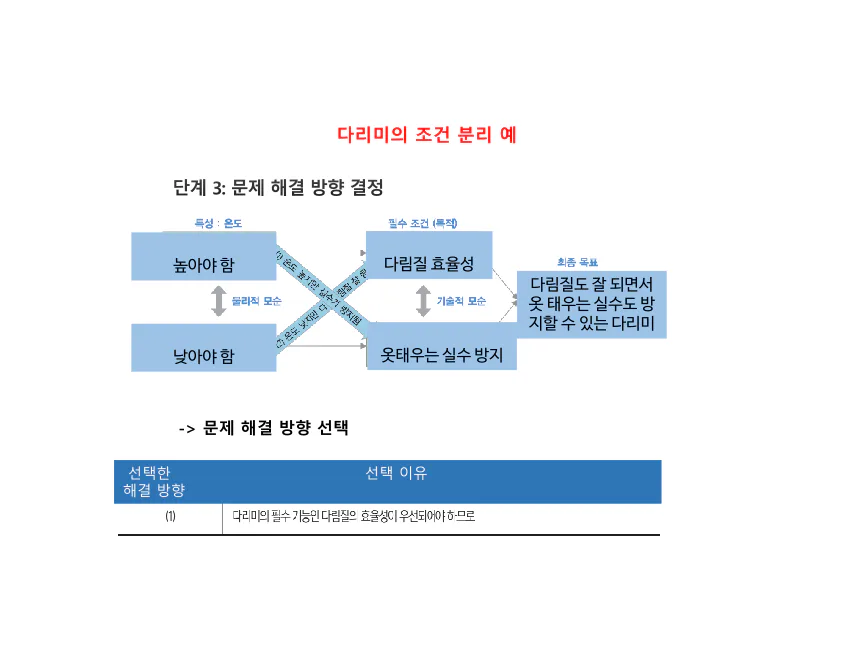

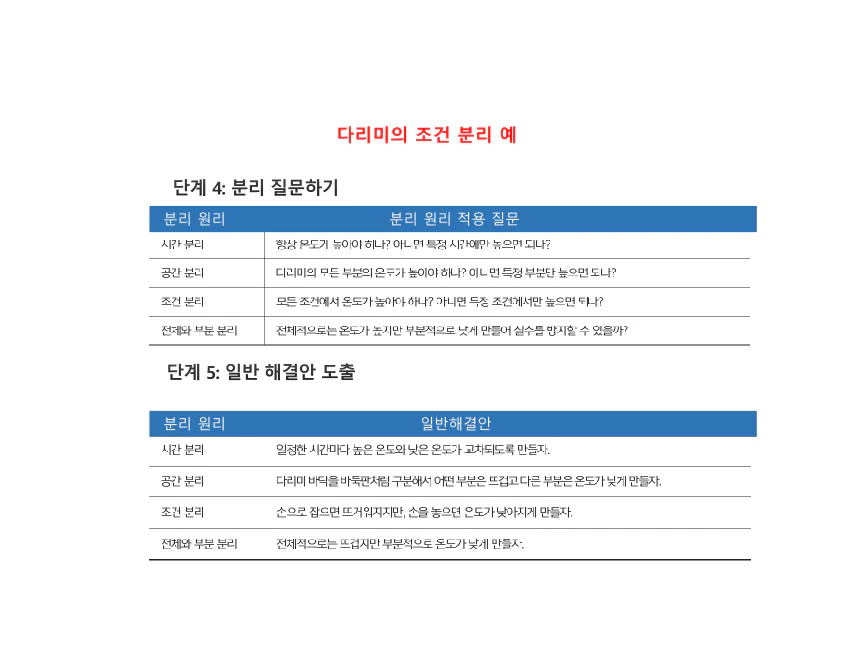

Which of the following are necessary conditions for an ironing board that efficiently irons clothes while preventing burning accidents?

• High temperature

• Low temperature

• Efficient ironing

• Prevention of burning accidents

Multiple Choice

Which of the following best describes a physical contradiction (물리적 모순) as discussed in the lesson?

• A situation where improving one feature causes another feature to worsen.

• A situation where two opposing requirements must be satisfied at the same time.

• A situation where a product's size increases as its usage time increases.

• A situation where a problem is solved using one of 40 inventive principles.

Open Ended

Reflecting on today's lesson about technical and physical contradictions (모순), what is one example from your daily life where improving one feature causes another feature to worsen?
