Illustrative Mathematics - Geometry - Unit 3 - Lesson 7

Sketch a figure that is similar to this figure. Label side and angle measures.

Tags

G.SRT.4

G.CO.2

G.SRT.2

G.SRT.3

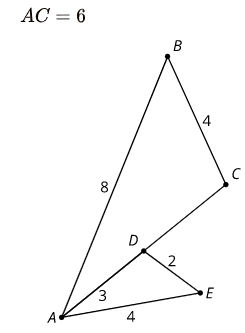

Write 2 different sequences of transformations that would show that triangles ABC and AED are similar. The length of AC is 6 units.

Tags

G.SRT.4

G.CO.2

G.SRT.2

G.SRT.3

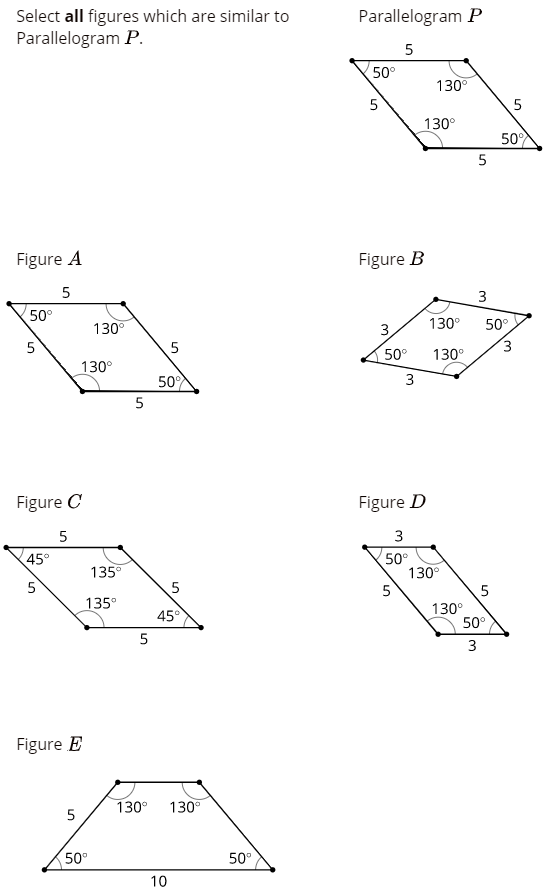

• Figure A.
• Figure B.
• Figure C.
• Figure D.
• Figure E.

Tags

G.SRT.4

G.CO.2

G.SRT.2

G.SRT.3

Triangle DEF is formed by connecting the midpoints of the sides of triangle ABC. What is the perimeter of triangle ABC?

Tags

G.SRT.4

G.CO.2

G.SRT.2

G.SRT.3

Triangles FAD and DCE are each translations of triangle ABC Explain why angle CAD has the same measure as angle ACB.

Tags

G.SRT.4

G.CO.2

G.SRT.2

G.SRT.3
