WorksheetsPower Tools
Total questions: 26
Worksheet time: 17mins
The name of the shown tool is:
Hand Drill
Power Hand Drill
Pillar Drill
Bench Drill
The name of the shown tool is:
Hand Drill
Power Hand Drill
Pillar Drill
Bench Drill
The name of the shown tool is:
Hand Drill
Power Hand Drill
Pillar Drill
Bench Drill
What is the name of the following drilling operations Shown:
Threading
Normal Drilling
Counter Boring
Centering
What is the name of the following drilling operations Shown:
Threading
Normal Drilling
Counter Boring
Centering
What is the name of the following drilling operations Shown:
Threading
Normal Drilling
Counter Boring
Centering
What is the name of the following drilling operations Shown:
Threading
Normal Drilling
Counter Boring
Centering
What are the following tools shown used for
Open the chuck
Remove the drill bit
Measure drill bit diameter
Measure the point angle
What are the following tools shown used for
Open the chuck
Remove the drill bit
Measure drill bit diameter
Measure the point angle
What are the following tools shown used for
Open the chuck
Remove the drill bit
Measure drill bit diameter
Measure the point angle
What are the following tools shown used for
Open the chuck
Remove the drill bit
Measure drill bit diameter
Measure the point angle
What are part name No 1
Motor
ON/Off Switch
Grinding Wheel
Safety Shield
What are part name No 2
Motor
ON/Off Switch
Grinding Wheel
Safety Shield
What are part name No 4
Motor
ON/Off Switch
Grinding Wheel
Safety Shield
What are part name No 5
Motor
ON/Off Switch
Grinding Wheel
Safety Shield
Which one is the correct position for the tool rest
Sheet metal can be made only from aluminum
True
False
Blade pitch is the number of teeth in 50 mm length.
True
False

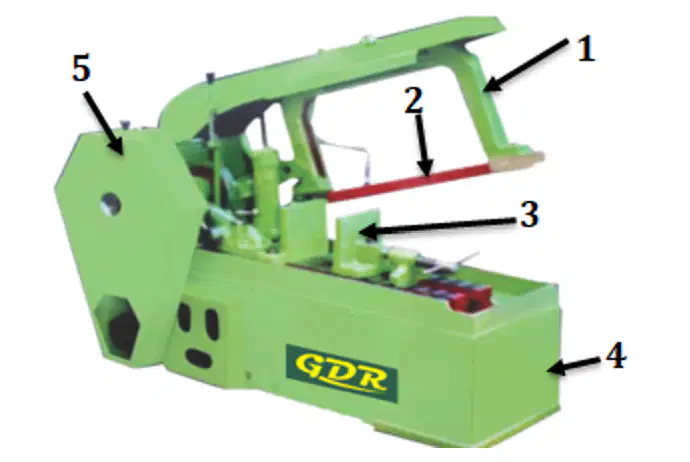

The power hacksaw uses a reciprocating (back and forth) cutting action
True
False
The coarse tooth blades are used for sawing large stock and soft metal.
True
False
The material which is left over after manufacturing is called Scrap (off-cut)
True
False
The band saw blades are made flexible by hardening the body of the blade and annealing only the teeth
True
False
In the power hacksaw machine, the hacksaw blade should be fitted with the teeth facing the cutting stroke's direction.
True
False
The band saw blades have their teeth set to produce a kerf, to prevent the blade from being pinched.
True
False
The band saw blade shown below is called ........... Blades
Morse
Ohms
Raker
Watt
The shown Tool is called ...........
Wheel Dresser
Wheel Drill
Wheel Base
Wheel Chair
