WorksheetsAVIA SCAN
Total questions: 33
Worksheet time: 33mins

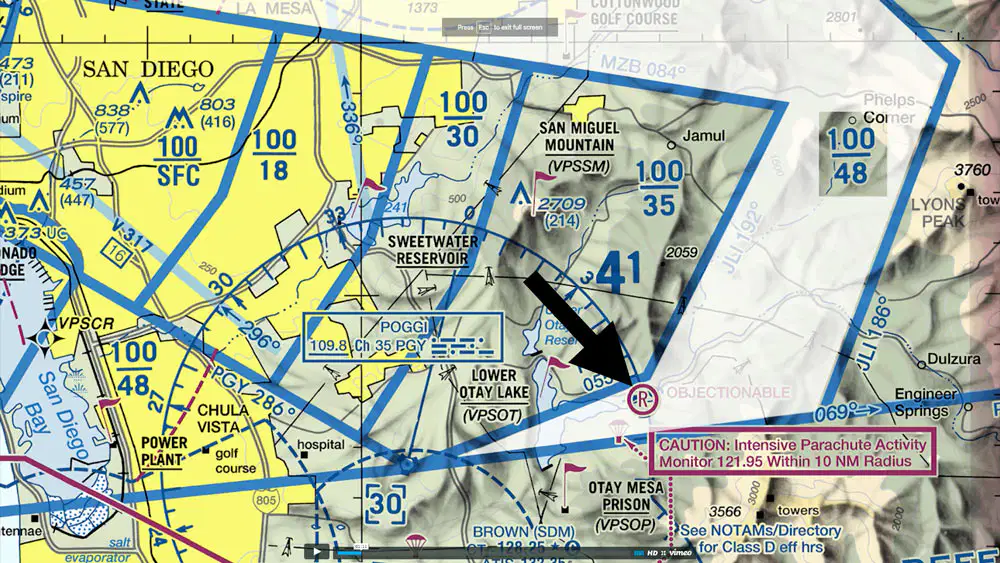

What does this symbol mean?
IFR waypoint
Visual reporting point
Huntington Pier
Magenta flag
You are reading a PIREP: JLN UA /OV KJLN/TM 0126/FLUNKN/TP CRJ2/SK OVC011. What flight level is this aircraft at?
FL126
FL110
FL360
There is no altitude given
What does the AWOS-3P have, that the AWOS-3 does not have?
Precipitation identification sensor
Temperature and dew point
Thunderstorm
Runway surface sensors
You're reading a METAR, and you come across the abbreviation "BC". What does this mean?
Breezy Cumulus
Patches
Shallow
Because
What does the AWOS-3 have, that the AWOS-2 does not have?
Cloud/Ceiling data
Visibility
Thunderstorm/ Lightning Reporting
Altimeter Setting
When reading a METAR, you come across "TSNO". What does this mean?
Thunderstorm information operating normally
True speed not operational
Thunderstorms not in area
Thunderstorm information not available
Match the following correctly.
DME
NDB
VORTAC
NDB/DME
VOR
Looking at the A/FD or chart supplement for an airport, you see that under services, it says S3. What type of servicing is this?
Major airframe
Minor airframe and major powerplant
Major airframe and minor powerplant
Minor powerplant
On an airport's A/FD or chart supplement, you read O3 under available oxygen. What type is this?
High pressure
Low Pressure
Low pressure replacement bottles
High pressure replacement bottles
Which is true concerning the blue and magenta colors used to depict airports on Sectional Aeronautical Charts?
Airports with control towers underlying Class B, C, D, and E airspace are shown in blue
Airports with control towers underlying Class C, D, and E airspace are shown in magenta
Airports with control towers underlying Class A, B, and C airspace are shown in blue, Class D and E airspace are magenta
Only Class E is blue
If you had your annual done on August 2nd, 2022, when is the next one due?
August 2nd, 2023
August 2nd, 2024
August 31st, 2023
August 31st, 2024
For a VFR flight more than 50NM from the departure airport, how often does the GPS need to be updated in order to fly?
Every 28 days
Every 30 days
You don't need updated GPS
Every 12 calendar months
When is a 100 hour inspection required?
Only for hire
Every 100 engine hours
Every 12 calendar months
Every 24 calendar months.
You are a private pilot under 40 years old, when does your 1st class medical, issued on April 17th, 2017, expire?
April 31st, 2022
April 31st, 2018
April 17th, 2018
April 17th, 2022
You are looking over the winds aloft for a cross country, and you read 800240 for FL300. What does this mean?
Winds 100 at 2kts 40°C
Winds 300 at 24kts 0°
Winds 300 at 102kts and -40°C
Winds 302 at 40kts
How often do you need to check the VOR receiver to use it for navigation?
30 days
28 days
12 calendar months
24 days
When are you allowed to fly through MOAs?
Only when in radio contact with ATC
After receiving ATC clearance
Whenever
With permission from the controlling agency
You are a private pilot. In the last 90 days, you have completed 9 full-stop solo day landings in a Cessna 172R at a towered airport. When are you legally allowed to fly with passengers?
In any category, class, or type during the day.
In the same category, class, and type during the day or night
In the same category, class, and type during the day
In any plane day or night
How often does the ELT need inspected?
Every 12 calendar months
Every 24 calendar months
Every 90 days
Every 30 days
How heavy is a gallon of fuel?
5 pounds
6 pounds
7 pounds
8 pounds
What is the arm of a object with a weight of 45 lbs and a moment of 3375 in-lbs?
75 inches
151 inches
13 inches
45 inches
Navigation lights, when are they required?
One hour after sunset to one hour before sunrise
Sunset to sunrise
Beginning to end of civil twilight
Visibility less than 3SM
What is the crosswind component on Rwy 19 with winds 160 at 20kts?
17 knots
10 knots
15 knots
16 knots
On the A/FD chart supplement for an airport, you see "B". What does this mean?
It is a paved airport
The airport is a Class B
The airport does not have a light beacon
The airport has a rotating beacon
In the A/FD you read "LDA - 11504". What does this mean?
VOR identifier is LDA
The airport is not open to aircraft weighing more than 11,504 lbs
Landing distance available is 11,504 ft.
Landing decision altitude is 11,504 ft MSL
What does this symbol mean?
A heliport
A hard-surfaced private airport
An unpaved private airport
An ultralight flight park
You're reading a METAR. "132254Z 21008KT 10SM BKN009 OVC030 01/M02 A2977 RMK AO2". Are these VFR conditions?
Yes
No
On this METAR, "132254Z 21008KT 10SM BKN009 OVC030 01/M02 A2977 RMK AO2". What is the day and time of this observation?
13th at 22:00Z
22nd at 13:00Z
1st at 3:22Z
13th at 22:54Z
What minimum weather should be present for ATC to issue LAHSO clearances?
5SM visibility and 3000 ft ceiling
1SM visibility
3SM visibility and 1000 ft ceiling
No recommended minimums, whenever you accept it
During your pre-flight you notice one of your position lights is burned out. There are no maintenance services around. Is this something you can fix yourself?
No since it involves the electrical system
Yes
Yes, as long as it doesn’t involve removing cover plates or wingtip fairings
No, only landing lights
What type of equipment for small aircraft do you need to carry to fly over water?
A life preserver or approved flotation device for each occupant
Nothing as long as you remain within gliding distance of land
A life preserver with light for each occupant, a life raft, a pyrotechnic device, and a portable emergency radio signaling device
Nothing
What visibility do you need to request a special VFR clearance to takeoff or land in controlled airspace?
3SM ground visibility
1SM ground visibility
3SM flight visibility
1SM flight visibility
You're looking at a TAF. You see a couple lines that show winds of 00000KT. When will they report this?
Winds light and variable
Variable winds
Winds less than 3kts
Winds less than 5kts
