Worksheets207
Total questions: 18
Worksheet time: 9mins

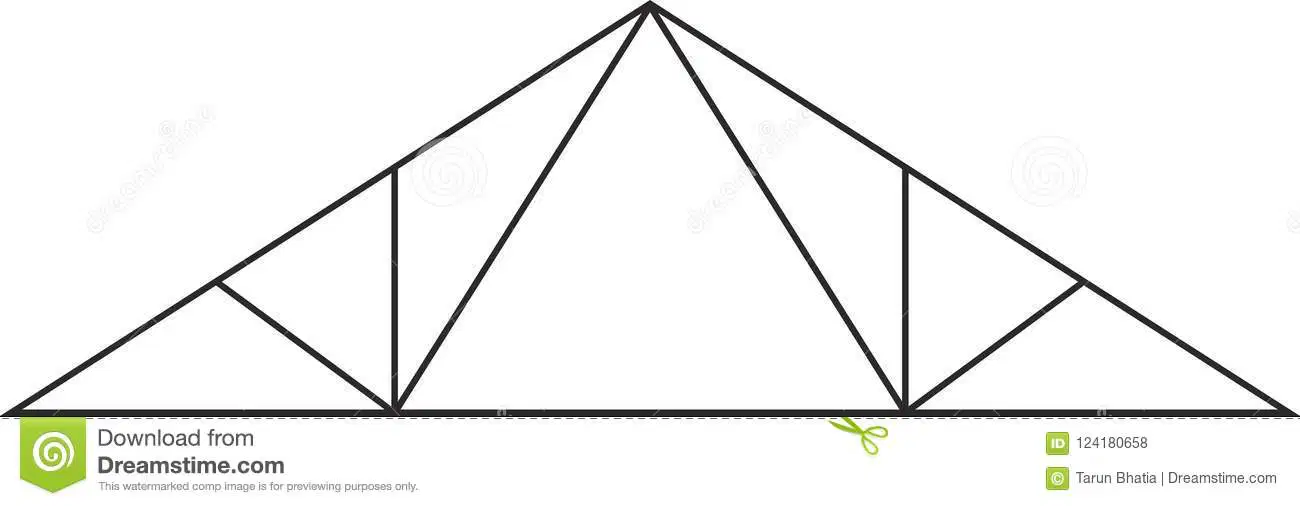

What name is given to this truss rafter
Fink
Fan
Attic
Scissor
What is the name of the rafter in this image
Jack
Valley
Common
Crown
What is used to fix the wall plate to the structure
Joist Hanger
Restraint strap
Wire nail
Coach screw
Where are tank stands positioned in a roof
On bearers over ceiling joists
On firrings under the eves
Fitted directly on the ceiling joists
Suspended from the from the rafters
The correct order for roof fixings
1 Common rafter
2 Fascia
3 Wall plate
4 Ceiling joist
5 Plasterboard
Plasterboard
Wall plate
Ceiling joist
Fascia
Common rafter
Wall plate
Fascia
Common rafter
Plasterboard
Ceiling joist
Wall plate
Ceiling joist
Common rafter
Fascia
Plasterboard
Open and closed are methods of finishing
Purlins
Joists
Eaves
Rafters
What type of joist is shown in the image
Trimmer
Bridging
Trimmed
Trimming
What is the method of supporting floor joists shown in this image
Crocodile fixing
Built in
Truss clip
Joist hanger
Trimming, to joisting is a method of forming an opening in a
Pitched roof for a skylight
Partition for a hatch
Floor for a staircase
Floor for a service trap
What is used to tie a floor to a wall
Lateral girder plates
Lateral restraint straps
Bridle straps
Shrinkage plates
Floor joists are protected from decay by coating with.
Paint
Zinc
Timber preservative
Plastic
How do you reduce the bounce in a timber floor
Joist hangers
Steel strutting
Gang nail plate
Lateral strap
Which type of fixing should you use on floor coverings
Wire nail
Oval nail
Veneer pin
Lost head nail
Notching joists should be no deeper than.
Half the depth of the joist
Quarter the depth of the joist
One sixth the depth of the joist
One eight the depth of the joist
If a flat roof had a run of 5m and a fall of 1:40 What would the rise be?
115mm
120mm
125mm
130mm
Which one of the roof components acts as a tie between a pair of rafters
Purlin
Wall plate
Ceiling joist
Ridge
What does square-edged sheet flooring material require to support its edges
Battens
Studding
Noggings
Bracing
What type of floor covering usually comes in 2400mm x 600mm sizes.
Square edged plywood
Tongue and grooved softwood
Square edged hardwood
Tongue and grooved chipboard
