Total questions: 15
Worksheet time: 11mins

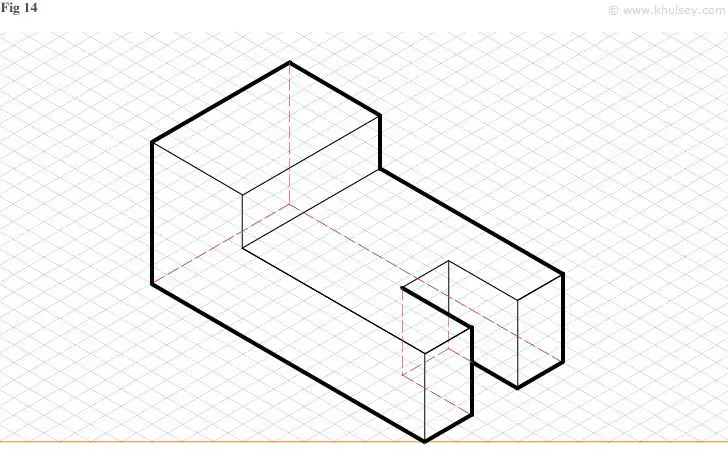

What type of drawing does the image show?
Isometric Drawing
Exploded View
Sketch
Orthographic Drawing

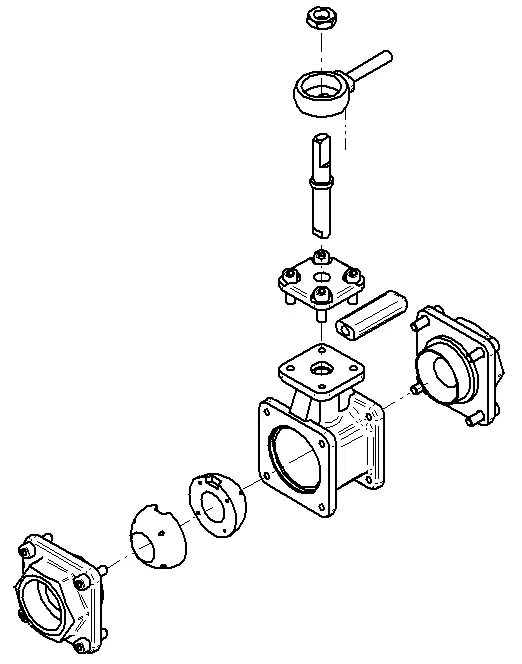

What type of drawing does the image show?
Isometric Drawing
Exploded View
Sketch
Orthographic Drawing
What type of drawing does the image show?
Isometric Drawing
Exploded View
Sketch
Orthographic Drawing
In relation to Orthographic Drawing select the standard angles of projection?
4th Angle Projection
3rd Angle Projection
2nd Angle Projection
1st Angle Projection
What is the following describing "provides detailed specifications and step by step, comprehensive instructions and illustrations on the dismantling, overhauling and assembling a complete unit"
Procedure sheet
Workshop Manual
Specification sheet
Select the situations that could lead to a component or part getting damaged?
Tool marks
Impact
indentation from force
Scratches for movement

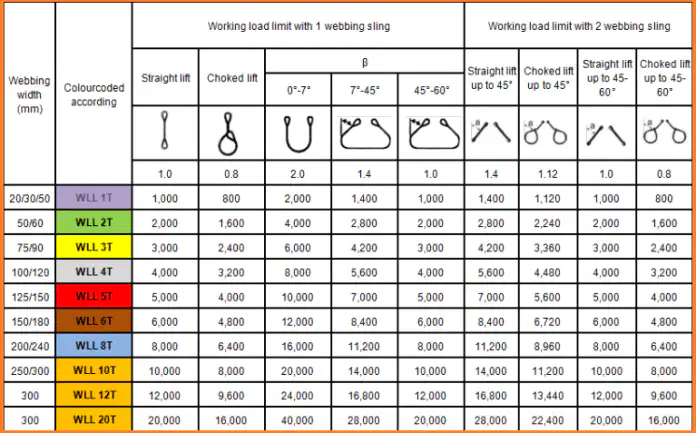

Using the image, what is the limit of a 3ton sling lift with the choke method
3000
2400
2000
1600
Using the image, what is the limit of two 8 ton slings at 45 degrees lift
11500
22000
11200
16000
The maximum recommended Splay for lifting chain slings is (a) Degrees
what paper work is to confirm completion of an operation when passing a unit on to the next stage?
Permit to Work
Handover Doc
Technical Spec
Risk Assessment

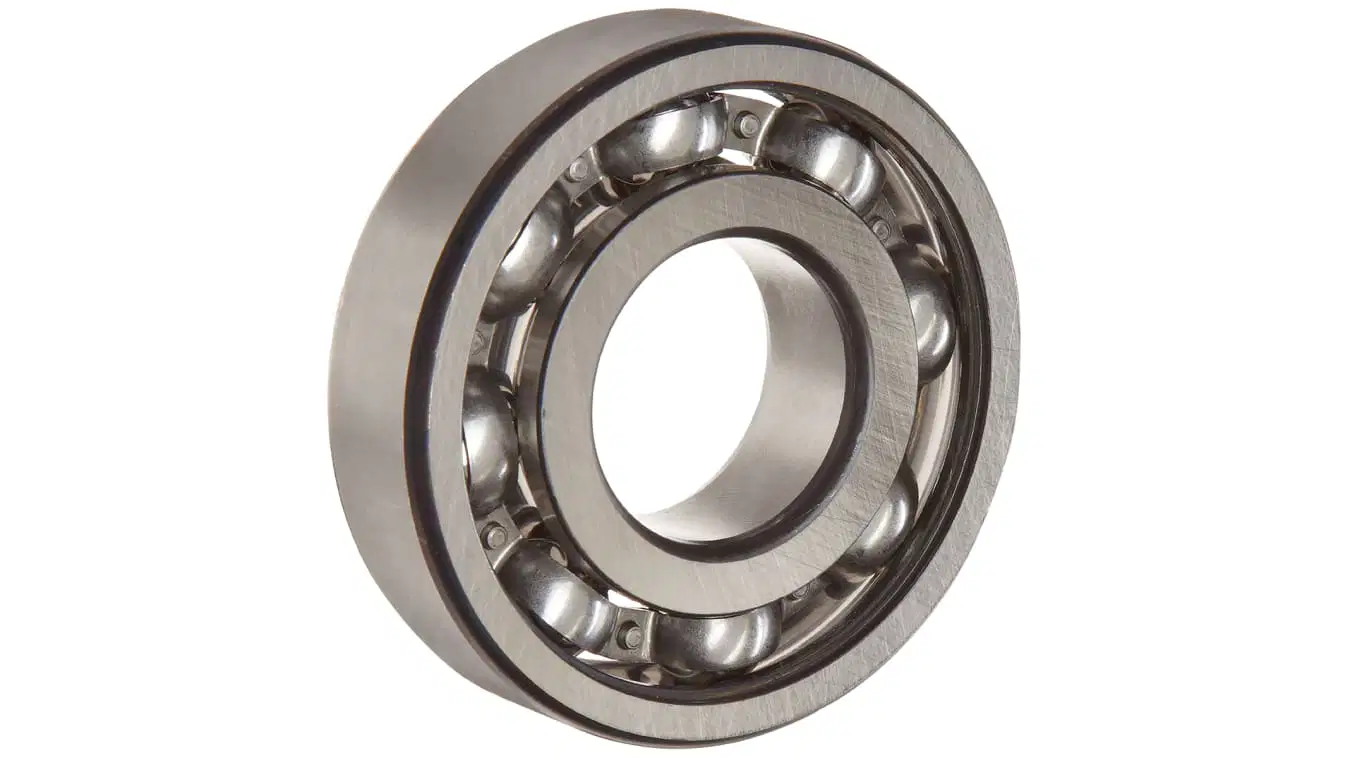

Roller Bearing
Taper Bearing
Ball Bearing
Thrust Bearing
Roller Bearing
Taper Bearing
Ball Bearing
Thrust Bearing
How would you prepare a bearing for refitting
Fit as removed
Use carbon stone to remove all blemishes
Clean and Degrease
Make sure the bearing is fitting in the correct location
When a machine or equipment is in use the (a) must be in place at all times during the operation.
Select the methods of degreasing ?
Degreasing Agent
Jet Wash
Solvent Degreaser
Steam Cleaning
