WorksheetsAT/MTD ASE Test
Total questions: 25
Worksheet time: 13mins
In a VIN (Vehicle Identification Number) which digit identifies the model year of the vehicle?
1st.
4th.
8th.
10th.

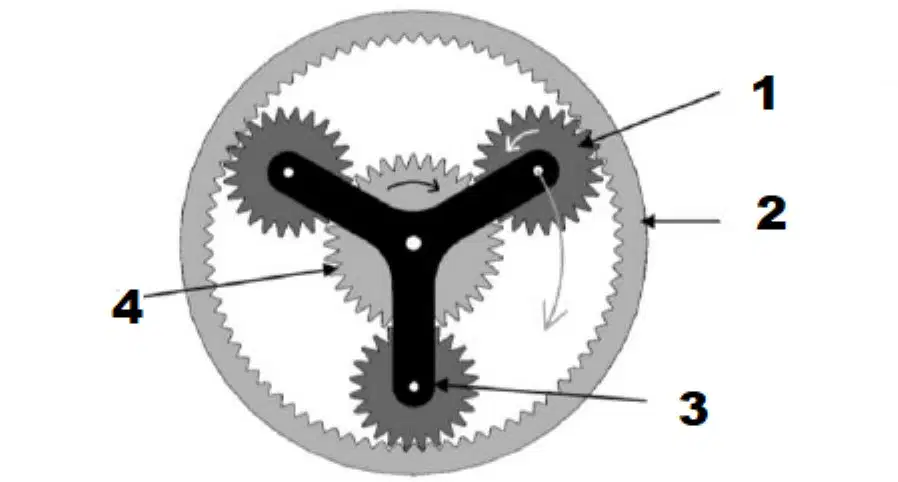

Identify the planetary gearset component:
#2
Sun gear.
Planet carrier.
Ring gear.
First gear.
On a modern vehicle, instead of a gear, a speed _____ is used to provide information to the driver.
Sensor.
Bearing.
Gear.
Multiplier.

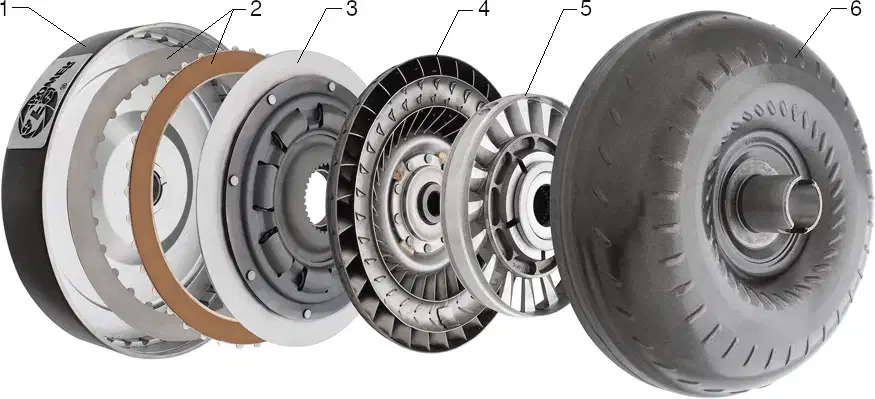

Identify the specified torque converter component:
#6
Housing.
Impeller.
Stall.
Stator.
When is transmission line pressure the highest?
When coasting.
During deceleration.
In park.
During heavy acceleration.
Observe the image and identify what is being measured.
Differential bearing preload.
Ring gear backlash.
Pinion rotating torque.
Pinion flange nut torque.
Also known as angle cut gears, __________ cut gears are quieter and stronger than spur cut gears.
Tapered.
Straight.
Helical.
Spider.
A technician is diagnosing a vehicle with leak from the dipstick tube of an automatic transmission vehicle. Which of the following is the most likely cause?
Overfilled transmission.
Clogged transmission vent.
Overheated transmission.
Slipping transmission.
Identify the specified torque converter component:
#5
Impeller.
Turbine.
Pump.
Stator.
An automatic transmission is being pressure tested. Technician A says the pressure will remain constant during acceleration. Technician B says the pressure reading will increase under acceleration. Who is correct?
Technician A.
Technician B.
Both A and B.
Neither A nor B.
Identify the planetary gearset component:
#3
Planet carrier
Planet solar system.
Planetary holder.
Intergalactic planetary.
During an inspection on a front-wheel-drive vehicle, a technician finds grease build up on the inside surface of the wheel. Which of the following is the most likely cause?
Damaged CV joint boot.
Leaking transmission axle shaft seal.
Leaking wheel bearing.
Leaking engine valve cover.
The fluid in an automatic transmission is being serviced. Technician A says any type of transmission fluid can be used to fill up the transmission. Technician B says the fluid level should be checked with the engine off. Who is correct?
Technician A.
Technician B.
Both A and B.
Neither A nor B.
Which of the following tools is used to check endplay between the gears in a manual transmission?
Dial caliper.
Straight edge.
Snap gauge.
Dial indicator.
An _____ _____ is used during subframe removal for transmission replacement.
Engine hoist.
Arbor shaft.
Automatic transmission jack.
Engine support.
Identify the specified torque converter component:
#1
Lock-up clutch.
Housing.
Stall.
Impeller.
An ____ pressure check is performed on clutch packs prior to final transmission assembly.
Air
Idle.
Endplay.
Accumulator.
An automatic transmission is being serviced. Technician A says clutch pack clearance can be adjusted by replacing the top pressure plate. Technician B says clutch pack clearance cannot be adjusted and all the clutch discs should be replaced. Who is correct?
Technician A.
Technician B.
Both A and B.
Neither A nor B.
Identify the planetary gearset component:
#1
Planet gear.
Ring gear.
Sun gear.
Jupiter gear.
Located in the extension housing, the _____ _____ is used to provide vehicle speed information to the driver.
Speedometer gear.
Sun gear.
Timing gear.
Low gear.
A customer complains that their FWD vehicle is making a popping noise while accelerating through a left or right turn. Which of the following is most likely the cause?
Failed wheel bearing.
Failed CV joint.
Loose wheel lug nuts.
Loose golf balls on the floorboard.
During a test of an automatic transmission solenoids, what should the voltmeter be set to?
Ohms.
Volts.
Hertz.
Amps.
Identify the specified torque converter component:
#4
Stator.
Turbine.
Lock-up clutch.
Impeller.
Where in the transmission are you most likely to find the output speed sensor?
Output shaft.
Torque converter.
Fluid pump.
Input shaft.
Identify the planetary gearset component:
#4
Ring gear.
Sun gear.
Planet gear.
Planet carrier.
