Woodshop Review

Total questions: 33

Worksheet time: 17mins

Name
Class
Date
1.

You are building a garden barn. How many square feet of flood decking do you need if the barn is 9 feet wide and 10' long ?

a)

99 sq. ft.

b)

90 sq. ft.

c)

19 sq. ft.

d)

38 sq. Ft.

2.
Which Type of hammer is best used for pulling nails?
a)

Sledge

b)

Straight Claw

c)

Curved Claw

d)

Ball Peen

3.

How much is one half of 2-1/4"

2 14  ÷ 2= ?2\ \frac{1}{4\ }\ \div\ 2=\ ?

a)

1/4 "

b)

1-1/4 "

c)

1-1/8 "

d)

7/8 "

4.

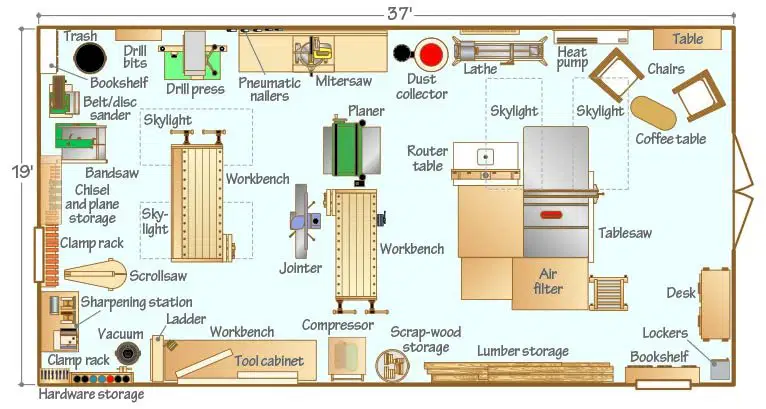

Which Saw is considered a stationary Shop power tool?
a)

Table Saw

b)

Jig Saw

c)

Circular Saw

d)

Reciprocating Saw

5.
Which Stationary Shop Saw is used for crosscutting material to length?
a)

Radial Arm Saw

b)

Table Saw

c)

Diamond Saw

d)

Carbide Saw

6.

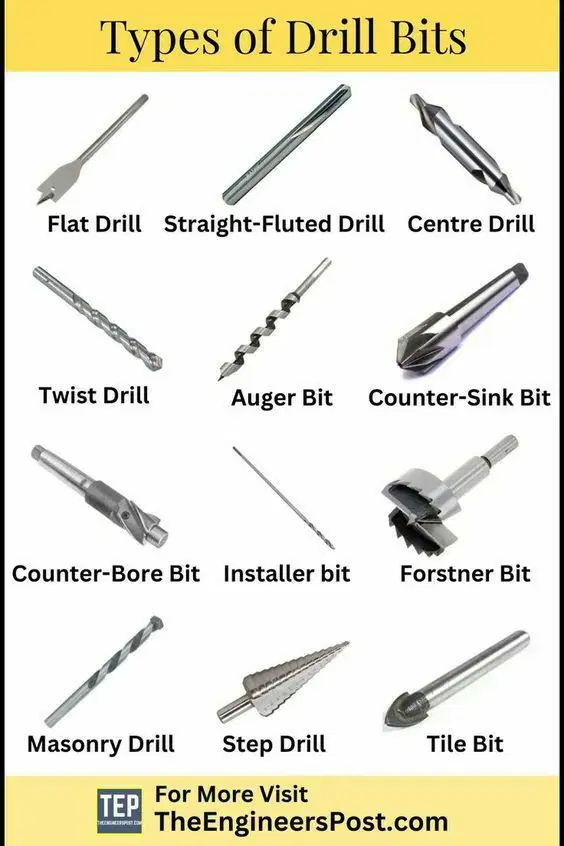

What type of drill bit is used to make a hole into concrete?
a)

Metal Bit

b)

Auger Bit

c)

Masonry Bit

d)

Spade Bit

7.
Which Saw is used mainly used for cutting wood at various angles?
a)

Miter Saw

b)

Band Saw

c)

Reciprocating Saw

d)

Chain Saw

8.

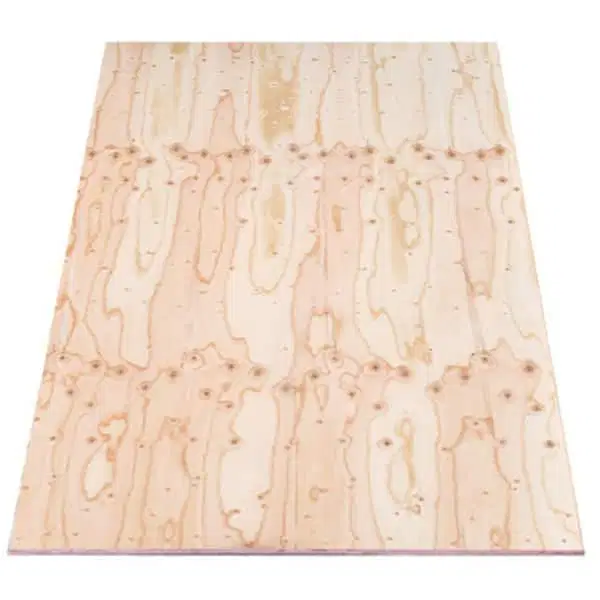

What is the total Square footage of a full sheet of plywood?
a)

30 square inches

b)

32 square feet

c)

48 square feet

d)

54 square yards

9.

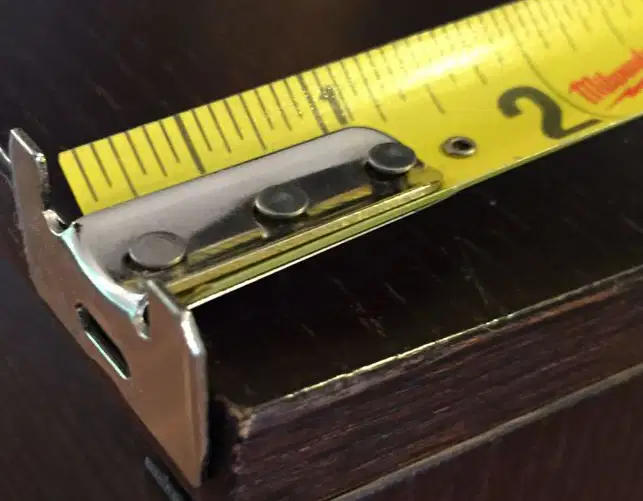

What is the ninth small mark on the blade after the hook on a tape measure where each inch is graduated by 1/16 of an inch?
a)

9/16 of an inch

b)

3/8 of a foot

c)

5/8 of an inch

d)

9/12 of an inch

10.

Your grandmother would like you to plant flowers completely around her house. If her home is 40' wide x 20' long, what is the length of the perimeter you will be planting?

P=2L + 2WP=2L\ +\ 2W

a)

800 '

b)

120 '

c)

160 "

d)

80 "

11.

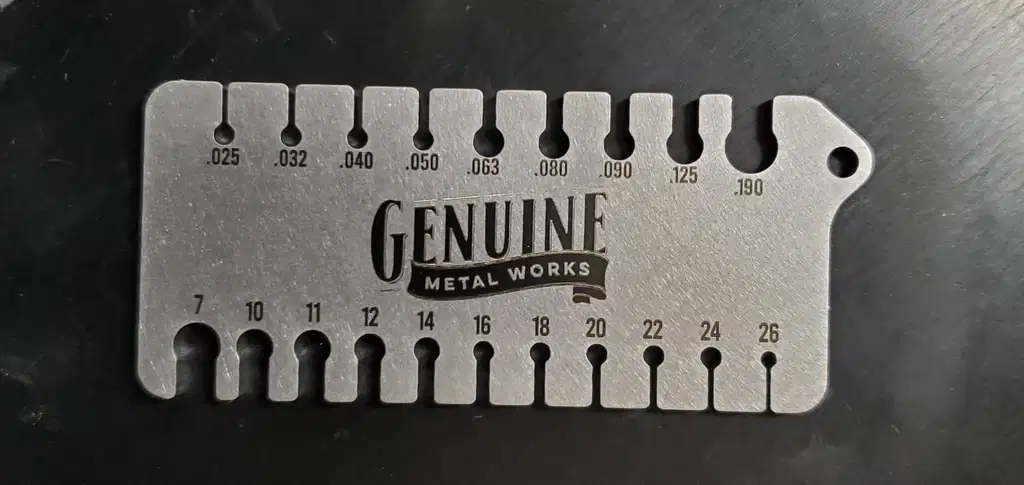

When discussing construction materials, what does "gauge" refer to?
a)

the number of gypsum layers in sheetrock

b)

the diameter of fibers in carpet

c)

the hardness of tile products

d)

the thickness of sheet metal or wire

12.
Pneumatic Tools get their operating power from which source?
a)

Electricity

b)

Air Pressure

c)

Diesel Fuel

d)

Lithium Ion Batteries

13.
Hammer Drills are designed to make holes in what material?
a)

Concrete

b)

Plastic

c)

Drywall

d)

Wood

14.
What is the common name of a triangle shaped framing square?
a)

Speed Square

b)

TriSquare

c)

Pi Square

d)

L square

15.
What tool should be used to mark a long straight line on a construction surface?
a)

Laser Level

b)

Framing Square

c)

Chalk Line

d)

Tape Measure

16.
What color is a typical 10-gauge Dryer wire?
a)

Green

b)

White

c)

Black

d)

Yellow

17.
Which type of switch is always used in pairs to control a light or outlet from two different locations?
a)

Dimmer Switch

b)

Ground Fault Circuit Interupter

c)

Three-way switch

d)

Combo Switch

18.

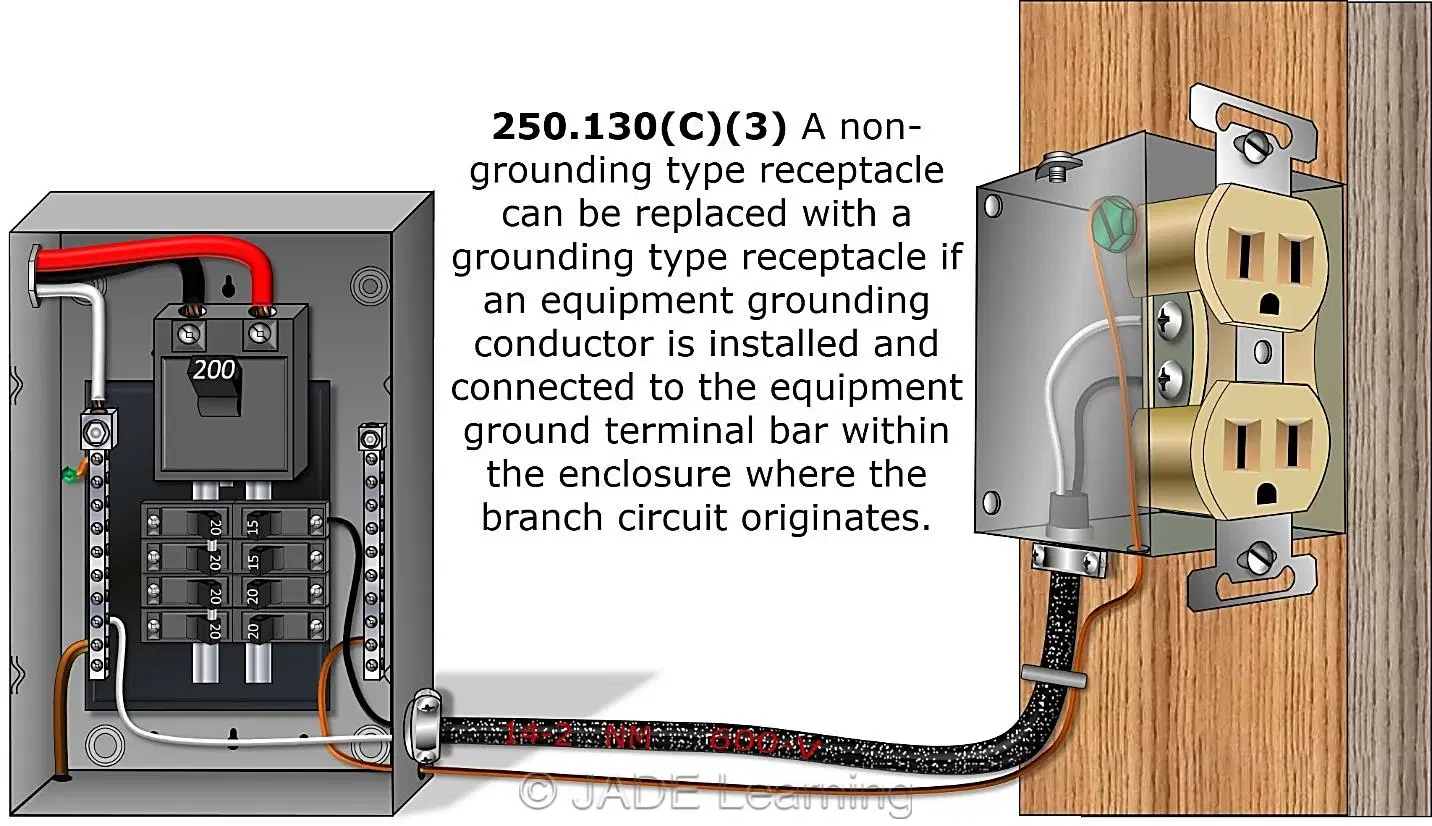

What Color is a grounding screw on a Receptacle?
a)

green

b)

red

c)

brown

d)

back

19.
Which saw is normally used to cut shapes and circles?
a)

Circular saw

b)

Jig Saw

c)

Table Saw

d)

Miter Saw

20.

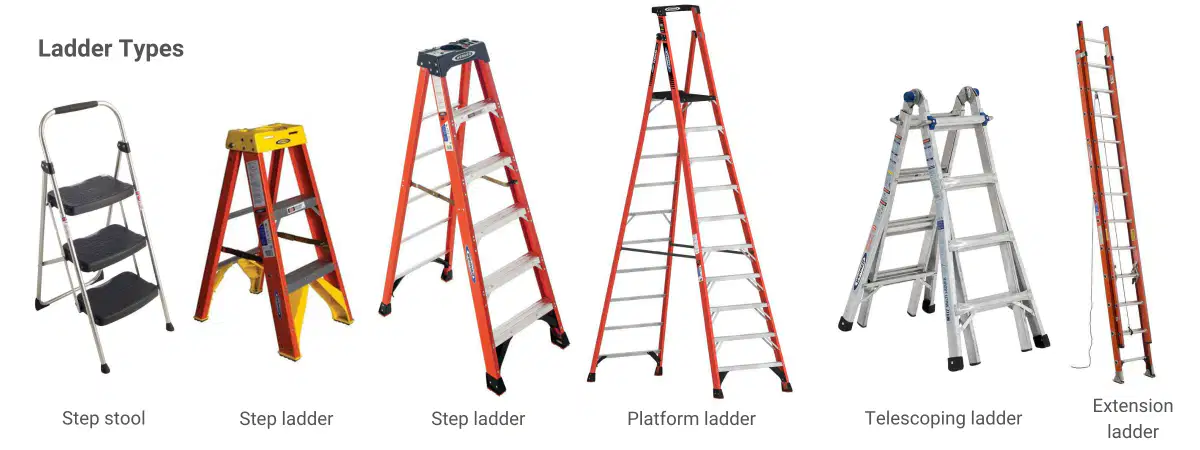

What type of ladder should be used when working with or around electricity ?
a)

Metal

b)

Aluminum

c)

Fiberglass

d)

Wood

21.
Which of the following is a good example of PPE?
a)

tool pouch

b)

nails

c)

earplugs

d)

apprenticeship programs

22.
Which material below is the best insulator when working with electricity ?
a)

copper

b)

rubber

c)

water

d)

brass

23.
Which material below is the best insulator when controlling the heat loss or gain of a structure?
a)

metal

b)

concrete

c)

cellulose fill

d)

brass

24.
What type of legal document is used to change the terms of a contracted portion of a construction project ?
a)

survey

b)

change order

c)

addendum

d)

title insurance

25.

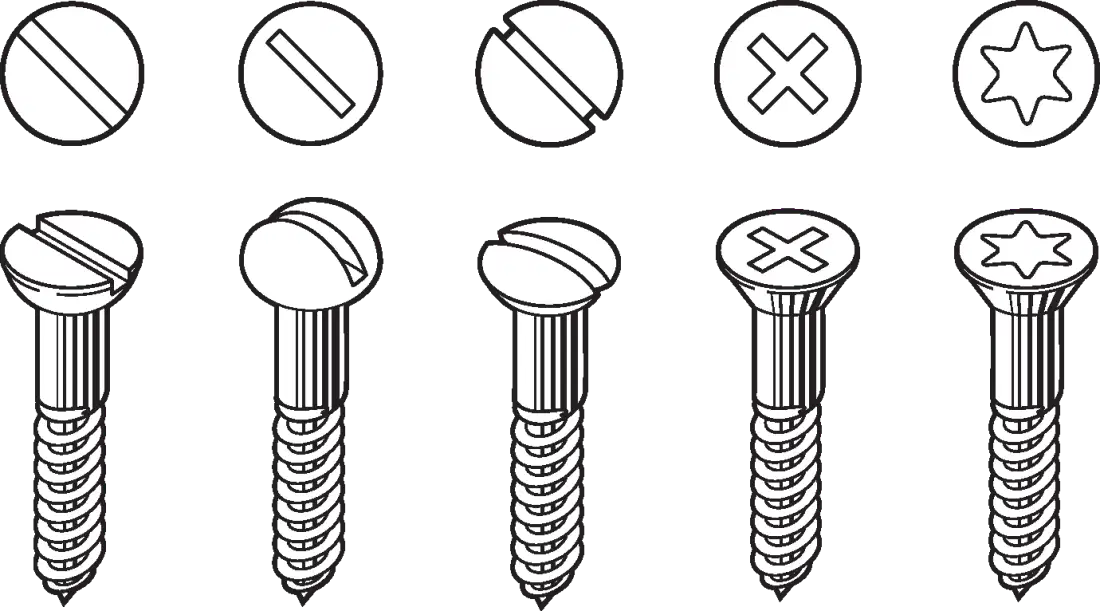

Which type of screwdriver has a tip that looks like a plus sign ?
a)

slotted

b)

torx

c)

phillips

d)

hex

26.
Which shop tool is used to dimension rough sawn lumber to a desired thickness along its length ?
a)

sander

b)

planer

c)

jointer

d)

shaper

27.
Which shop tool is used to make one face of a board, and one adjacent edge, perfectly flat and square to each other ?
a)

sander

b)

planer

c)

jointer

d)

shaper

28.
What is the purpose of a p-trap ?
a)

to prevent sewer gases from entering a dwelling

b)

to catch peas before they become ohs

c)

to prevent rodent infestation

d)

varmint control in residential areas

29.

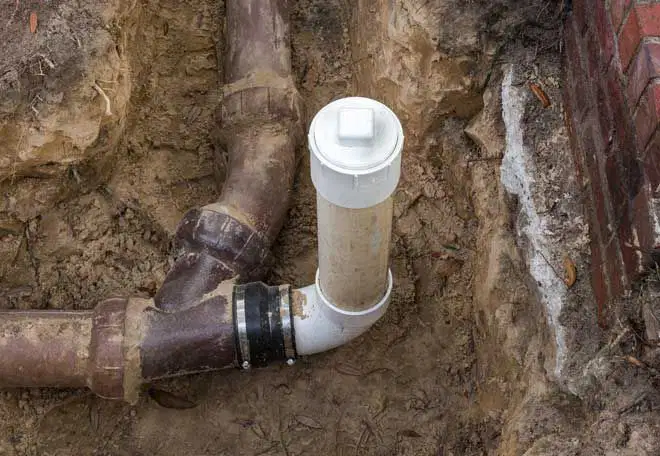

Which pipe size is typically used for the main sanitary drain in most residential housing ?
a)

10 inch

b)

4 inch

c)

1 foot

d)

1 meter

30.
Which type of pipe is typically used for the main sanitary drain in most residential housing ?
a)

iron

b)

Option 2

c)

PVC

d)

pexcopper

31.

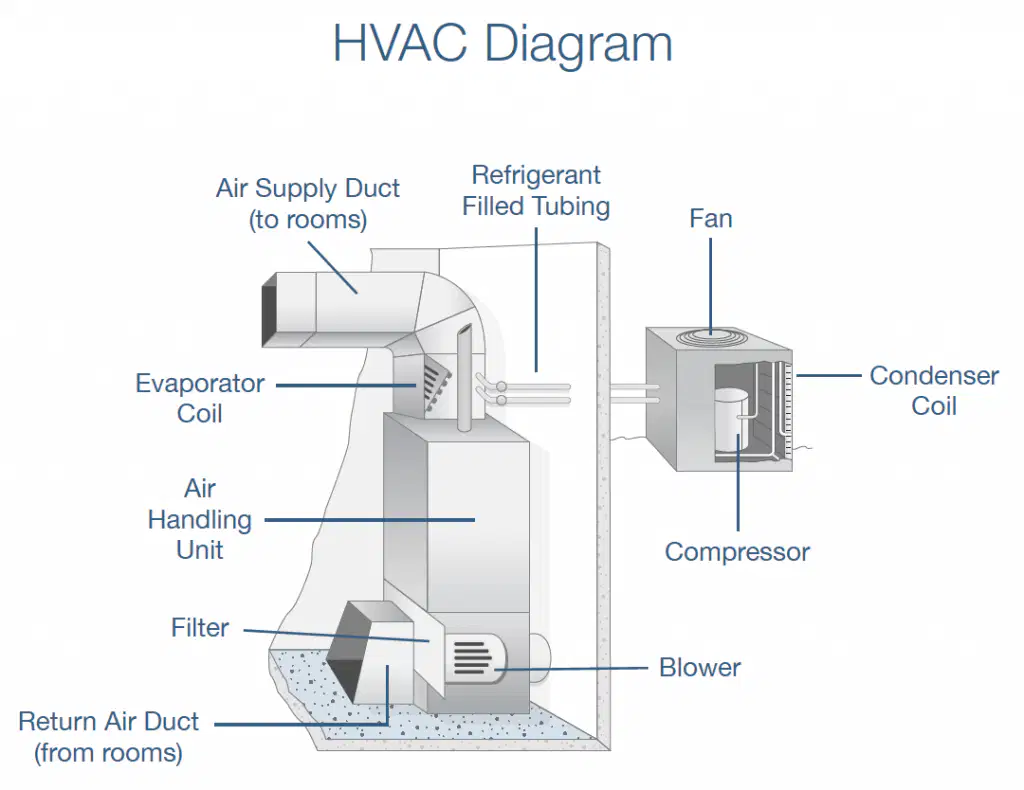

What are the two main units of most residential HVAC systems ?
a)

hot unit and cold unit

b)

heat cycle and defrost cycle

c)

air handler and condensing unit

d)

evaporator coil and thermostat

32.
What is one of the most valuable personnel assets on a construction project ?
a)

the port-o-lets

b)

the jobsite trailer

c)

the lunch truck

d)

a safety mindset

33.

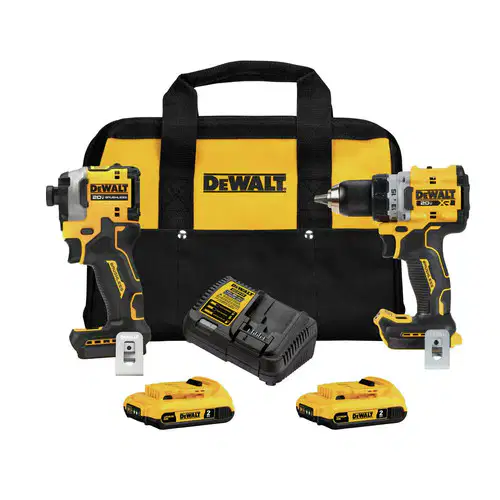

Which power tool would use a lithium ion battery as its power source?
a)

a bench grinder

b)

a lathe

c)

a drill press

d)

a cordless drill
