WorksheetsL4 Manual gearbox
Total questions: 10
Worksheet time: 5mins

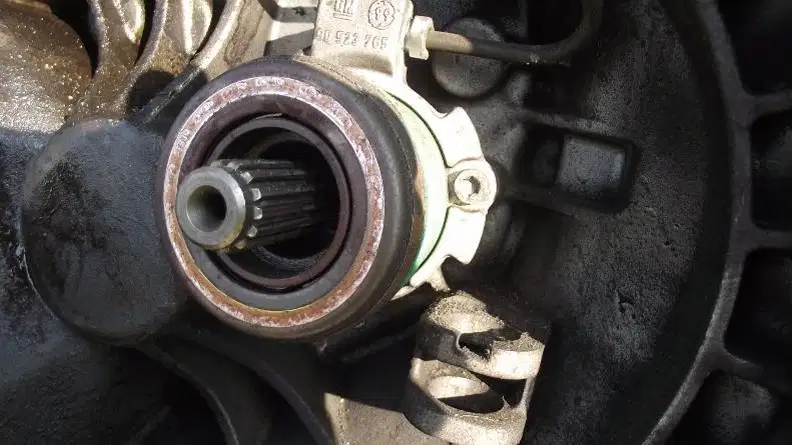

What is item shown in image?
Release fork and bearing
Centrifugal release bearing
Concentric release bearing
Central throw out bearing
After removing the release bearing assembly, which part would you examine next, and for what?
Input shaft seal for oil leaks.
Release bearing for grease.
Output shaft oil seal leak.
first motion shaft for bearing play.
What is best method to determine if fault in gearbox or linkage?
Remove gearbox, strip down
Remove gear linkage, operate lever by hand
Remove gear linkage, operate selector by hand
Replace Clutch assembly, road test
How is fifth gear removed?
Special puller
Remove roll pin
Two torx bolts
Unscrew left hand thread from shaft
When rebuilding a gearbox what is recommendation with circlips?
Always use correct size internal circlip pliers
Straighten clips as twisted when removing
Apply thread lock to retain clips
Always fit new circlips
What would component shown be examined for?
Alignment
Ovality
Level
Wear

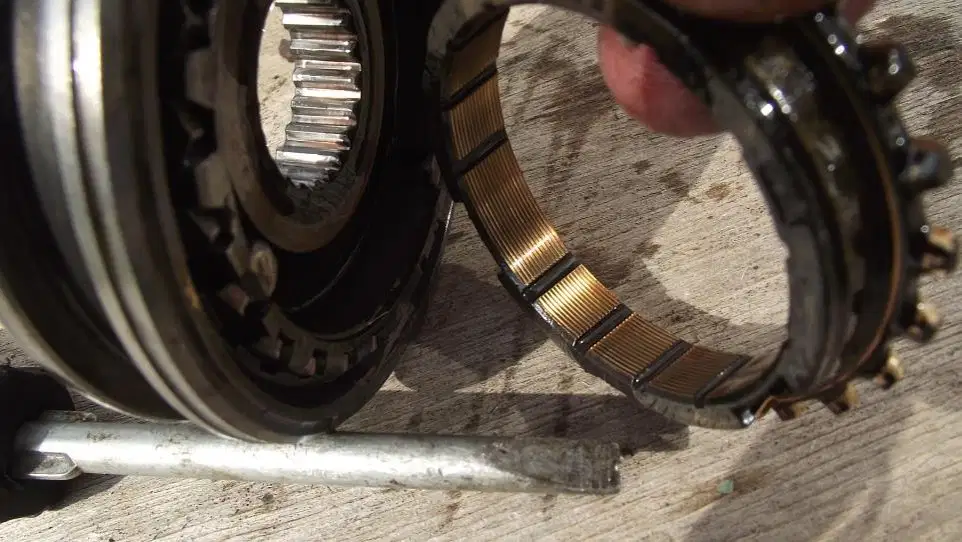

What is item shown?
Synchro baulk ring
Fifth gear selector
Fifth gear
Spur gear set

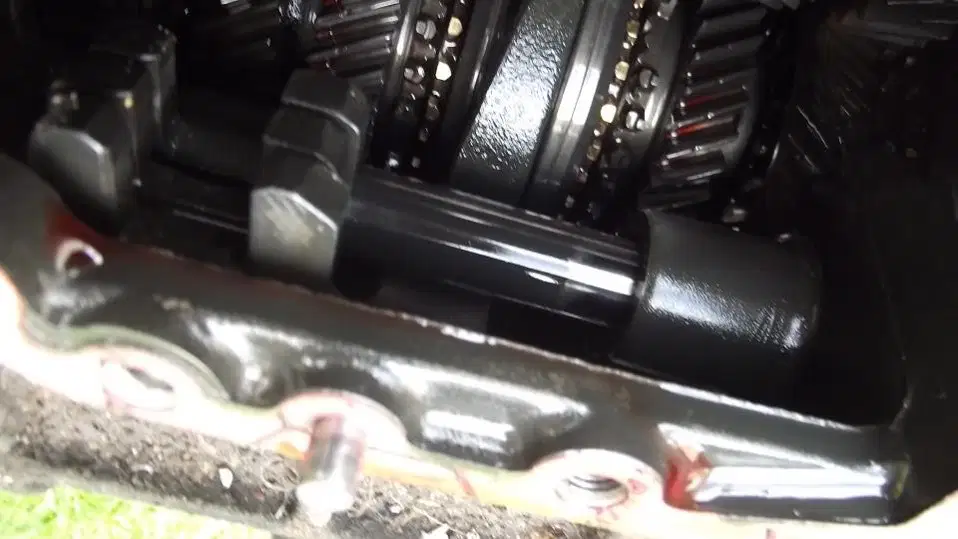

What position are the gear selectors?
Neutral
Fifth gear
Reverse gear
Overdrive gear
What gear is engaged in image?
First gear
Second gear
Fifth gear
Reverse gear

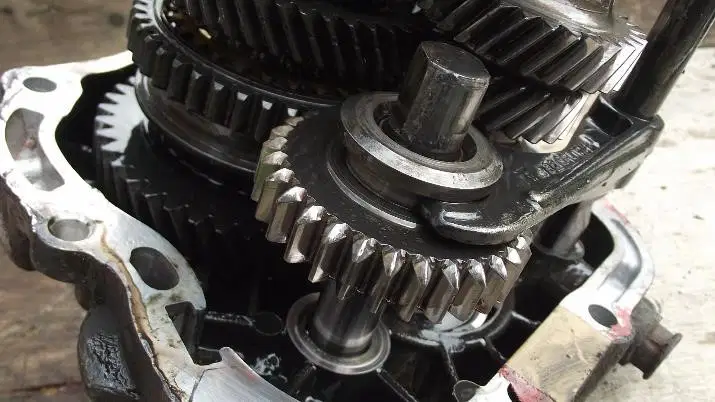

What type of gear is shown?
Spur
Helical
Bevel
bi-helical
