Worksheets2473 - 03 304 outcome 3
Total questions: 15
Worksheet time: 9mins
What is this?
Eye bolt
U Bolt and Pin
Pin and hoop
A Shackle
Chains need to be regularly checked
True
False
A Laser Level is a piece of aligning equipment that can help level a boat. What traditional piece of equipment could be used instead?
Water table
Water level
Water measure
Displacement float

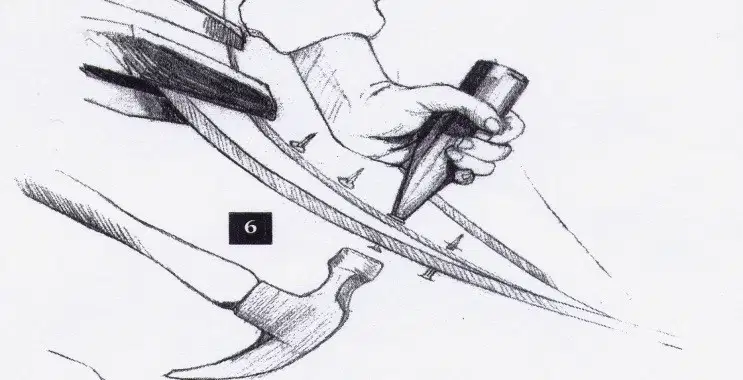

What's happening here?
Fixing using Roves and Nails
Fixing using Raves and Nails
Fixing using Pushpins
Fixing using Clasp Nails
What type of welding equipment can weld Titanium.
No Clean-Up is required after the weld and produces a High-Quality weld?
(a)
Which technique is commonly used for traditionally shaped craft e.g. sailing yachts that have a large
number of curved shape changes.
Plug to male mould then that male mould to make moulding
female plug then male mould to make moulding:
Plug to female mould then female mould to make moulding:
female mould to make a male mould to make moulding:
Select all the Covering and sheathing systems
Canvas sheathing
Silka-cover organic resin covering.
Epoxy/glass – Fibreglass covering the hull
A nylon cloth sheathing, glued with resorcinol glue
Problems that can occur during alignment of hulls and decks
Curing time must be long enough to allow assemblies to be fastened together accurately
Curing time must be short enough to allow assemblies to be fastened together accurately
Adhesives must not be left on the surface too long or a chemical reaction will destroy the surface
Only one person should apply the adhesive to ensure all the areas are covered

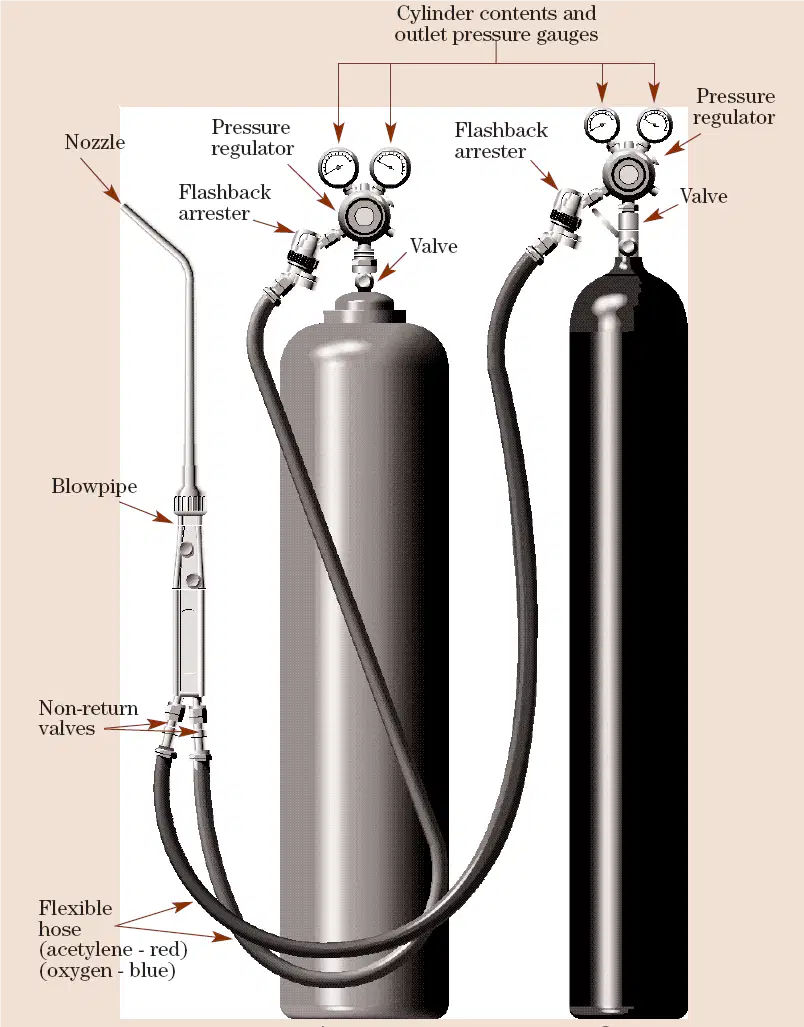

What is this piece of equipment?
Arc cutter
Plasm cutter
Oxy – Acetylene Welding
Flame cutter

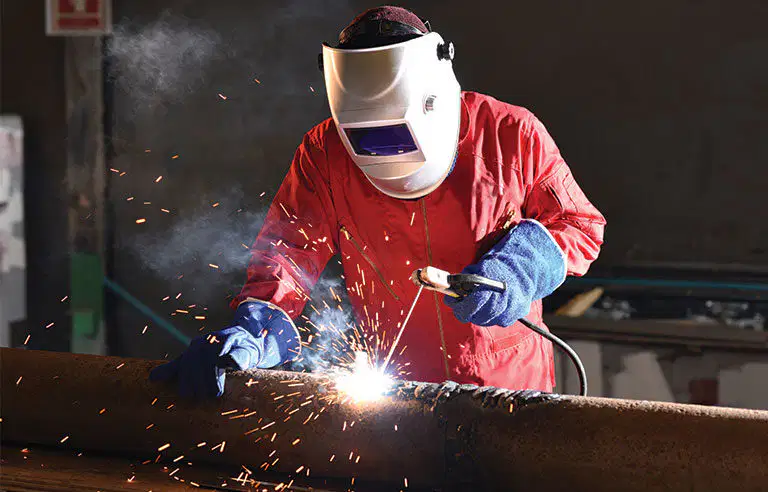

What type of welding equipment is quick, requires Minimal Clean-up, Easy to operate and is Flexible
(a)
What type of welding equipment is ideal for thicker Metals suitable for Outdoor environments and
Perfect for windy conditions
(a)
What is this?
G clamp
F clamp
Sash clamp
bar clamp

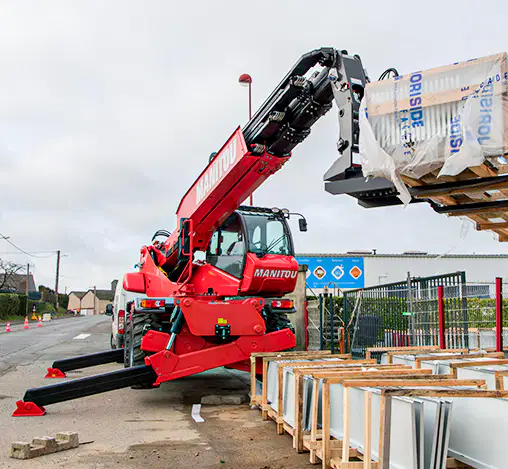

What is this? And what can it do?
Telehandler - Moves pallets only
Long reach mover - moves pallets or boats or tows with attachments.
Telehandler -used with a platform, fork, crane or towing attachments
Fork lift - used with fork or platform attachments
Which one is not an above deck structure?
Doghouse
Masts and spars
Vent box
Thwart knee
what can you see in the picture (choose more than one option)
King plank
Swept deck
Snapes
Arrow plank
