WorksheetsDay 1 Pressure
Total questions: 10
Worksheet time: 6mins

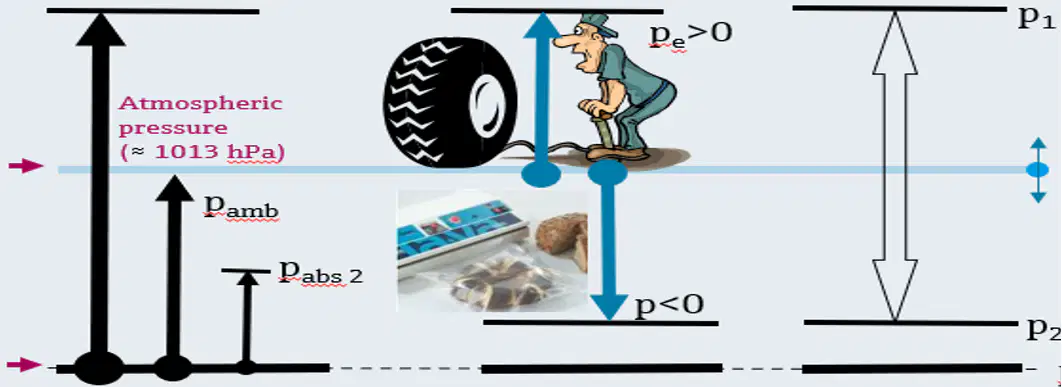

Three types of pressure discussed in this picture.
Absolute, DP & static pressure
Absolute, Gauge & Differential pressure
Absolute, Vacuum & Gauge pressure
Sky. Atmospheric & Space X pressure
Cerabar has sensor technology....
Ceramic & Plastic cell
Ceramic & metal cell
PTFE & Gold solid cell
None of these
Advantages of Metal cell are....(more than one)
Up to 400°C (diaphragm seal)
absolute vacuum
Coated membrane
Sensor up to 700 bar
What is the transmitter reading if applied with 10Bar?
1 bar
10 bar
9 bar
0 bar
Same fluid in all containers. Is hydrostatic pressure different?
YES
NO
Ceramic cell limitation (not fit to use)
Absolute Vacuum
100 bar process pressure
190 deg C process temperature
Nozzle flush mount installation
Hydrogen diffusion, select an appropriate device.....
PTFE coated membrane
PMP with 316 membrane
Gold plated membrane
FMX11
F&B application (cold liquids, condensation issue), ideal technology
Contite
Ceramic
Metal
Ultrasonic
Deep well water height measurement (approx. 200 m depth)
Dp Transmitter
Waterpilot
GWR
No Solution in our L+P portfolio
Diaphragm seals are available only with two materials, SS and AlloyC
YES
NO
