What is the front and rear type suspension for GW Cannon?
A: Double wishbone front suspension
B: Multi-link rear suspension
A: Macpherson front suspension
B: Leaf spring rear suspension
A: Double wishbone front suspension
B: Leaf spring rear suspension
A: Macpherson front suspension
B: Multi-link rear suspension
What type of transmission is using by GW Cannon?
ZF 8AT
7 speed CVT
10 speed AT
ZF 6HP
What is the advantage of using 8AT for GW Cannon?
Increase engine torque & improve driving experience
Reduce engine cruise speed & improve fuel economy
Increase fuel consumption & increase engine torque
Reduce break down & repair cost

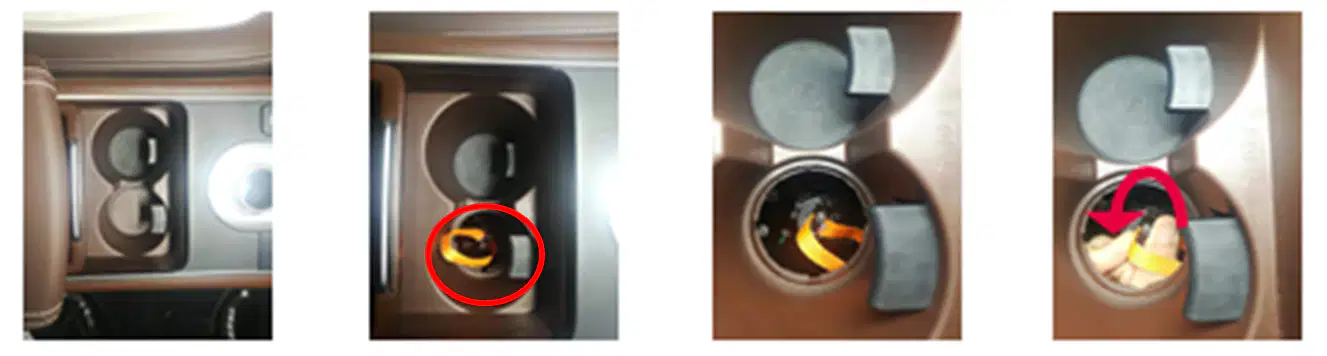

What is the main function of P gear release at the center console?
When need to apply P gear
When P gear cannot release to other gear
When D gear cannot release to other gear
When R gear cannot release to other gear
What type of power steering is using for GW Cannon?
Manual steering
Hydraulic power steering
Electric power steering
What is the component name of A & B?
A: Rotation speed sensor
B: Motor
A: Torque sensor
B: Motor
A: Pinion gear
B: EPS control unit
A: Torque sensor
B: Wheel speed sensor
What is the advantage of ELD(Electronic Limited Differential) using by GW Cannon?
More reliable, increase strength & increase service lift
More quite operation & reduce service cost
More efficiency on engage 4-wheel system & increase 4-wheel grip
Reduce service cost due to no clutch on ELD
What is the component name of A & B in the diagram?
A: Electric coil
B: Turning plate
A: Magnetic coil
B: Cam plate
A: Control Plat
B: Pushing plat
A: Limited differential clutch
B: Cam plat
What is the working process of ELD (Electronic Lock Differential) when LOCK State?
1. Power magnetic coil
2. Coil attracts the cam plate
3. Push rod slide out of the groove
4. Push rod pushes the lock ring and lock the gear
1. Power the magnetic coil
2. Push rod slides out the groove
3. Push rod slide out
4. Push rod pushes the lock ring and lock the gear
1. Differential clutch engage
2. the clutch coil attract the cam plate
3. Push rod slides out to the groove
4. Push rod push the lock ring and lock the gear
1. Differential clutch engage and energize magnetic coil
2. the coil attracts the cam plate
3. Push rod slides out the groove
4. Push rod pushes the lock ring and lock the gear
What is the working process of ELD (Electronic Limited Differential) when UNLOCK state?
1. ELD Controller cut OFF current
2. Loos of the magnetic
3. Return spring pushes the lock ring back
4. Differential gear unlock
1. Differential clutch disengage and loss of magnetic
2. Return spring pushes the lock ring back
3. Differential gear unlock
1. ELD controller supply current input
2. Magnetic coil increase of magnetic
3. Return spring pushes the lock ring back
4. Differential gear unlock
1. ELD controller cut of current and disengage clutch of differential
2.Loss of torque from clutch
3. Return spring pushes the lock ring back
4. Differential gear unlock
What is the name of component A?
VCU Controller
ELD Controller
TCU Controller
TOD controller
How is the ELD communicate with other controller?
ELD will communicates with TCU only
ELD will use CAN-L only to communicate with other control unit
EDL communicates by PT-CAN
ELD not communicate with others control unit
How to inspect the magnetic coil of ELD?
Use voltmeter to check voltage of the coil
Use ampere meter to check electric amp of the coil
Use Ohm meter to check resistance of the coil
Use continuity to check the continuity of the wire
GW Cannon's EPS system will help the steering wheel return to the center position through the "active straightening" function.
TRUE
FALSE
GW Cannon's EPS system included "end of rack protection" & "overheating protection" .
TRUE
FALSE
What is the function of steering multi-mode function for GW Cannon?
Provide multi selectable power assistance mode to adapt the different driving habit
Provide multi comfort mode to increase driving pleasure
Provide multi-steering gear ratio to make sure the steering cornering angle is easy for all environment
Provide safety feature when driving in hush road condition
What is the function of battery voltage torque limited function for GW Cannon?
When the battery voltage is low, EPS will limit the output current to the motor
When the battery voltage is low, EPS still can assist driver as normal condition
When the battery voltage is low, EPS will totally not function
When the battery voltage is low, EPS will working in abnormal condition
How is the communication of EPS with other control unit?
EPS is only communicate with ESP (Electronic Stability Program)
EPS is using CAN-H to communicate with other control unit
EPS is not communicate with others control unit
EPS is using PT-CAN to communicate with other control unit
What is the component name of A & B in the diagram?
A: Coil spring rear suspension
B: ABS system
A: Leaf spring rear suspension
B: Double wishbone front suspension
A: Torsion beam rear suspension
B: ESP(Electronic suspension program)
A: Leaf spring rear suspension
B: 9th generation ESP(Electronic stability program)
GW Cannon have how many driving mode?
Standard, Economy, Sport & 4L
Standard, Economy, 4H, 4L
Economy, Sport, 2H, 4H
Extra Sport, Sport, 4L, 4H
