Worksheetscessna 172 SP Aircraft Type Knowledge for CPL
Total questions: 20
Worksheet time: 22mins

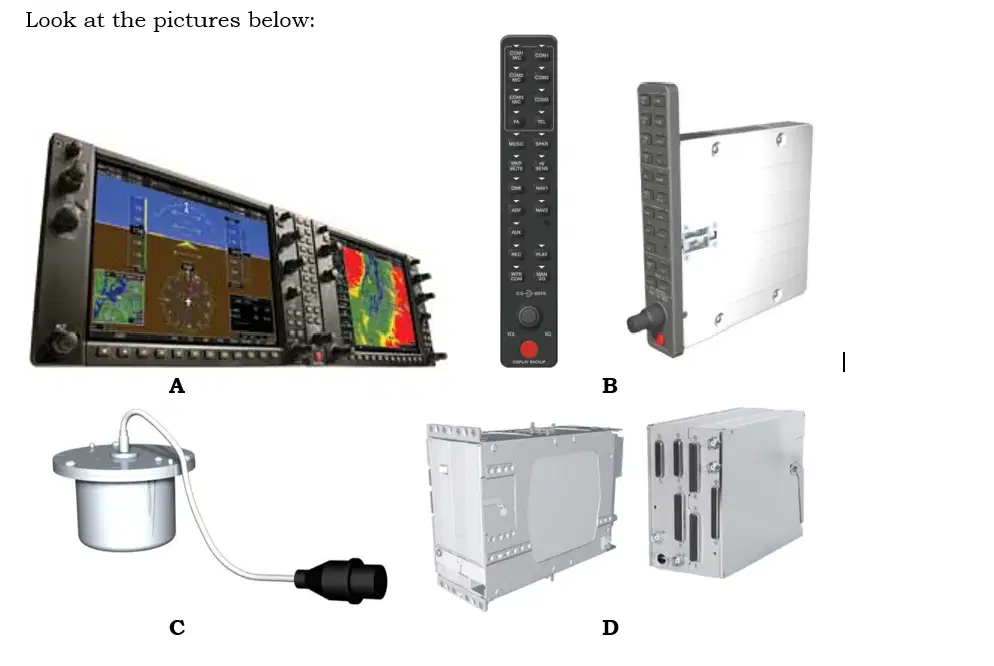

1. Audio Panel integrates NAV/COM digital audio, intercom system and marker beacon controls.
A
B
C
D

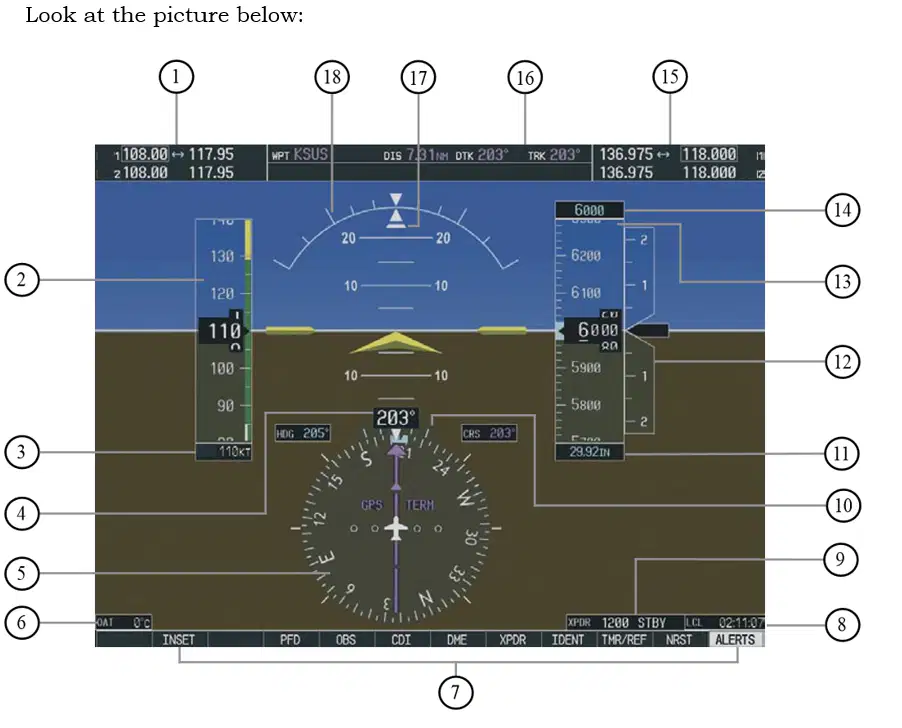

1. Manually selects a heading when turned. Synchronizes the heading bug with the compass lubber line when pressed.
Heading Knob
Dual COM Knob
joystick
dual NAV Knob
to fill radio Navigation frequency on the PFD, using knop number ?
3
2
1
9
1. What is the name of item shown by number 8
COM Frequency Toggle Key
NAV Frequency Toggle Key
COM VOL / SQ Knob
NAV VOL / ID Knob
NAV Frequency Window. Shown by number
1
8
15
9

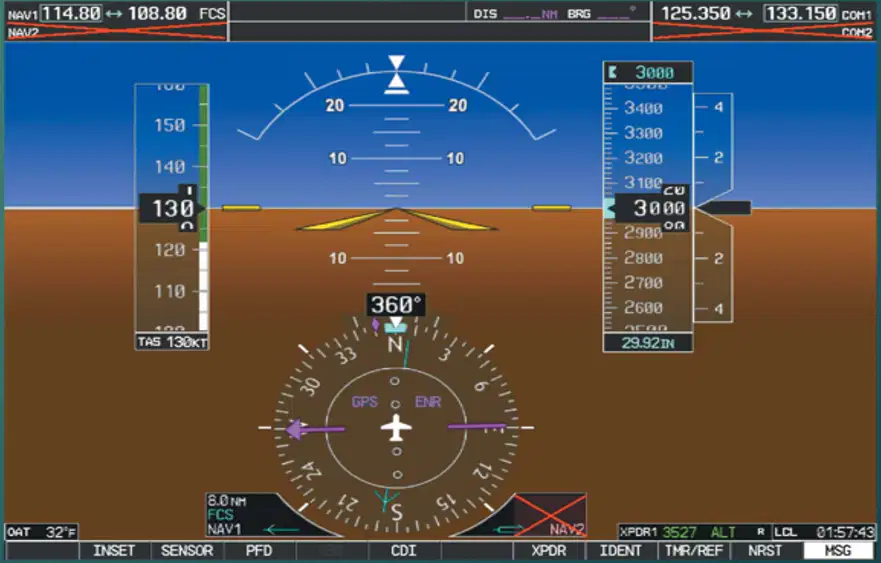

What is the problem in this case?
PFD Failure
MFD Failure
NAV 2 Failure
COM 2 Failure
The engine manufacturer for Cessna 172 SP is...
Textron lycoming
Avco lycoming
Mccauley
General electric
The engine model for Cessna 172 SP is...
O-360-A2D
IO-320-R2A
IO-360-L2A
O-320-R2A
The propeller manufacturer OF CESSNA 172 sp is...
Mccauley proppeler system
Hartzell
Aerospatialle
Genx
Red arc Speed indicator ranged cessna 172 SP between ?
40 - 85 kt
20 - 40 kt
129 - 163 kt
48 - 129 kt
Total unusable fuel FOR CESSNA 172 sp is...
28 liters
1 quartz
3 us Gall
54 us Gall
Service ceiling for Cessna 172 SP is...
15.000 ft
14.000 ft
30.000 ft
25.000 ft
What is propeller type of cessna 172S?
Constant speed
Fixed pitch
Variable pitch
Horizontally opposed
What is the squawk number for VFR flight ?
7000
1200
7500
7600
Max window opening speed cessna 172 Sp
163 kias
162 kias
95 kias
80 kias
type transponder of Cessna 172 SP is ?
A
C
S
M
ENGINE FAILURE DURING FLIGHT (Restart Procedures)
1. Airspeed - 68 KIAS (best glide speed)
2. FUEL SHUTOFF Valve - ON (push full in)
3. FUEL SELECTOR Valve - BOTH
4. FUEL PUMP Switch - ON
5. Mixture Control - RICH (if restart has not occurred)
6. MAGNETOS Switch - BOTH (or START if propeller is stopped)
1. Throttle Control - IDLE (pull full out)
2. Brakes - APPLY
3. Wing Flaps - RETRACT
4. Mixture Control - IDLE CUTOFF (pull full out)
5. MAGNETOS Switch - OFF
6. STBY BATT Switch - OFF
7. MASTER Switch (ALT and BAT) - OFF
1. Airspeed - 70 KIAS - Flaps UP
65 KIAS - Flaps 10° - FULL
2. Mixture Control - IDLE CUTOFF (pull full out)
3. FUEL SHUTOFF Valve - OFF (pull full out)
4. MAGNETOS Switch - OFF
5. Wing Flaps - AS REQUIRED (FULL recommended)
6. STBY BATT Switch - OFF
7. MASTER Switch (ALT and BAT) - OFF
8. Cabin Door - UNLATCH
9. Land - STRAIGHT AHEAD
1. Radio - TRANSMIT MAYDAY on 121.5 MHz, (give location,
intentions and SQUAWK 7700)
2. Heavy Objects (in baggage area) - SECURE OR JETTISON (if
possible)
3. Pilot and Passenger Seat Backs - MOST UPRIGHT POSITION
4. Seats and Seat Belts - SECURE
5. Wing Flaps - 20° - FULL
6. Power - ESTABLISH 300 FT/MIN DESCENT AT 55 KIAS
silahkan cocokkan bermacam macam kecepatan pada pesawat Cessna 172 SP
VNE
163 KT
VA for 2550 pounds
105 KT
VNO
129 KT
Maximum Structural
Cruising Speed (Vno) of Cessna 172 Sp ?
120 kt
90 kt
129 kt
100 kt
match the following questions. related to AIRSPEED INDICATOR MARKING CESSNA 172 sp
RED ARC
20 - 40 KT
GREEN ARC
48 - 129 KT
YELLOW ARC
129 - 163 KT
RED LINE
163 KT
