WorksheetsGame Manual 0 Mechanisms
Total questions: 10
Worksheet time: 10mins

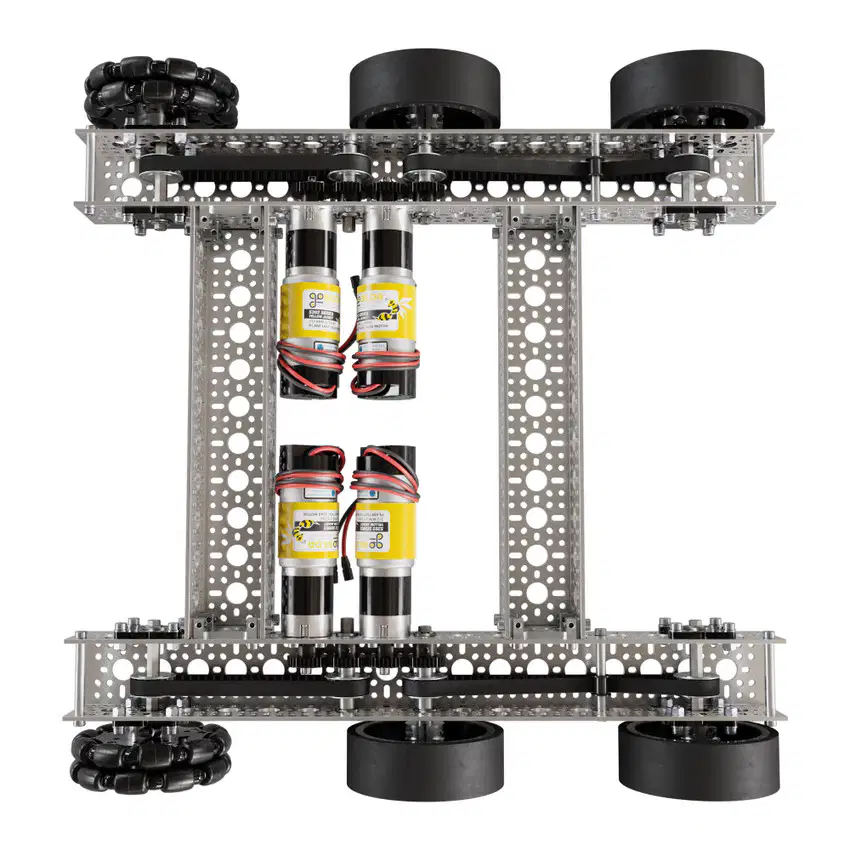

What is the purpose of the omni-wheels at the corners?
Allow the robot to drive sideways
Make the robot easier to turn
Provide better traction
Make the robot drive faster
What are advantages of a tank drive?
Good traction
High acceleration
Can drive sideways
Easy to drive
Name this lift mechanism
Double-reverse four bar
Virtual six bar with twist
Crane extension bars
Telescoping bar elevator

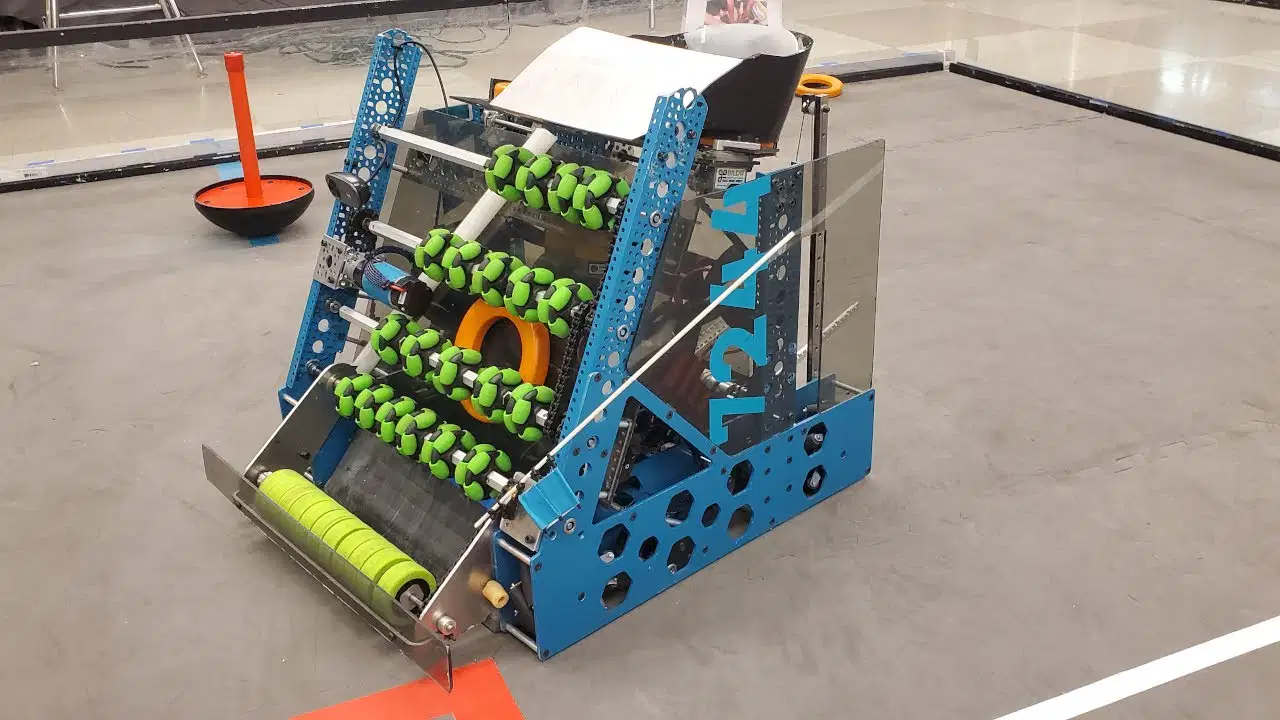

Which of these is NOT an active intake?
What is a dead wheel?
A wheel that rolls without being driven
A broken wheel left on the field
A wheel with a stuck motor
A wheel with the wrong size axle
How many of these are types of transfer mechanism?
Roller conveyer
Continuous belt conveyer
Flip Up transfer
Grate transfer
What type of mechanism is used to rotate the top of this robot?
Lazy susan turret
Spinning plate balancer
Linear slide stack
Universal joint bearing

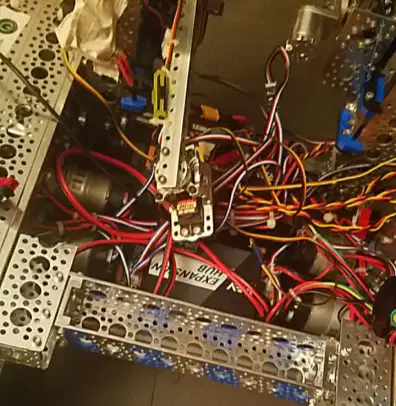

Why is organized wiring important?
It makes the robot easier to troubleshoot and repair
It prevents damage to critical components like motors and servos
It improves robot reliability in competition
It is satisfying and makes for good portfolio photos
It prevents incorrect connections at the control hub
When should you use a servo?
For replacing a motor for high speed
For accurate motion
For heavy loads and high shock
For catapults

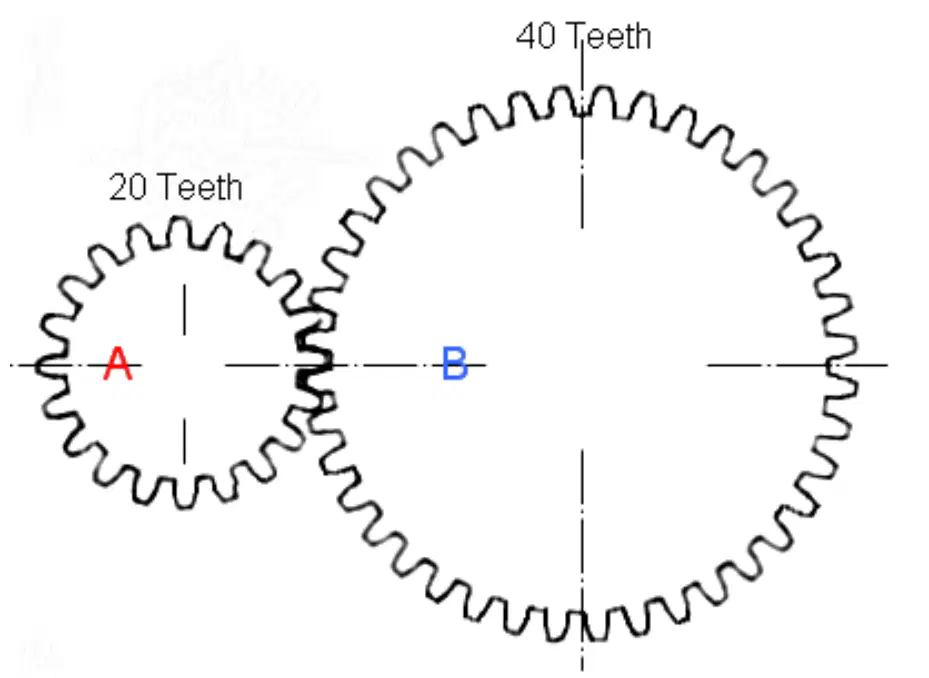

Gear A is driving gear B, which of these is true?
Gear B spins twice as fast as A with half the torque
Gear B spins half as fast as A with double the torque
Gear B spins twice as fast as A with double the torque
Gear B spins half as fast as A with half the torque
