WorksheetsWood Construction (Reviewer)
Total questions: 15
Worksheet time: 11mins
Any non-load bearing system of boards, prefabricated components, stone, brick, sheeting etc. attached to a building frame as weatherproofing or as an exterior or interior finish.
External wall framing
Exterior wall cladding
Roof sheathing
Special protection sheet
True or false: BUILT-UP BEAM is made by gluing sawn or laminated veneer lumber flanges along the top and bottom edges of a single plywood or oriented strand board web.
True
False
A COLUMN having a hollow, square or rectangular cross section.
Built-up column
Box column
Solid column
None of the above
A vertically laminated wood BEAM made by fastening together two or more smaller members with bolts, lag screws, or spikes, equal in strength to the sum of the strengths of the individual pieces if none of he laminations are spliced.
Built-up beam
Box beam
I-beam
High beam
A wood COLUMN consisting of a single piece of solid-sawn or glued-laminated timber, usually square or rectangular in cross section.
Built-up column
Box column
Solid column
All of the above
A metal ring or cap placed around the end of a wooden post or handle to prevent splitting.
ferrous
ferrule
ferrum

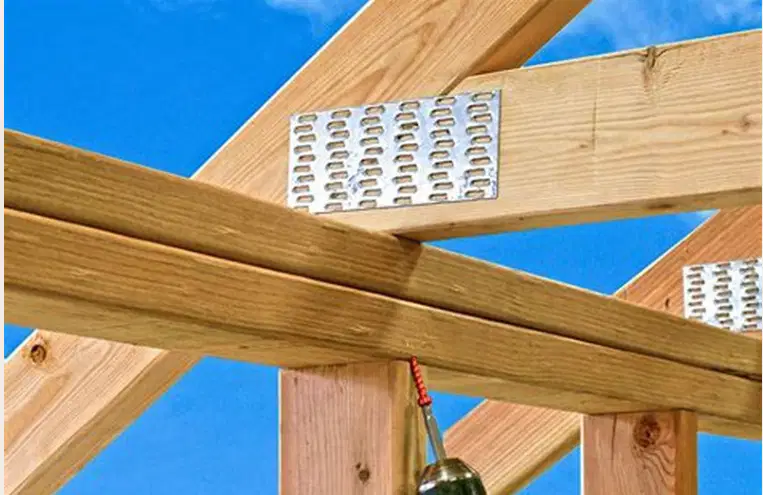

Identify the object shown in the picture:
Metal sheet band
Metal tooth plate connector
Metallic wood overlay
Metal polished plating

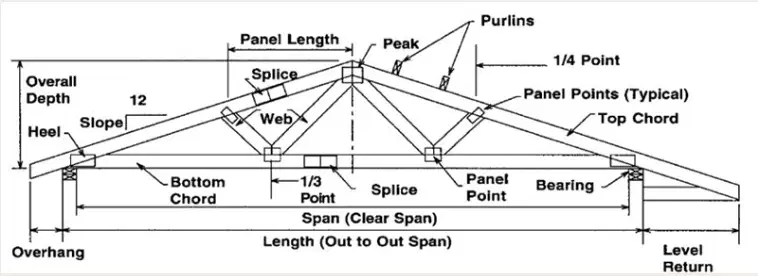

Identify what type of truss is shown:
Parallel chord truss
Pitch chord truss
Triangular truss
Pyramidal truss
It is used to form roof assemblies, but they are more commonly used to form floor assemblies
Parallel chord truss
Pitch chord truss
Triangular truss
Pyramidal truss
Wood panel product made by bonding veneers together under heat and pressure, usually with the grain at right angles to each other and symmetrical about the counter ply
Veneer
Crossband
Plywood
Core
A type of cut where the log is mounted centrally in the lathe and turned against a razor sharp blade, like unwinding a roll of paper.
Rift-cut
Plain slicing
Quarter slicing
None of the above
Determine the ACTUAL SIZE for the nominal size of lumber that is 2 inches x 6 inches
1-1/4" x 5-1/4"
1-3/4" x 5-3/4"
2-1/16" x 6-1/8"
1-1/2" x 5-1/2"
Wood in any of its stages from felling and structural material for construction, or wood pulp for paper production, also known as timber.
Log
Timber
Fiber
Lumber
Nominal 1x6 or 2x4 lumber that are installed in the upper one-third of the attic space to every third pair of rafters to secure the ridge framing.
Box beam
Buit-up beam
Collar beam
Solid beam
Roof construction may be of inadequate strength to withstand anticipated snow and wind loads.
True
False
Not sure
