1.

This is a way to find out if the patient has MS or MR, and is also used to calculate the MVA, mean PG and pressure half-time if MS is present.

a)

CWD

b)

PWD

2.

This gives us a sample of inflow at the tips of the MV leaflets and is used for the diastolic function assessment.

a)

CWD

b)

PWD

3.

This is a mode of echo that measures the velocity of the heart muscle through the phases of one or more heartbeats by the Doppler effect of the reflected ultrasound

a)

CWD

b)

PWD

c)

Tissue Doppler (TDI)

4.

The chambers will affect the velocity and shape of the Doppler inflow signal. This is a relationship between early and late filing, how rapid flow velocity declines in early diastole, and how long it takes for filling of the ventricle to start after the ventricle relaxes.

a)

CWD

b)

PWD

c)

Tissue Doppler to assess diastolic function and dysfunction

d)

TDI

5.

This is to evaluate pulmonary vein flow reversal and the hemodynamics due to MR.

a)

CWD

b)

PWD- PV4

c)

TDI

d)

Tissue Doppler

6.

What is going on in this image?

a)

Normal

b)

Systolic Blunting

c)

Flow Reversal

7.

What is going on in this image?

a)

Normal

b)

Systolic Blunting

c)

Flow Reversal

8.

What is going on in this image?

a)

Normal

b)

Systolic Blunting

c)

Flow Reversal

9.

What is S?

a)

Systolic

b)

Diastolic

c)

Time of peak reversal flow (atrial contraction

10.

What is D?

a)

Systolic

b)

Diastolic

c)

Time of peak reversal flow (atrial contraction

11.

What is Ar?

a)

Systolic

b)

Diastolic

c)

Time of peak reversal flow (atrial contraction

12.

What is the name and stage of this?

a)

Normal, 0

b)

Impaired Relaxation, I

c)

Pseudonormal, II

d)

Restrictive (Reversible), III

13.

What is the name and stage of this?

a)

Impaired Relaxation, I

b)

Pseudonormal, II

c)

Restrictive (Reversible), III

d)

Restrictive (Non-reversible), IV

14.

What is the name and stage of this?

a)

Impaired Relaxation, I

b)

Pseudonormal, II

c)

Restrictive (Reversible), III

d)

Restrictive (Non-reversible), IV

15.

What is the name and stage of this?

a)

Impaired Relaxation, I

b)

Pseudonormal, II

c)

Restrictive (Reversible), III

d)

Restrictive (Non-reversible), IV

16.

What is the name and stage of this?

a)

Impaired Relaxation, I

b)

Pseudonormal, II

c)

Restrictive (Reversible), III

d)

Restrictive (Non-reversible), IV

17.

What is A?

a)

PM

b)

LV

c)

LA

d)

AO

18.

What is B?

a)

PM

b)

LV

c)

LA

d)

AO

19.

What is C?

a)

LV

b)

LA

c)

AO

d)

SAM

20.

What is D?

a)

LV

b)

LA

c)

AO

d)

SAM

21.

What is E?

a)

LV

b)

LA

c)

AO

d)

SAM

22.

What is 1?

a)

Focus of AOV

b)

Focus of IVRT

23.

What is 2?

a)

Focus of AOV

b)

Focus of IVRT

24.

What is A?

a)

CWD-AOV

b)

CWD- AR/AS

c)

CWD-IVRT

25.

What is B?

a)

CWD-AOV

b)

CWD- AR/AS

c)

CWD-IVRT

26.

What is C?

a)

CWD-AOV

b)

CWD- AR/AS

c)

CWD-IVRT

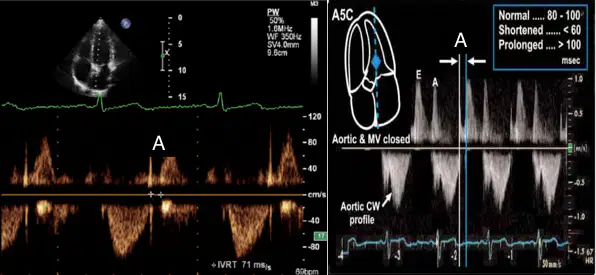

27.

What is A?

a)

IVCT

b)

Systole

c)

Diastole

d)

IVRT

28.

What is 3?

a)

Focus-AOV

b)

Focus- IVRT

c)

PWD LVOT gate

d)

PWD LVIT gate

29.

What is the top picture?

a)

PWD- normal LVOT

b)

CWD- LVOTO

c)

PWD LVOT gate

d)

PWD LVIT gate

30.

What is the bottom image?

a)

PWD- normal LVOT

b)

CWD- LVOTO

c)

PWD LVOT gate

d)

PWD LVIT gate

31.

What is 1?

a)

Basal Inferior Wall

b)

Mid Inferior Wall

c)

Apical Inferior Wall

d)

Apical Cap

32.

What is 2?

a)

Basal Inferior Wall

b)

Mid Inferior Wall

c)

Apical Inferior Wall

d)

Apical Cap

33.

What is 3?

a)

Basal Inferior Wall

b)

Mid Inferior Wall

c)

Apical Inferior Wall

d)

Apical Cap

34.

What is 4?

a)

Basal Inferior Wall

b)

Mid Inferior Wall

c)

Apical Inferior Wall

d)

Apical Cap

35.

What is 5?

a)

Apical Cap

b)

Apical Anterior Wall

c)

Mid Anterior Wall

d)

Basal Anterior Wall

36.

What is 6?

a)

Apical Cap

b)

Apical Anterior Wall

c)

Mid Anterior Wall

d)

Basal Anterior Wall

37.

What is 7?

a)

Apical Cap

b)

Apical Anterior Wall

c)

Mid Anterior Wall

d)

Basal Anterior Wall

38.

What is the arrow is pointing to?

a)

LAA

b)

LA area

c)

Dilated CS

d)

Length

39.

What is the red and yellow?

a)

Red: LA Area

Yellow: Length

b)

Red: Length

Yellow: LA Area

c)

Red: Circumference

Yellow: Length

d)

Red: Length

Yellow: Circumference

40.

What is the arrow pointing to?

a)

LAX SUPRA

b)

LAX SUB

c)

LAX DAO

d)

LAX AAO

41.

What is A?

a)

Inferior Wall (LV)

b)

Diaphragm

c)

Posterior leaflet mitral valve

d)

Abdominal aorta

42.

What is B?

a)

Inferior Wall (LV)

b)

Diaphragm

c)

Posterior leaflet mitral valve

d)

Abdominal aorta

43.

What is C?

a)

Inferior wall (LV)

b)

Diaphragm

c)

Posterior leaflet mitral valve

d)

Abdominal aorta

44.

What is D?

a)

Inferior wall (LV)

b)

Diaphragm

c)

Posterior leaflet mitral valve

d)

Abdominal aorta

45.

What is E?

a)

LV apex

b)

Anterior wall (LV)

c)

Anterior leaflet mitral valve

d)

Left atrial appendage

46.

What is F?

a)

LV apex

b)

Anterior wall (LV)

c)

Anterior leaflet mitral valve

d)

Left atrial appendage

47.

What is G?

a)

Anterior wall (LV)

b)

Anterior leaflet mitral valve

c)

Left atrial appendage

d)

Descending thoracic aorta

48.

What is H?

a)

Anterior wall (LV)

b)

Anterior leaflet mitral valve

c)

Left atrial appendage

d)

Descending thoracic aorta

49.

What is I?

a)

Anterior wall (LV)

b)

Anterior leaflet mitral valve

c)

Left atrial appendage

d)

Descending thoracic aorta

50.

What is J?

a)

RV

b)

LV

c)

LA

d)

RA

51.

What is K?

a)

LV

b)

LA

c)

RA

d)

RV

52.

What is A?

a)

RV

b)

TV

c)

MV

d)

RA

53.

What is B?

a)

RV

b)

TV

c)

MV

d)

RA

54.

What is C?

a)

RV

b)

TV

c)

MV

d)

RA

55.

What is going on in this image?

a)

Off-axis 3C

b)

3C RVIT

c)

TR

d)

CWD- TV & Peak TRV

56.

What is going on in this image?

a)

Off-axis 3C

b)

3C RVIT

c)

TR

d)

CWD- TV & Peak TRV

57.

What is going on in this image?

a)

Off-axis 3C

b)

3C RVIT

c)

TR

d)

CWD- TV & Peak TRV

58.

What is going on in this image?

a)

Off-axis 3C

b)

3C RVIT

c)

TR

d)

CWD- TV & Peak TRV

59.

What is the name of this view?

a)

4C

b)

3C

c)

5C

d)

2C

60.

What is the view of this image?

a)

4C

b)

3C

c)

5C

d)

2C

61.

What is the name of this view?

a)

3C

b)

2C

c)

5C

d)

4C
